M-03 / Application-specific model
MO-651 H5X
Remote Keyless Entry · 3-zone CAN remote keyless entry module with remote-enabled output options.
MO-651 H5X targets secure multi-zone access in buses, coaches and service vehicles. The module supports remote-enabled configurations and communicates over SAE J1939 CAN bus.
- Protocol
- CAN Bus (SAE J1939)
- Supply
- 24 VDC variants
- Protection
- IP54
Overview
Built for dedicated machine functions.
Highlights
- Dedicated 3-zone access control architecture
- Remote-enabled and dash output variants
- Secure code transmission with rolling code
- CAN-ready for vehicle system integration
Specifications
- Communication
- CAN Bus (SAE J1939)
- Supply Voltage
- 24 VDC (variant dependent)
- Ingress Protection
- IP54
- Housing
- % 30 GF Reinforced Polyamide Plastic Case
- Security
- Code rolling technology
- Application
- Door latches, trunk lids and lift gates

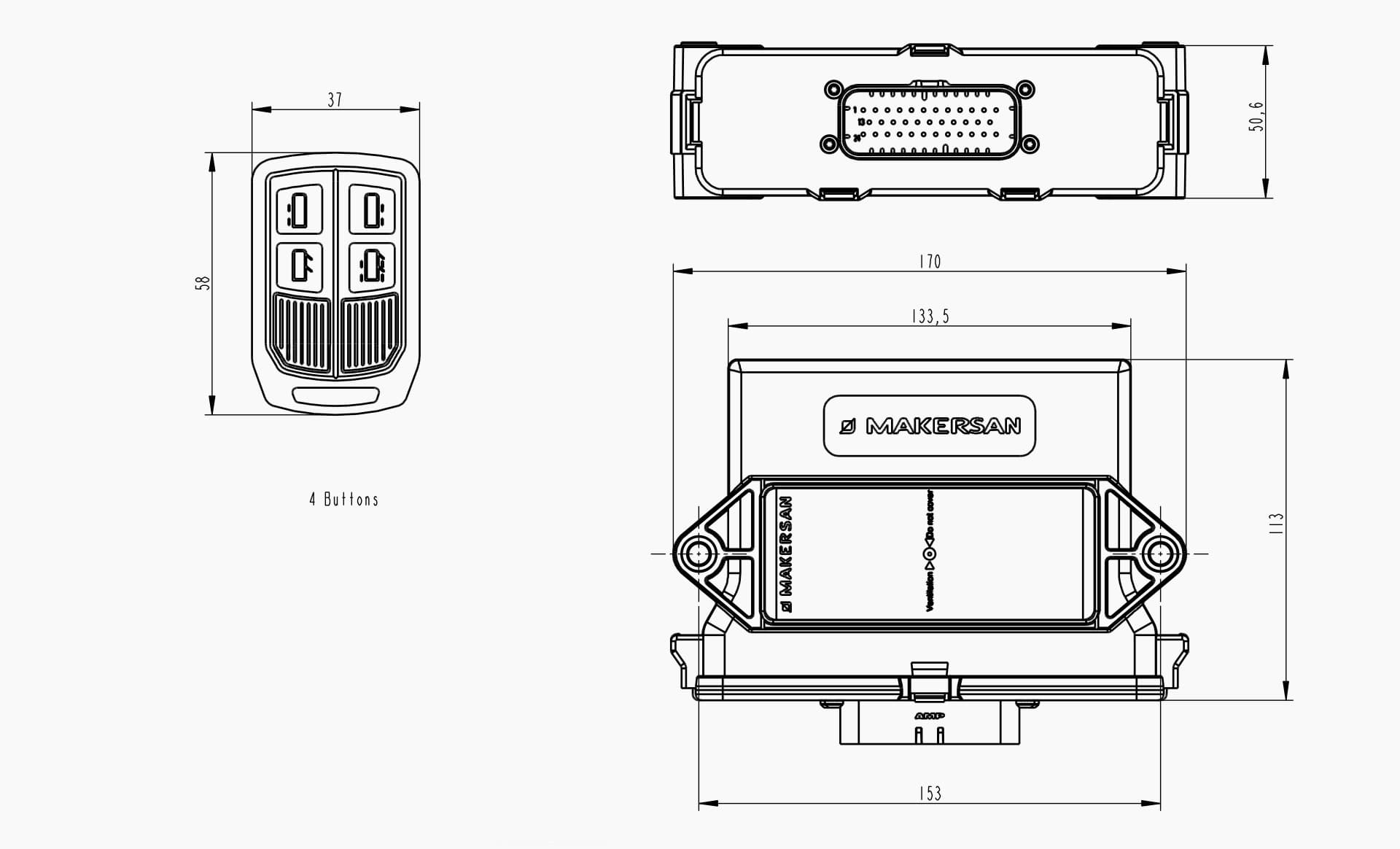

Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 651
- H5X
- SXXXX
X stands for the digits you pick from the table.
| MO 651 - | H5X - Hardware | SXXXX Software |
|---|
* 3 zone control & CAN
Example:
- 651
- H50
- S1000 is 24VDC with Remote Control CANJ1939
