P-02 / Controllers

Controllers built
to run the machine.

Controller & I/O modules controls different functions such as relay, valve and motor control for commercial vehicles, off-road vehicles, marine and industrial machines.

Explore the familyContact Us
Scroll
Series 01Coming soonAdvance

Advance Controller

Advance series controllers are designed for demanding applications requiring more advanced I/O capabilities, higher power capacity, enhanced stability, and compliance with functional safety standards. They are developed for critical vehicle applications such as body, transmission, and engine control.

All series

No models are listed in this series yet.

Series 022 modelsCompact

Compact Controller

Compact controller using CAN bus meet local specific functions of your vehicle such as multi function IO, proportional valve control, BLDC & Step motor control and high current switch.They are interfacing with a main control unit auxiliary functions with on-board I/O.

All series

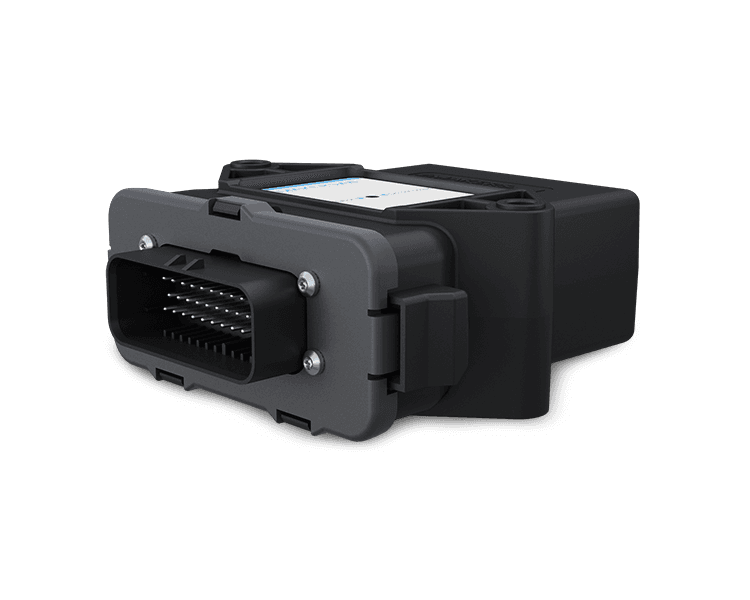

  1. Makersan MO 691 H1X compact mix I/O controller module with sealed enclosure and high-density connector interface.

    Mix I/O Controller MO 691 H1X

    MO 691 H1X is a compact controller designed for machine platforms that need high channel density in a sealed 35-pin body. It supports mixed digital, analog, current and resistive sensing together with high-side, low-side and proportional control outputs.

  2. Makersan MO 691 H2X compact valve controller module with sealed enclosure and 35-pin connector interface.

    Valve Controller MO 691 H2X

    MO 691 H2X is a compact CAN-bus valve controller for commercial and off-road machines that require dense analog sensing and precise proportional actuation in a sealed IP67 package.

Series 031 modelECO

ECO Controller

ECO series controller automate applications using CAN bus, they are cost sensitive units with basic IO functions such as expanding control system capability with on-board I/O.

All series

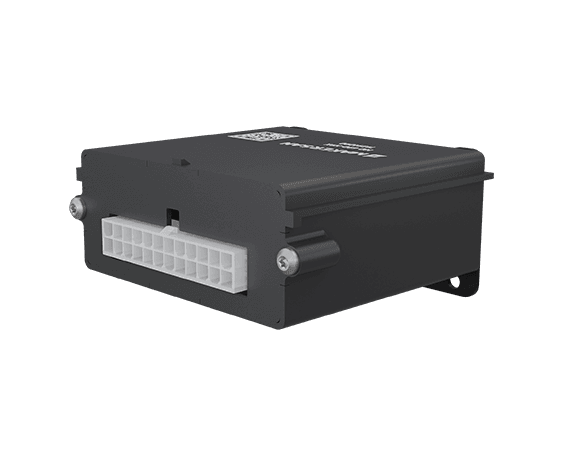

  1. Makersan MO 690 H1X mix I/O controller module shown in a compact black enclosure with connector interface.

    Mix I/O Controller MO 690 H1X

    MO 690 H1X is an ECO-class Mix I/O controller for commercial vehicles, off-road platforms, marine and industrial machines. It combines flexible analog and digital signal handling with high-side and low-side outputs in a compact 24-pin architecture.

Series 041 modelMini

Mini Controller

Mini controller specifically designed for use in cost-sensitive applications using CAN bus, they are interfacing with a control unit to drive valves and small motors such as fan control.

All series

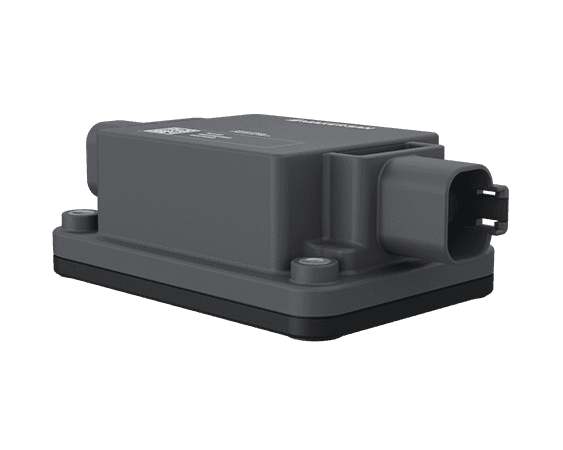

  1. Compact CAN-based proportional valve controller with two 2 A high-side outputs, individual current feedback and two multifunction inputs. Integrated safety logic and EEPROM provide reliable control for mobile machinery.

    Valve Controller MO 699 H1X

    Compact CAN-based proportional valve controller with two 2 A high-side outputs, individual current feedback and two multifunction inputs. Integrated safety logic and EEPROM provide reliable control for mobile machinery.

In motion

Real-time control loops, no delays.

Live output states, fast signal processing and deterministic CAN messaging keep hydraulic, drive and body functions responsive under load.

Makersan controller lineup highlighting compact, mid-range and high-I/O modules for mobile machine control.
Common platform

Engineered for harsh duty cycles.

Every controller passes the same EMC, vibration, salt-spray and thermal-shock test programme — the only thing that changes between models is the I/O count and connector layout.

Sealing
IP67
Operating
-40°C ... +80°C
Supply
8(12)~32 VDC
Bus
SAE J1939 or CANopen
Outputs
Mix IO, Valve Driver
Tooling
USB to CAN / USB2CAN interface
Applications

Where our controllers go to work.

Specified by OEMs across off-road, marine and industrial automation. Tell us about your platform and we'll spec the right module mix and harness layout.

Start a project
  • Hydraulic valve & cylinder control
  • Motor & actuator drive systems
  • Lighting & body electronics
  • Hitch, header & implement control
  • Marine helm & deck systems
  • Material handling & AGV platforms
