P-11 / Door Access Systems

The full path
into the vehicle.

Sealed handles, cylinder locks, latches, electric and pneumatic actuators, RKE keyfobs and central-lock units — combined into a single supplier program proven on bus, coach, motorhome and caravan platforms across Europe.

Explore the familyContact Us
Scroll
Series 017 models

Door Handles

All series
  1. Makersan MO 026 exterior door handle.

    Exterior Door Handle MO 026

    MO 026 is an exterior passenger door handle with a patented, water-ingress-resistive mechanism in a UV-stabilized, glass-fibre reinforced housing.

  2. Makersan MO 026-01 exterior door handle.

    Exterior Door Handle MO 026-01

    MO 026-01 is an exterior door handle with a push-button release mechanism, built in a UV-stabilized, glass-fibre reinforced polyamide housing with an EPDM rubber seal for outdoor door applications.

  3. Makersan MO 028 exterior door handle.

    Exterior Door Handle MO 028

    MO 028 is an exterior door handle available with manual or electric actuation, built on the patented sealed mechanism in a UV-stabilized glass-fibre reinforced housing.

  4. Makersan MO 033 exterior door handle.

    Exterior Door Handle MO 033

    MO 033 is an exterior door handle available with manual or electric actuation, with actuator and rod linkage options for varied door architectures.

  5. Makersan MO 037 interior door handle.

    Interior Door Handle MO 037

    MO 037 is an interior door handle available with manual or electric actuation, with an optional integrated switch for door-state feedback.

  6. Makersan MO 047 exterior door handle.

    Exterior Door Handle MO 047

    MO 047 is an exterior door handle available with manual or electric actuation, offering actuator, rod and switch options for flexible integration.

  7. Makersan MO 057 passenger door locking pin.

    Locking Pin MO 057

    MO 057 is a bolt-type locking pin for passenger doors, in a UV-stabilized glass-fibre reinforced housing.

Series 0210 models

Luggage Handles

All series
  1. Makersan MO 021 / 023 luggage flap handle.

    Luggage Flap Handle MO 021 / 023

    MO 021 / MO 023 is a coach luggage-flap handle with a patented locking mechanism that can be opened from the inside even when locked from outside. EPDM-sealed, UV-stabilized and rated to 504-hour salt-mist.

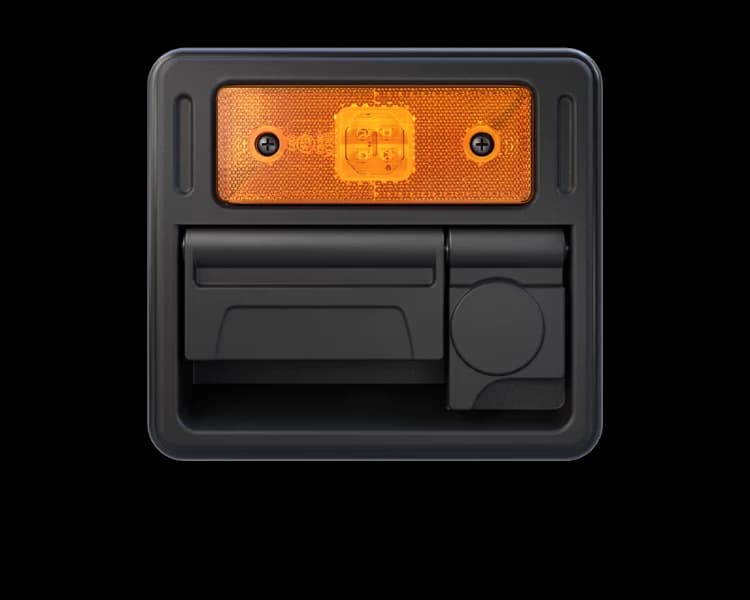

  2. Makersan MO 022 / 024 luggage flap handle with integrated LED side marker.

    Luggage Flap Handle with LED MO 022 / 024

    MO 022 / MO 024 is a coach luggage-flap handle with an integrated 4-LED side-marker light and patented mechanism, openable from inside even when locked outside.

  3. Makersan MO 025 luggage flap handle.

    Luggage Flap Handle MO 025

    MO 025 is a coach luggage-flap handle with a patented mechanism and advanced sealing, openable from inside even when locked from outside.

  4. Makersan MO 027 recessed-grip luggage flap handle.

    Recessed-Grip Luggage Handle MO 027

    MO 027 is a recessed-grip luggage-flap handle for coach applications, mounted with two insert bolts. UV-stabilized and EPDM-sealed.

  5. Makersan MO 032X oval luggage flap handle.

    Oval Luggage Handle MO 032X

    MO 032X is an oval coach luggage-flap handle with no-load operation in the closed position and an optional integrated 4-LED side marker. Patented mechanism, openable inside when locked outside.

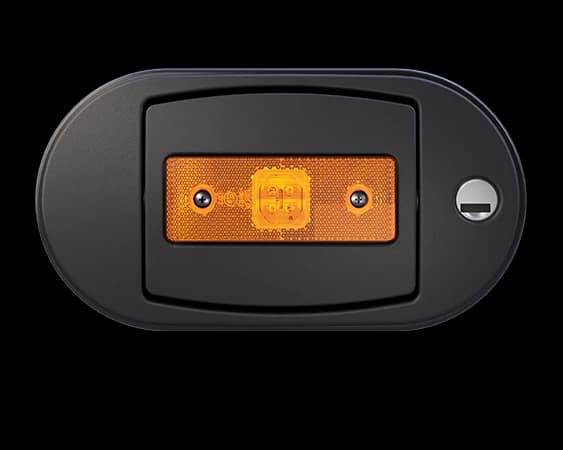

  6. Makersan MO 032X-A oval luggage flap handle with automatic latch.

    Oval Luggage Handle (Auto Latch) MO 032X-A

    MO 032X-A is an MO 032X variant with automatic latch opening when pneumatically actuated, in an oval shape with an integrated 4-LED side marker.

  7. Makersan MO 032X-A-M oval luggage flap handle.

    Oval Luggage Handle (Auto Latch, M) MO 032X-A-M

    MO 032X-A-M is the M variant with automatic latch opening on pneumatic actuation, oval shape with optional integrated LED side marker.

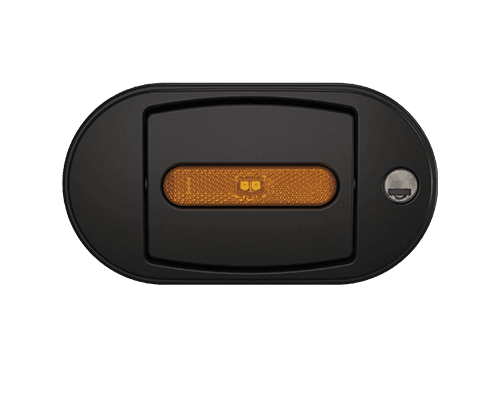

  8. Makersan MO 032X-M oval luggage flap handle.

    Oval Luggage Handle (M) MO 032X-M

    MO 032X-M is the M variant of the oval coach luggage-flap handle, with no-load closed operation and an optional integrated LED side marker.

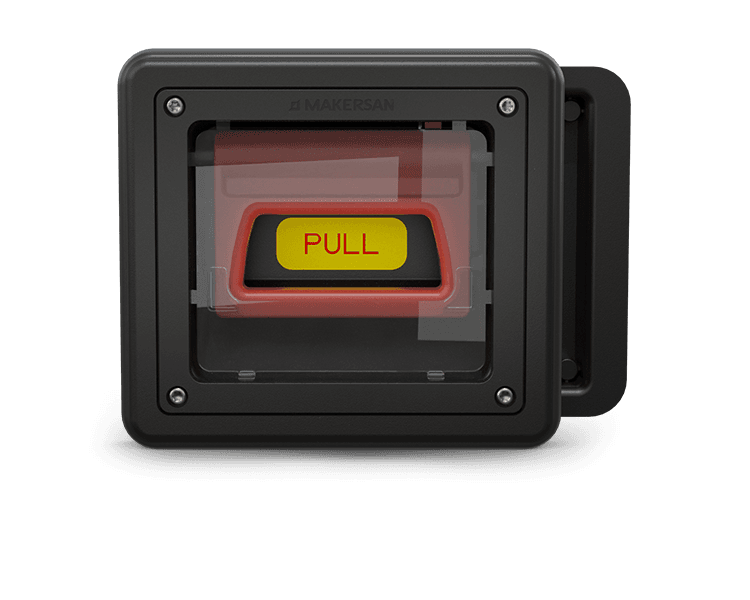

  9. Makersan MO 038 exit door handle.

    Exit Door Handle MO 038

    MO 038 is a reinforced-polymer exit door handle with stainless steel components, available two-sided or outside-only (MO 038-01).

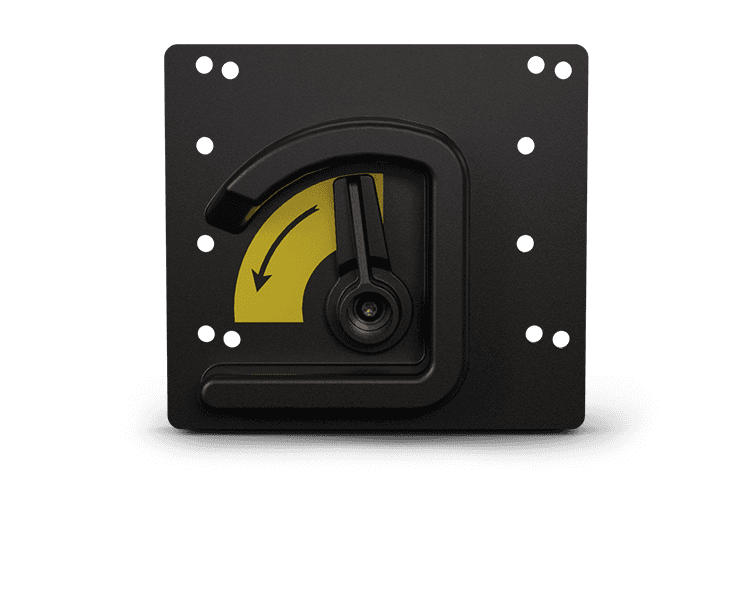

  10. Makersan MO 052 inside-opening luggage flap handle.

    Inside-Opening Handle MO 052

    MO 052 is an interior-opening luggage-flap release handle, used together with the MO 021/022/023/024/032 handles for applications such as sleeping-cabin access.

Series 0316 models

Latches & Locks

All series

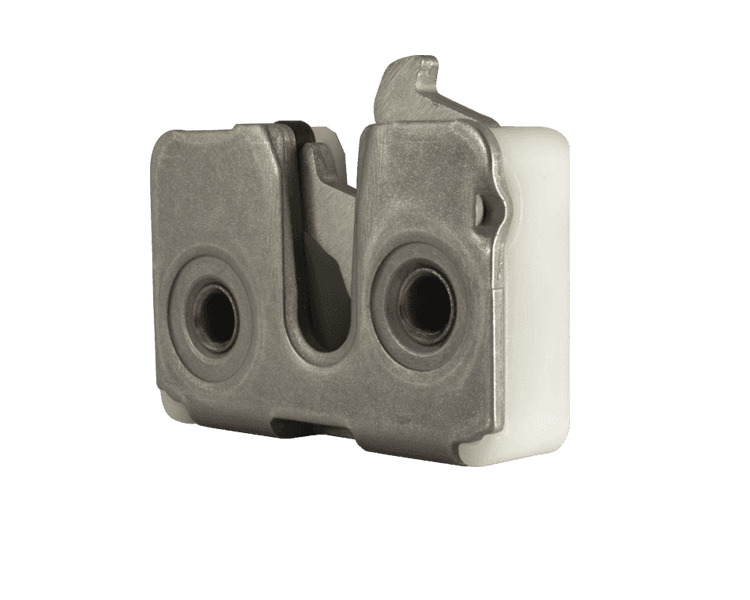

  1. Makersan MO 020 double-lock latch.

    Double-Lock Latch MO 020

    MO 020 is a double-lock latch for added safety, built from automotive-grade, zinc-nickel-plated material with stainless steel springs. Pairs with the MO 020-02 striker.

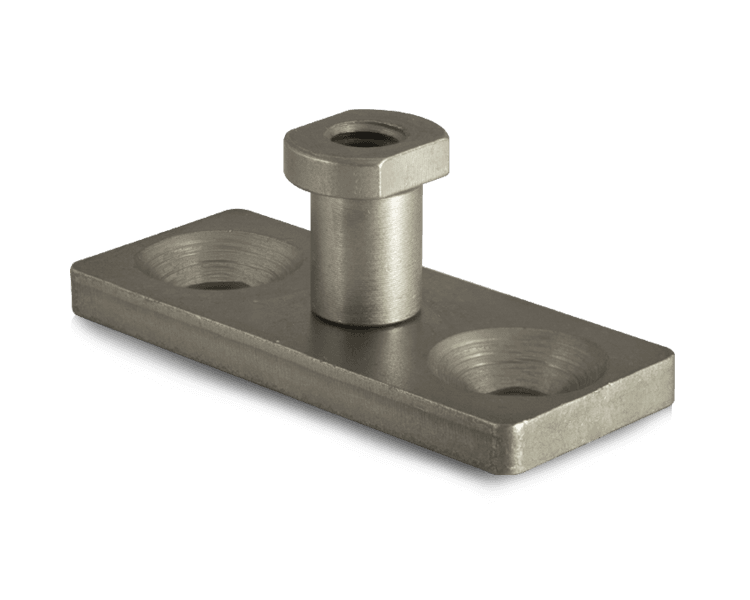

  2. Makersan MO 020-02 striker.

    Striker MO 020-02

    MO 020-02 is a strong, robust striker designed to mate with the MO 020 latch.

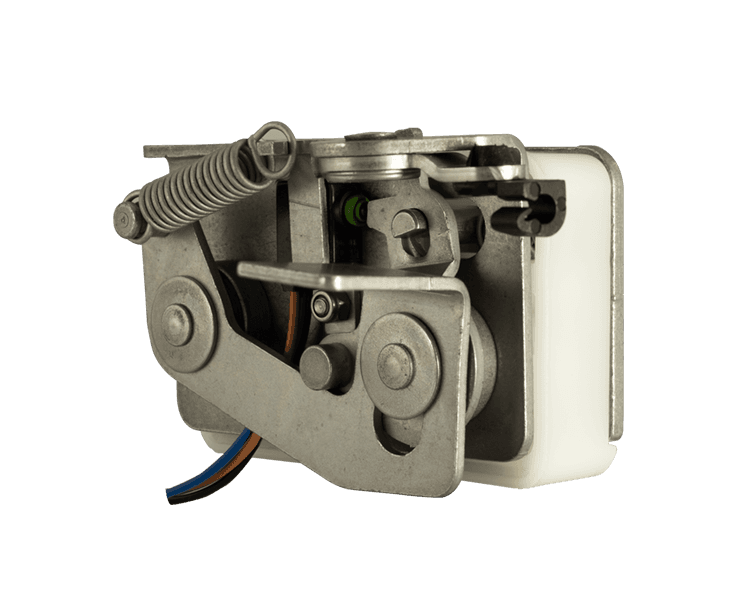

  3. Makersan MO 020A latch with integrated micro-switch.

    Latch with Micro-Switch MO 020A

    MO 020A is an MO 020 variant fitted with an integrated micro-switch for door-position feedback, with stainless steel springs and zinc-nickel plating.

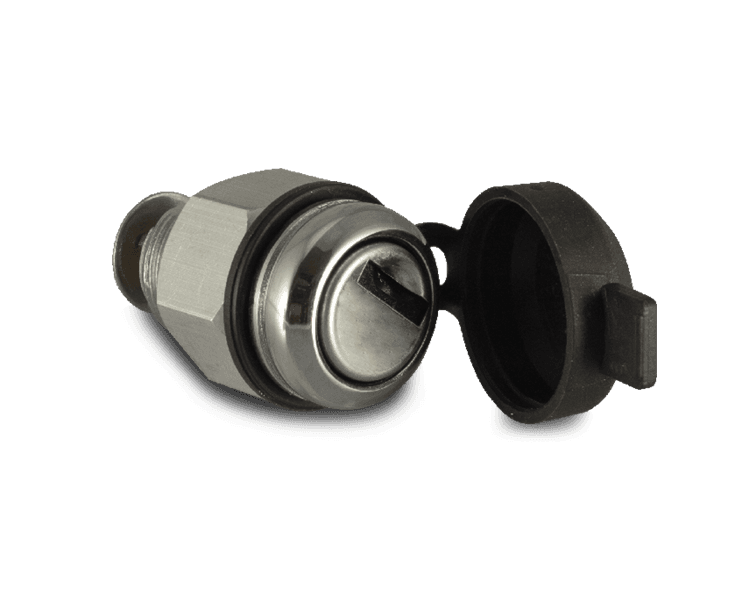

  4. Makersan MO 030 cylinder lock.

    Cylinder Lock MO 030

    MO 030 is a die-cast Zamak cylinder lock assembly, chrome-plated, for door-access locking points.

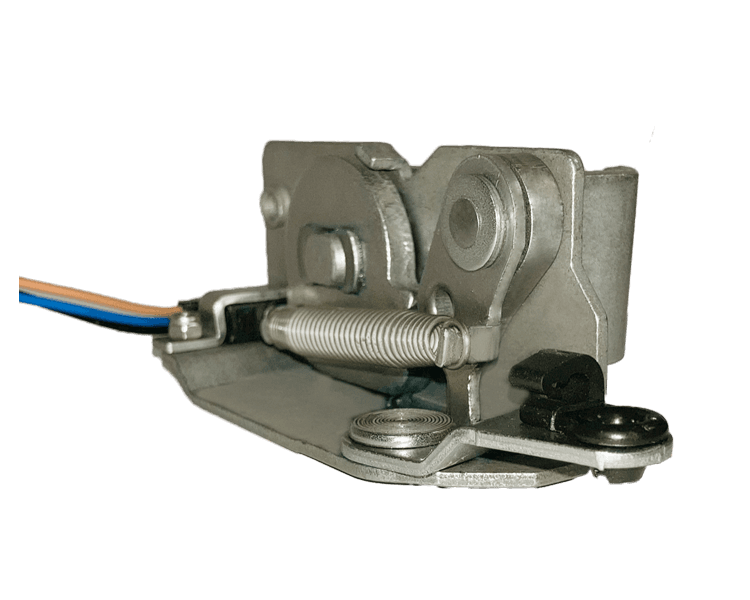

  5. Makersan MO 035 double-lock latch with micro-switch.

    Double-Lock Latch with Micro-Switch MO 035

    MO 035 combines a double-lock safety mechanism with an integrated micro-switch for position feedback. Available with or without the switch; pairs with the MO 040-02 striker.

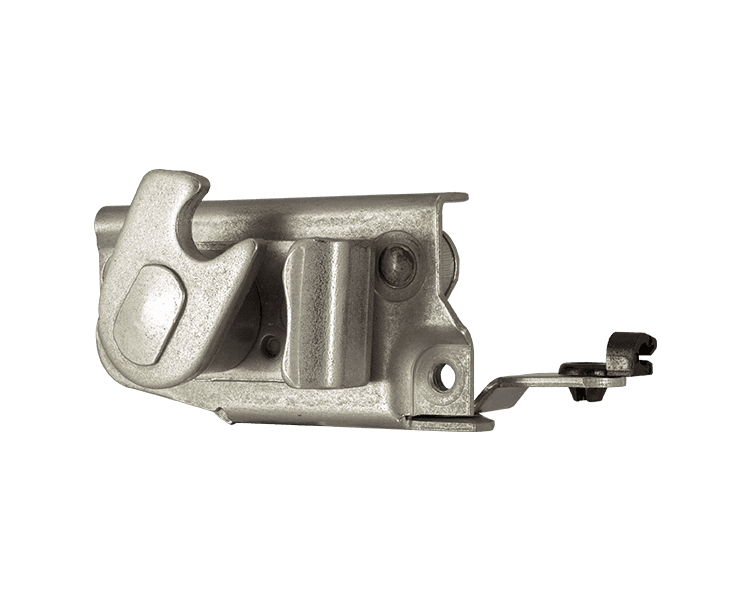

  6. Makersan MO 040 double-lock latch.

    Double-Lock Latch MO 040

    MO 040 is a double-lock latch for added safety, with stainless steel springs. Pairs with the MO 040-02 striker.

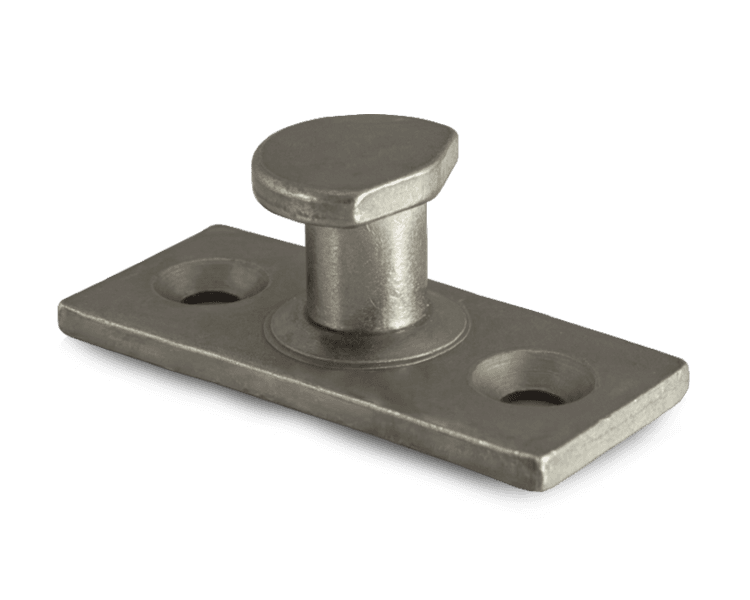

  7. Makersan MO 040-02 striker.

    Striker MO 040-02

    MO 040-02 is a strong, robust striker designed to mate with the MO 040 and MO 035 latches.

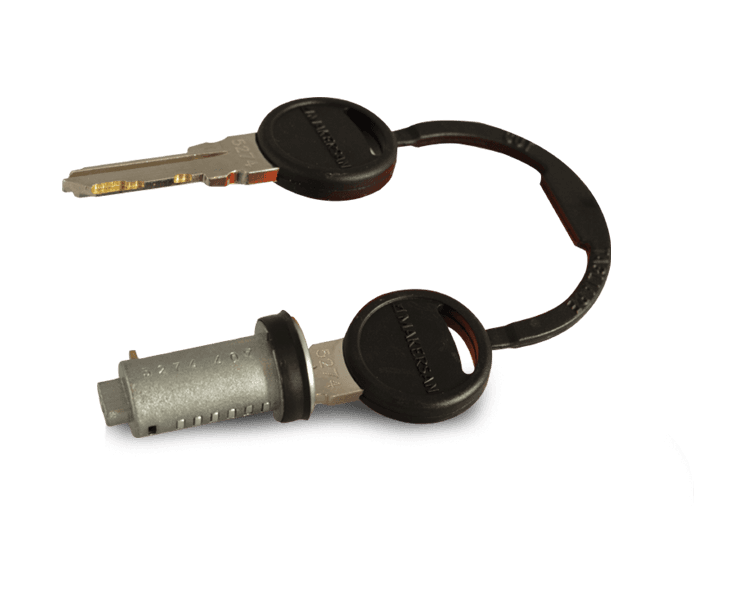

  8. Makersan MO 043 / MO 044 barrel and key set.

    Barrel & Key MO 043 / 044

    MO 043 / MO 044 is a barrel-and-key (lock cylinder) set used across the handle and latch range, supporting the keyed-alike one-key solution. Available with random or specific key codes.

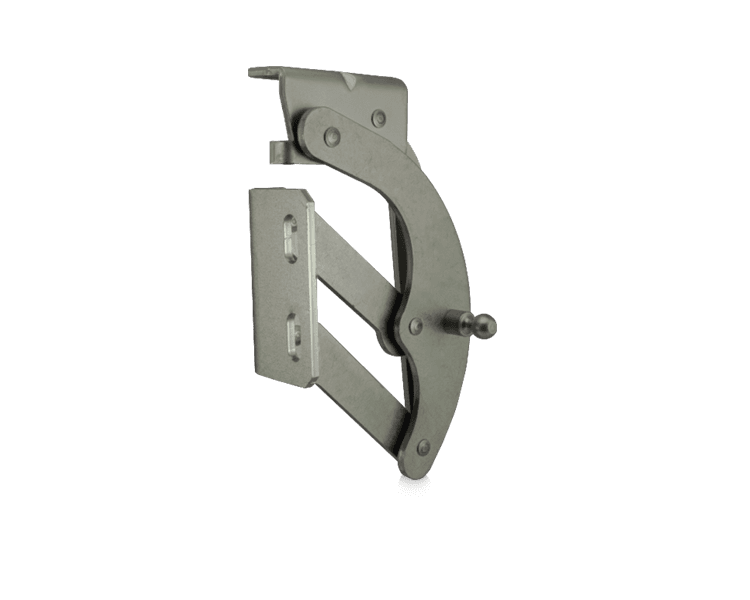

  9. Makersan MO 072 side luggage-flap hinge.

    Side Luggage-Flap Hinge MO 072

    MO 072 is a side-mounted hinge for luggage flaps, available in left and right configurations.

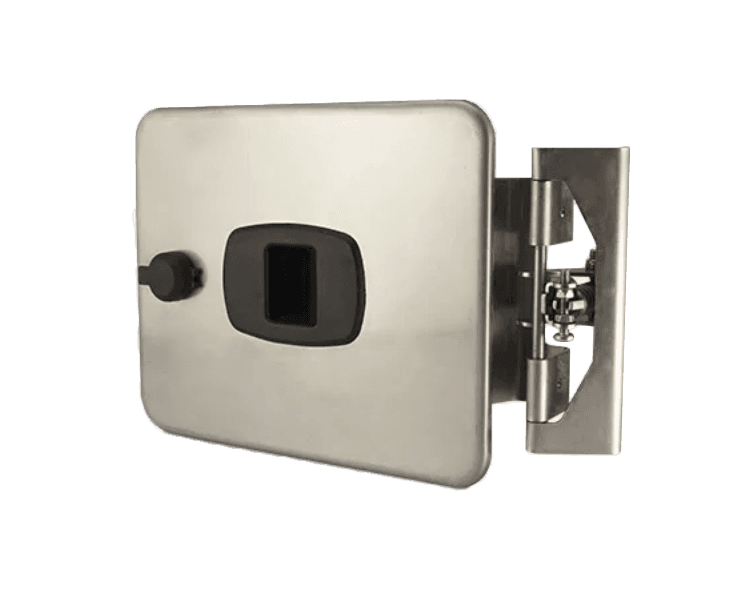

  10. Makersan MO 074 fuel cover hinge.

    Fuel Cover Hinge MO 074

    MO 074 is a hinge designed for fuel-tank covers, of stainless steel construction.

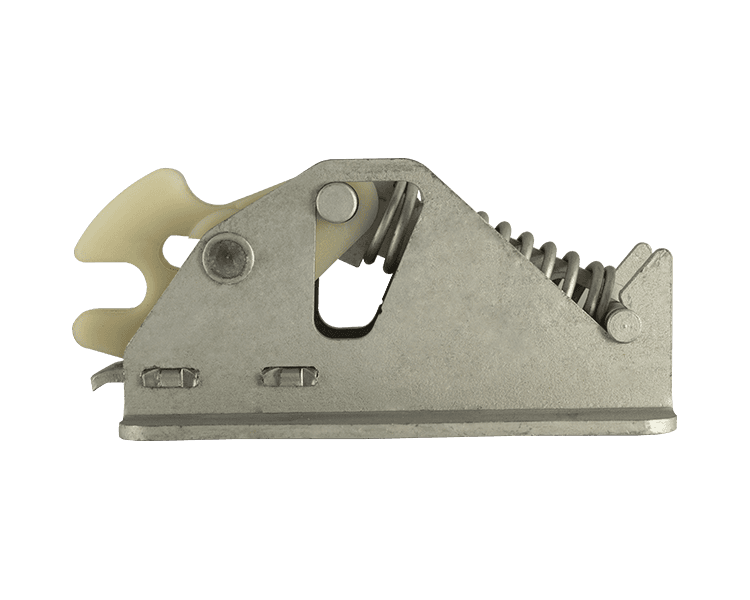

  11. Makersan MO 240 spring bolt lock.

    Spring Bolt Lock MO 240

    MO 240 is a spring-bolt lock with a high 180 N opening force for secure compartment latching.

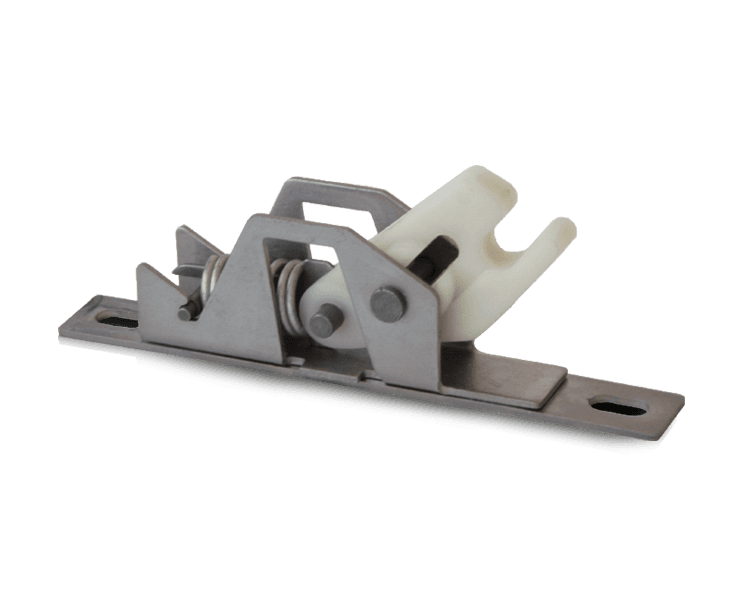

  12. Makersan MO 241 spring bolt lock.

    Spring Bolt Lock MO 241

    MO 241 is a spring-bolt lock with a low 80 N opening force for light compartment latching.

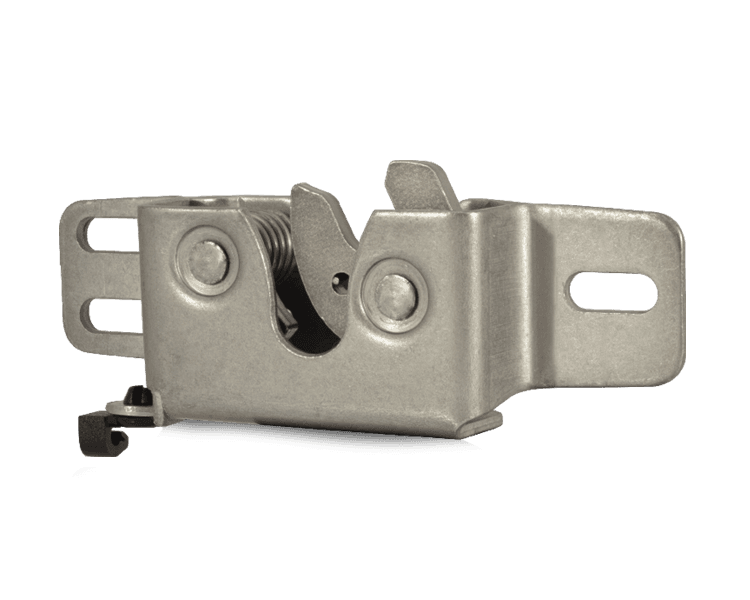

  13. Makersan MO 250 robust latch.

    Robust Latch MO 250

    MO 250 is a robust latch mechanism with stainless steel springs for durable compartment latching.

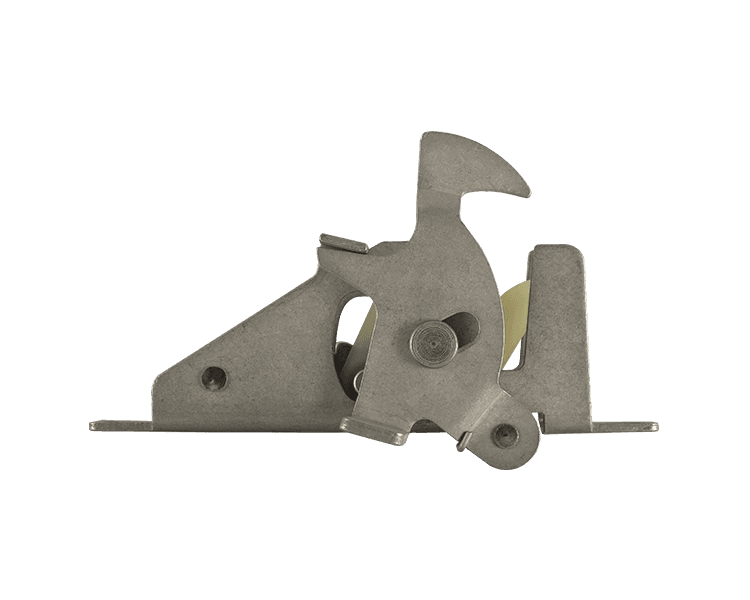

  14. Makersan MO 275 spring bolt lock.

    Spring Bolt Lock MO 275

    MO 275 is a spring-bolt lock with a medium 135 N opening force for compartment latching.

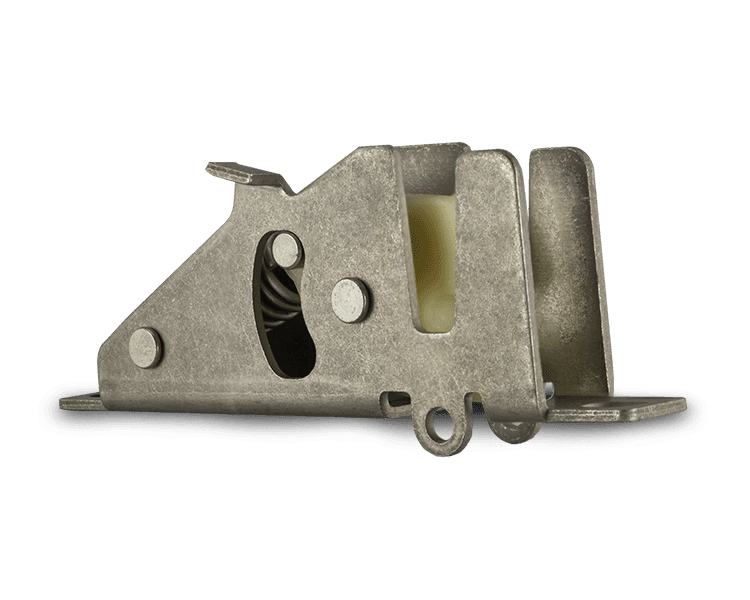

  15. Makersan MO 276 spring bolt lock.

    Spring Bolt Lock MO 276

    MO 276 is a spring-bolt lock with a medium 135 N opening force for compartment latching.

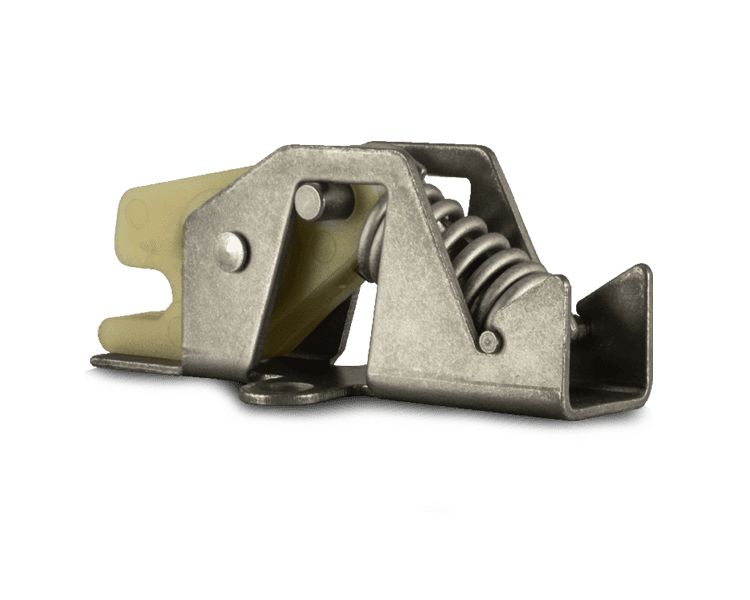

  16. Makersan MO 277 spring bolt lock.

    Spring Bolt Lock MO 277

    MO 277 is a spring-bolt lock with a low 80 N opening force for light compartment latching.

Series 043 models

System Solutions system

All series

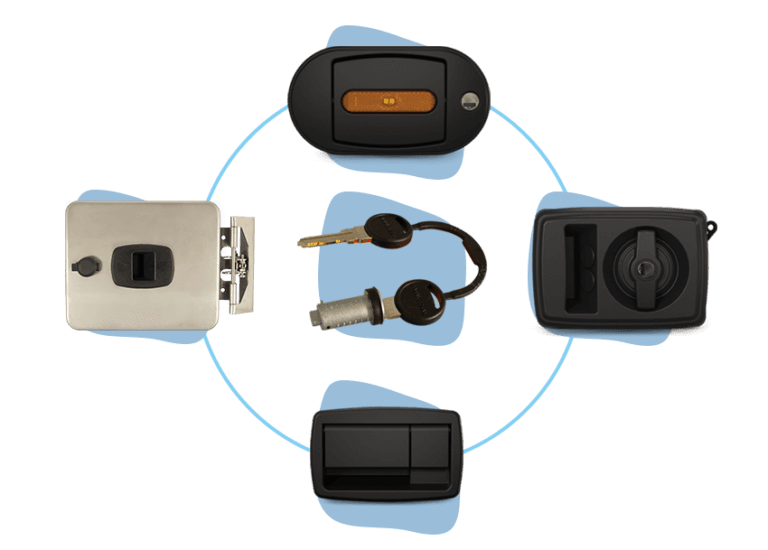

  1. Makersan one-key solution: a single key for all vehicle locks.

    One-Key Solution One Key

    A single key for every locking point on the vehicle

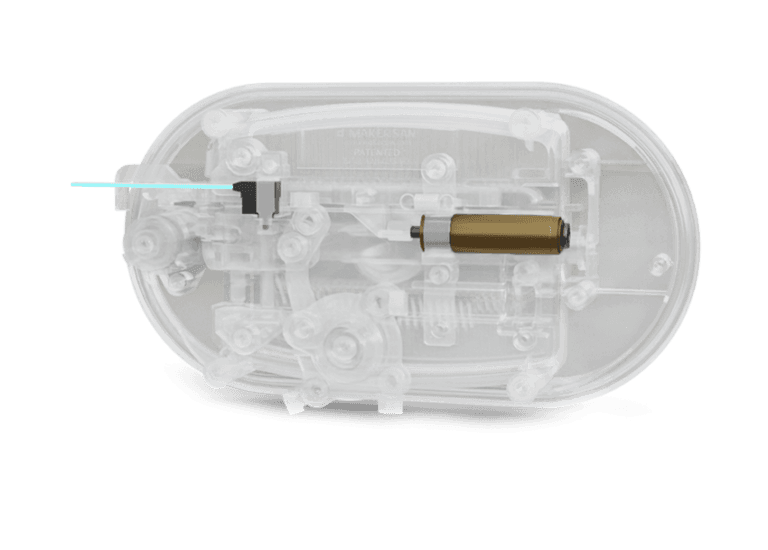

  2. Makersan electrical and pneumatic door-access system.

    Electrical & Pneumatic Systems E + P

    Mixed electric and pneumatic door-access package

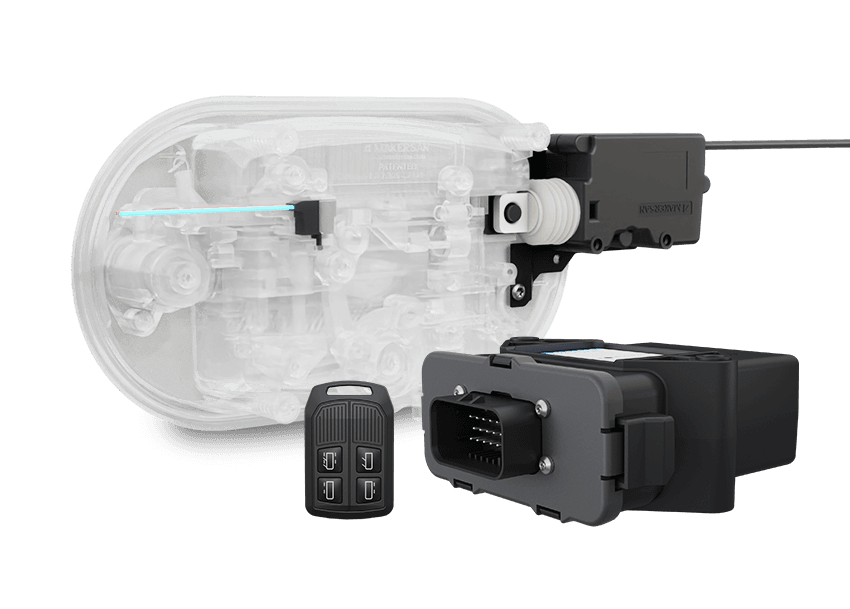

  3. Makersan full electrical door-access system over CAN bus.

    Full Electrical Systems Full E

    Fully electric door-access package over CAN bus

System overviews

Series 055 models

Remote Keyless Entry

All series

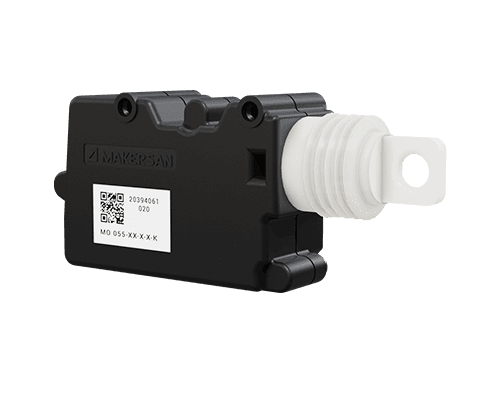

  1. Makersan MO 055 DC motor actuator.

    DC Motor Actuator MO 055

    MO 055 is a DC-motor central-locking actuator for door latches, trunk lids and lift gates, built around a high-quality DC motor and micro-switches in a glass-fibre reinforced polyamide case.

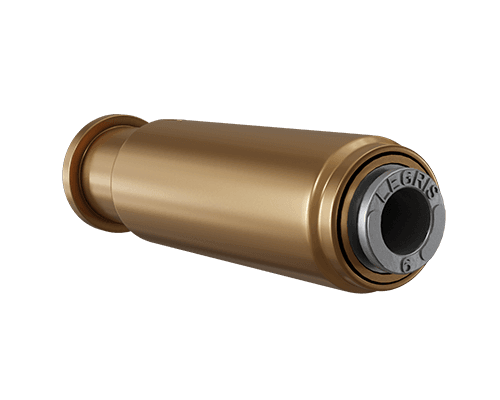

  2. Makersan MO 100 pneumatic actuator.

    Pneumatic Actuator MO 100

    MO 100 is a single-action pneumatic actuator for door latches, trunk lids and lift gates, with a stainless steel spring and automotive-grade O-ring, fitting and seal for high corrosion resistance.

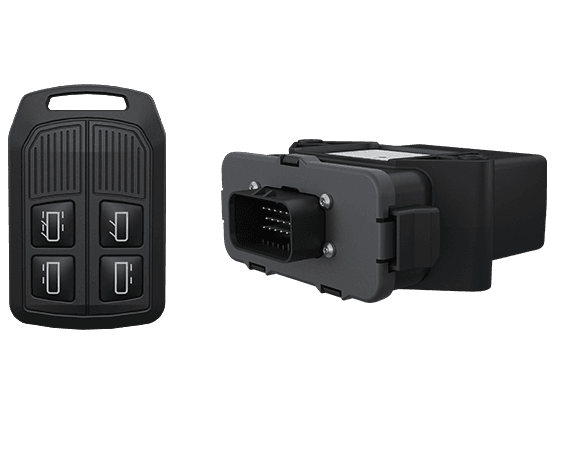

  3. Makersan MO 651 H3X remote keyless entry control unit.

    Remote Keyless Entry — H3X MO 651 H3X

    MO 651 H3X is a remote keyless entry control unit for doors, latches, trunk lids and lift gates, operating on an 8(12)–32V supply over a CAN (SAE J1939) bus, with code-rolling security and up to three-zone access control.

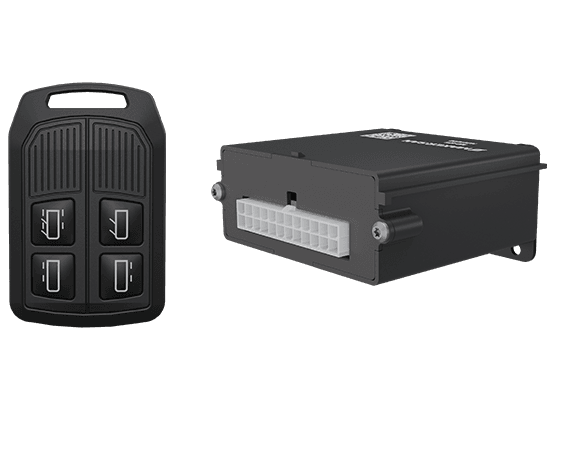

  4. Makersan MO 651 H4X remote keyless entry control unit.

    Remote Keyless Entry — H4X MO 651 H4X

    MO 651 H4X is a remote keyless entry control unit with a 24-pin MOLEX 39012245 connector, available in 24 VDC (H40/H41) or 12 VDC (H44/H45) builds, on a CAN (SAE J1939) bus with code-rolling security and up to three-zone access control.

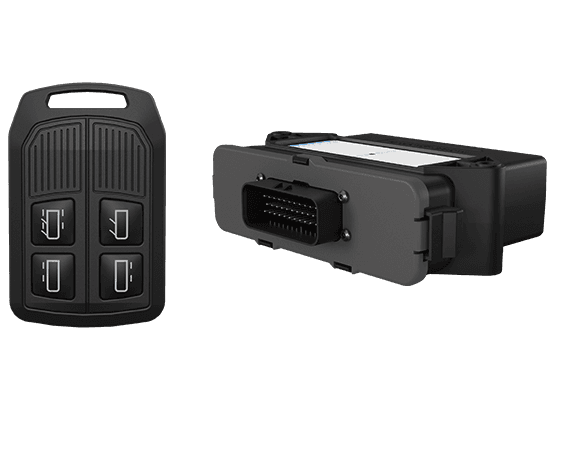

  5. Makersan MO 651 H5X remote keyless entry control unit.

    Remote Keyless Entry — H5X MO 651 H5X

    MO 651 H5X is a remote keyless entry control unit for door latches, trunk lids and lift gates, on a 12–24V supply over a CAN (SAE J1939) bus, with build options for remote control and a dash output (H50/H51/H52) and code-rolling security.

In motion

Every access point, sealed, keyed and ready for service.

From sealed door handles and double-lock latches to luggage-flap handles and remote keyless entry, Makersan access systems keep operators, passengers and cargo secure in the field.

Lineup of Makersan door access hardware: exterior and flush-mount handles, an oval luggage-flap handle with an LED side marker, a barrel-and-key set, a latch striker, a central-lock control unit, a cylinder lock and a micro-switch.
Common platform

One ecosystem, one keying scheme.

Every handle, lock and electrified module shares the same sealing class, actuation options and keyfob protocol — so spare-part, service-key and central-lock logic stay consistent across an entire fleet.

Material
PA 30% GF / metal
Sealing
EPDM / 504h salt-mist
Actuation
Manual / 12V / 24V / Pneu
Keying
One-key alike
Bus
CAN / SAE J1939
Security
Code rolling
Applications

Where Makersan access goes to work.

Specified by leading bus, coach and recreational-vehicle OEMs for passenger doors, luggage bays, service hatches and storage lockers. Send us your door specs and we'll deliver a complete, keyed-alike access solution.

Start a project
  • Coach and bus passenger doors
  • Luggage-compartment and service flaps
  • Motorhome and caravan entry and storage
  • Sleeping-cabin and exit doors
  • Fuel-tank and equipment covers
  • Fleet-managed central locking
