P-08 / Pedals & Levers

Contactless command,
built for millions of cycles.

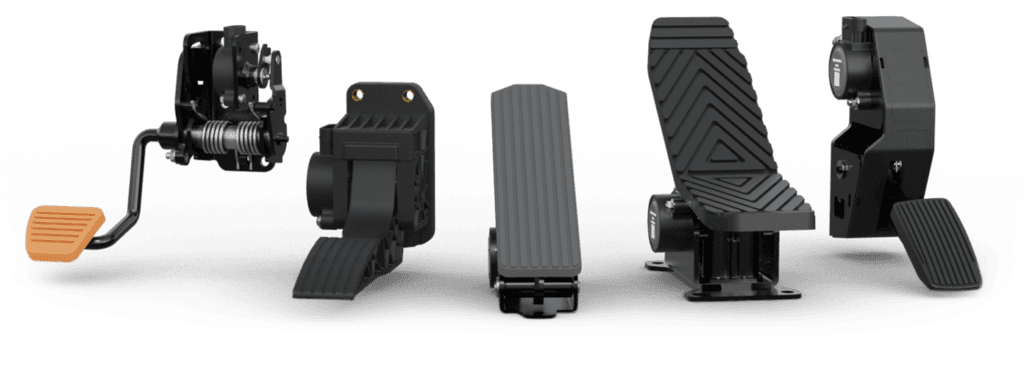

Throttle pedals, control levers and rotary inputs that swap mechanical potentiometers for hall-effect sensing — cleaner signal, no contact wear and ergonomics tuned for long shifts in tough cabs.

Explore the familyContact Us
Scroll
Series 0112 models

Electronic Pedals

All series
  1. Makersan MO 126 suspended accelerator pedal with heavy-duty metal case and ribbed pad.

    Suspended Accelerator Pedal MO 126

    MO 126 is a heavy-duty suspended accelerator pedal for commercial and off-road vehicles. A contactless measuring principle and two independent return springs deliver a long, maintenance-free service life, while full redundant programmable outputs adapt the pedal to different engine interfaces.

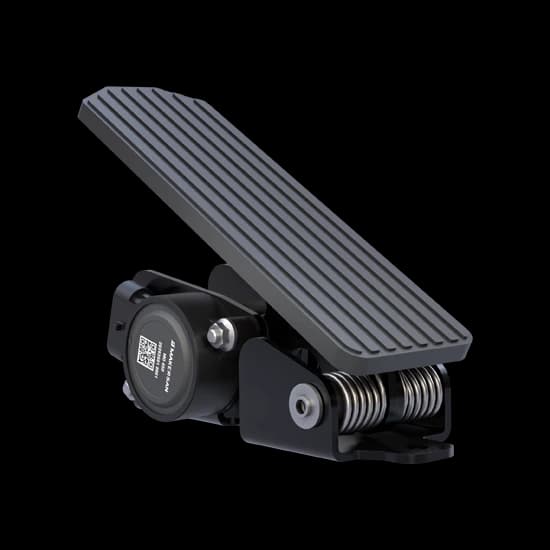

  2. Makersan MO 129 floor-mount accelerator pedal with ribbed treadle and metal case.

    Floor Accelerator Pedal MO 129

    MO 129 is a floor-type accelerator pedal for commercial and off-road vehicles, available in long, short and long-wide treadle variants with four initial treadle angles. Contactless sensing and full redundant programmable outputs keep the signal clean across the working range.

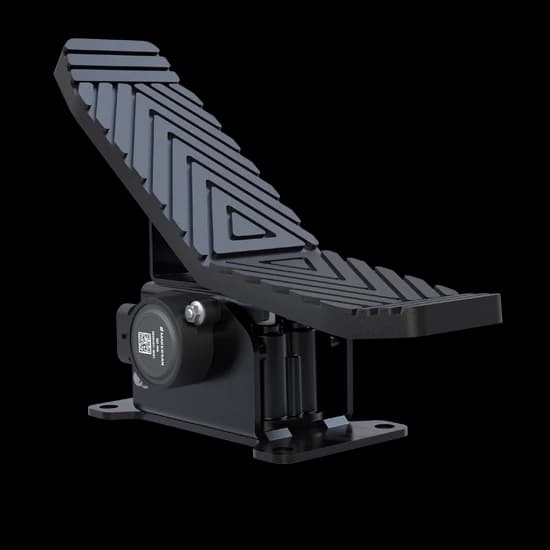

  3. Makersan MO 367 bidirectional rocker pedal with heavy-duty metal case.

    Bidirectional Rocker Pedal MO 367

    MO 367 is a bidirectional rocker pedal for commercial and off-road vehicles, with two independent springs for each direction of travel. The contactless sensor and full redundant programmable outputs support standard, hydraulic and lock connection types.

  4. Makersan MO 370 suspended accelerator pedal in reinforced polyamide case.

    Suspended Accelerator Pedal (Polymer) MO 370

    MO 370 is a lightweight suspended accelerator pedal in a 30% glass-fibre reinforced polyamide case, for passenger, commercial and off-road vehicles. It offers single- or double-sensor configurations with full redundant programmable outputs.

  5. Makersan MO 372 compact suspended accelerator pedal in reinforced polyamide case.

    Suspended Accelerator Pedal (Compact Polymer) MO 372

    MO 372 is a compact suspended accelerator pedal in a 30% glass-fibre reinforced polyamide case, for passenger, commercial and off-road vehicles. Single- or double-sensor configurations and full redundant programmable outputs cover a wide range of engine interfaces.

  6. Makersan MO 381 suspended electronic clutch pedal with heavy-duty metal case.

    Clutch Pedal MO 381

    MO 381 is a suspended electronic clutch pedal for commercial and off-road vehicles, suitable for different engine interfaces. A contactless measuring principle and full redundant programmable outputs provide reliable clutch-position feedback.

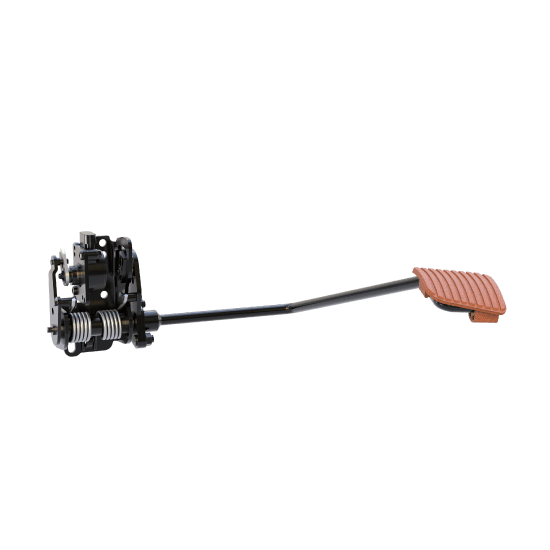

  7. Makersan MO 382 tractor accelerator pedal with heavy-duty metal case.

    Tractor Pedal MO 382

    MO 382 is a tractor accelerator pedal for agricultural and off-road vehicles, available in four configurations — right-side suspended (A), right-side underfloor (B), left-side underfloor (C) and left-side suspended (D). Contactless sensing with full redundant programmable outputs and horizontal or vertical sensor positioning.

  8. Makersan MO 383T suspended tractor accelerator pedal with heavy-duty metal case.

    Tractor Accelerator Pedal MO 383T

    MO 383T is a suspended accelerator pedal for agricultural tractors and off-road vehicles, suitable for different engine interfaces. Contactless sensing with full redundant programmable outputs and customisable rod types on request.

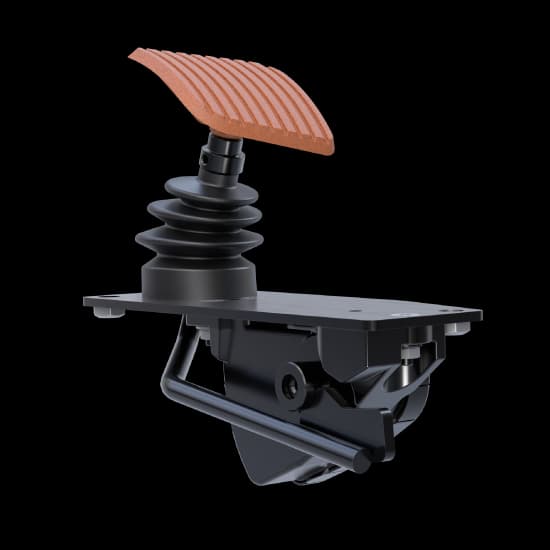

  9. Makersan MO 368A underfloor accelerator pedal in reinforced polyamide case.

    Floor Accelerator Pedal (Underfloor) MO 368A

    Pre-Production

    MO 368A is an underfloor floor-type accelerator pedal in a 30% glass-fibre reinforced polyamide case, for passenger, commercial and off-road vehicles. It adds extended analog output options (0-5V / 0-10V / 4-20mA / PWM) to the contactless, double full-redundant platform.

  10. Makersan MO 368B underfloor accelerator pedal in reinforced polyamide case.

    Floor Accelerator Pedal (Underfloor) MO 368B

    Pre-Production

    MO 368B is an underfloor floor-type accelerator pedal in a 30% glass-fibre reinforced polyamide case, for passenger, commercial and off-road vehicles. A variant of the 368 underfloor family with the same contactless, double full-redundant output platform.

  11. Makersan MO 368C underfloor accelerator pedal in reinforced polyamide case.

    Floor Accelerator Pedal (Underfloor) MO 368C

    Pre-Production

    MO 368C is an underfloor floor-type accelerator pedal in a 30% glass-fibre reinforced polyamide case, for passenger, commercial and off-road vehicles. A variant of the 368 underfloor family with the same contactless, double full-redundant output platform.

  12. Makersan MO 369 suspended accelerator pedal in reinforced polyamide case.

    Suspended Accelerator Pedal (Extended Output) MO 369

    Pre-Production

    MO 369 is a suspended accelerator pedal in a 30% glass-fibre reinforced polyamide case, for passenger, commercial and off-road vehicles. It pairs the contactless double full-redundant platform with extended analog output options.

Series 027 models

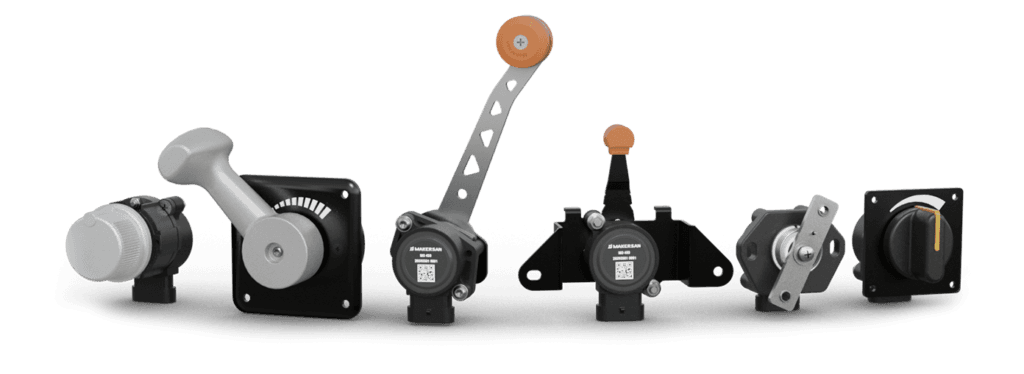

Electronic Control Levers

All series

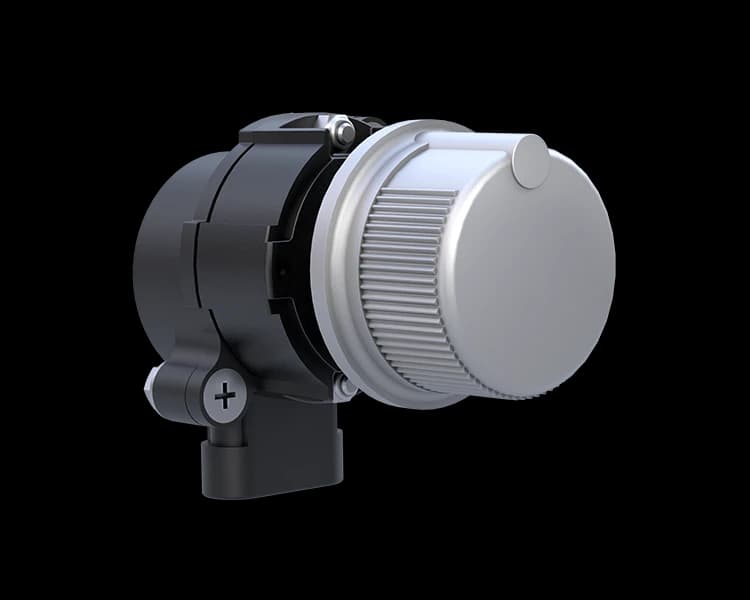

  1. Makersan MO 375A rotary hand throttle with knob and sealed base.

    Rotary Hand Throttle MO 375A

    MO 375A is an electronic rotary hand throttle / valve control with a 100° working angle, 10-stage detents and 100° friction hold. The contactless sensor offers single or double full-redundant programmable outputs over CAN, analog or PWM.

  2. Makersan MO 376 rotary control lever in button and handle actuator variants.

    Rotary Control Lever MO 376

    MO 376 is an electronic rotary control lever with a 90° or 180° programmable angle at 0.1° resolution. Available as a button (MO 376A) or handle (MO 376C) actuator, with contactless full-redundant double-die hall sensing.

  3. Makersan MO 378 rotary control lever with sealed base.

    Rotary Control Lever (60°) MO 378

    MO 378 is an electronic rotary control lever with a 60° programmable angle at 0.1° resolution. Front, sub and opposite mounting options and contactless full-redundant double-die hall sensing suit it to a wide range of throttle and valve linkages.

  4. Makersan MO 378M rotary control lever with sealed base.

    Rotary Control Lever (45°) MO 378M

    MO 378M is an electronic rotary control lever with a 45° programmable angle at 0.1° resolution. Standard or right-angle bracket options and contactless full-redundant double-die hall sensing over CAN, analog or PWM.

  5. Makersan MO 378N high-cycle rotary control lever with sealed base.

    Rotary Control Lever (High-Cycle) MO 378N

    MO 378N is an electronic rotary control lever with a 45° programmable angle at 0.1° resolution, rated for more than 5 million lifetime cycles. Contactless full-redundant double-die hall sensing with CAN, analog and IVS outputs.

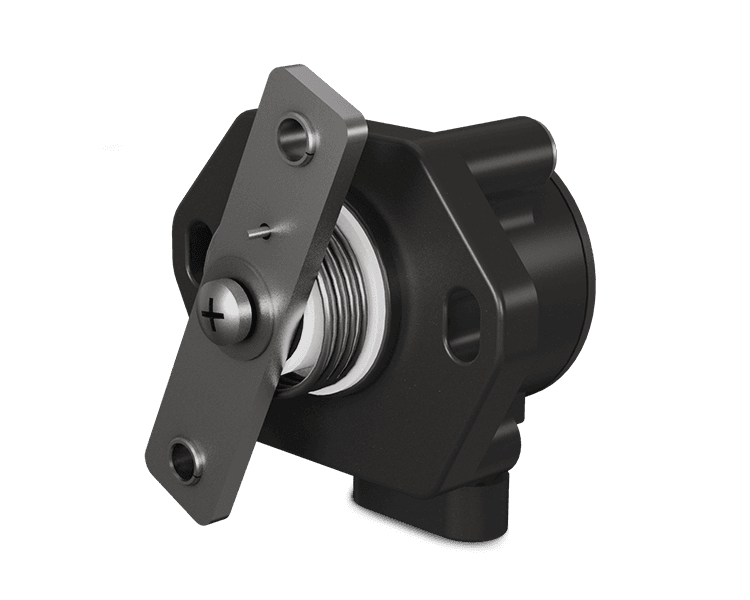

  6. Makersan MO 378S rotary control lever with grip option.

    Rotary Control Lever (Grip) MO 378S

    MO 378S is an electronic rotary control lever with a 45° programmable angle at 0.1° resolution, available without a lever, with a double-sided bracket, or with a grip. Contactless full-redundant double-die hall sensing over CAN, analog or PWM.

  7. Makersan MO 379 rotary control with knob and sealed plate.

    Rotary Control with Detents MO 379

    MO 379 is an electronic rotary control with 90°, 180° or detented programmable angles at 0.1° resolution. Plate, knob and shaft options and contactless full-redundant double-die hall sensing make it a flexible cab-mounted control element.

In motion

Smooth travel, a signal that never wears out.

From floor-mount and suspended accelerator pedals to rotary hand-throttles and control levers, Makersan modules deliver consistent, contactless position feedback through the full stroke.

Lineup of Makersan pedals and levers: two suspended accelerator pedal bodies, a rotary hand-throttle lever, a tall triangulated control lever, a rotary thumbwheel control, and a ribbed floor-mount accelerator pedal.
Common platform

One signal stack for every operator input.

Identical sensing, sealing and output options across the full input range — specify one harness and one tuning tool for the entire cab.

Sensing
Contactless hall-effect
Sealing
IP6K9K
Cycles
2 - 5M+ rated
Supply
5V or 8-32V
Output
Analog / PWM / IVS / CAN
Mounting
Floor / suspended / underfloor / rotary
Applications

Where Makersan inputs go to work.

Specified on commercial vehicles, construction and agricultural machinery, marine craft and material-handling equipment. Send us your duty cycle and we'll spec the right pedal, lever or rotary unit.

Start a project
  • Off-road throttle and propulsion control
  • Agricultural tractor and harvester command
  • Construction and material-handling equipment
  • Hydraulic implement and valve control
  • Transmission and creep control
  • Marine throttle and trim control
