M-04 / Application-specific model

MO 655

CAN Operator Panel for Hitch Control · CAN operator panel for hitch lifting and header height control functions.

Hitch control system is used for lifting module control and header height control in agricultural machines. MO 655 focuses on operator ergonomics and robust CAN integration for daily field operations.

Supply
8-32 VDC
Protection
IP66
Protocol
CAN 2.0A/2.0B + SAE J1939
Contact UsView all application-specific controllers

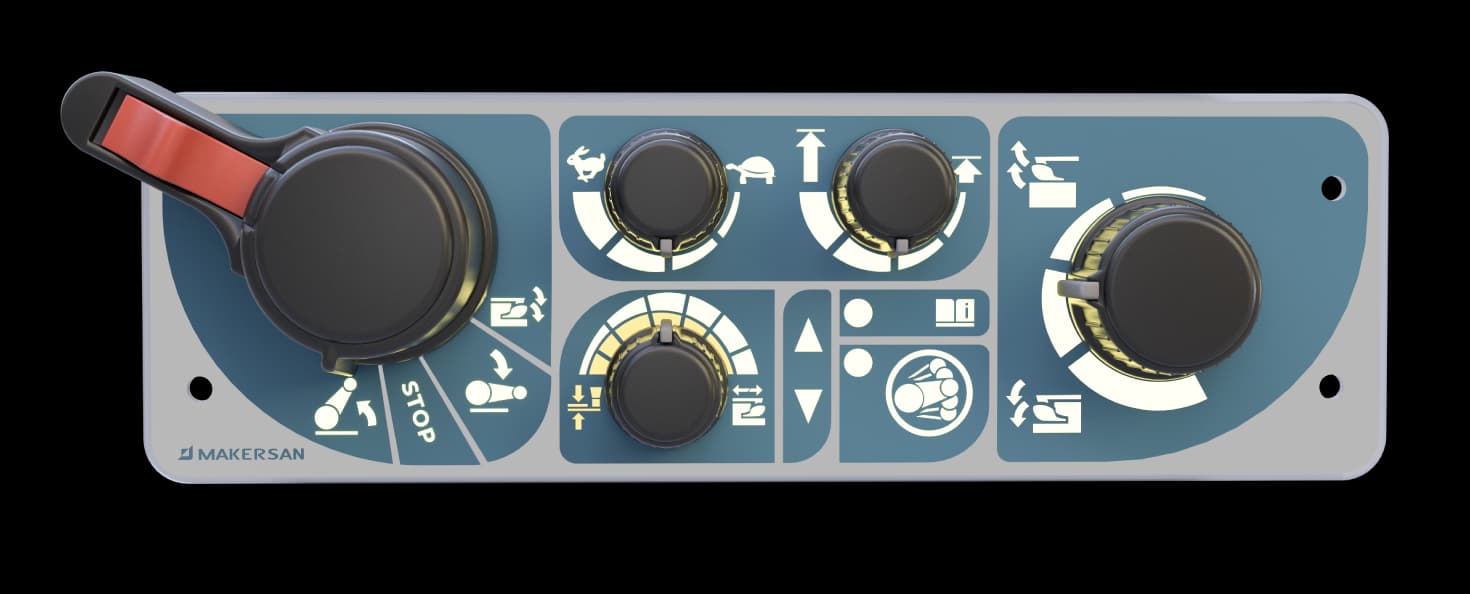

Makersan MO 655 hitch and header height control panel with a teal-blue branded faceplate, a single-axis red-tipped multifunction lever, four rotary control knobs and an iconographic legend for hitch lift, header height and PTO functions.
Overview

Built for dedicated machine functions.

Highlights

  • Purpose-built operator panel for agricultural hitch workflows
  • Header height and lifting module control in one interface
  • CAN-ready architecture for seamless machine integration
  • Reinforced housing and IP66 protection for harsh field duty

Specifications

Configuration
User Configurable or Custom
Housing
% 30 GF Reinforced Polyamide Plastic Case
Ingress Protection
IP66
Supply Voltage
8-32 VDC
CAN Standard
ISO 11898, CAN specification 2.0A-2.0B
Communication
SAE J1939

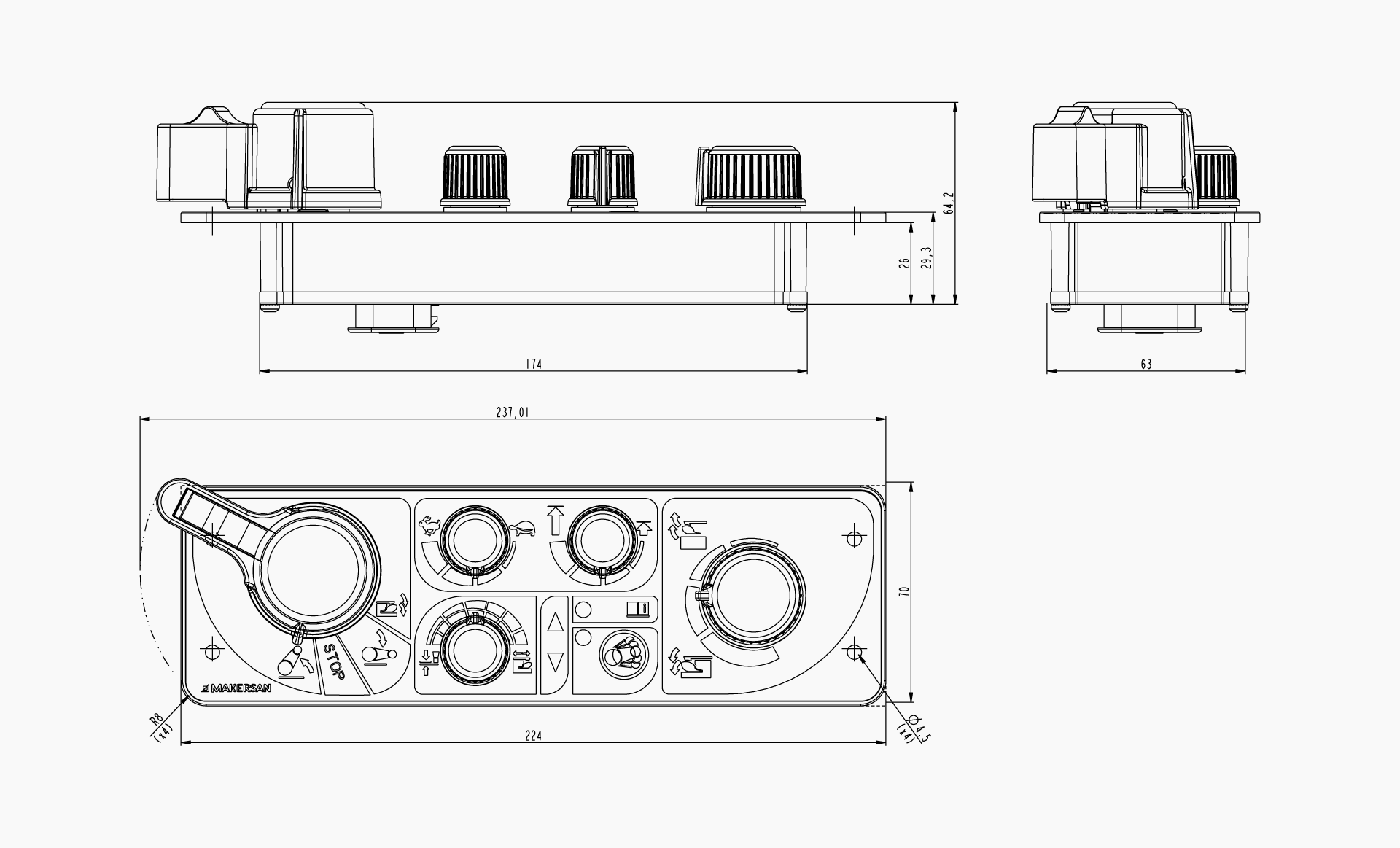

Engineering views

Drag to browse · click to enlarge

Need a custom configuration?

Tell our engineering team about your machine platform and use case. We'll propose the right hardware variant and integration baseline.

Contact Engineering
