M-08 / Door Access Systems
MO 020
Double-Lock Latch · Double-lock latch with stainless steel springs
MO 020 is a double-lock latch for added safety, built from automotive-grade, zinc-nickel-plated material with stainless steel springs. Pairs with the MO 020-02 striker.
- Type
- Double-lock latch
- Plating
- Zinc-nickel
- Striker
- MO 020-02
Overview
Built for safe double-lock latching.
Highlights
- Double-lock safety mechanism
- Automotive-grade, zinc-nickel plated
- Pairs with the MO 020-02 striker
Specifications
- Type
- Double-lock latch
- Material
- Automotive-grade, zinc-nickel plated
- Springs
- Stainless steel
- Striker
- MO 020-02

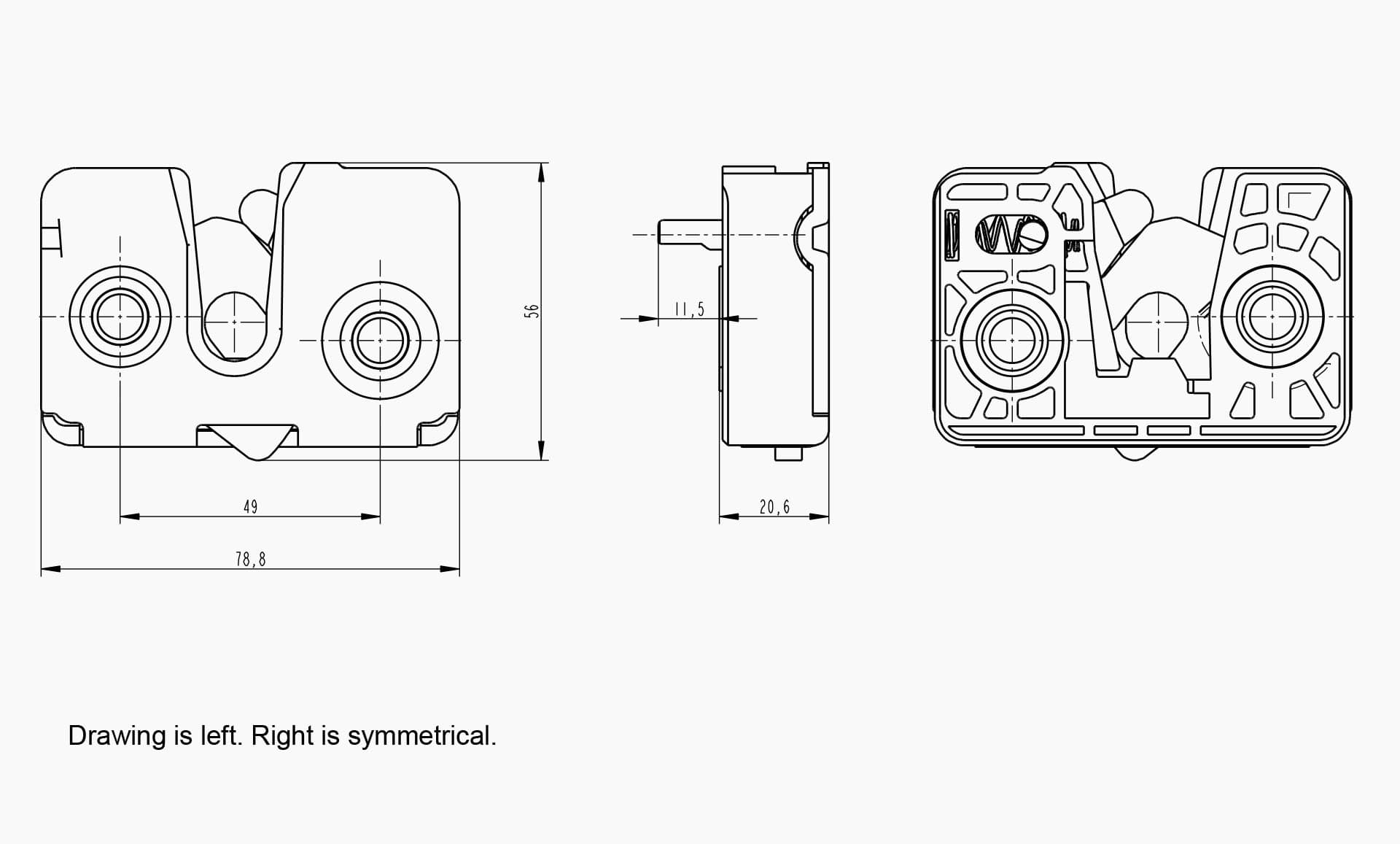

Engineering views
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 020
- X
X stands for the digits you pick from the table.
MO 020 | X Side |
|---|---|
| L - Left | |
| R - Right |
Example:
- MO 020
- L
Need a custom configuration?
Contact EngineeringTell our engineering team about your door, flap or hatch, actuation method and keying scheme. We'll propose the right handle, latch and lock combination — keyed alike across the vehicle.
