M-10 / Door Access Systems
MO 020A
Latch with Micro-Switch · MO 020 latch with integrated micro-switch feedback
MO 020A is an MO 020 variant fitted with an integrated micro-switch for door-position feedback, with stainless steel springs and zinc-nickel plating.
- Type
- Latch + switch
- Plating
- Zinc-nickel
- Feedback
- Micro-switch
Overview
Built for latching with position feedback.
Highlights
- Integrated micro-switch feedback
- Based on the MO 020 double-lock latch
- Automotive-grade, zinc-nickel plated
Specifications
- Type
- Latch with integrated micro-switch
- Material
- Automotive-grade, zinc-nickel plated
- Micro-switch
- Integrated

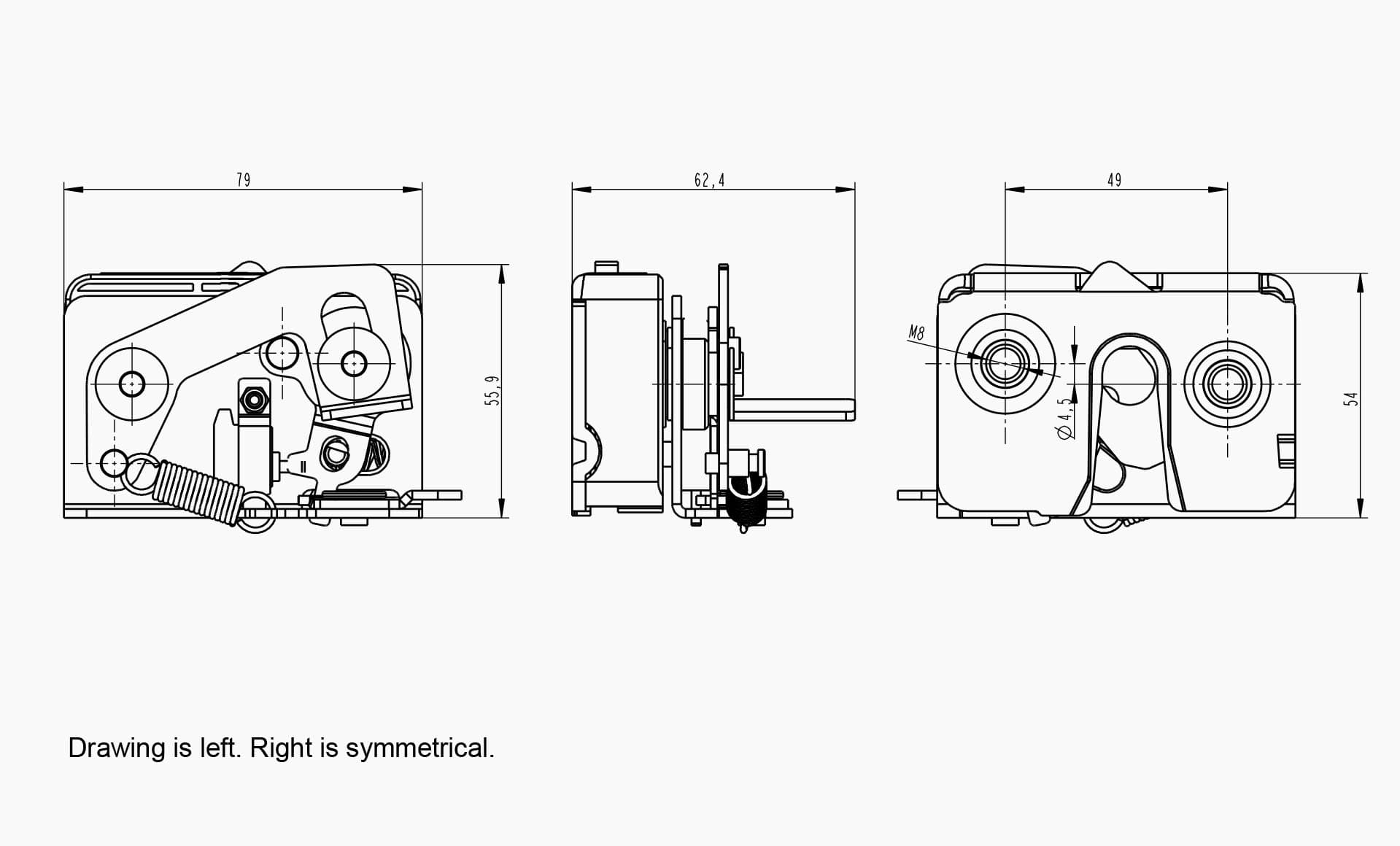

Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 020A
- X
- X
- X
X stands for the digits you pick from the table.

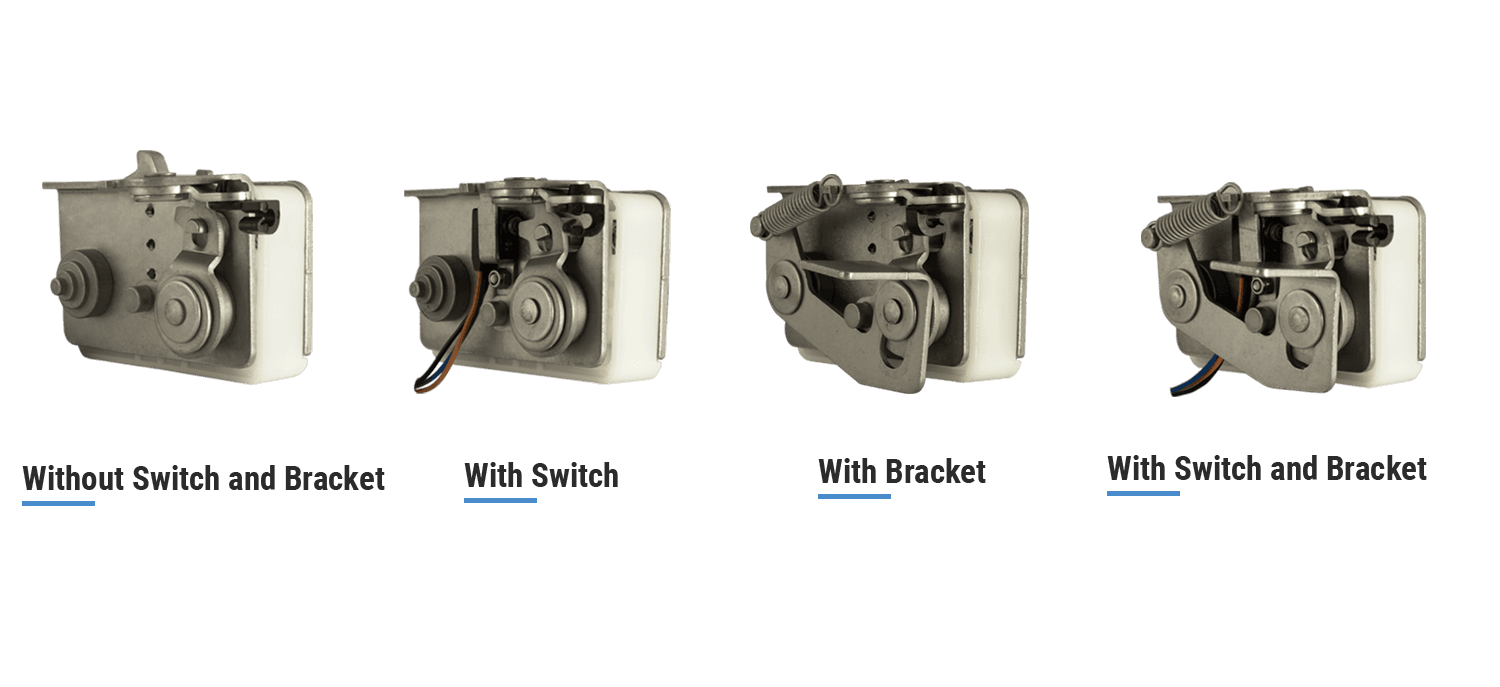

MO 020A | X Side | X Bracket | X Switch |
|---|---|---|---|
| L - Left | 0 - Without Bracket | - Without Switch | |
| R - Right | 1 - With Bracket | S - With Switch |
Example:
- MO 020A
- L
- 0
- S
Need a custom configuration?
Contact EngineeringTell our engineering team about your door, flap or hatch, actuation method and keying scheme. We'll propose the right handle, latch and lock combination — keyed alike across the vehicle.
