M-26 / Door Access Systems
MO 025
Luggage Flap Handle · Coach luggage-flap handle with advanced sealing
MO 025 is a coach luggage-flap handle with a patented mechanism and advanced sealing, openable from inside even when locked from outside.
- Type
- Luggage flap
- Actuation
- Manual / 12V / 24V / Pneu
- Sealing
- EPDM / 504h
Overview
Built for sealed coach luggage-flap access.
Highlights
- Patented sealed luggage-flap mechanism
- Advanced sealing
- Manual / 12V / 24V / pneumatic actuation
- 504-hour salt-mist resistance
Specifications
- Type
- Coach luggage-flap handle
- Material
- Black polyamide, 30% GF reinforced
- Sealing
- EPDM rubber seal
- Salt-mist
- 504 hours
- Actuation
- Manual / 12V (E12) / 24V (E24) / Pneumatic (P)

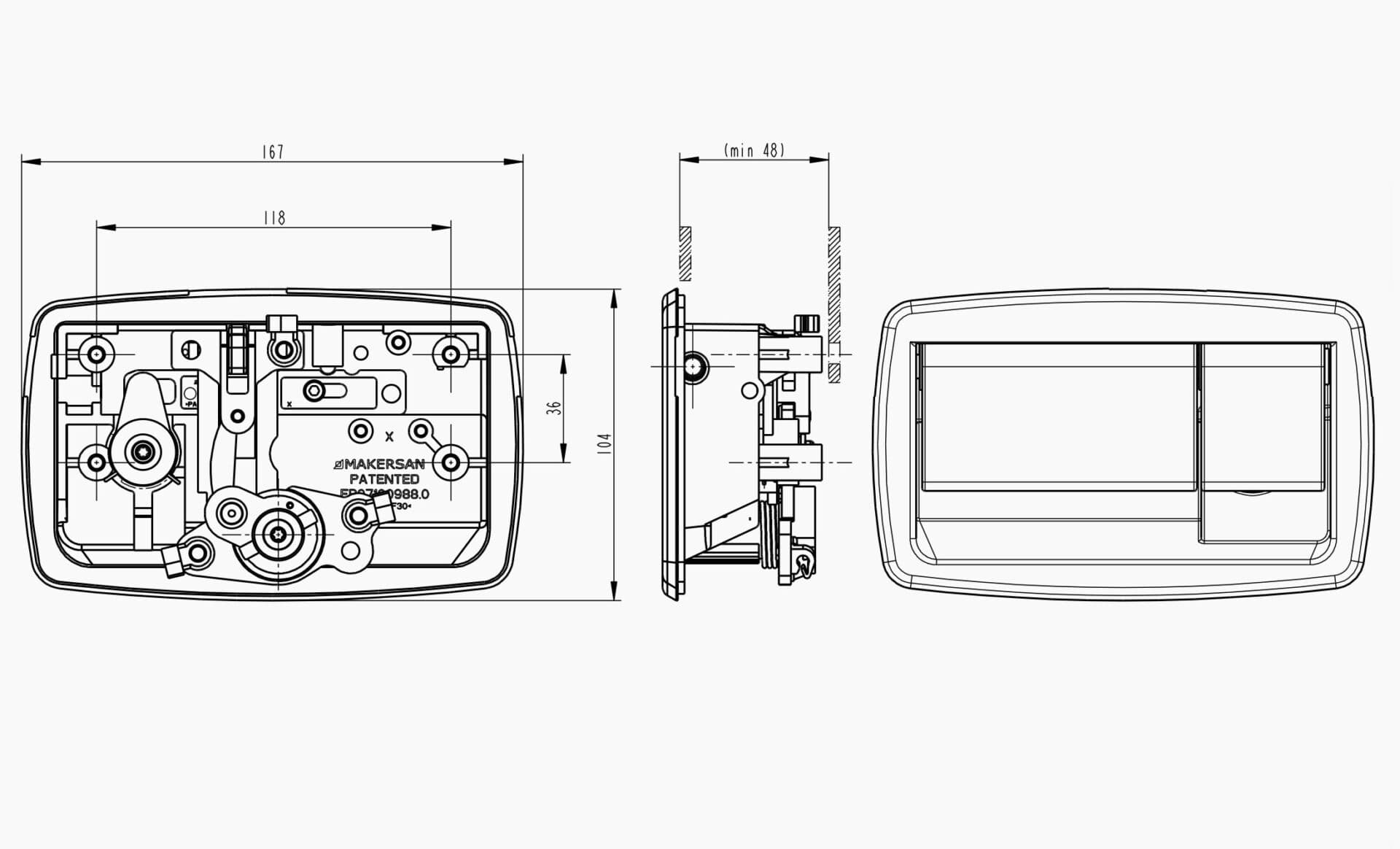

Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 025
- XXX
X stands for the digits you pick from the table.

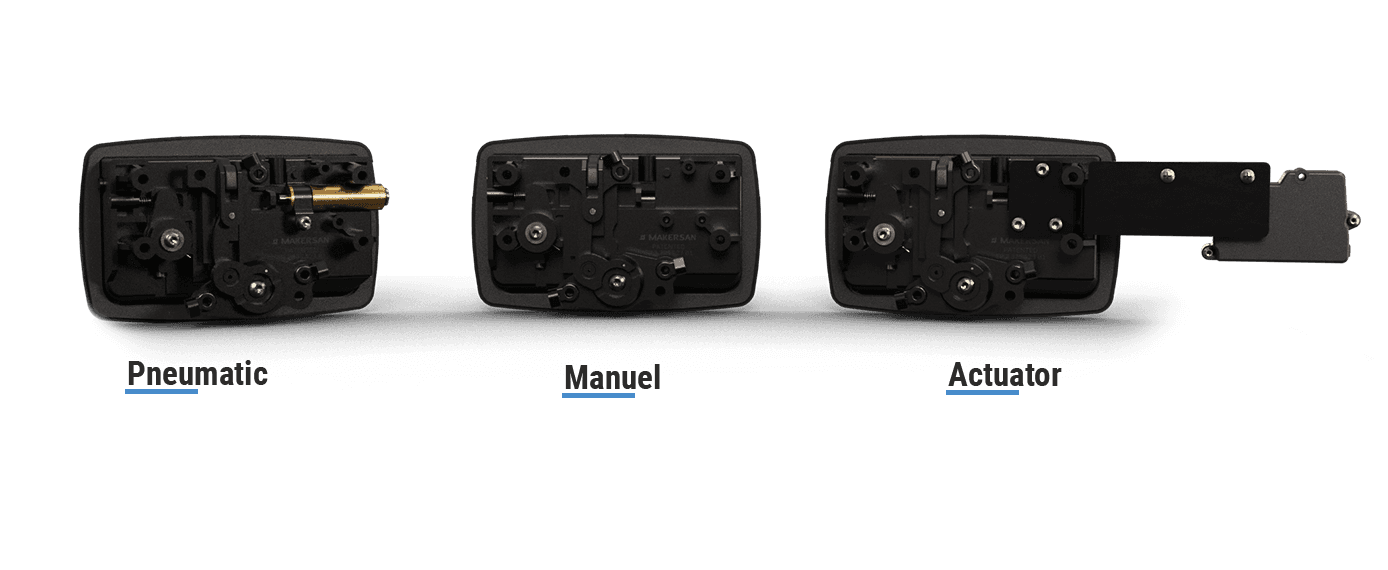

MO 025 | XXX Key Actuation |
|---|---|
| - Manuel Operation | |
| E12 - 12V Electrical Actuation | |
| E24 - 24V Electrical Actuation | |
| P - Pneumatic Actuator |
Example:
- MO 025
- E12
Need a custom configuration?
Contact EngineeringTell our engineering team about your door, flap or hatch, actuation method and keying scheme. We'll propose the right handle, latch and lock combination — keyed alike across the vehicle.
