M-03 / Door Access Systems
MO 028

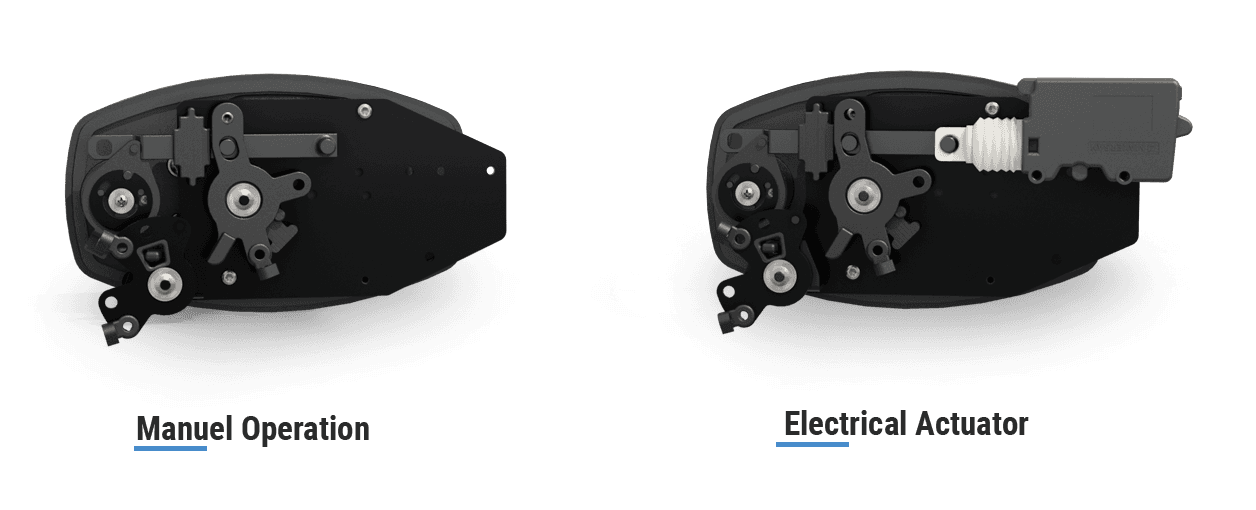

Exterior Door Handle · Exterior door handle with manual or electric actuation
MO 028 is an exterior door handle available with manual or electric actuation, built on the patented sealed mechanism in a UV-stabilized glass-fibre reinforced housing.
- Type
- Exterior handle
- Material
- PA 30% GF
- Actuation
- Manual / Electric
Overview
Built for manual or electric exterior door access.
Highlights
- Manual or electric actuation options
- Patented sealed mechanism
- Keyed-alike across the door-access range
Specifications
- Type
- Exterior door handle
- Material
- Polyamide, 30% glass-fibre reinforced
- Actuation
- Manual / Electric

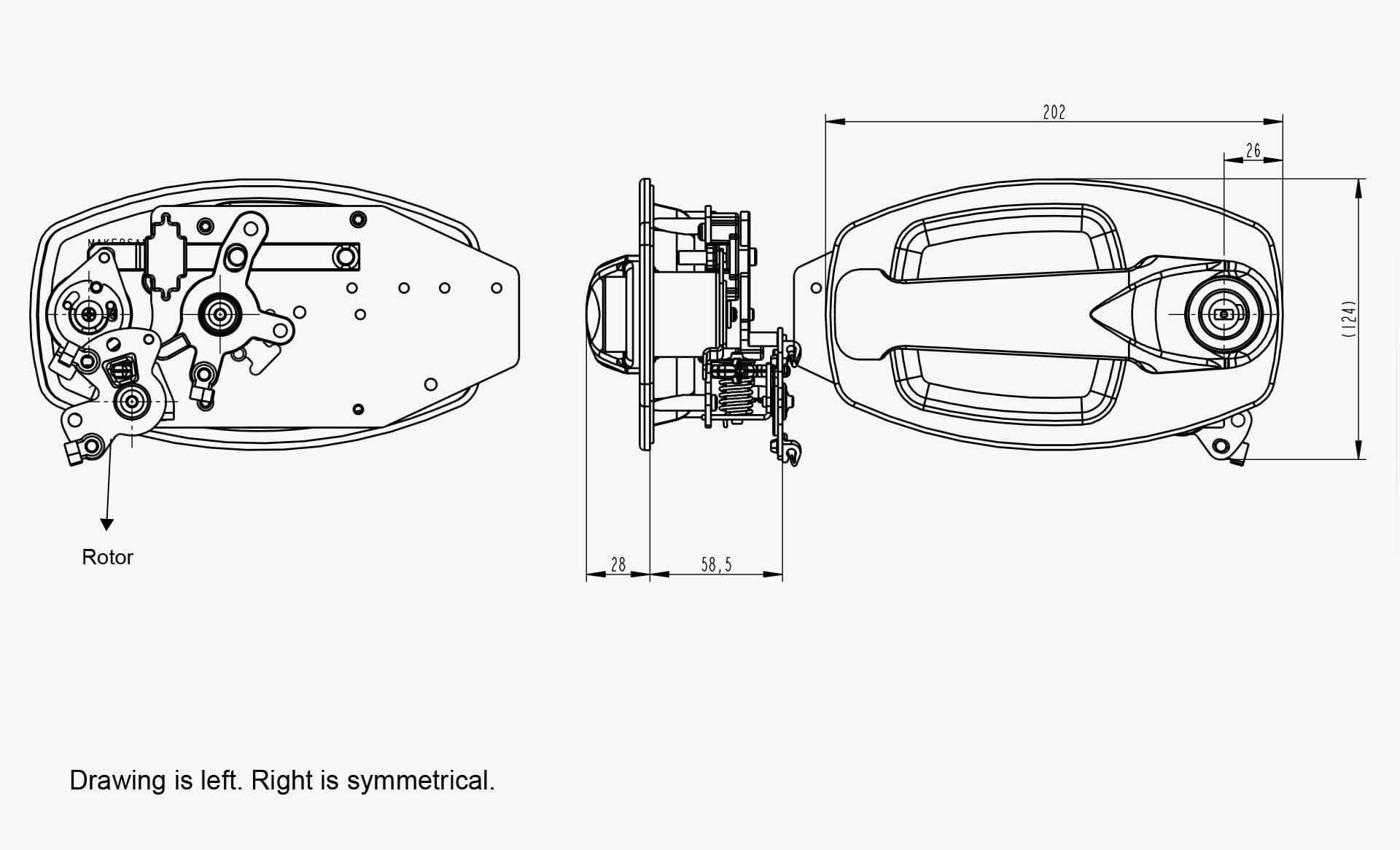

Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 028
- X
- EXX
- X
X stands for the digits you pick from the table.
MO 028 | X Side | EXX Key Actuation | X Rotor |
|---|---|---|---|
| L - Left | - Without Actuator | - Standard | |
| R - Right | E12 - 12V Electrical Actuator | ||
| E24 - 24V Electrical Actuator |
Example:
- MO 028
- L
- E12
Need a custom configuration?
Contact EngineeringTell our engineering team about your door, flap or hatch, actuation method and keying scheme. We'll propose the right handle, latch and lock combination — keyed alike across the vehicle.
