M-28 / Door Access Systems
MO 032X
Oval Luggage Handle · Oval luggage-flap handle with no-load closed operation

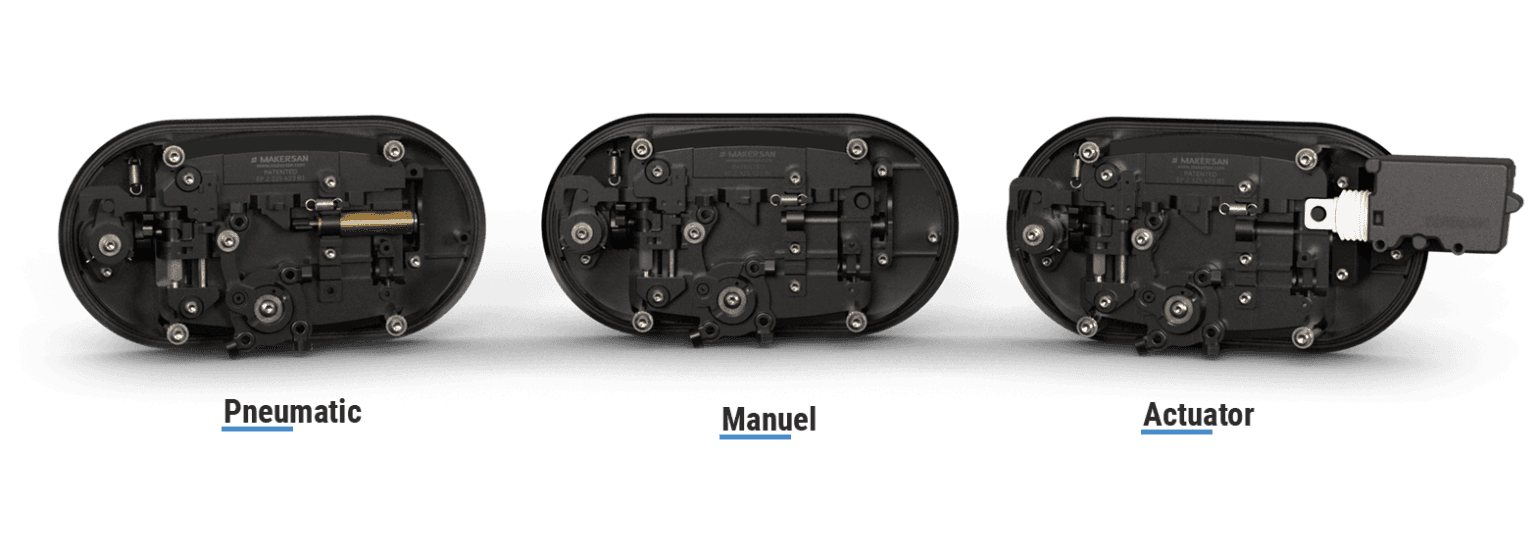

MO 032X is an oval coach luggage-flap handle with no-load operation in the closed position and an optional integrated 4-LED side marker. Patented mechanism, openable inside when locked outside.
- Type
- Oval flap
- LED
- Optional marker
- Actuation
- Manual / 12V / 24V / Pneu
Overview
Built for oval luggage flaps with no-load closing.
Highlights
- Oval handle with no-load closed operation
- Optional 4-LED side marker
- Remote locking with interior release
- 504-hour salt-mist resistance
Specifications
- Type
- Oval luggage-flap handle
- Material
- Black polyamide, 30% GF reinforced
- LED
- Optional (B = without, R = with)
- Sealing
- EPDM rubber seal
- Salt-mist
- 504 hours
- Actuation
- Manual / 12V / 24V / Pneumatic

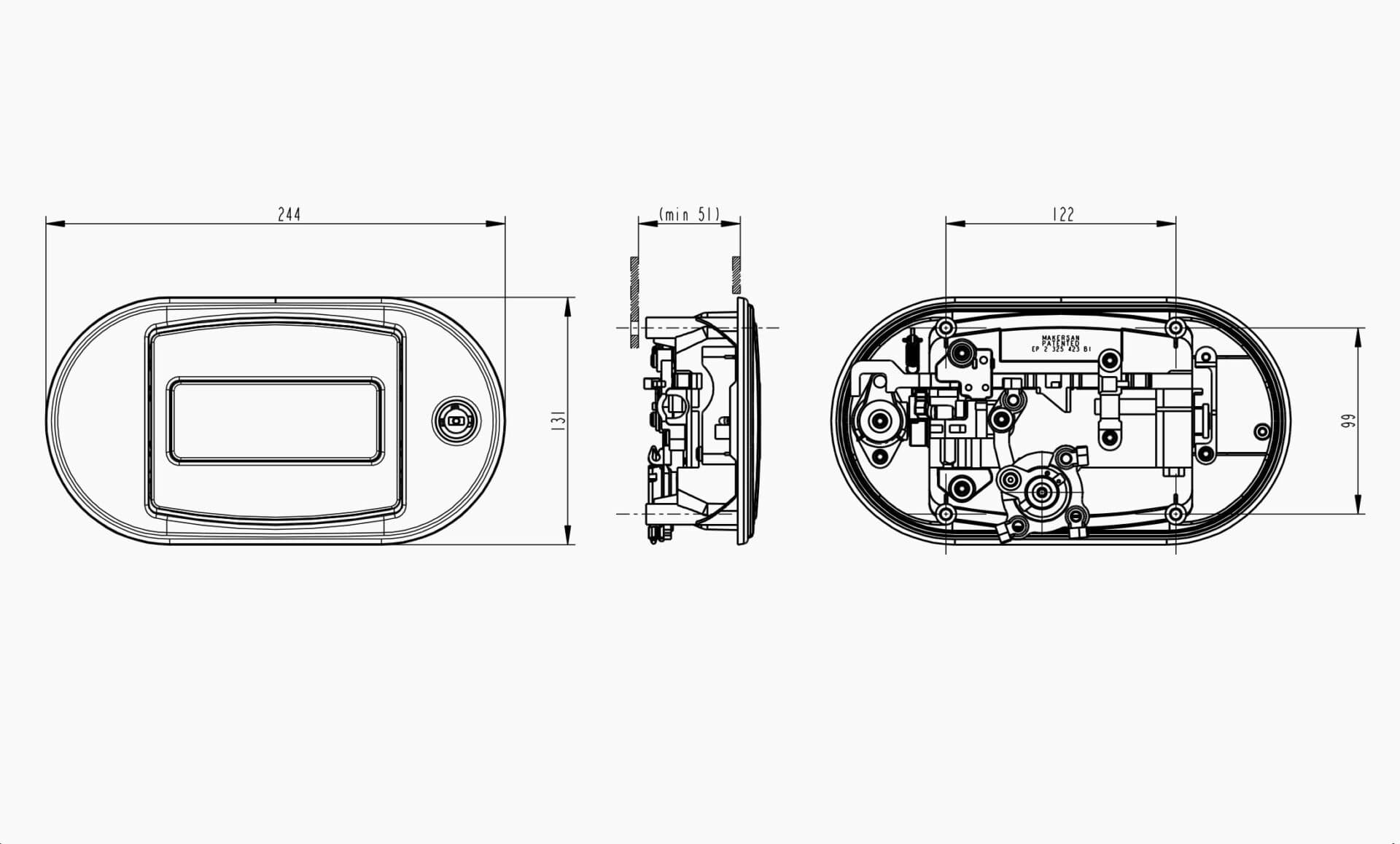

Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 032
- X
- XXX
X stands for the digits you pick from the table.
MO 032 | X Side Marker | XXX Key Actuation |
|---|---|---|
| B - Without Sidemarker | - Manuel Operation | |
| R - With Sidemarker | E12 - 12V Electrical Actuator | |
| E24 - 24V Electrical Actuator | ||
| P - Pneumatic Actuator |
Example:
- MO 032B
- E12
