M-29 / Door Access Systems
MO 032X-A
Oval Luggage Handle (Auto Latch) · Oval luggage handle with automatic pneumatic latch opening
MO 032X-A is an MO 032X variant with automatic latch opening when pneumatically actuated, in an oval shape with an integrated 4-LED side marker.
- Type
- Oval, auto latch
- LED
- 4-LED marker
- Actuation
- Electric / Pneumatic
Overview
Built for automatic pneumatic luggage-flap opening.
Highlights
- Automatic pneumatic latch opening
- Integrated 4-LED side marker
- Oval handle with no-load closed operation
- 504-hour salt-mist resistance
Specifications
- Type
- Oval luggage-flap handle, automatic latch
- Material
- Black polyamide, 30% GF reinforced
- LED
- Integrated 4-LED side marker
- Sealing
- EPDM rubber seal

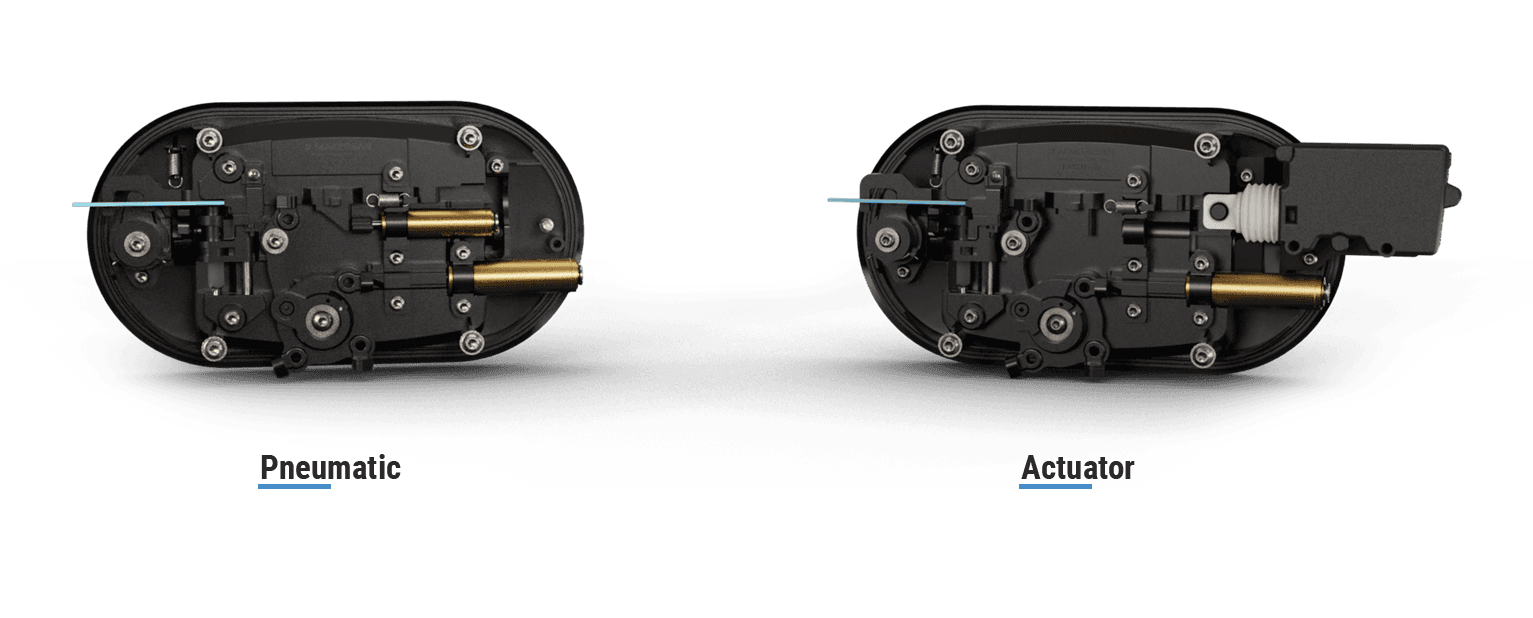

- Actuation
- Electrical (12V/24V) or pneumatic (automatic latch)

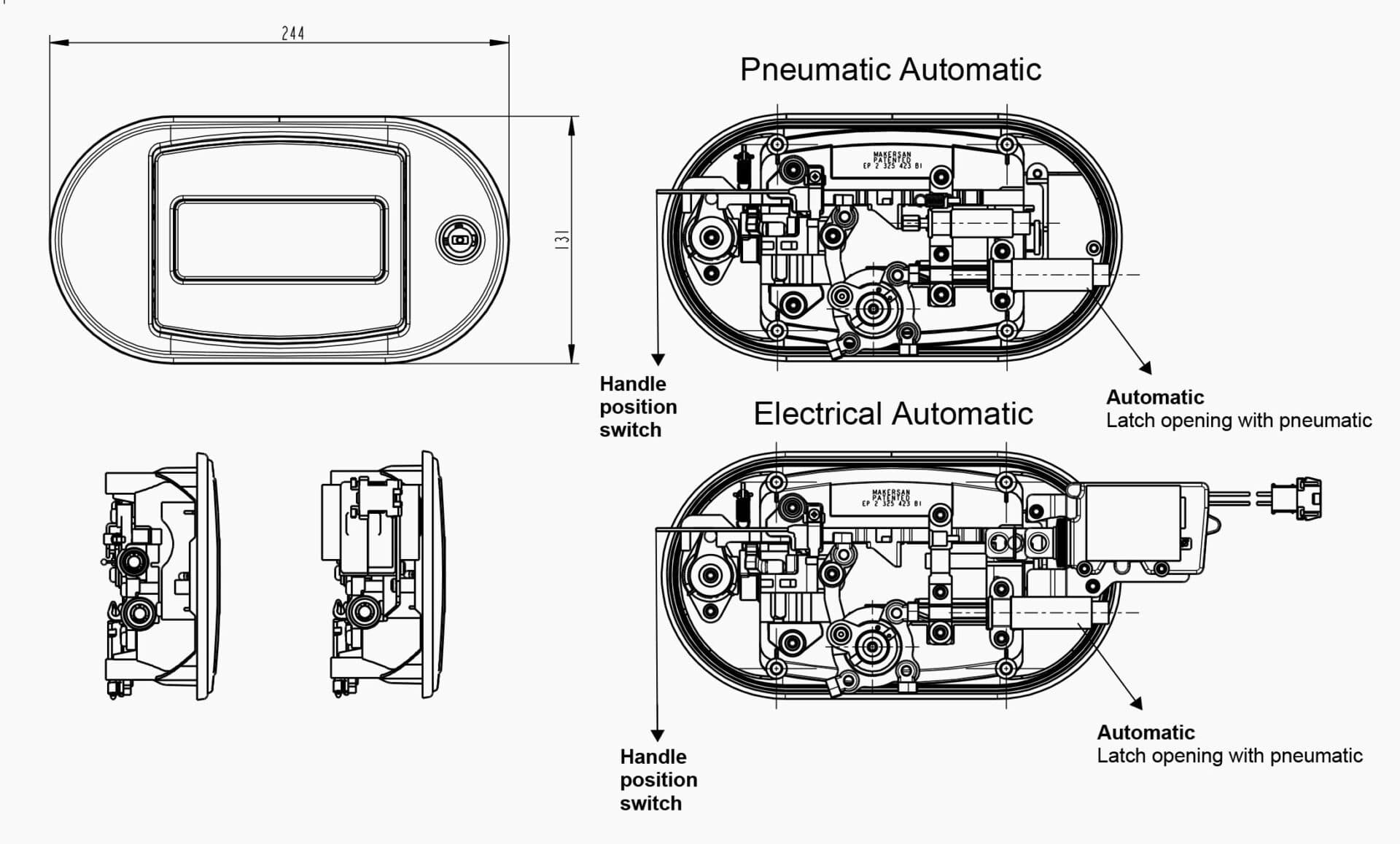

Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 032
- X
- XXX
- A
X stands for the digits you pick from the table.

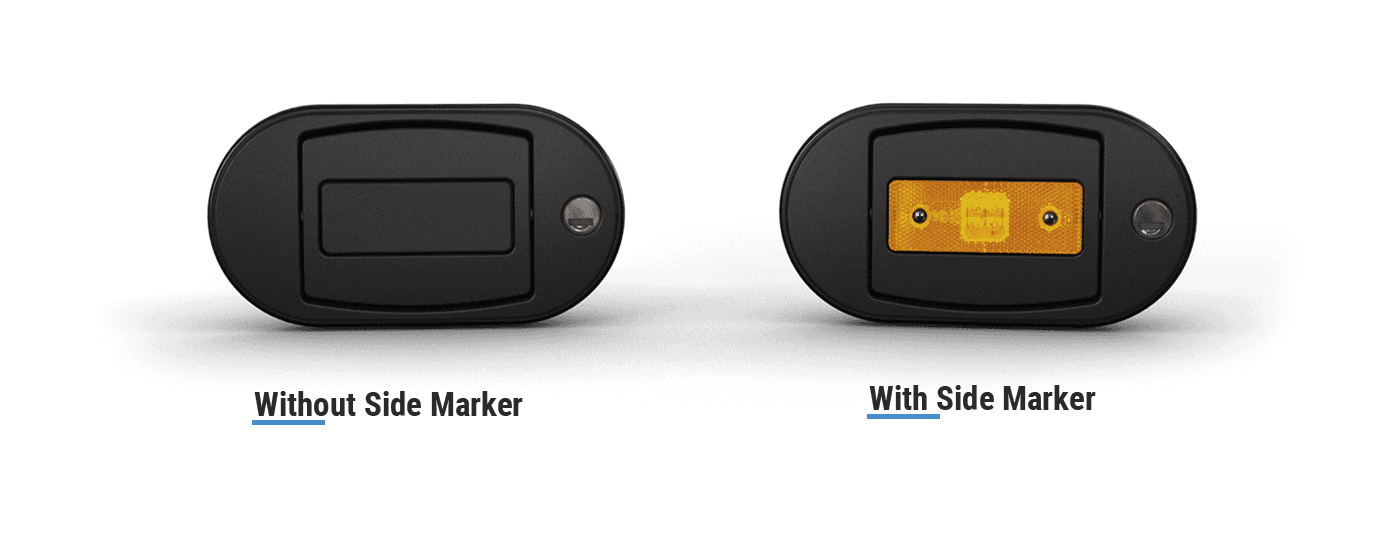

MO 032 | X Side Marker | XXX Key Actuation | A Automatic |
|---|---|---|---|
| B - Without Sidemarker | E12 - 12V Electrical Actuator | ||
| R - With Sidemarker | E24 - 24V Electrical Actuator | ||
| P - Pneumatic Actuator |
Example:
- MO 032B
- E12
- A
Need a custom configuration?
Contact EngineeringTell our engineering team about your door, flap or hatch, actuation method and keying scheme. We'll propose the right handle, latch and lock combination — keyed alike across the vehicle.
