M-30 / Door Access Systems
MO 032X-A-M
Oval Luggage Handle (Auto Latch, M) · Oval auto-latch luggage handle, M variant
MO 032X-A-M is the M variant with automatic latch opening on pneumatic actuation, oval shape with optional integrated LED side marker.
- Type
- Oval, auto latch
- LED
- Optional marker
- Actuation
- Manual / Electric / Pneu
Overview
Built for automatic pneumatic latch opening (M).
Highlights
- Automatic pneumatic latch opening (M variant)

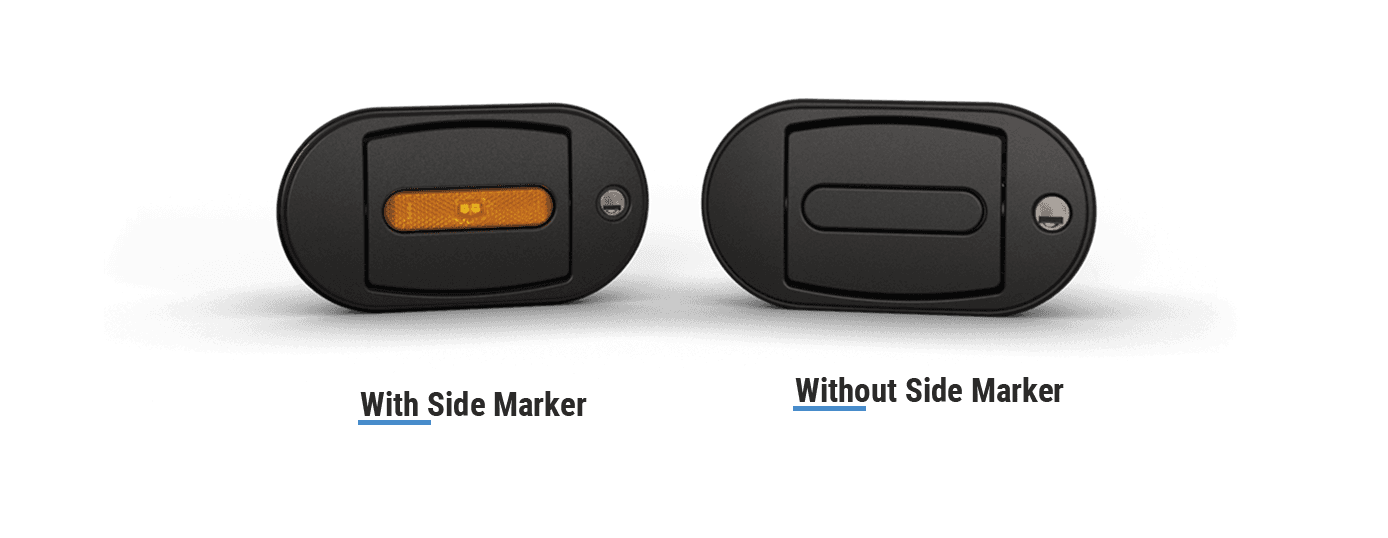

- Optional integrated LED side marker
- Oval handle with no-load closed operation
- 504-hour salt-mist resistance
Specifications
- Type
- Oval luggage-flap handle, automatic latch (M)
- Material
- Black polyamide, 30% GF reinforced
- LED
- Integrated side marker (optional)
- Sealing
- EPDM rubber seal
- Actuation

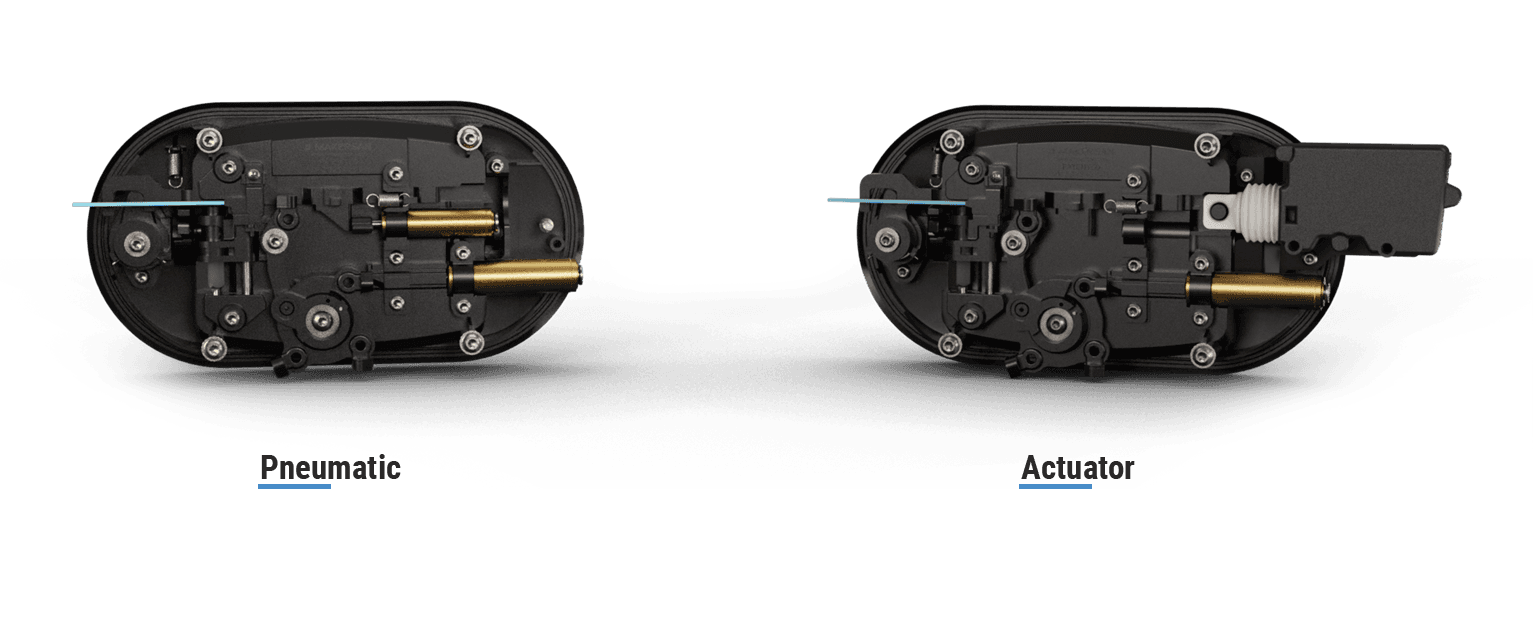

- Manual / Electrical (12V/24V) / Pneumatic (automatic latch)

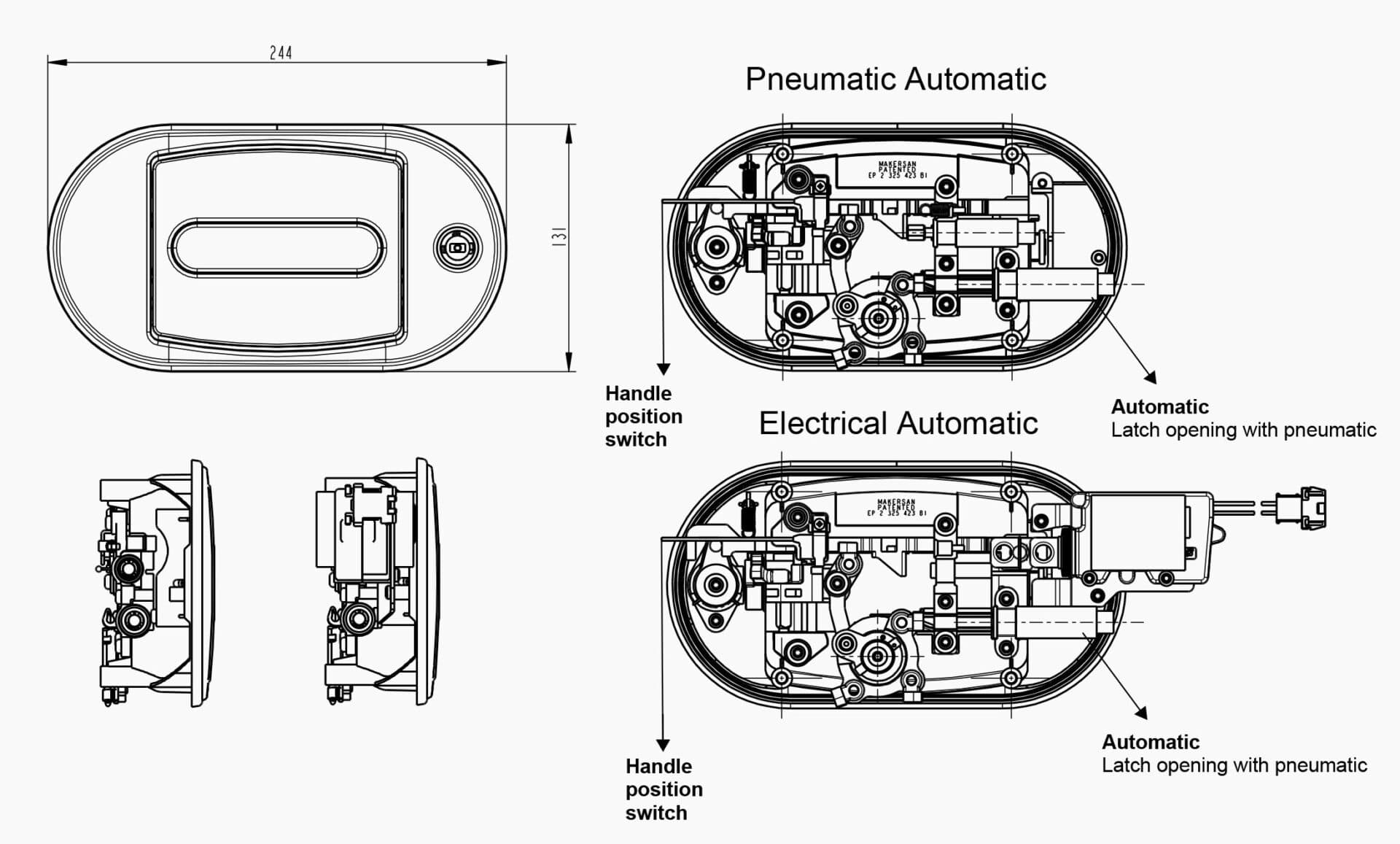

Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 032
- X
- XXX
- A
- M
X stands for the digits you pick from the table.
MO 032 | X Side Marker | XXX Key Actuation | A Automatic | M M Type |
|---|---|---|---|---|
| B - Without Sidemarker | E12 - 12V Electrical Actuator | |||
| R - With Sidemarker | E24 - 24V Electrical Actuator | |||
| P - Pneumatic Actuator |
Example:
- MO 032B
- E12
- A
- M
