M-31 / Door Access Systems
MO 032X-M
Oval Luggage Handle (M) · Oval luggage handle, M variant with optional LED
MO 032X-M is the M variant of the oval coach luggage-flap handle, with no-load closed operation and an optional integrated LED side marker.
- Type
- Oval flap (M)
- LED
- Optional marker
- Actuation
- Manual / Electric / Pneu
Overview
Built for oval luggage flaps (M variant).
Highlights
- Oval handle with no-load closed operation (M)

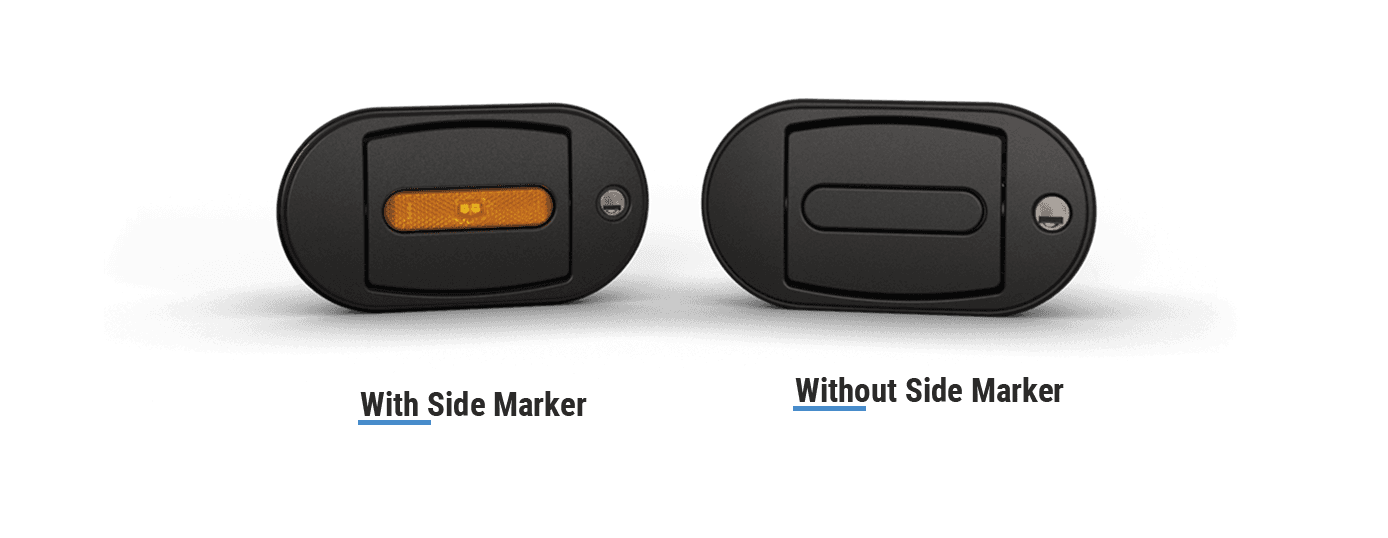

- Optional integrated LED side marker

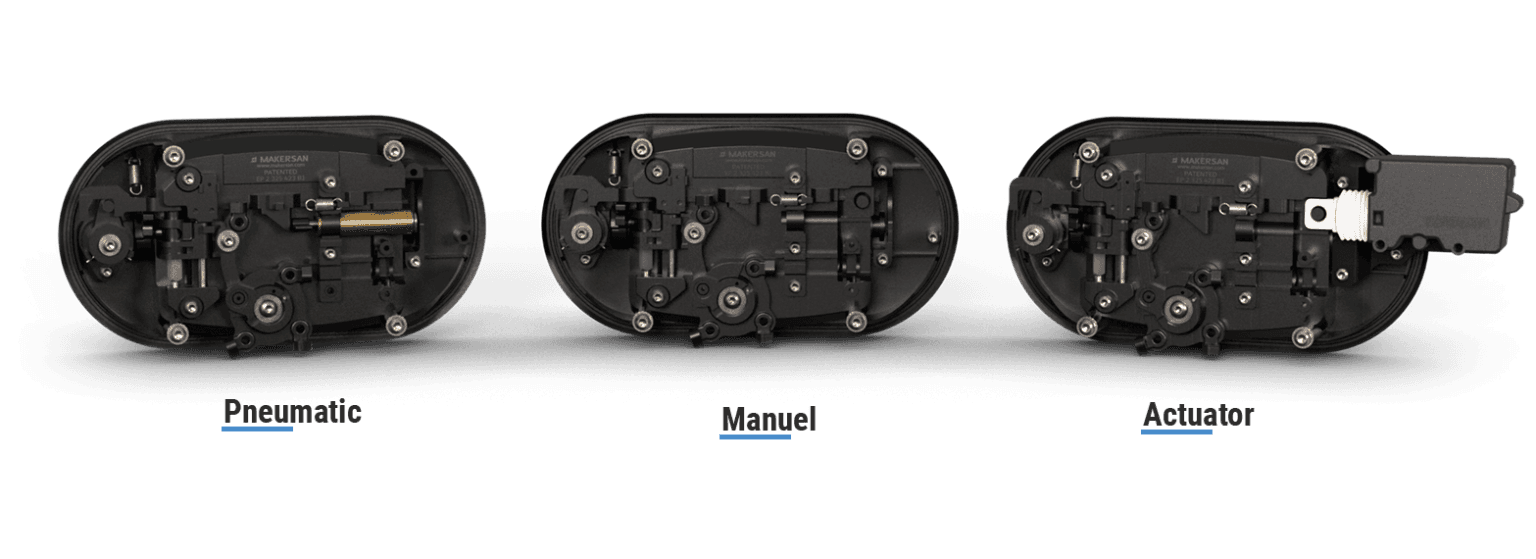

- Manual / electric / pneumatic actuation
- 504-hour salt-mist resistance
Specifications
- Type
- Oval luggage-flap handle (M)
- Material
- Black polyamide, 30% GF reinforced
- LED
- Integrated side marker (with / without)
- Sealing
- EPDM rubber seal
- Actuation
- Manual / Electrical (12V/24V) / Pneumatic

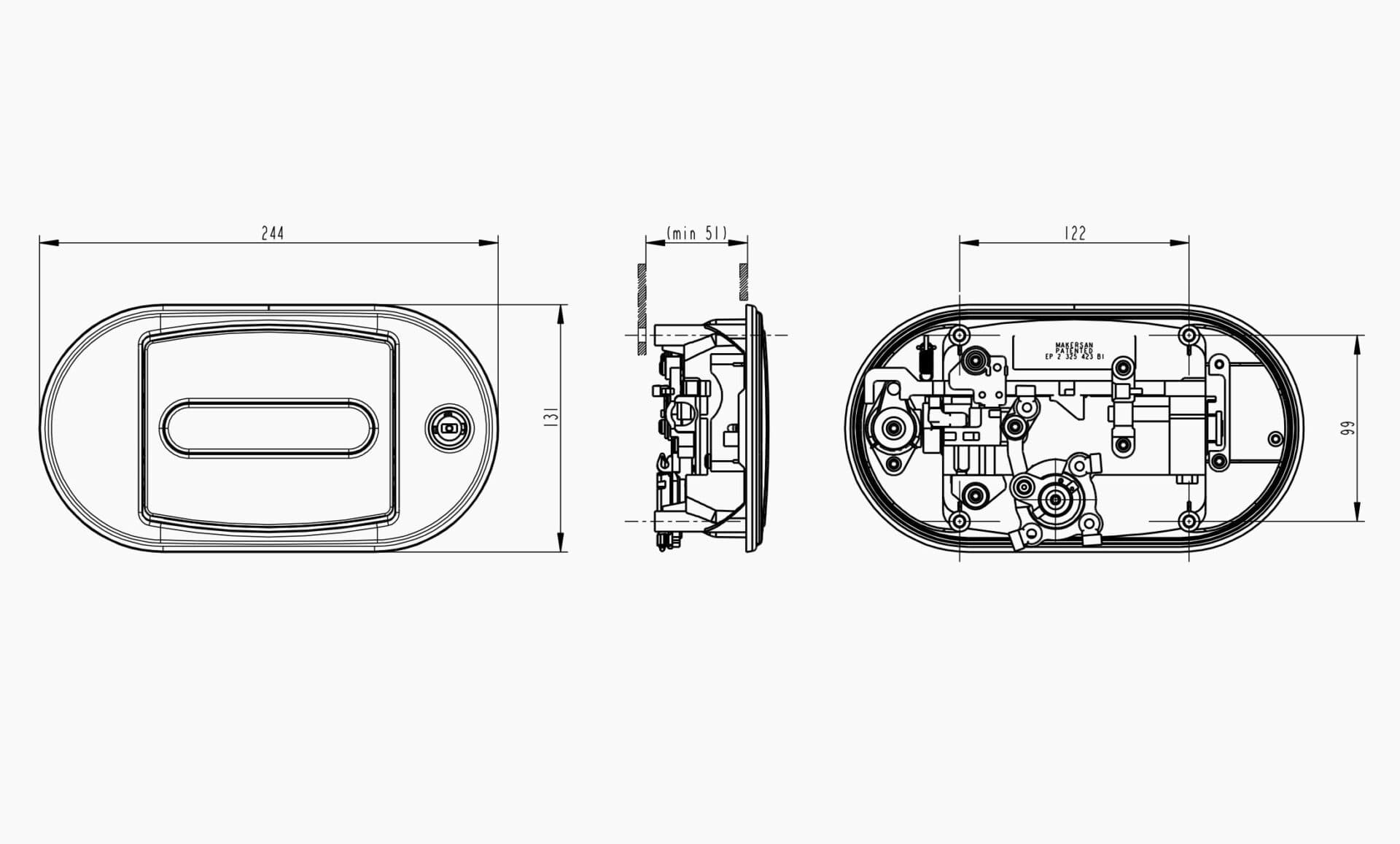

Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 032
- X
- XXX
- M
X stands for the digits you pick from the table.
MO 032 | X Side Marker | XXX Key Actuation | M M Type |
|---|---|---|---|
| B - Without Sidemarker | - Manuel Operation | ||
| R - With Sidemarker | E12 - 12V Electrical Actuator | ||
| E24 - 24V Electrical Actuator | |||
| P - Pneumatic Actuator |
Example:
- MO 032B
- E12
- M
