M-04 / Door Access Systems
MO 033
Exterior Door Handle · Exterior door handle with actuator and rod options
MO 033 is an exterior door handle available with manual or electric actuation, with actuator and rod linkage options for varied door architectures.
- Type
- Exterior handle
- Material
- PA 30% GF
- Actuation

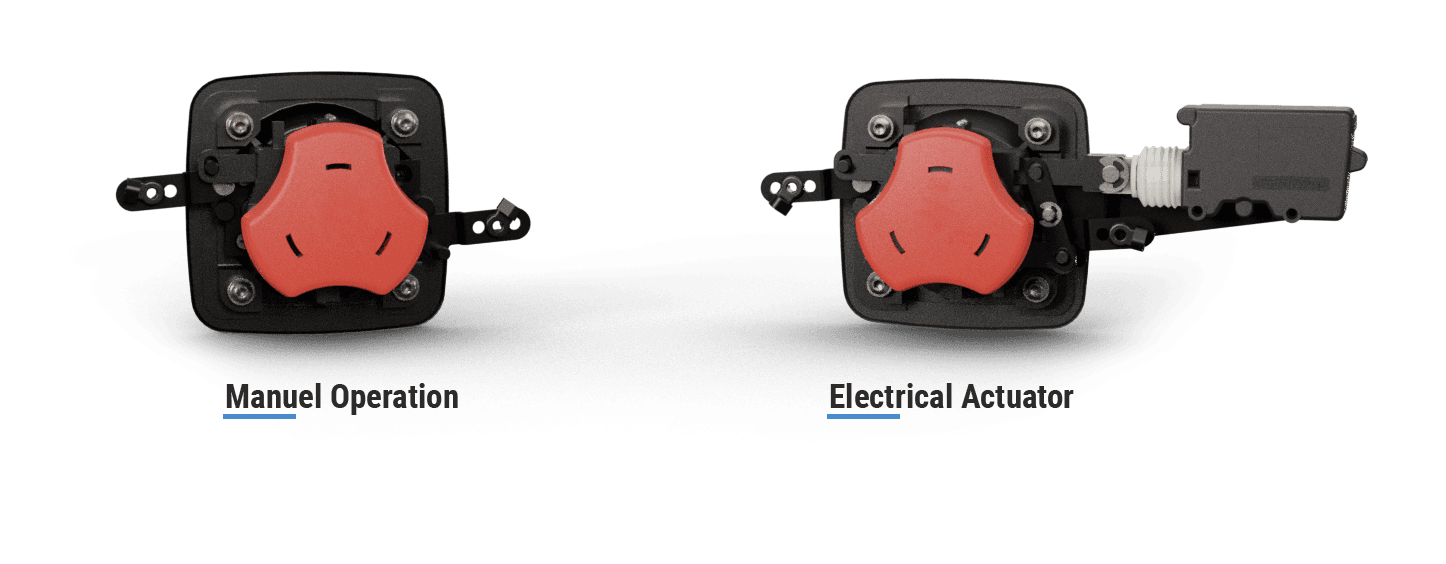

- Manual / Electric
Overview
Built for exterior doors with linkage options.
Highlights

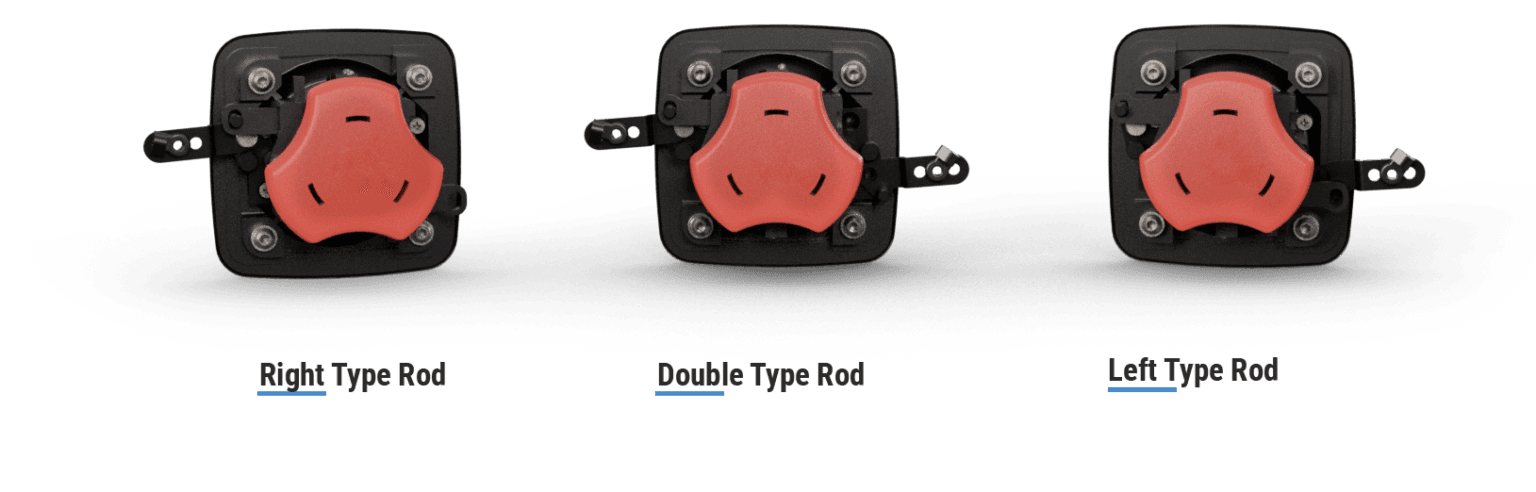

- Actuator and rod linkage variants
- Patented sealed mechanism
- UV-stabilized glass-fibre reinforced housing
Specifications
- Type
- Exterior door handle
- Material
- Polyamide, 30% glass-fibre reinforced
- Actuation
- Manual / Electric (actuator or rod)

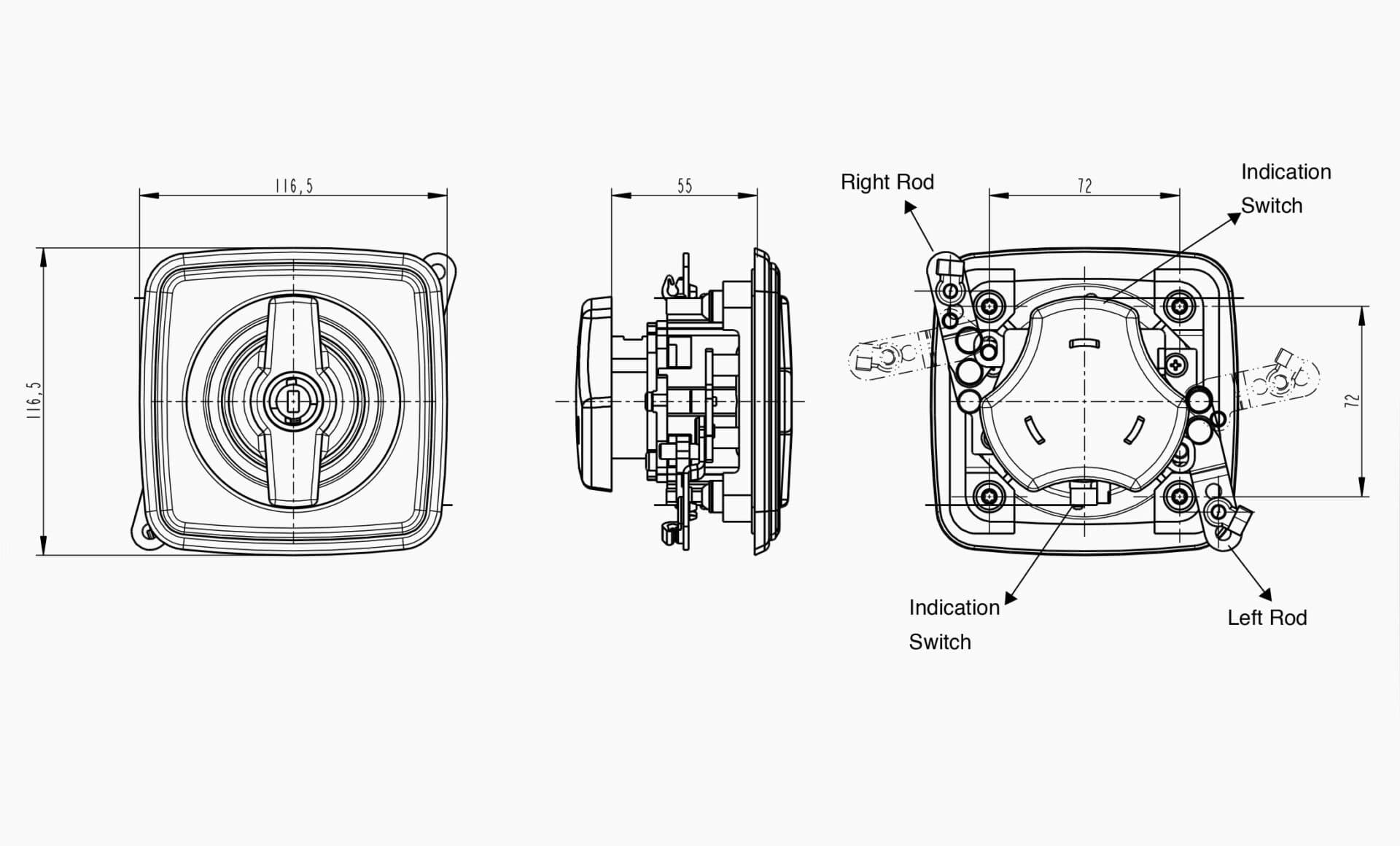

Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 033
- X
- X
- XXX
- X
X stands for the digits you pick from the table.
MO 033 | X Rod Type | X Indication Switch | XXX Key Actuation | X Rotation From Inside |
|---|---|---|---|---|
| L - Left | 0 - Without Switch | - Manuel Operation | 0 - Block | |
| R - Right | 1 - With 1 Switch | E12 - 12V Electrical Actuator | 1 - Free | |
| D - Double | 2 - With 2 Switches | E24 - 24V Electrical Actuator |
Example:
- MO 033
- L
- 1
- E12
- 0
Need a custom configuration?
Contact EngineeringTell our engineering team about your door, flap or hatch, actuation method and keying scheme. We'll propose the right handle, latch and lock combination — keyed alike across the vehicle.
