MO 035
Double-Lock Latch with Micro-Switch · Double-lock latch combining safety with switch feedback
MO 035 combines a double-lock safety mechanism with an integrated micro-switch for position feedback. Available with or without the switch; pairs with the MO 040-02 striker.
- Type
- Double-lock + switch
- Feedback
- Micro-switch
- Striker
- MO 040-02
Overview
Built for safe latching with position feedback.
Highlights
- Double-lock safety with switch feedback
- Available with or without micro-switch
- Pairs with the MO 040-02 striker
Specifications
- Type
- Double-lock latch with micro-switch
- Material
- Automotive-grade, zinc-nickel plated
- Micro-switch

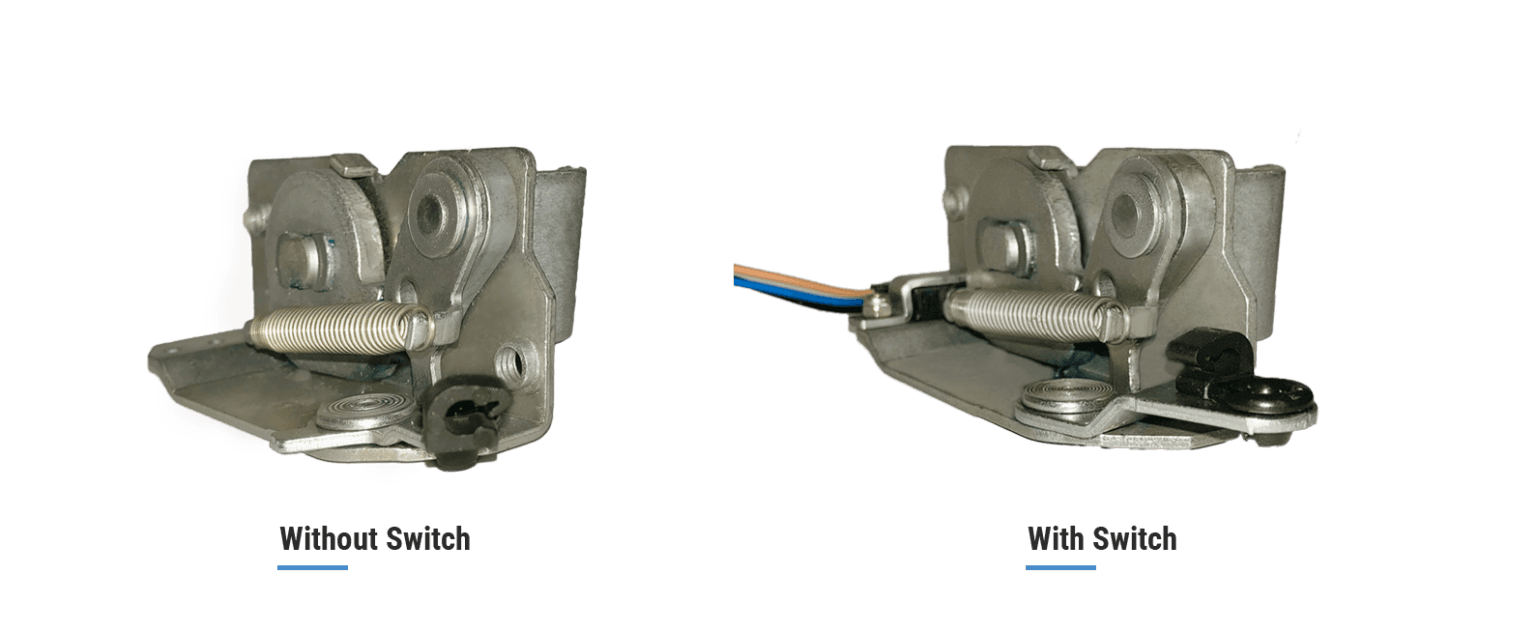

- With / without option
- Striker
- MO 040-02

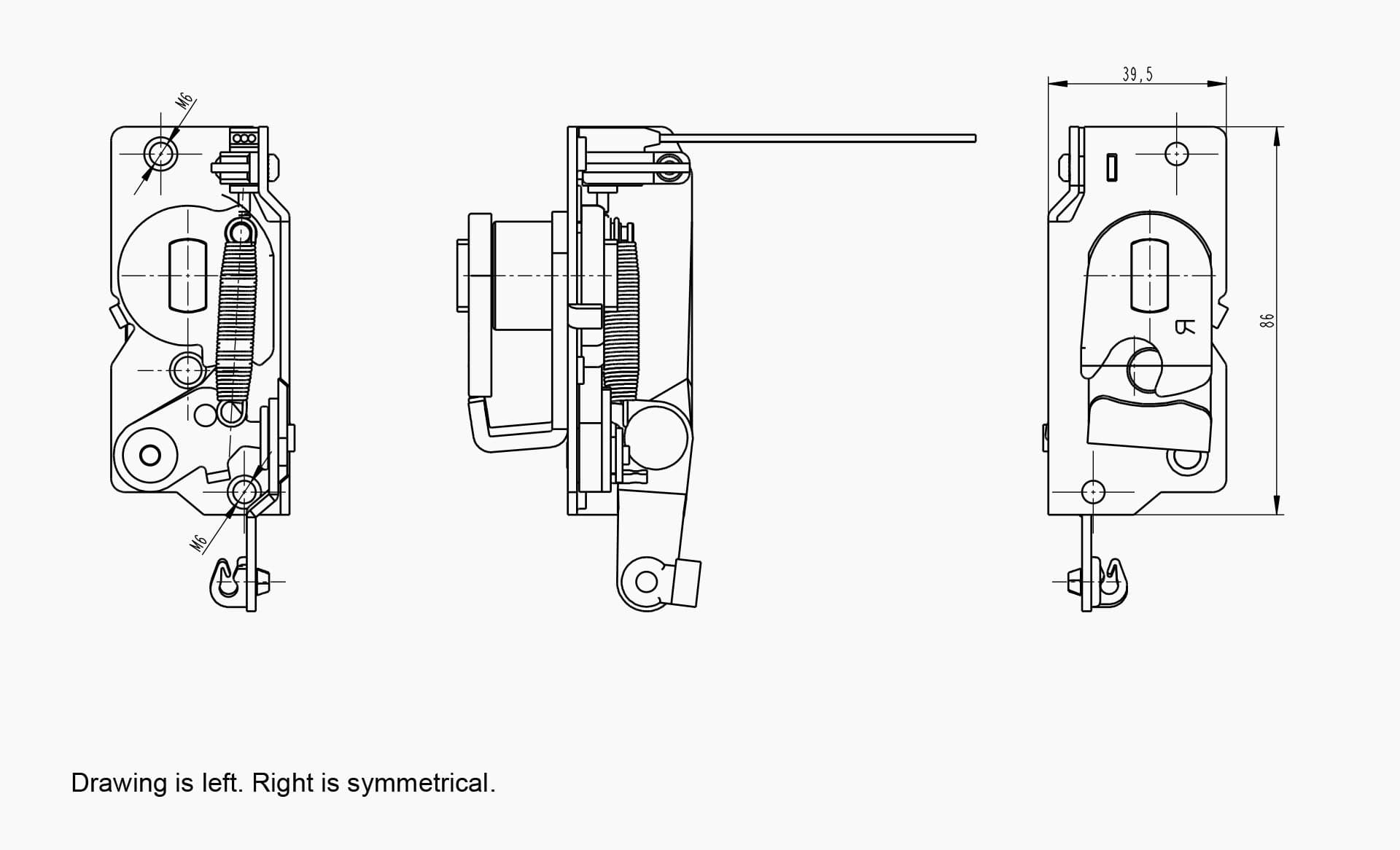

Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 035
- X
- X
- X
X stands for the digits you pick from the table.
MO 035 | X Side | X Rod | X Switch |
|---|---|---|---|
| L -Left | 1 - Long | - Without Switch | |
| R -Right | 2 - Short | S - With Switch | |
| 3 - Vertical |
Example:
- MO 035
- L
- 1
- S
Need a custom configuration?
Contact EngineeringTell our engineering team about your door, flap or hatch, actuation method and keying scheme. We'll propose the right handle, latch and lock combination — keyed alike across the vehicle.
