M-32 / Door Access Systems
MO 038

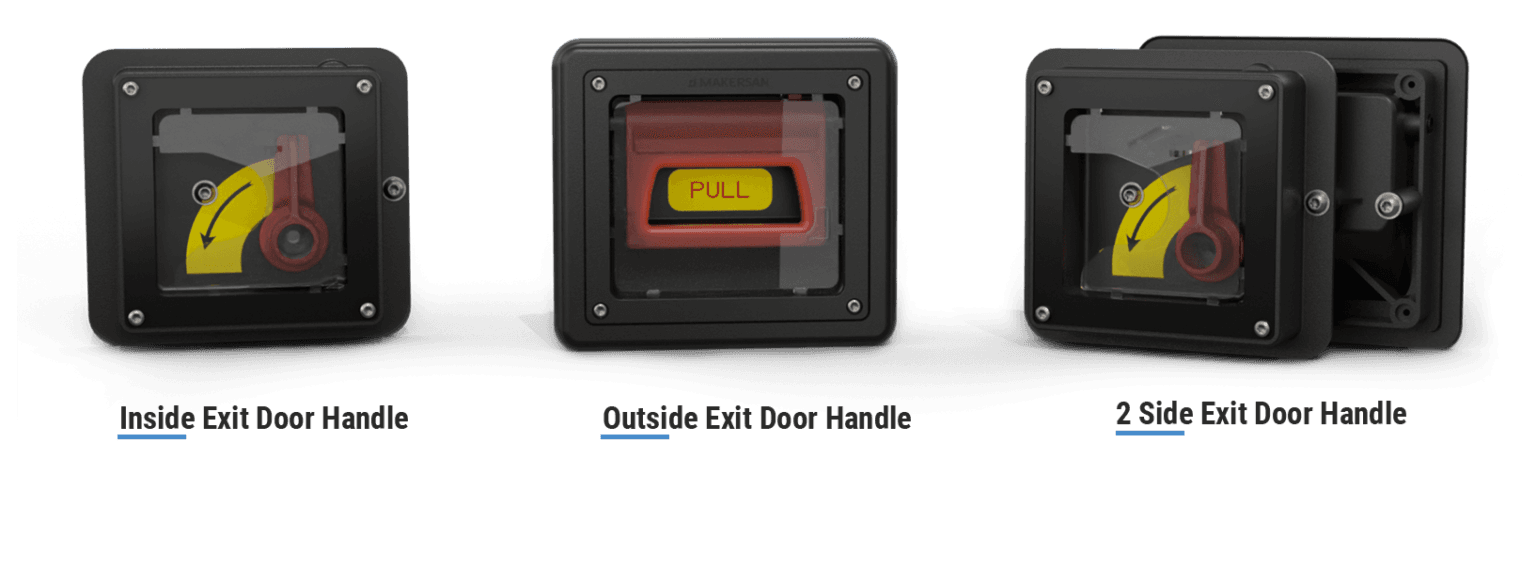

Exit Door Handle · Reinforced-polymer exit door handle with stainless parts
MO 038 is a reinforced-polymer exit door handle with stainless steel components, available two-sided or outside-only (MO 038-01).
- Type
- Exit handle
- Config
- Two-sided / outside
- Parts
- Stainless steel
Overview
Built for exit-door access.
Highlights
- Reinforced-polymer exit door handle
- Two-sided or outside-only configuration
- Stainless steel components
Specifications
- Type
- Exit door handle (lever)
- Material
- Black polyamide 30% GF with stainless steel parts
- Sealing
- EPDM rubber seal
- Configuration
- Two-sided or outside-only (MO 038-01)

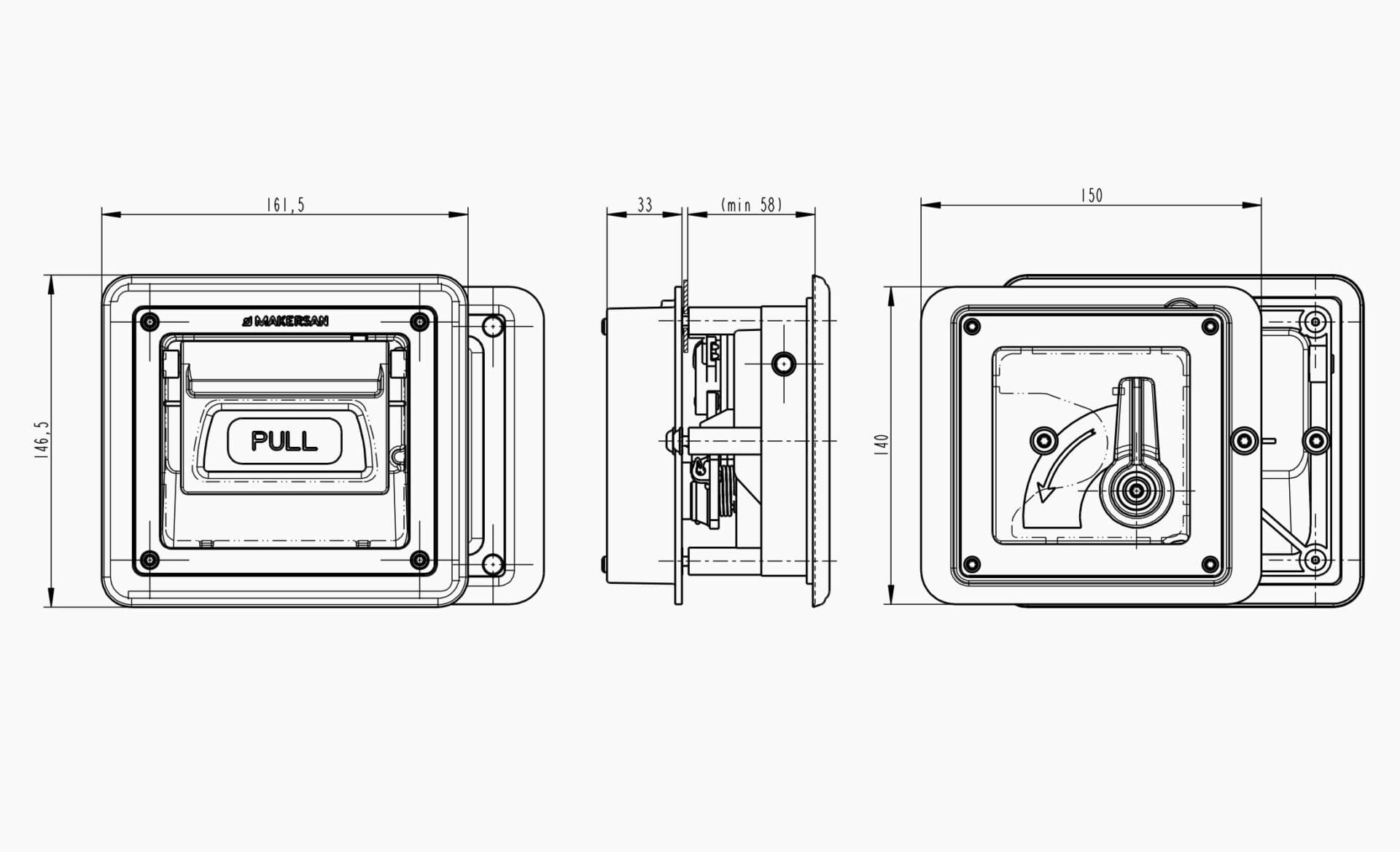

Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 038
- XX
X stands for the digits you pick from the table.
MO 038 | XX Side Options |
|---|---|
| - 2 Sided Exit Door Handle | |
| 01 - Outside Exit Door Handle |
Example:
- MO 038
- 01
Need a custom configuration?
Contact EngineeringTell our engineering team about your door, flap or hatch, actuation method and keying scheme. We'll propose the right handle, latch and lock combination — keyed alike across the vehicle.
