M-06 / Door Access Systems
MO 047
Exterior Door Handle · Exterior door handle with actuator, rod and switch options
MO 047 is an exterior door handle available with manual or electric actuation, offering actuator, rod and switch options for flexible integration.
- Type
- Exterior handle
- Material
- PA 30% GF
- Actuation
- Manual / Electric
Overview
Built for exterior doors with full linkage options.
Highlights
- Actuator, rod and switch variants
- Patented sealed mechanism
- Keyed-alike across the door-access range
Specifications
- Type
- Exterior door handle
- Material
- Polyamide, 30% glass-fibre reinforced
- Actuation

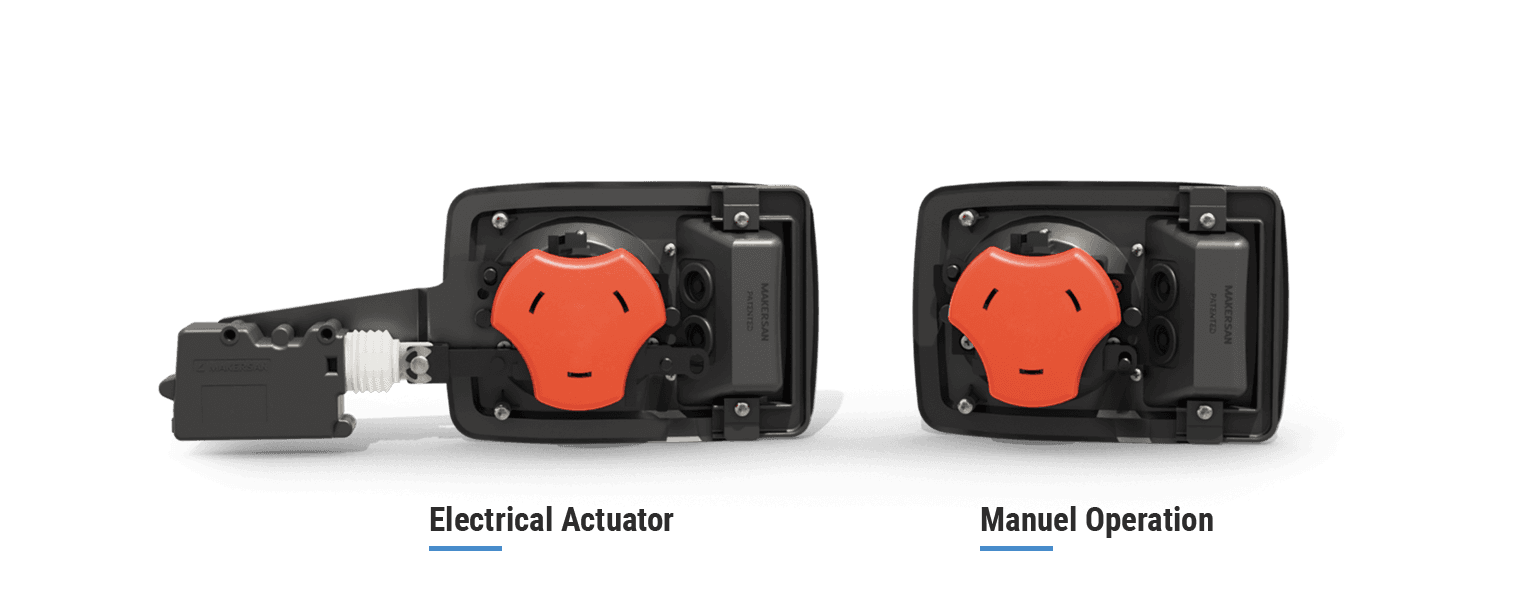

- Manual / Electric (actuator, rod, switch)

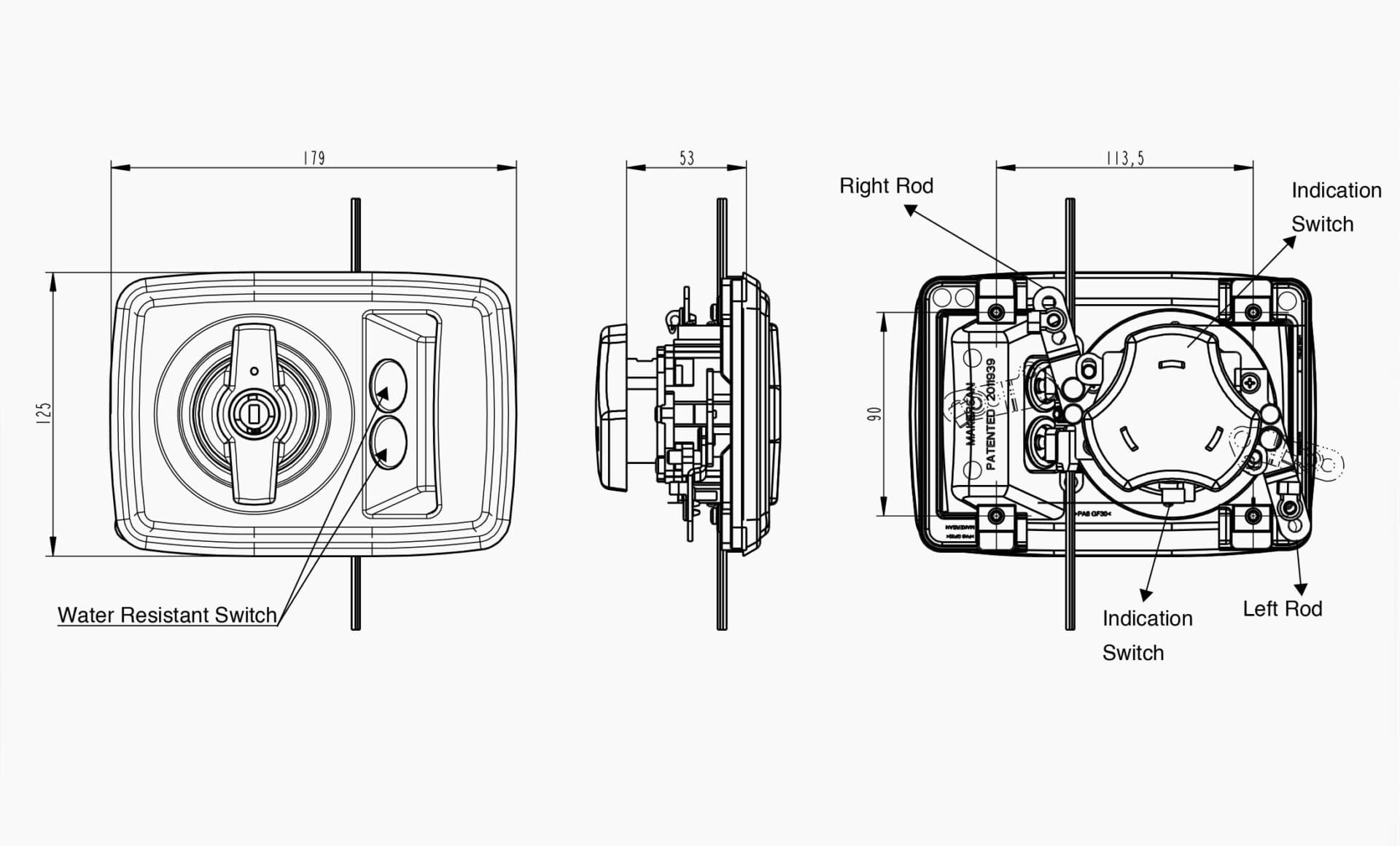

Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 047
- X
- X
- X
- XXX
- X
X stands for the digits you pick from the table.

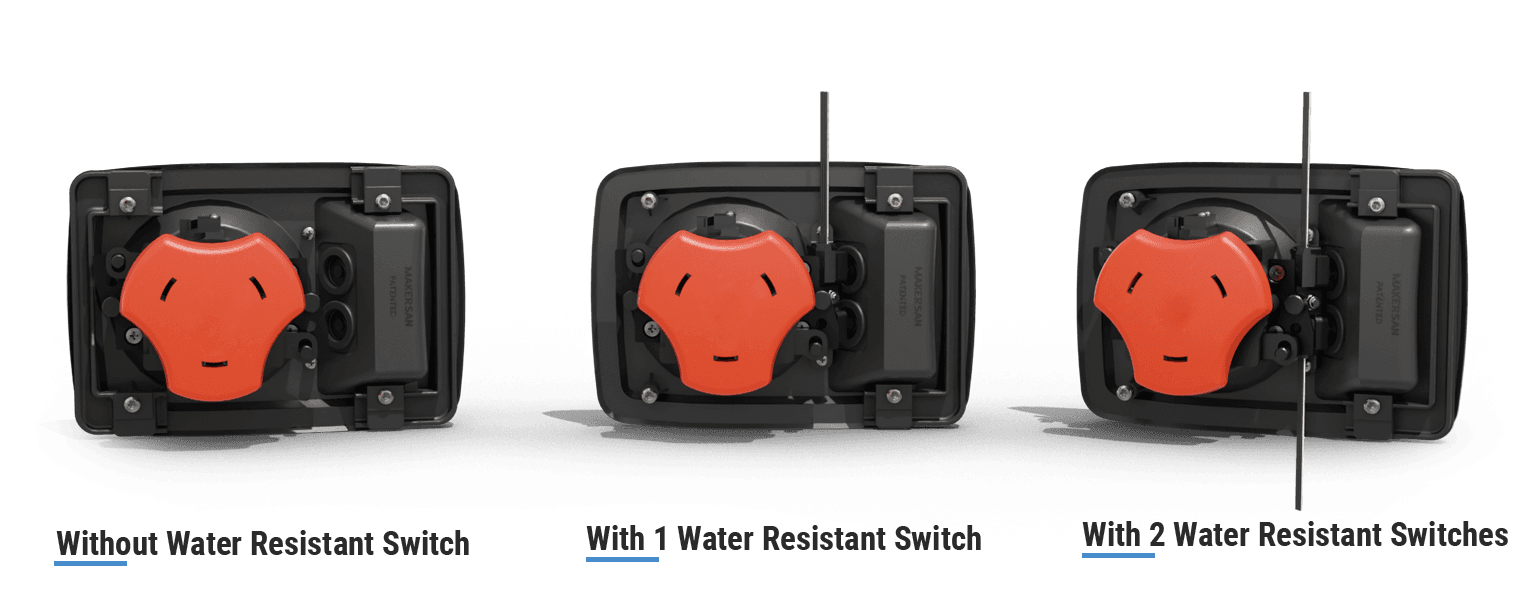

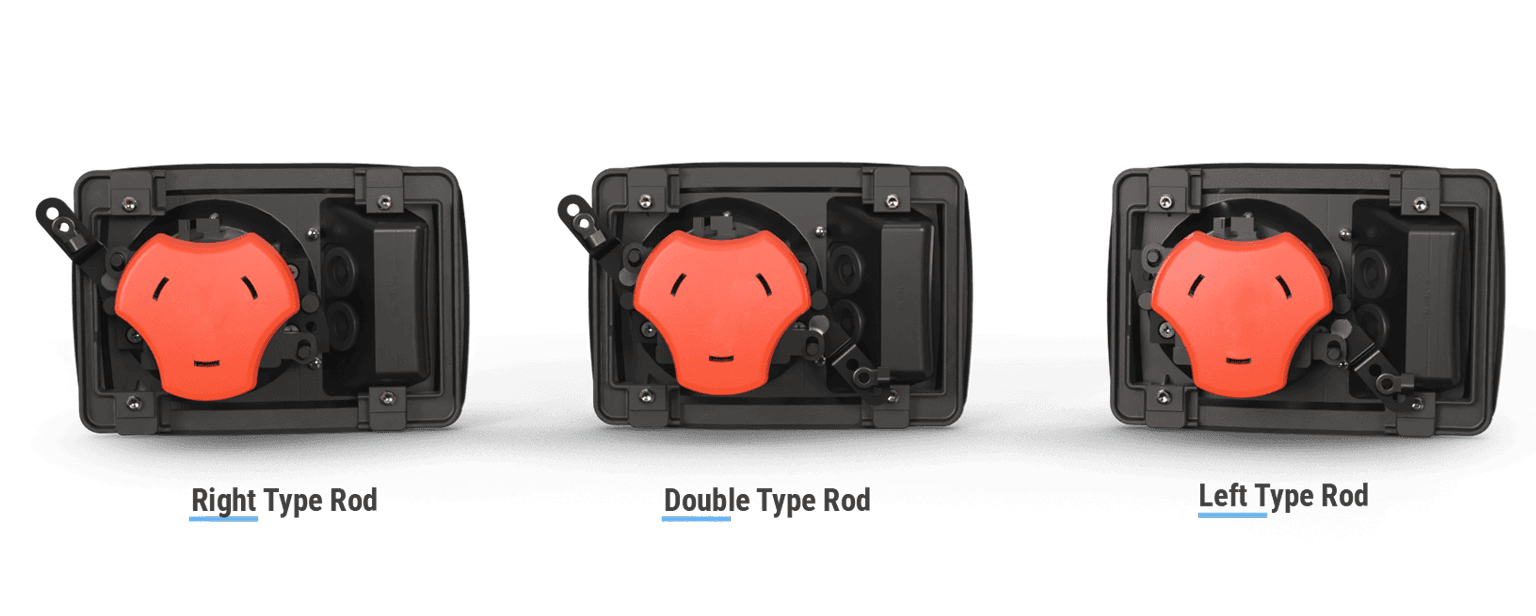

MO 047 | X Rod Type | X Indication Switch | X Outside Water Res. Switch | XXX Key Actuation | X Rotation From Inside |
|---|---|---|---|---|---|
| L - Left | 0 - Without Switch | 0 - Without Switch | E12 - 12V Electrical Actuator | - Block | |
| R - Right | 1 - With 1 Switch | 1 - With 1 Switch | E24 - 24V Electrical Actuator | 1 - Free | |
| D - Double | 2 - With 2 Switches | 2 - With 2 Switches |
Example:
- MO 047
- L
- 1
- 0
- E12
- 1
Need a custom configuration?
Contact EngineeringTell our engineering team about your door, flap or hatch, actuation method and keying scheme. We'll propose the right handle, latch and lock combination — keyed alike across the vehicle.
