Back to door access systems
M-33 / Door Access Systems

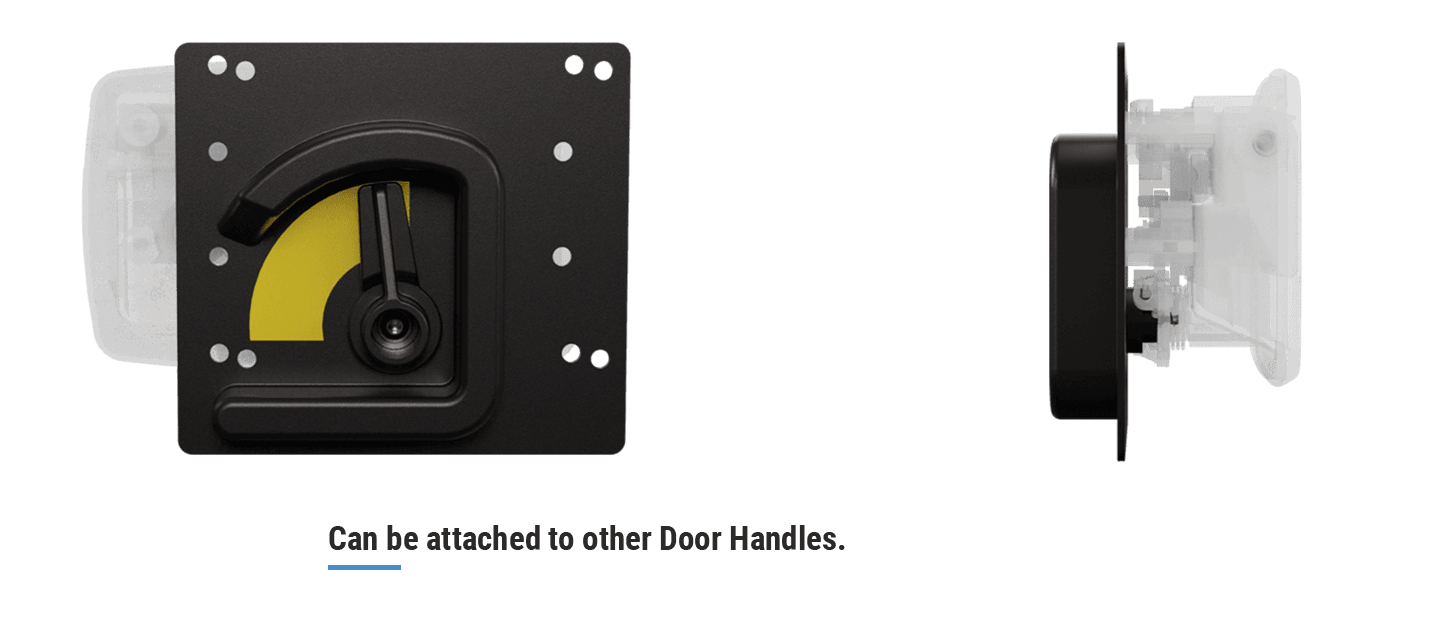

MO 052
Inside-Opening Handle · Interior luggage-flap release for sleeping-cabin access
MO 052 is an interior-opening luggage-flap release handle, used together with the MO 021/022/023/024/032 handles for applications such as sleeping-cabin access.
- Type
- Inside release
- Weight
- 0.130 kg
- Pairs with
- MO 021-032
Overview
Built as an inside luggage-flap release.
Highlights
- Interior release for sleeping-cabin access
- Pairs with MO 021/022/023/024/032 handles
- 504-hour salt-mist resistance
Specifications
- Type
- Inside-opening luggage-flap handle
- Material
- Black polyamide, 30% GF reinforced
- Weight
- 0.130 kg
- Compatibility
- MO 021 / 022 / 023 / 024 / 032

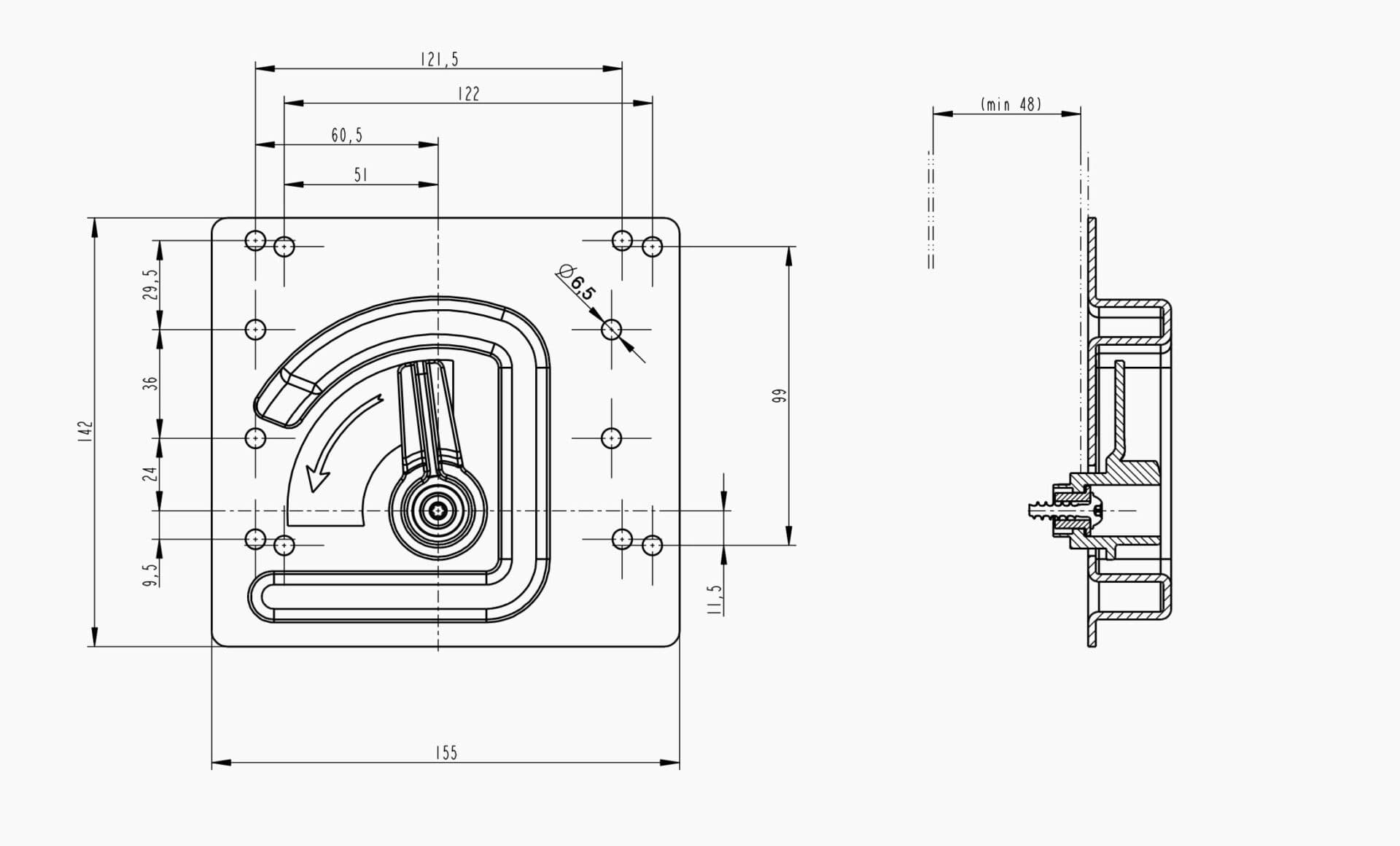

Engineering views
Drag to browse · click to enlarge
Need a custom configuration?
Contact EngineeringTell our engineering team about your door, flap or hatch, actuation method and keying scheme. We'll propose the right handle, latch and lock combination — keyed alike across the vehicle.
