M-35 / Door Access Systems
MO 100
Pneumatic Actuator · Single-action pneumatic actuator for latches, trunks and lift gates
MO 100 is a single-action pneumatic actuator for door latches, trunk lids and lift gates, with a stainless steel spring and automotive-grade O-ring, fitting and seal for high corrosion resistance.
- Action
- Single, pneumatic
- Pressure
- 5–7.5 Bar
- Cycles
- >60,000
Overview
Built for pneumatic latch, trunk and lift-gate actuation.
Highlights
- Single-action pneumatic actuator
- >60,000-cycle service life
- Two piston / stroke options
- Stainless steel spring
Specifications
- Type
- Pneumatic actuator (single action)

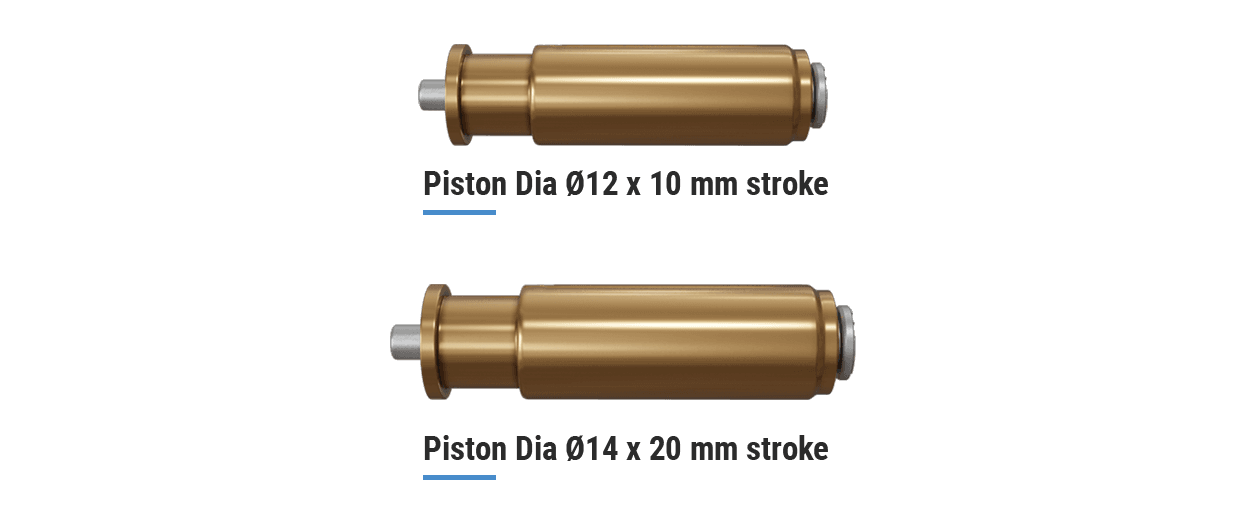

- Piston / stroke
- Ø12 x 10 mm or Ø14 x 20 mm
- Working pressure
- 5–7.5 Bar
- Pipe entry
- Ø6 mm
- Service life
- >60,000 cycles
- Operating temperature
- -30°C to +80°C
- Spring
- Stainless steel
- Sealing
- Automotive O-ring, fitting and seal

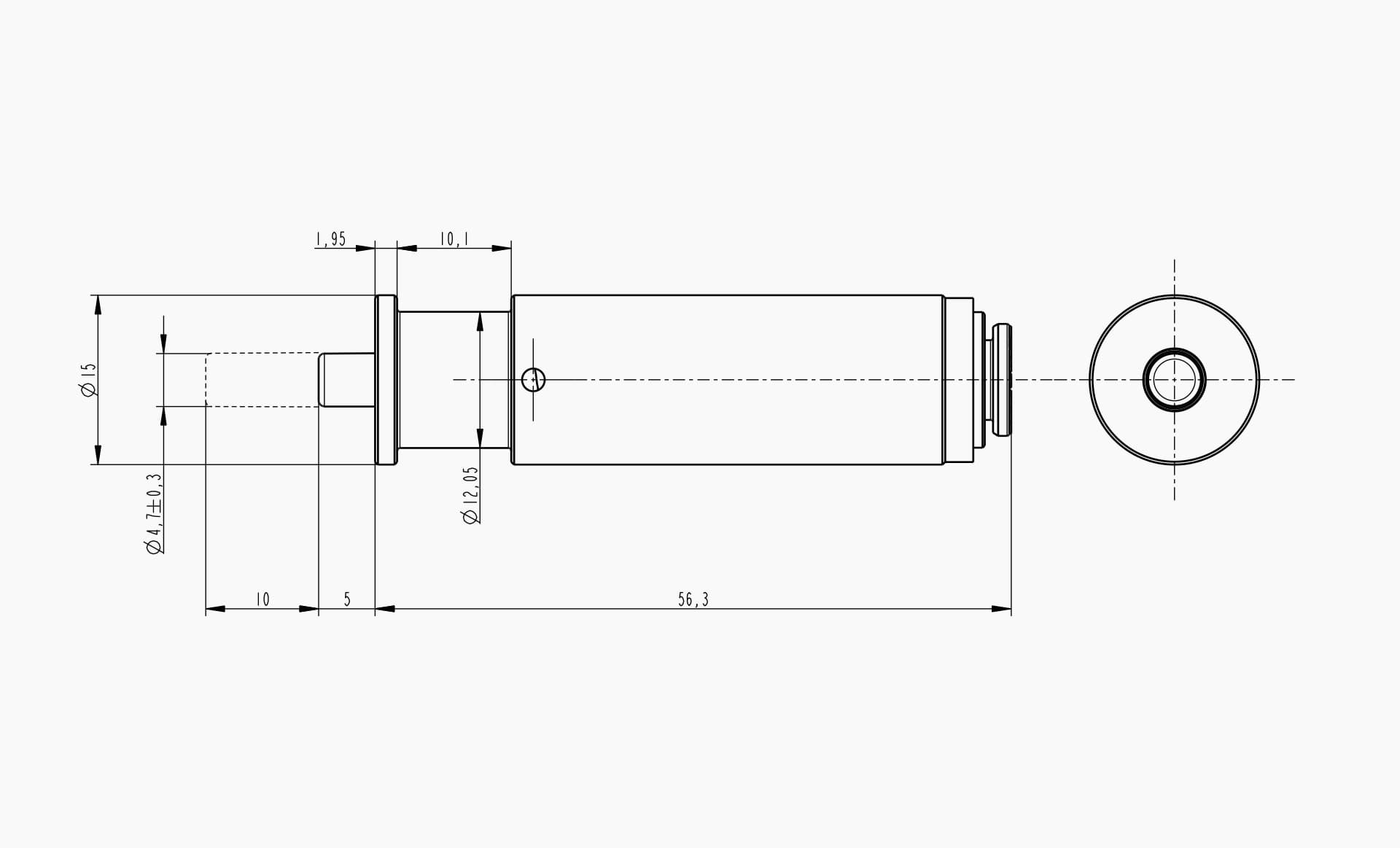

Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 100
- X
- X
X stands for the digits you pick from the table.
MO 100 | X Piston Dia | X Stroke |
|---|---|---|
| 12 - Ø12mm | 10 - 10mm Stroke | |
| 14 - Ø14mm | 20 - 20mm Stroke |
Example:
- MO 100
- 12
- 10
