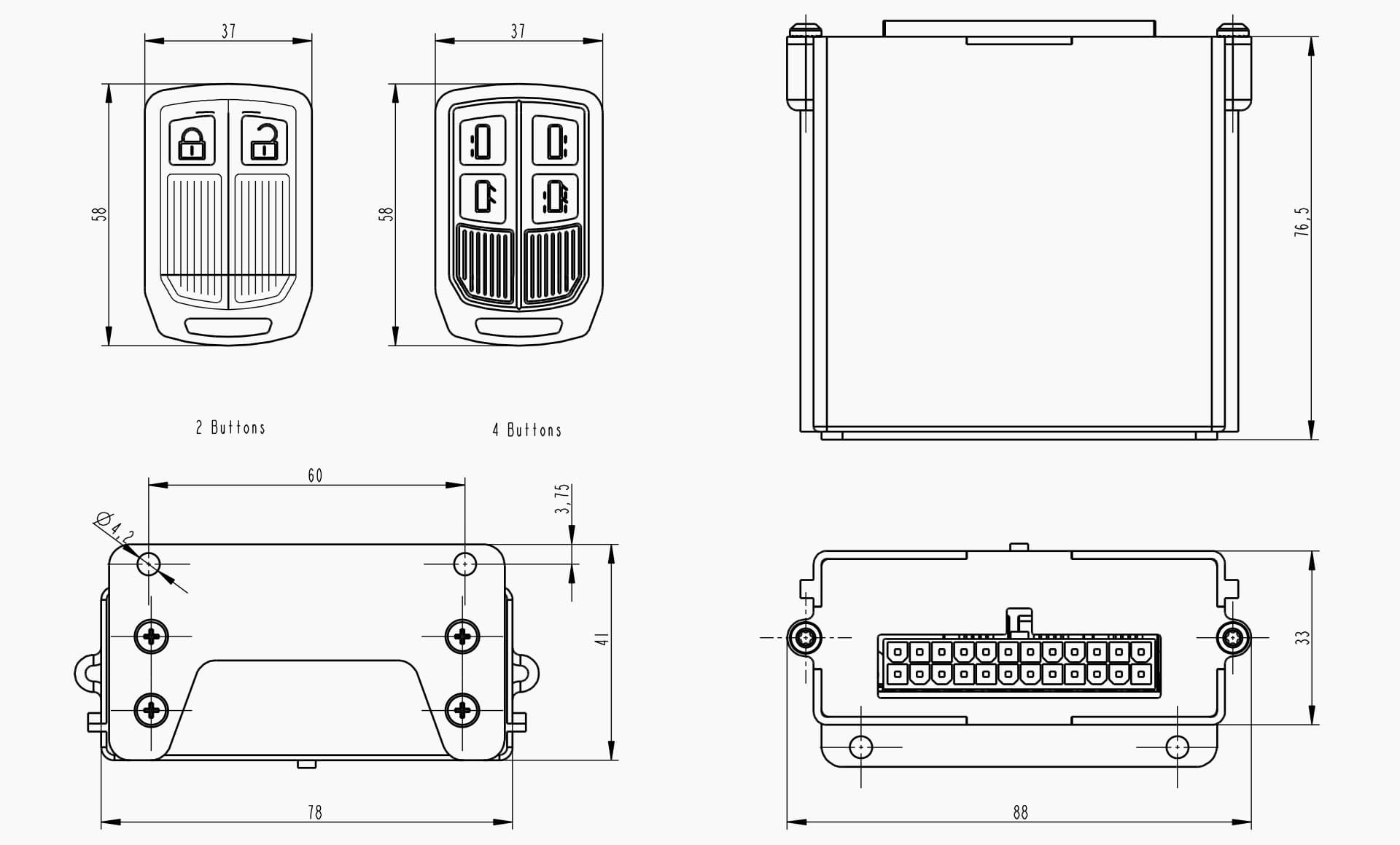

MO 651 H4X
Remote Keyless Entry — H4X · 24-pin MOLEX CAN RKE unit with 12V/24V order options
MO 651 H4X is a remote keyless entry control unit with a 24-pin MOLEX 39012245 connector, available in 24 VDC (H40/H41) or 12 VDC (H44/H45) builds, on a CAN (SAE J1939) bus with code-rolling security and up to three-zone access control.
- Supply
- 12V / 24V
- Connector
- 24-pin MOLEX
- Zones
- Up to 3
Built for connectorized CAN remote keyless entry.
Highlights
- 24-pin MOLEX 39012245 connector
- 12V or 24V order options
- CAN / SAE J1939
- Up to 3-zone access control
Specifications
- Type
- Remote keyless entry control unit
- Order code
- MO 651-H4X-S1X
- Supply voltage
- 24 VDC (H40/H41) / 12 VDC (H44/H45)
- Connector
- 24-pin MOLEX 39012245
- Bus
- CAN (SAE J1939)
- Zones
- 1 standard; up to 3 with external relays
- Security
- Code rolling
- Material
- 30% glass-fibre reinforced polyamide
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 651
- H4X
- S1X
X stands for the digits you pick from the table.
MO 651 - H4X - S1X |
|---|
| H40 - S10 - Supply 24 VDC Standard * |
| H41 - S10 - Supply 24 VDC Extended ** |
| H44 - S10 - Supply 12 VDC Standard * |
| H45 - S10 - Supply 12 VDC Extended ** |
* 1 zone control & CAN
** 1 zone control + 2 zone control with external relays & CAN
- 651
- H40 is Standart type 1 zone control & CAN communication with SAE J1939 protocol
