M-38 / Door Access Systems
MO 651 H5X
Remote Keyless Entry — H5X · 12–24V CAN RKE unit with remote and dash-output options
MO 651 H5X is a remote keyless entry control unit for door latches, trunk lids and lift gates, on a 12–24V supply over a CAN (SAE J1939) bus, with build options for remote control and a dash output (H50/H51/H52) and code-rolling security.
- Supply
- 12V / 24V
- Bus
- CAN / J1939
- Zones
- Up to 3
Overview
Built for CAN remote keyless entry with dash output.
Highlights
- 12–24V supply
- Remote and dash-output build options
- CAN / SAE J1939
- Up to 3-zone access control
Specifications
- Type
- Remote keyless entry control unit
- Order code
- MO 651-H5X-SXXXX
- Supply voltage
- 12–24V
- Bus
- CAN (SAE J1939)
- Variants
- H50 remote / H51 no remote / H52 remote + dash
- Zones
- Up to 3
- Security
- Code rolling
- Material
- 30% glass-fibre reinforced polyamide

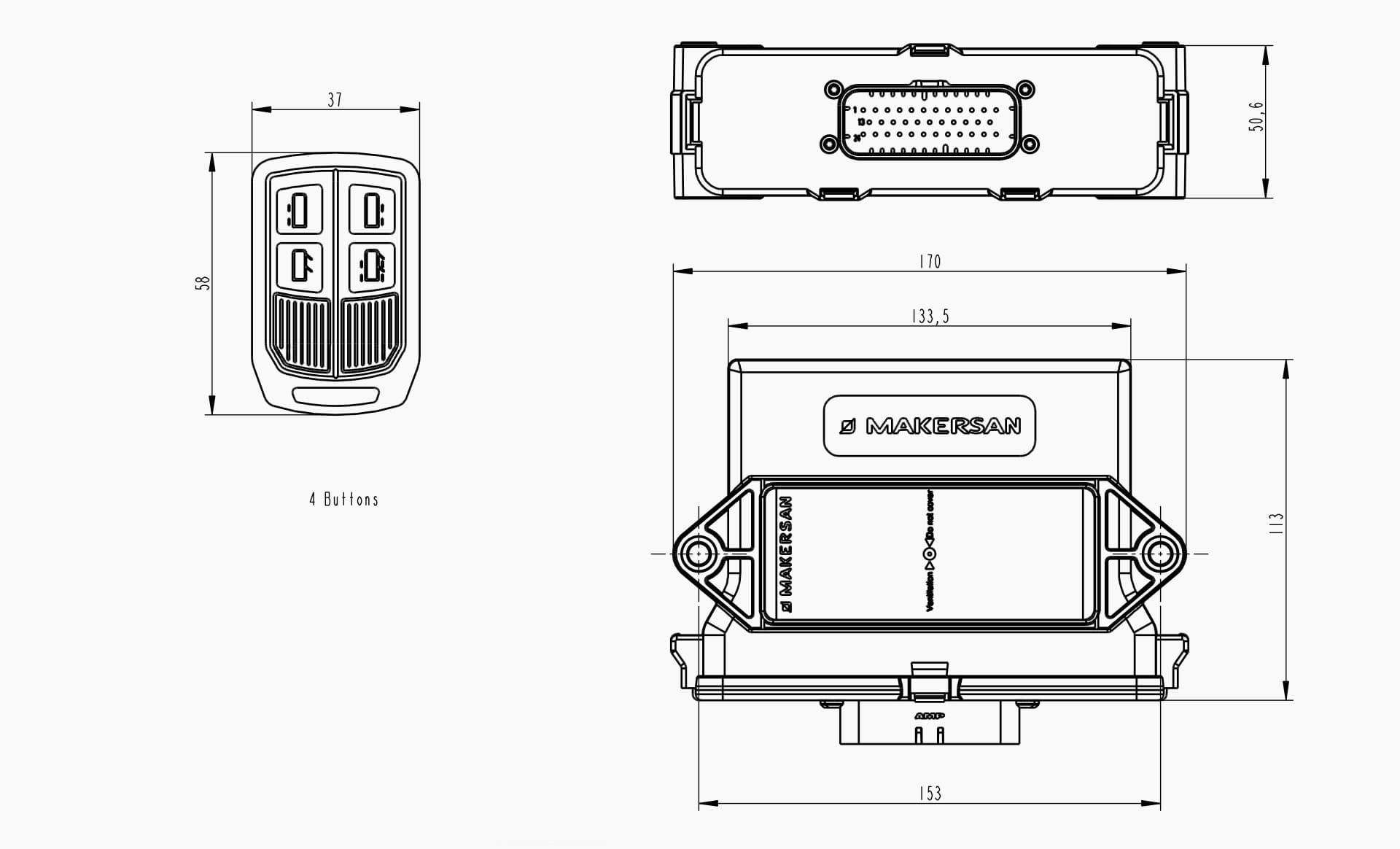

Engineering views
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 651
- H5X
- SXXXX
X stands for the digits you pick from the table.
MO 651 - H5X - SXXXX |
|---|
| H50 - S1000- Supply 24 VDC with Remote * |
| H51 - S1000 - Supply 24 VDC w/o Remote |
| H52 - S1000 - Supply 24 VDC with Remote + Dash Out * |
* 3 zone control & CAN
Example:
- 651
- H50
- S1000 is 24VDC with Remote Control CANJ1939
Need a custom configuration?
Contact EngineeringTell our engineering team about your vehicle's locking points, supply voltage and CAN bus. We'll match the right RKE control unit, key fobs and electric or pneumatic actuators — keyed alike across the fleet.
