MO 377
Fingertip Joystick · Single-axis fingertip joystick with multiple actuation feels
The MO 377 is a single-axis fingertip joystick offering spring-return, detent, rocker, friction and back-turn actuation feels. Contactless hall-effect sensing, laser-engraved legends and seven colour options make it a flexible secondary control.
- Axis
- Single-axis
- Cycles
- 5M+ spring-return
- Sealing
- IP6K9K / IP54
Built for ergonomic single-axis fingertip control.
Highlights
- +5 million cycles (spring-return)
- Multiple actuation feels in one footprint
- IP6K9K electronics / IP54 mechanical
- ±30° rocker/friction, ±35° detent, 60° back-turn

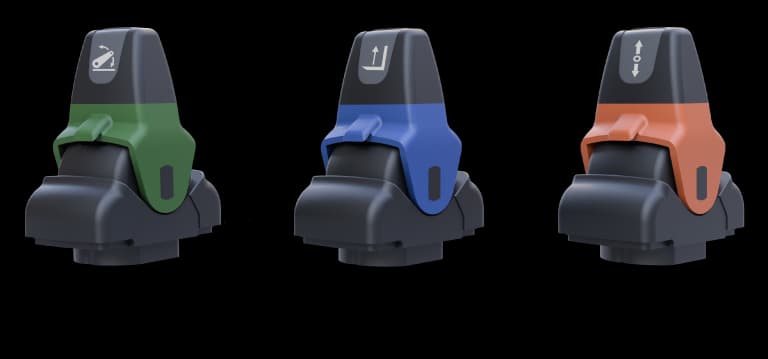

- Seven RAL colour options
- Laser-engraved legends
Specifications
- Sensing principle
- Contactless hall-effect
- Axis
- Single-axis
- Operating angle
- ±30° rocker/friction · ±35° detent · 60° back-turn
- Supply voltage
- 5V or 8-32V
- Output
- Analog 0-5V ratiometric / PWM 100-500 Hz
- Redundancy
- Redundant or full redundant
- Ingress protection
- IP6K9K electronics / IP54 mechanical
- Lifetime
- +5M spring-return · +1M detent · +1M rocker
- Connectors
- 250mm loose cable / Molex Micro-Fit
- Operating temperature
- -40°C … +85°C
Drag to browse · click to enlarge
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 377
- HXX
- X
- X
- XX
- PXXX
- XX
X stands for the digits you pick from the table.
MO 377 | HXX Hardware Configuration | X Detent | X Color | XX Symbol | PXXX Program | XX Connection |
|---|---|---|---|---|---|---|
| H10 - Full Redundant | 0 - No Detent | 1 - Red | 00 - No symbol | P001 - Dual Cross - No Detent | 00 - 250mm Loose Cable (AWG 24) | |
| H16 - Redundant | 1 - Detent Hold | 2 - Green | XX - Symbol | P002 - Single - No Detent | 01 - Molex Micro-Fit Connector 250mm Cable | |
| 2 - Rocker | 3 - Yellow | *See symbol table for symbol codes | P003 - Dual Cross - Rocker | ** | ||
| 3 - Friction | 4 - Black | * | P004 - Single - Rocker | |||
| 4 - Back Turn | 5 - Blue | P005 - Dual Cross - Detent Hold | ||||
| 5 - Friction with Middle Detent | 6 - Orange | P006 - Single - Detent Hold | ||||
| 6 - Detent Return | 7 - Gray | P007 - Dual - Back Turn | ||||
| 7 - Back Turn with Detent | P008 - Single - Back Turn | |||||
| 8 - Detent Single Side | P009 - Dual - Friction | |||||
| P010 - Single - Friction | ||||||
| P011 - Dual - Friction with Middle Detent | ||||||
| P012 - Single - Friction with Middle Detent | ||||||
| P013 - Dual - Detent Return | ||||||
| P014 - Single - Detent Return | ||||||
| P015 - Dual - Back Turn with Detent | ||||||
| P016 - Single - Back Turn with Detent | ||||||
| P017 - Dual - Detent Single Side | ||||||
| P018 - Single - Detent Single Side |
* No symbol is standard, other symbols are available upon request with minimum order quantity.
** 250mm loose cable is standard, Deutsch DTM seal connectors available with minimum order quantity
- MO 377
- H10
- 0
- 1
- 00
- P001
- 00
