MO 390
Joystick Base · Full-size joystick base with selectable output and feel
The MO 390 is the full-size joystick base behind the MO 390 & 394 system. Ten hardware versions cover analog, PWM, current and CAN outputs, with detent, hold and friction feels and 2-axis or single-axis actuation.
- Axes
- 2-axis / single
- Output
- Analog / PWM / CAN
- Sealing
- IP67
Built as the configurable base for full-size joysticks.
Highlights
- Ten hardware versions (H10-H20)
- Up to 5 million lifetime cycles
- Detent, hold and friction feel options
- Analog, PWM, current and CAN outputs
- IP67 ingress protection
- Supply 5V or 8-32V
Specifications
- Sensing principle
- Contactless hall-effect
- Actuation

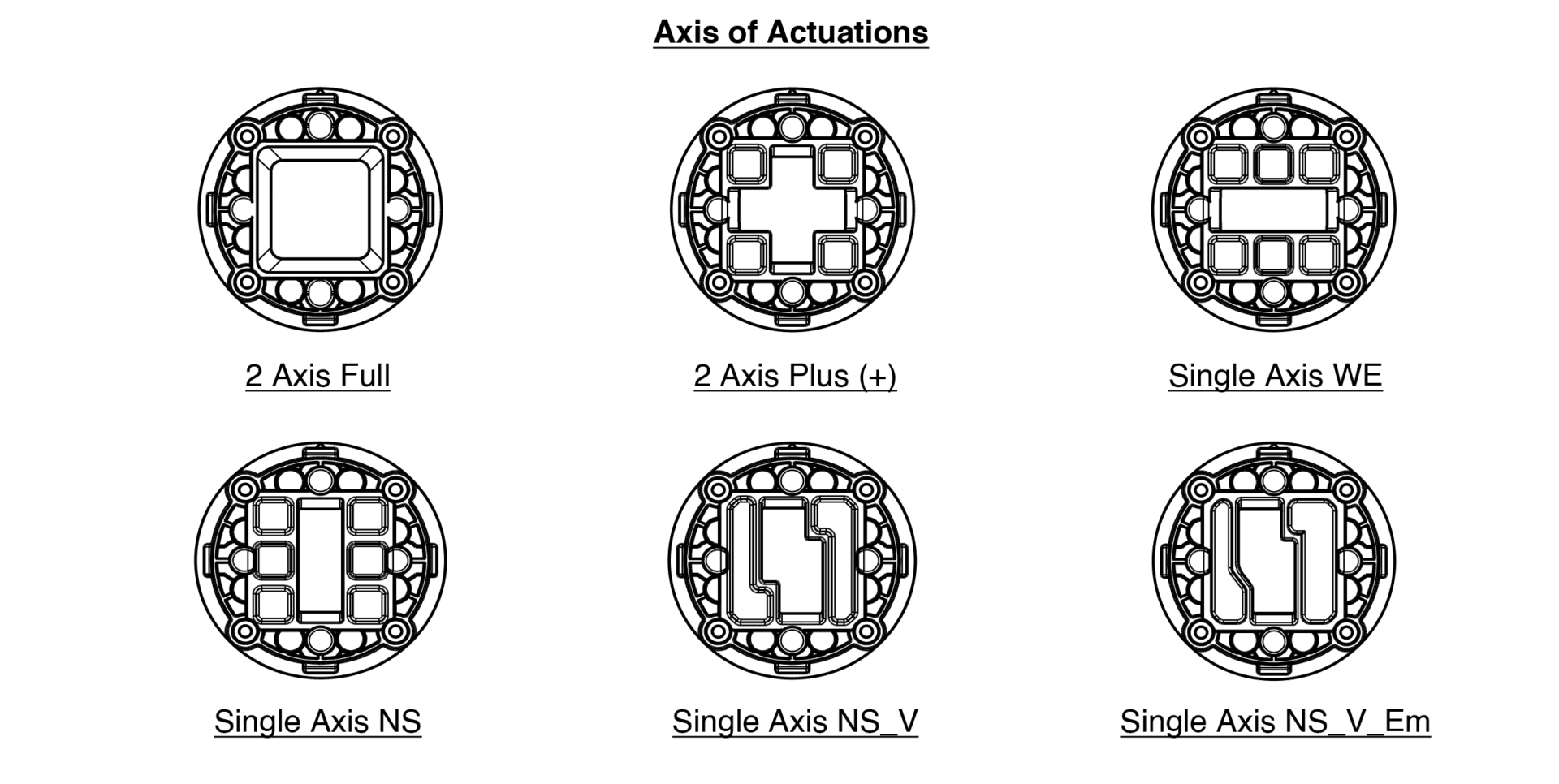

- 2-axis full / 2-axis plus / single-axis

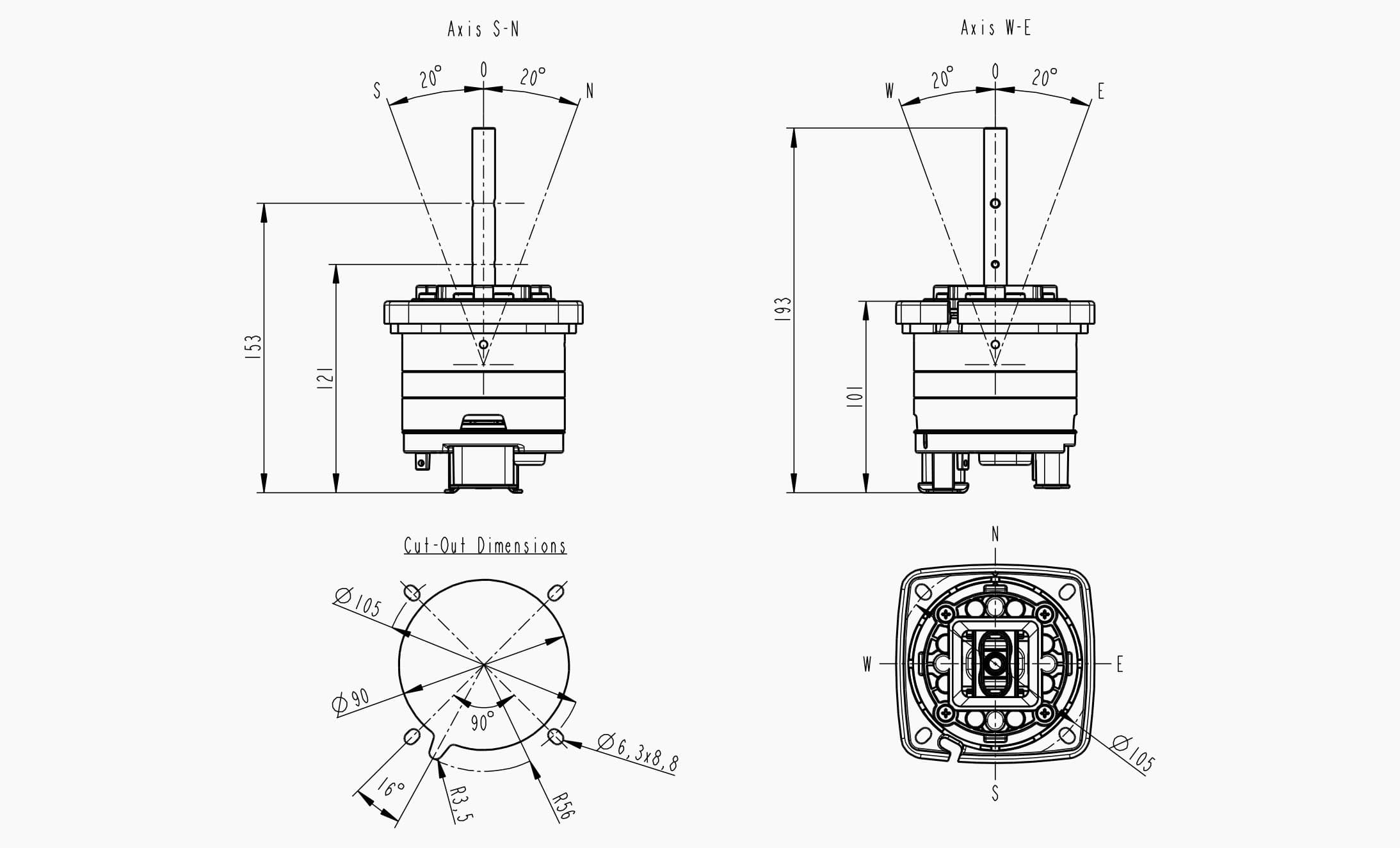

- Operating angle
- ±20° (self-centering)
- Feel options
- Detent return / detent hold / friction
- Supply voltage
- 5V or 8-32V (by version)
- Output
- 0-5V / 0-32V PWM / 4-20mA / high-side / CAN
- Redundancy
- Full redundant
- Connectors
- Deutsch 8-pin / Tyco 18-pin
- Ingress protection
- IP67
- Lifetime
- Up to 5 million cycles
- Operating temperature
- -40°C … +85°C
Drag to browse · click to enlarge
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 390
- H1X
- X
- X
- X
- XX
- PXXX
X stands for the digits you pick from the table.
MO 390 | H1X Hardware | X Axis of Actuation | X NS Axis | X WE Axis | XX Lever | PXXX Program |
|---|---|---|---|---|---|---|
| H10 - S:5V ; O:0-5V Analog Voltage or PWM Output | 0- 2 Axis Full | A- Free | A- Free | 00- Standard | *See the output signal diagrams | |
| H11 - S:5V ; O:0-32V PWM Low Side Output | 1- 2 Axis Plus (+) | B- Detent Return North-South | B- Detent Return West-East | |||
| H12- S:8-32V ; O:0-5V Analog Voltage or PWM Output | 2- Single Axis WE | BN- Detent Return North | BW- Detent Return West | |||
| H13- S:8-32V ; O:0-32V PWM Low Side Output | 3- Single Axis NS | BS- Detent Return South | BE- Detent Return East | |||
| H14- S:12-32V ; O:0-10V Analog Voltage Output | 4- Single Axis NS_V | C- Detent Hold North-South | C- Detent Hold West-East | |||
| H15- S:12-32V ; O:4-20mA Analog Current Output | 5- Single Axis NS_V_Em | CN- Detent Hold North | CW- Detent Hold West | |||
| H16- S:8-18V ; O:8-18V PWM or ON/OFF High Side Output (1.5A/Ch) | CS- Detent Hold South | CE- Detent Hold East | ||||
| H17- S:8-32V ; O:8-32V PWM or ON/OFF High Side Output (1.5A/Ch) | D- Friction | D- Friction | ||||
| H18 - S:8-18V ; O:0-5V Analog Voltage Output with Neutral Position (1.5A/Ch) and Direction High Side Outputs (1.5A/Ch) | Z- No Need | Z- No Need | ||||
| H19 - S:8-32V ; O:0-5V Analog Voltage Output with Neutral Position (1.5A/Ch) and Direction High Side Outputs (1.5A/Ch) | ||||||
| * |
* Available upon request with minimum order quantity
- MO 390
- H10
- 0
- A
- A
- 00
- P001 Joystick Base Analog, S:5V ; O:0-5V, 2 Axis Full Actuation, North-South Free, West-East Free, Standard Lever, P001 Program
- MO 390
- H20
- SXX
- X
- X
- X
- X
- XX
X stands for the digits you pick from the table.
MO 390 - H20 | SXX Hardware | X Node ID J1939 - CANopen | X Axis of Actuation | X NS Axis | X WE Axis | XX Lever |
|---|---|---|---|---|---|---|
| S10 - CAN SAE J1939 | A - 128(80h) - 4(04h) | 0 - 2 Axis Full | A - Free | A- Freel | 00- Standard | |
| S11 - CANopen | B - 129(81h) - 5(05h) | 1 - 2 Axis Plus (+) | B - Detent Return North-South | B- Detent Return West-East | ||
| * | C - 130(82h) - 6(06h) | 2 - Single Axis WE | BN - Detent Return North | BW- Detent Return West | ||
| 3 - Single Axis NS | BS - Detent Return South | BE- Detent Return East | ||||
| 4 - Single Axis NS_V | C - Detent Hold North-South | C- Detent Hold West-East | ||||
| 5 - Single Axis NS_V_Em | CN - Detent Hold North | CW- Detent Hold West | ||||
| CS - Detent Hold South | CE- Detent Hold East | |||||
| D - Friction | D- Friction | |||||
| Z - No Need | Z- No Need |
* Available upon request with minimum order quantity
- MO 390
- H20
- S10
- A
- 0
- A
- A
- 00 Joystick Base CAN, CAN SAE J1939, 128(80h), 2 Axis Full Actuation, North-South Free, West-East Free, Standard Lever
Tell our engineering team about your machine platform, function map and bus protocol. We'll match the grip, switch layout, axis count and output configuration to your operator workflow.
