MO 390 & 394
Multi-Axis CAN Joystick · Full-size grip joystick system with contactless hall sensing
The MO 390 & 394 is a full-size multi-axis joystick system pairing the MO 390 base with the customizable MO 394 grip. Contactless hall-effect sensing, full redundancy and a sealed boot make it the primary command device for demanding cab applications.
- Axes
- 2-axis / single
- Output
- CAN J1939 / CANopen
- Sealing
- IP67
Overview
Built for primary multi-axis machine command.
Highlights
- Up to 5 million lifetime cycles
- ±20° self-centering operating angle
- Full redundant contactless hall sensing

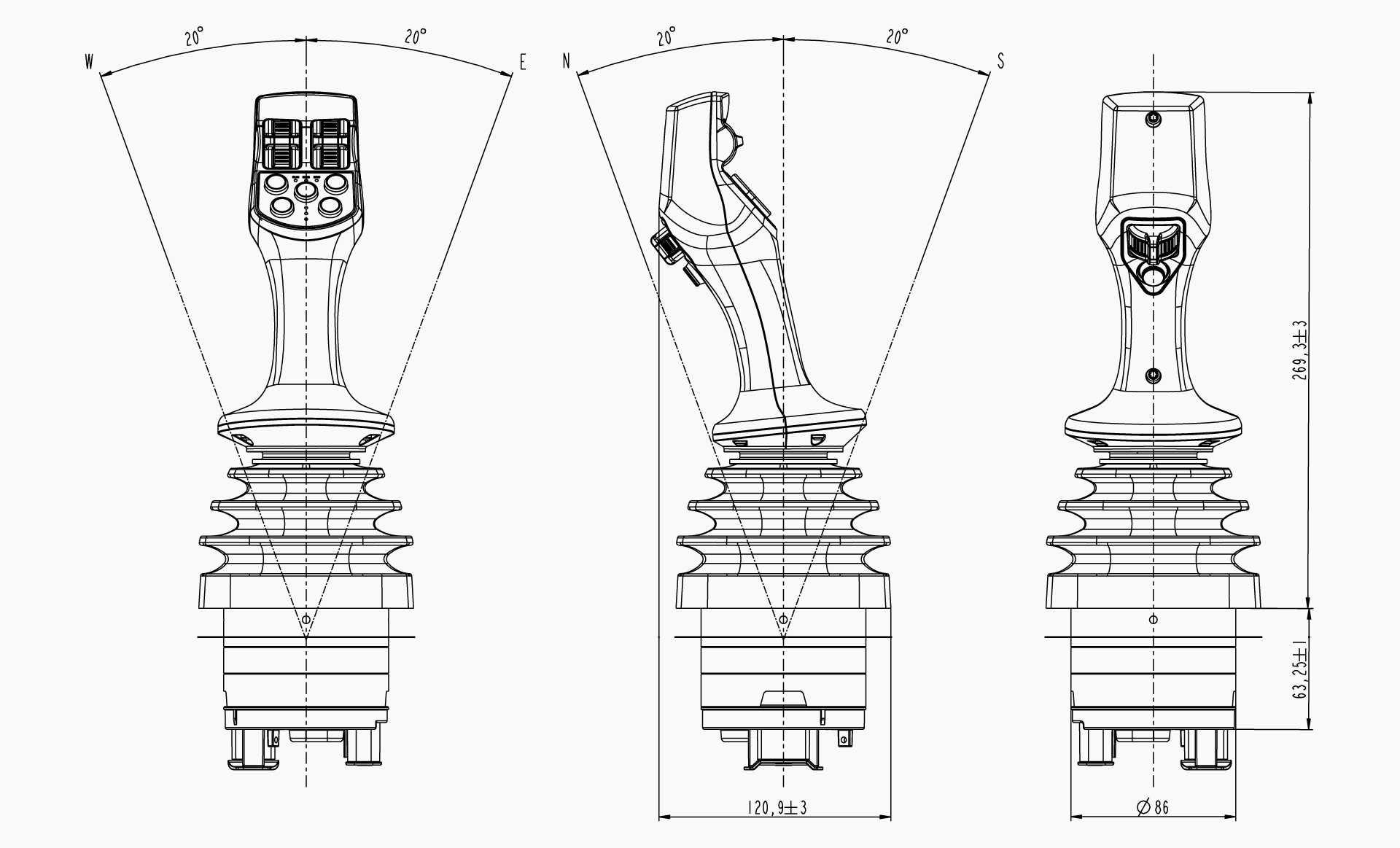

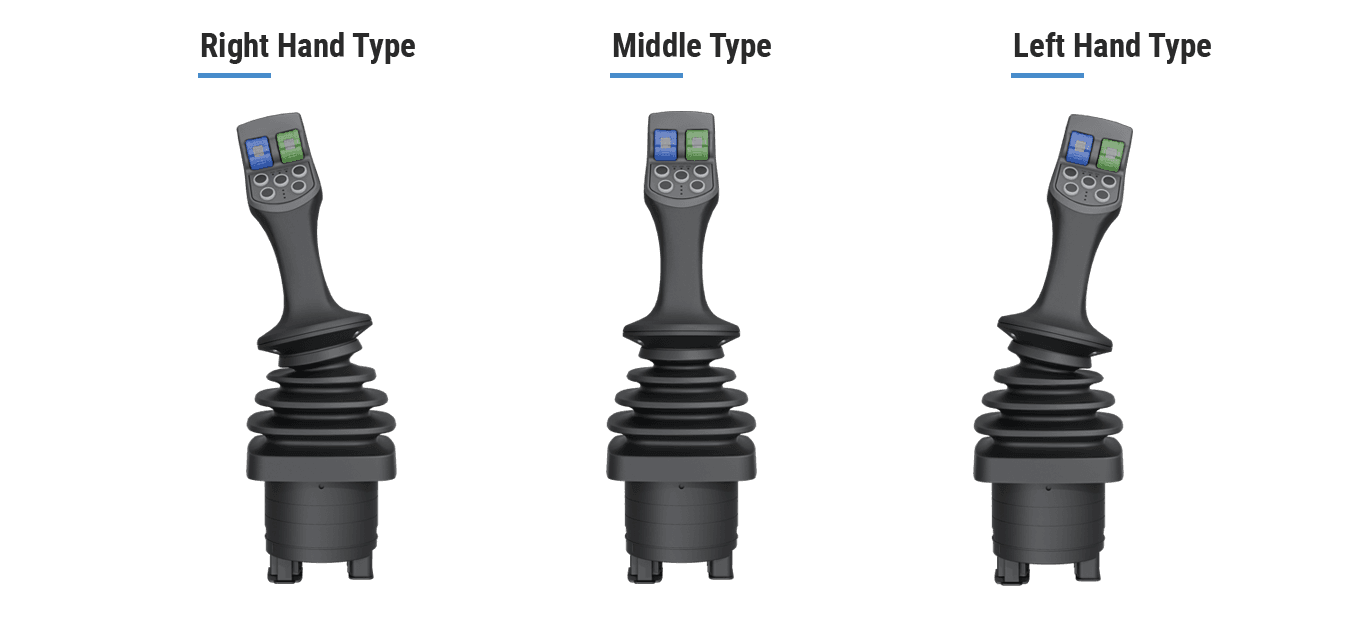

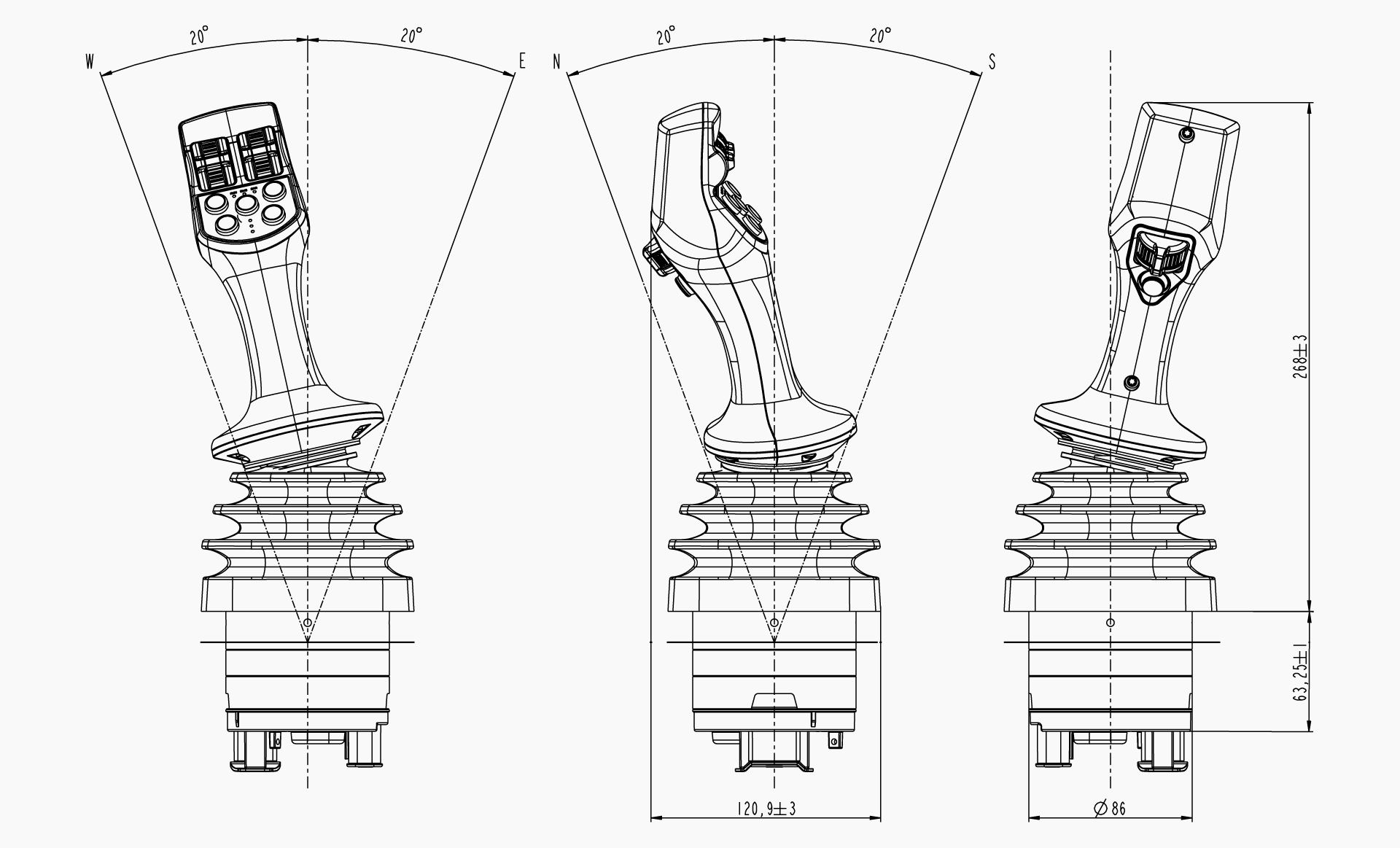

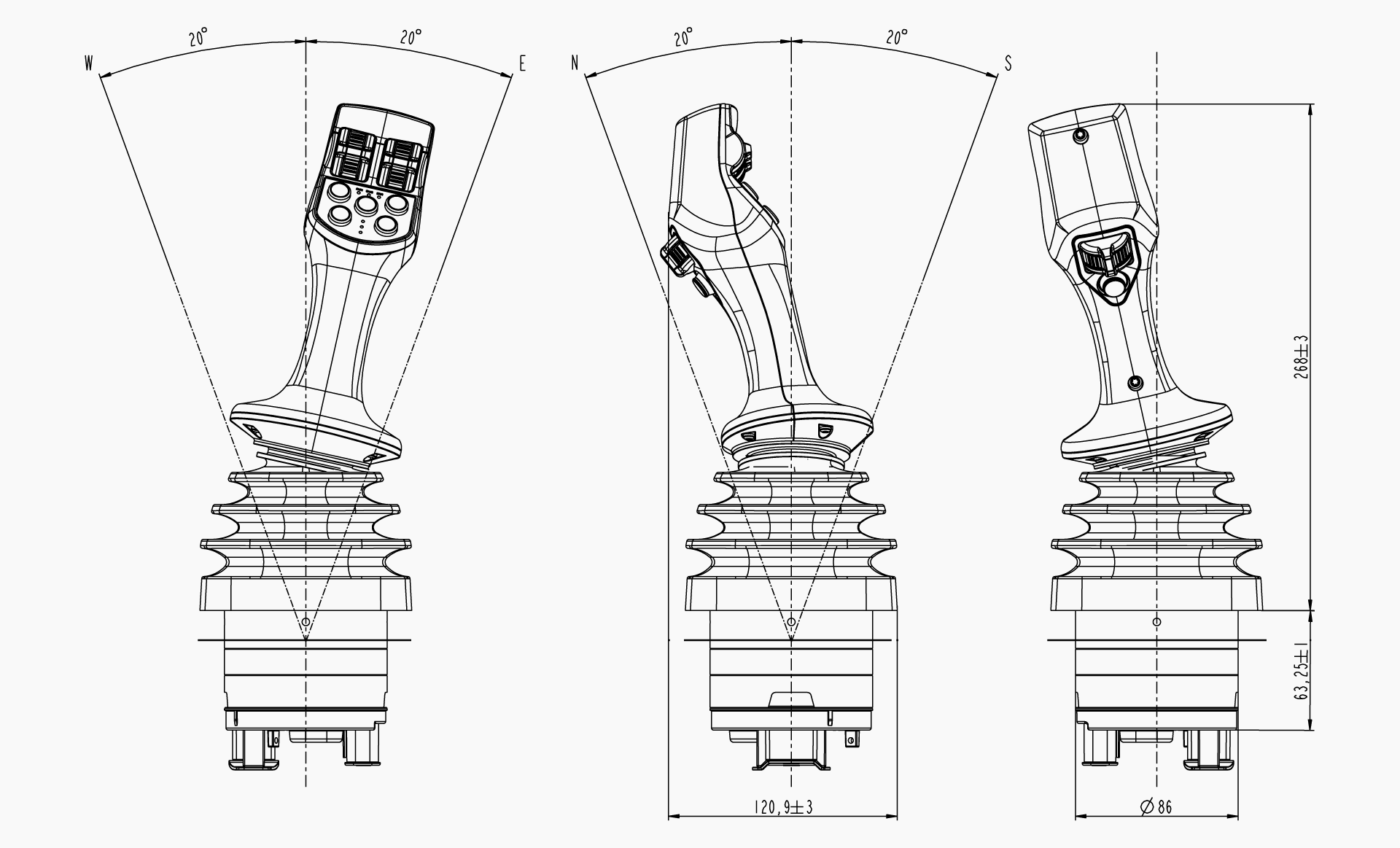

- RX, MX and LX mounting variants
- IP67 sealed boot for cab dust and wash-down
- Supply 5V or 8-32V
Specifications
- Sensing principle
- Contactless hall-effect
- Actuation
- 2-axis full / 2-axis plus / single-axis
- Operating angle
- ±20° (self-centering)
- Supply voltage
- 5V or 8-32V
- Output
- CAN J1939 / CANopen (high-current option)
- Redundancy
- Full redundant
- Connectors
- Deutsch 8-pin / Tyco 18-pin
- Ingress protection
- IP67
- Lifetime
- Up to 5 million cycles
- Operating temperature
- -40°C … +85°C

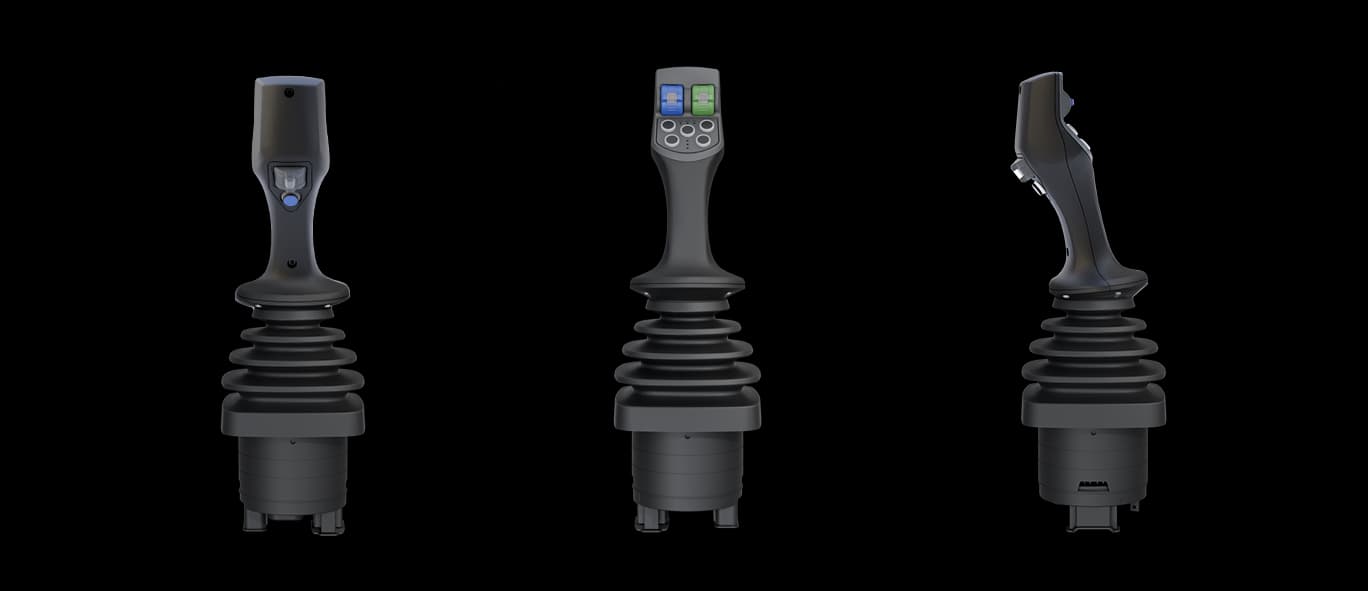

Engineering views
Drag to browse · click to enlarge
Need a custom configuration?
Contact EngineeringTell our engineering team about your machine platform, function map and bus protocol. We'll match the grip, switch layout, axis count and output configuration to your operator workflow.
