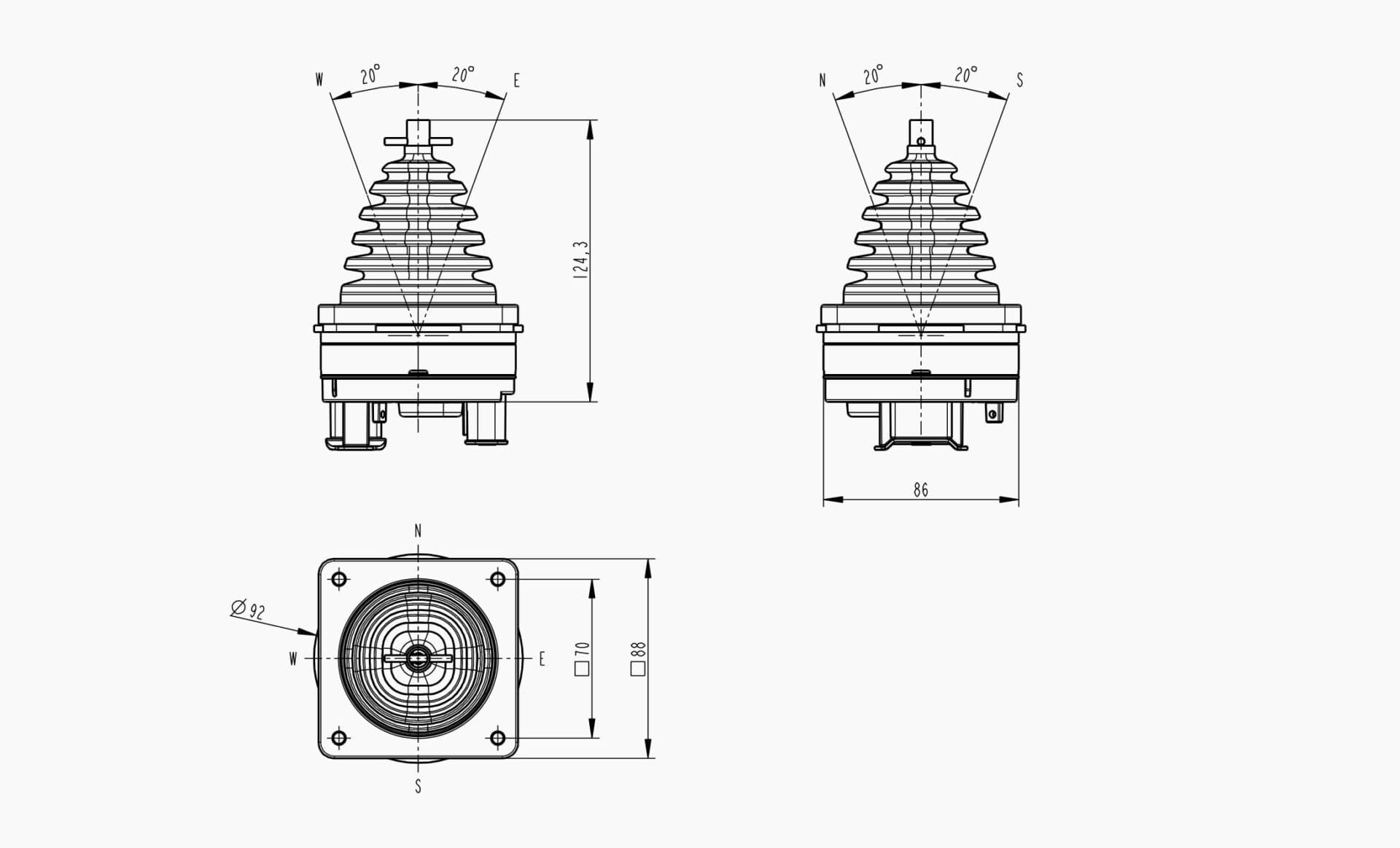

MO 391
Joystick Base · Midi joystick base with analog, PWM and CAN output
The MO 391 is the midi joystick base behind the MO 391 & 387 system. Contactless hall-effect sensing and full redundancy support 2-axis full actuation with analog, PWM and CAN outputs over Deutsch, Tyco or Micro-Fit connectors.
- Axes
- 2-axis full
- Output
- Analog / PWM / CAN
- Sealing
- IP67
Built as the configurable base for midi joysticks.
Highlights
- Up to 5 million lifetime cycles
- ±20° self-centering operating angle
- Analog, PWM and CAN output options
- Multiple connector choices
- IP67 ingress protection
- Supply 5V or 8-32V
Specifications
- Sensing principle
- Contactless hall-effect
- Actuation
- 2-axis full
- Operating angle
- ±20° (self-centering)
- Supply voltage
- 5V or 8-32V
- Supply current
- 30 mA typical (no load)
- Output
- Analog voltage / PWM / CAN (J1939 / CANopen)
- Redundancy
- Full redundant
- Connectors
- Deutsch 8-pin / Tyco 18-pin / Micro-Fit 10-12-pin
- Ingress protection
- IP67
- Lifetime
- Up to 5 million cycles
- Operating temperature
- -40°C … +85°C
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 391
- H1X
- X
- X
- XX
X stands for the digits you pick from the table.
MO 391 | H1X Hardware | X Axis of Actuation | X Program | XX Electrical Connection |
|---|---|---|---|---|
| H10 - S:5V ; O:0-5V Analog Voltage or PWM Output | 0 - 2 Axis Full | P001 - Dual Cross | 01 - Micro-Fit 10 Pins (27 AWG) | |
| H11 - S:5V ; O:0-32V PWM Low Side Output | * | 02 - Micro-Fit 12 Pins (27 AWG) | ||
| H12 - S:8-32V ; O:0-5V Analog Voltage or PWM Output | ** | |||
| H13 - S:8-32V ; O:0-32V PWM Low Side Output | ||||
| H14 - S:12-32V ; O:0-10V Analog Voltage Output | ||||
| H15 - S:12-32V ; O:4-20mA Analog Current Output | ||||
| H16 - S:8-18V ; O:8-18V PWM or ON/OFF High Side Output (1.5A/Ch) | ||||
| H17 - S:8-32V ; O:8-32V PWM or ON/OFF High Side Output (1.5A/Ch) | ||||
| H18 - S:8-18V ; O:0-5V Analog Voltage Output with Neutral Position (1.5A/Ch) and Direction High Side Outputs (1.5A/Ch) | ||||
| H19 - S:8-32V ; O:0-5V Analog Voltage Output with Neutral Position (1.5A/Ch) and Direction High Side Outputs (1.5A/Ch) | ||||
| * |
* Available upon request with minimum order quantity.
- MO 391
- H10
- 0
- P001
- 01 Joystick Base Analog, Supply 5V, Output 0-5V, 2 Axis Full Actuation, Dual Cross Program, Micro-Fit 10 Pins
- MO 391
- H20
- SXX
- X
- X
- X
- XX
X stands for the digits you pick from the table.
MO 391 - H20 | SXX CAN Protocol | X Node ID J1939 - CANopen | X Axis of Actuation | X Program | XX Electrical Connection |
|---|---|---|---|---|---|
| S10 - SAE J1939 | A - 128(80h) - 4(04h) | 0 - 2 Axis Full | P001 - Dual Cross | 01 - Micro-Fit 10 Pins (27 AWG) | |
| S11 - CANopen | B - 129(81h) - 5(05h) | * | 02 - Micro-Fit 12 Pins (27 AWG) | ||
| * | C - 130(82h) - 6(06h) |
* Available upon request with minimum order quantity.
- MO 391
- H20
- S10
- A
- 0
- P001
- 01 Joystick Base CAN, SAE J1939, Node ID of 128(80h), 2 Axis Full Actuation, Dual Cross Program, Micro-Fit 10 Pins
Tell our engineering team about your machine platform, function map and bus protocol. We'll match the grip, switch layout, axis count and output configuration to your operator workflow.
