M-07 / Joysticks

MO 394

Joystick Grip · Multifunctional modular grip with capacitive presence sensing

The MO 394 is a multifunctional modular joystick grip for the MO 390 base, available in right-hand, left-hand and symmetric forms. Up to five front push buttons, two thumbwheels, six indication LEDs and an integrated capacitive presence sensor support analog or CAN outputs.

Type: Modular grip
Output: Analog / CAN
Sealing: IP67

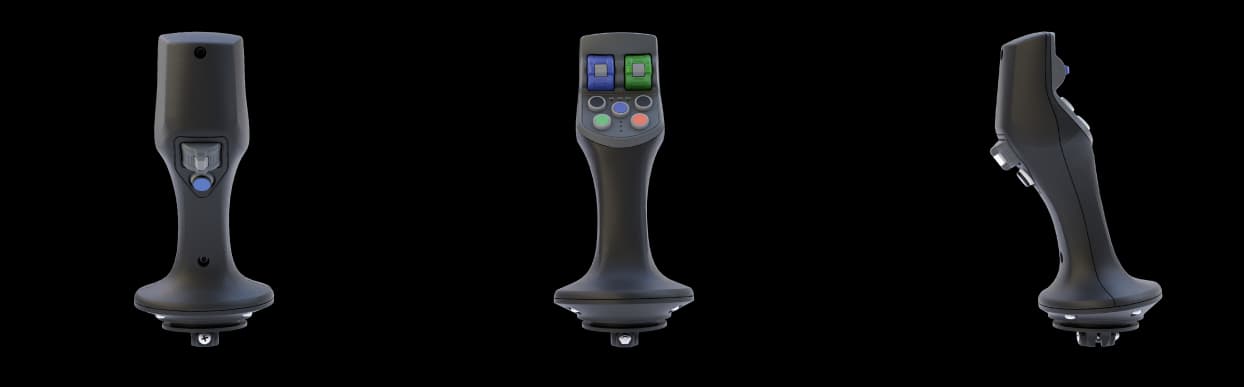

Makersan MO 394 multifunctional joystick grip.

Overview

Built as the command surface for full-size joysticks.

Highlights

Capacitive presence sensing in the handle
Up to 5 front buttons + 2 thumbwheels
Up to 6 indication LEDs
Up to 2 million cycles (500k with detent)

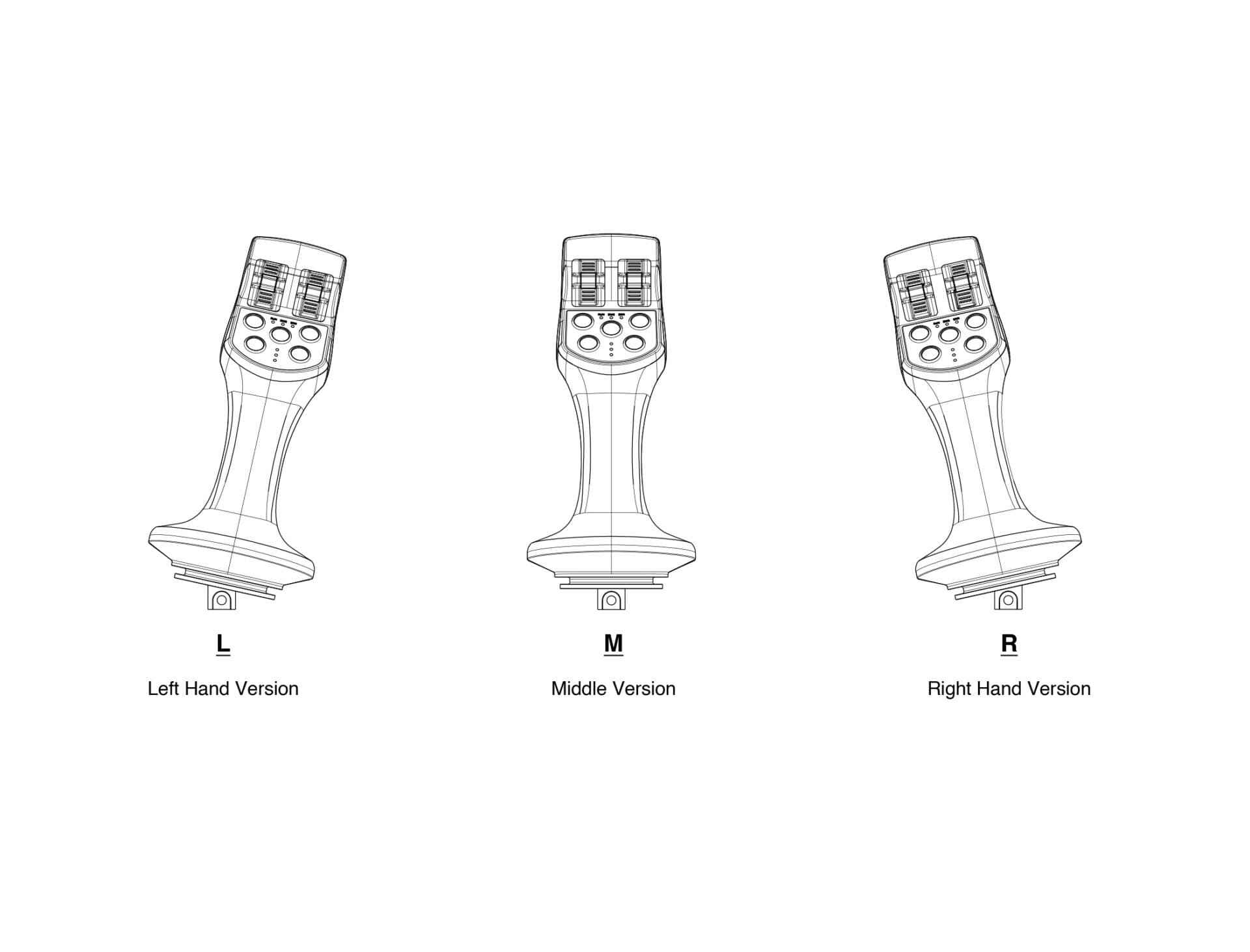

Right, left and symmetric handle forms
IP67 ingress protection

Specifications

Type: Multifunctional modular grip

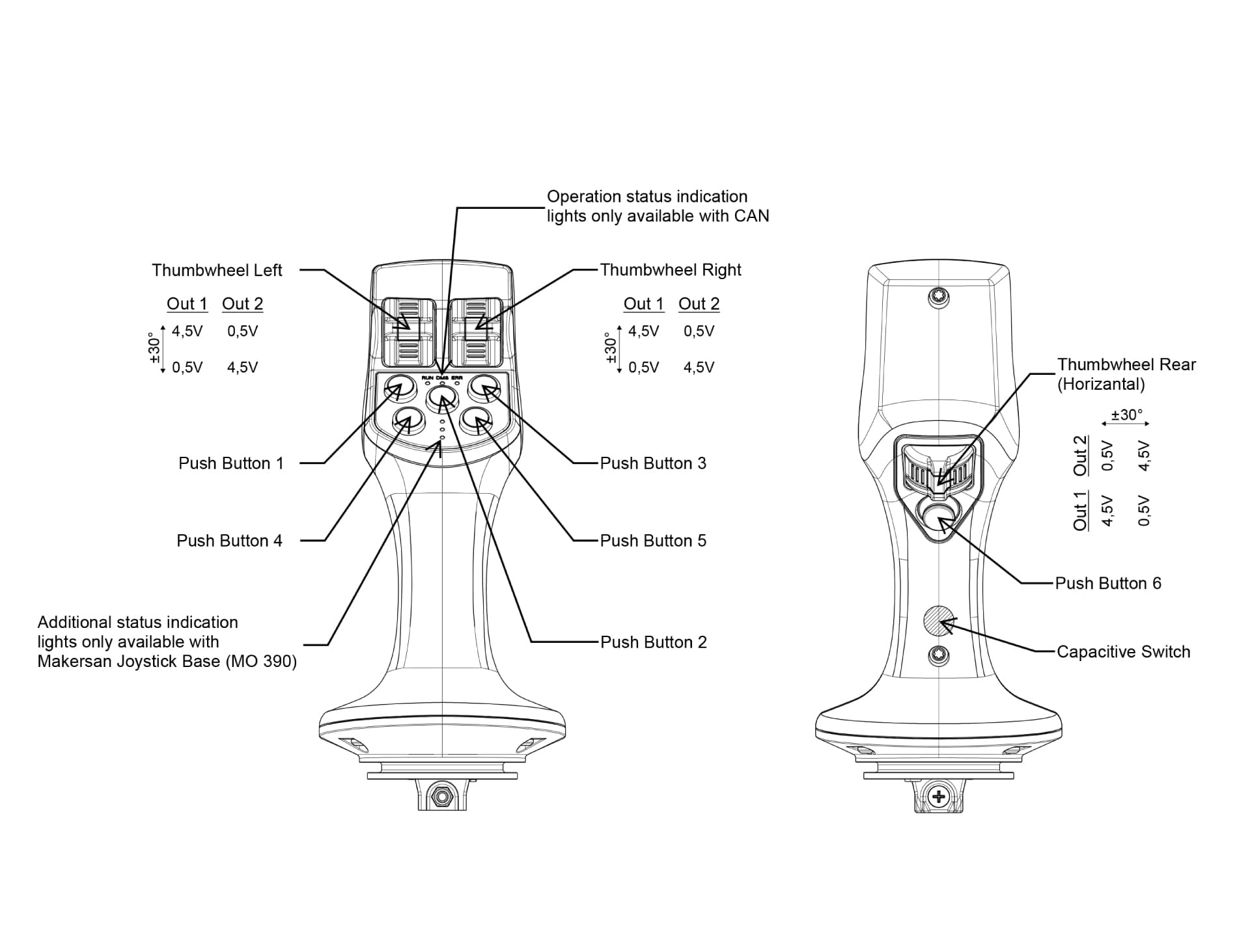

Presence sensing: Non-contact capacitive (handle back)
Front controls: Up to 5 push buttons + 2 thumbwheels
Rear controls: Up to 1 push button + 1 thumbwheel
Indication: Up to 6 front-panel LEDs
Output: Analog / CANopen / SAE J1939
Connectors: Deutsch 4-pin (CAN) / Molex 18-pin (analog)
Ingress protection: IP67
Lifetime: Up to 2 million cycles (500k with detent)
Operating temperature: -40°C … +85°C

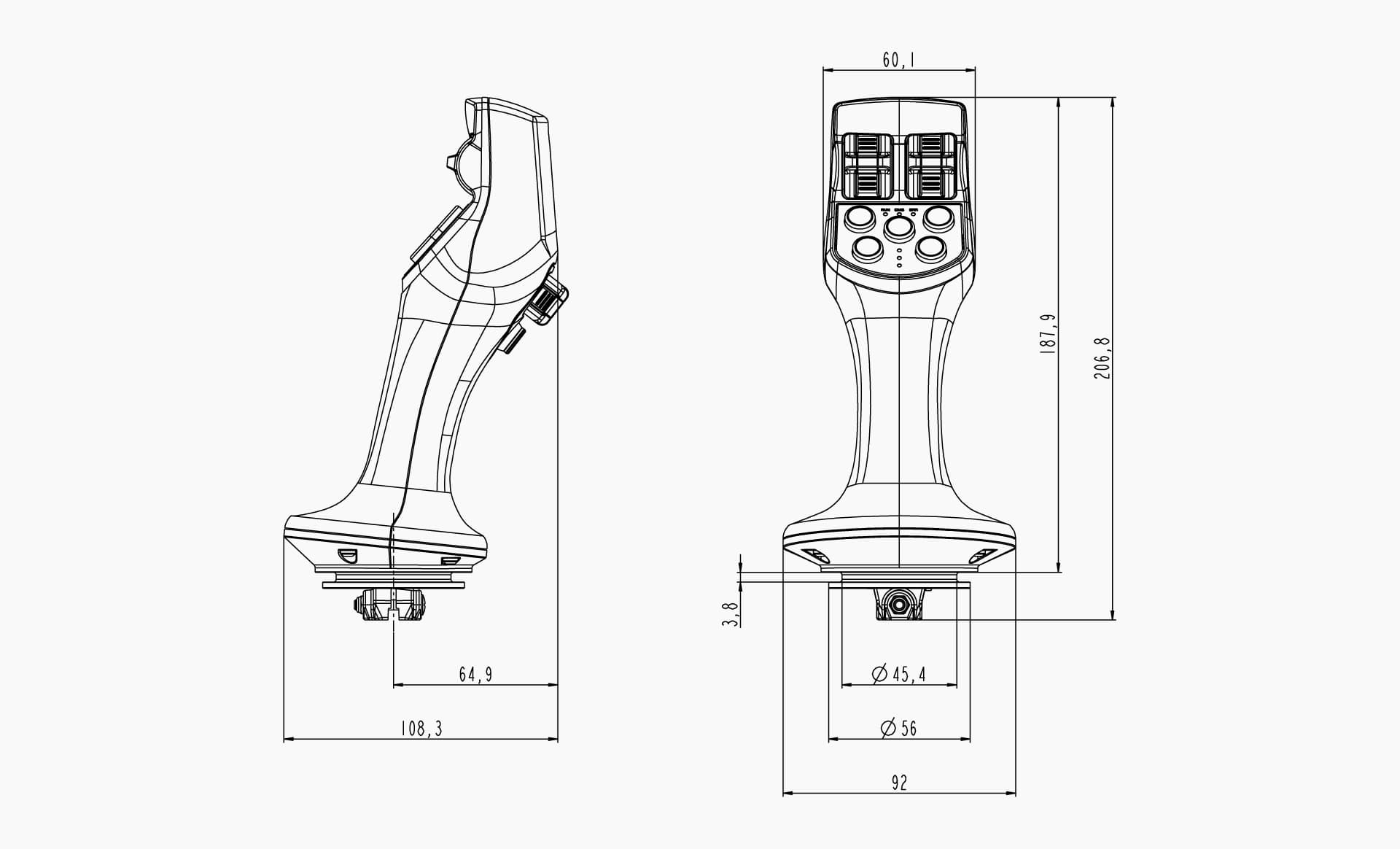

Engineering views

Drag to browse · click to enlarge

Order Code

Build the order code from its segments

Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.

MO 394
X
X
X
X
X
XX
X
XX

X stands for the digits you pick from the table.

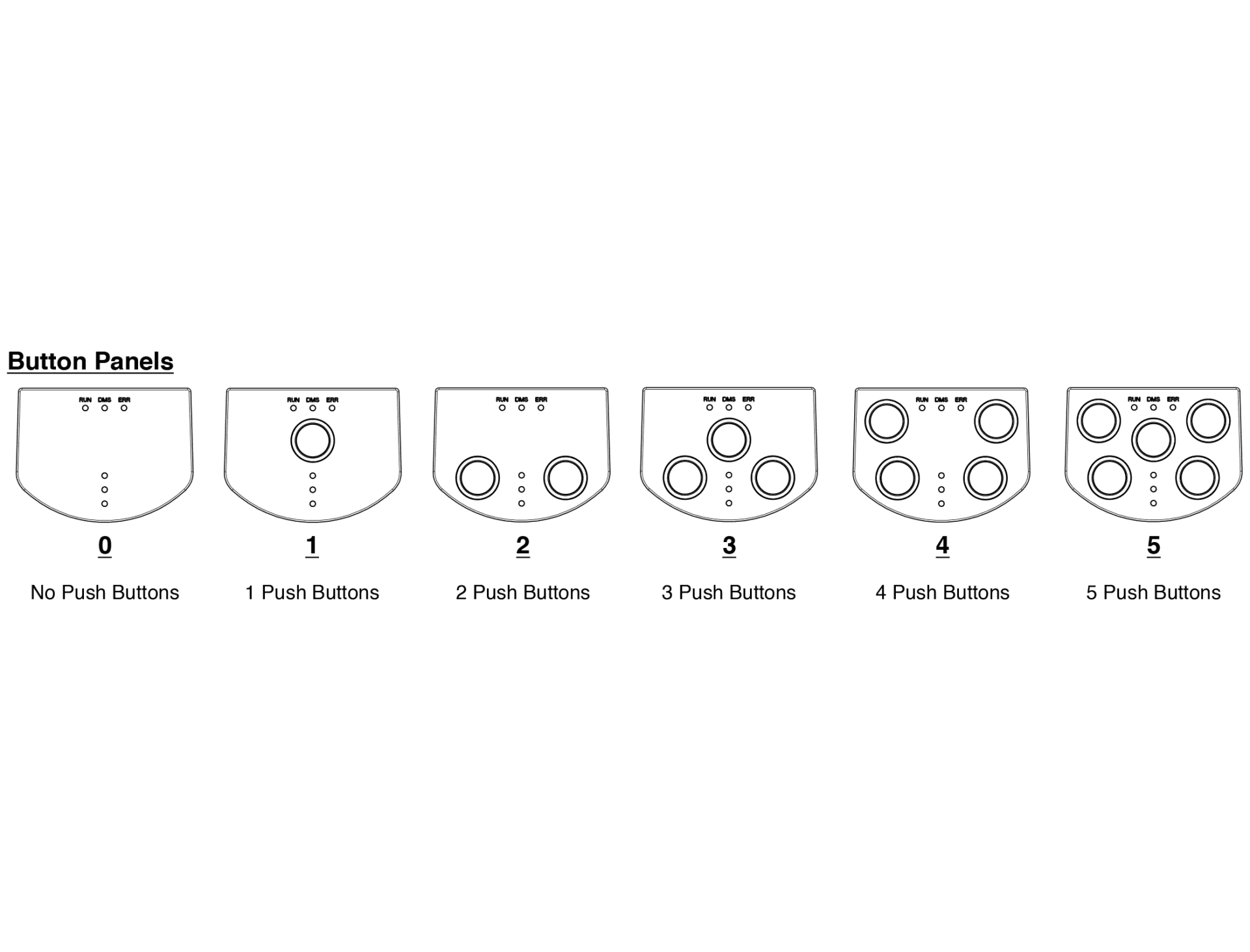

X Hardware	X Node ID	X Position	X Adapter	X Capacitive Sw.	XX Rear	X Button Panel	XX Front
1- Analog (H10)	A- 131(83h) 7(07h)	R- Right Hand	A- Ø12 Receptacle	0- Without Switch	00- Blank	0- No Push Button	BB- Blank / Blank
2- SAE J1939 (H20.S10)	B- 132(84h) 8(08h)	M- Middle	B- Ext. Thread M12	1- With Switch	1A- 1 Push Button	1- 1 Push Button	BT- Blank / Spring Return with Short Cap with LED
3- CANopen (H20.S11)	C- 133(85h) 9(09h)	L - Left Hand	C- Int. Thread M12		2A- 1 Spring Return with Short Cap with LED (Horizontal)	2- 2 Push Buttons	BR- Blank / Rocker with Thumb Cap
	0- For Analog				2C- 1 Rocker with Thumb Cap (Horizontal)	3- 3 Push Buttons	BO- Blank / Toggle with Long Cap
					2D- 1 Toggle with Long Cap (Horizontal)	4- 4 Push Buttons	BS- Blank / Spring Return with Long Cap
					2E- 1 Spring Return with Long Cap (Horizontal	5- 5 Push Buttons	TB- Spring Return with Short Cap with LED / Blank
					3A- 1 Spring Return with Short Cap with LED (Vertical)		TT- Spring Return with Short Cap with LED / Spring Return with Short Cap with LED
					3C- 1 Rocker with Thumb Cap (Vertical)		TR- Spring Return with Short Cap with LED / Rocker with Thumb Cap
					3D- 1 Toggle with Long Cap (Vertical)		TO- Spring Return with Short Cap with LED / Toggle with Long Cap
					3E- 1 Spring Return with Long Cap (Vertical)		TS- Spring Return with Short Cap with LED / Spring Return with Long Cap
					4A- 1 Push Button & 1 Spring Return with Short Cap with LED		RB- Rocker with Thumb Cap / Blank
					4C-1 Push Button & 1 Rocker with Thumb Cap		RT- Rocker with Thumb Cap / Spring Return with Short Cap with LED
					4D- 1 Push Button & 1 Toggle with Long Cap		RR- Rocker with Thumb Cap / Rocker with Thumb Cap
					4E- 1 Push Button & 1 Spring Return with Long Cap		RO- Rocker with Thumb Cap / Toggle with Long Cap
							RS- Rocker with Thumb Cap / Spring Return with Long Cap
							OB- Toggle with Long Cap / Blank
							OT- Toggle with Long Cap / Spring Return with Short Cap with LED
							OR- Toggle with Long Cap / Rocker with Thumb Cap
							OO- Toggle with Long Cap / Toggle with Long Cap
							OS- Toggle with Long Cap / Spring Return with Long Cap
							SB- Spring Return with Long Cap / Blank
							ST- Spring Return with Long Cap / Spring Return with Short Cap with LED
							SR- Spring Return with Long Cap / Rocker with Thumb Cap
							SO- Spring Return with Long Cap / Toggle with Long Cap
							SS- Spring Return with Long Cap / Spring Return with Long Cap

Example:

MO 394
2
B
R
A
1
4A
4
OO Joystick Grip, SAE J1939, 132(84h), Right Hand, Ø12 Receptacle Adapter, With Capacitive Switch, Rear Control with 1 Push Button & 1 Spring Return with Short Cap with LED, Button Panel with 4 Push Buttons, Front Panel with Toggle with Long Cap / Toggle with Long Cap
