MO 392
Push Button · Contactless hall-effect push button rated for millions of cycles
MO 392 is a panel-mount push button using hall-effect switching for a long, contactless service life. It is available in eight cap colours with customizable symbol programs.
- Switching
- Hall-effect
- Cycles
- 2M+
- Colours
- 8 options
Built for long-life contactless push-button input.
Highlights
- Contactless hall-effect switching, no wear surfaces
- Up to 2 million cycles
- Eight cap colours (RAL)
- Customizable symbol programs
- Sealed panel-mount housing
Specifications
- Switching technology
- Contactless hall-effect
- Lifetime
- Up to 2 million cycles
- Colour options
- Black, blue, gray, green, orange, red, white, yellow
- Legends
- Customizable symbol programs

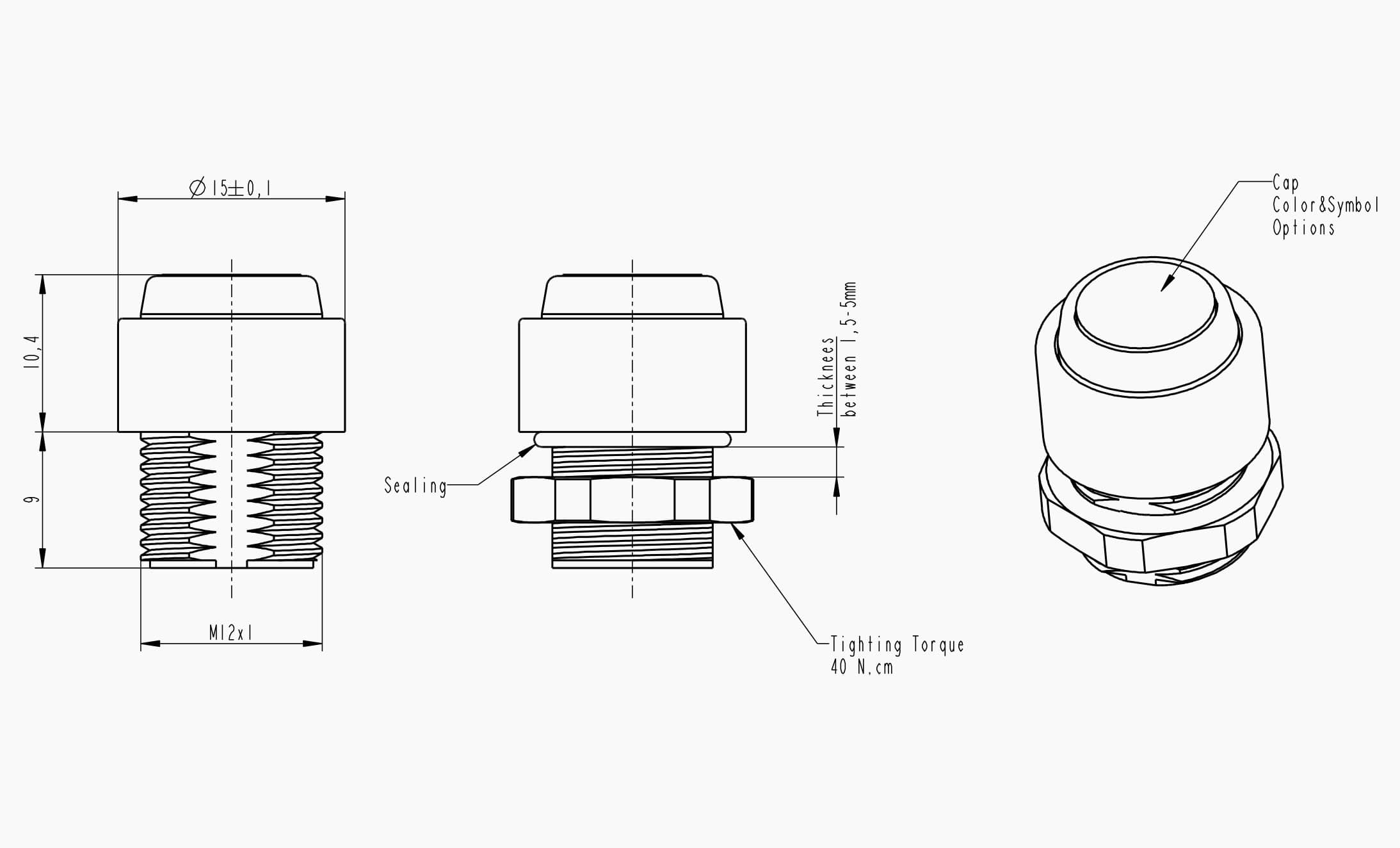

- Mounting
- Sealed panel-mount
Drag to browse · click to enlarge
Cap colours
Black
Blue
Gray
Green
Orange
Red
White
Yellow
Symbol options
P051
P501
P502
P503
P504
P505
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 392
- H1X
- PXXX
- XX
X stands for the digits you pick from the table.
MO 392 | H1X Hardware Configurations | PXXX Symbol Options | XX Connection |
|---|---|---|---|
| H10 - 5V | P001 - RAL 9003 | 00 - 250mm loose cable (AWG 24) | |
| H11 - 12V | See symbol table for symbol codes. | 01 - Molex Micro-Fit Connector 250mm cable | |
| H12 - 24V | ** | *** | |
| H1W - 5-24V (no LED) | |||
| * |

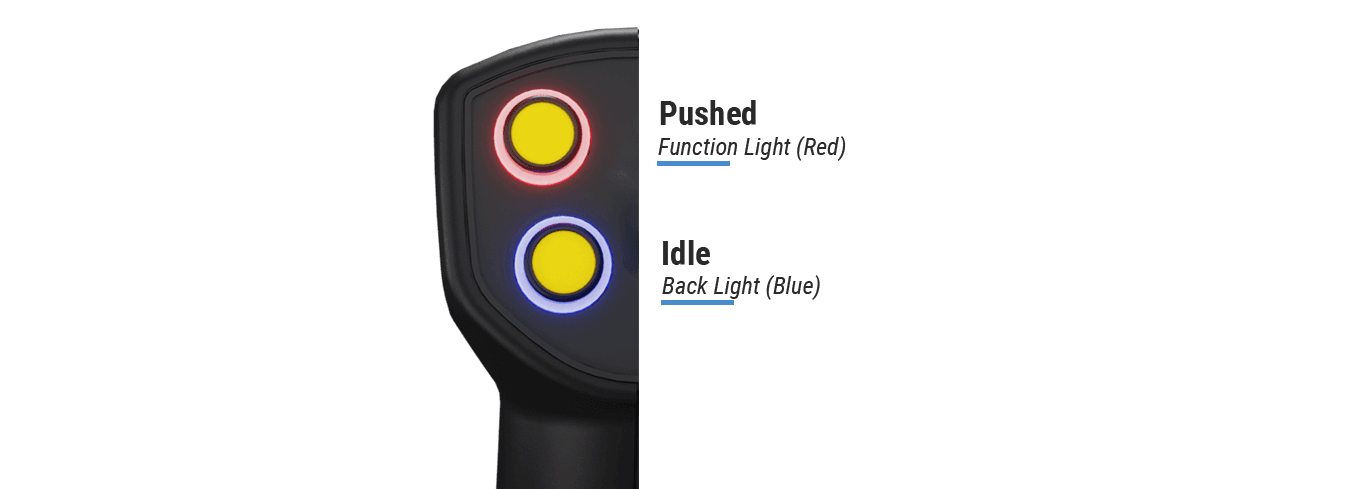

*5V supply voltage and blue night / red function light is standard, other configs are available upon request with minimum order quantity.
**For other available symbols please refer “Symbol Options”.
***250mm loose cable is standard, other connections are available upon request with minimum order quantity.
- MO 392
- H10
- P001
- 00 is Push Button Standard, 5V Supply Voltage and Blue Night / Red Function Light, RAL 9003 Symbol and 250mm Loose Cable.
Tell our engineering team about your function map, legend artwork and bus protocol. We'll match the key matrix, switch technology and CAN configuration to your panel.
