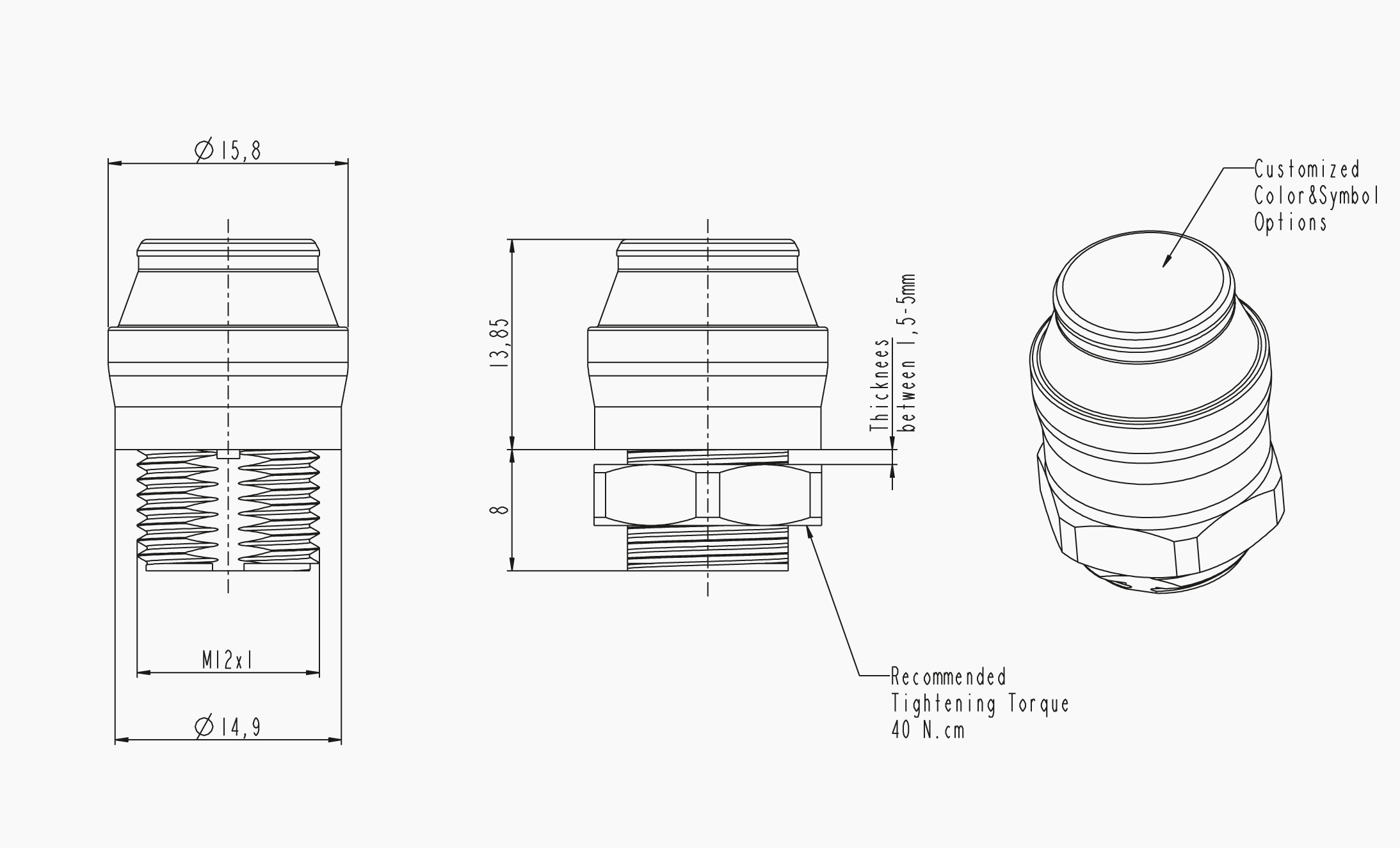

MO 392S
Sealed Push Button · Sealed non-contact hall push button for harsh panels
MO 392S is the sealed variant of the MO 392, using a non-contact hall switch design for reliable actuation in exposed and wash-down environments, in eight cap colours.
- Switching
- Non-contact hall
- Cycles
- 1M+
- Sealing
- Sealed front
Built for sealed push-button input in wash-down areas.
Highlights
- Non-contact hall switching
- Sealed front for wash-down
- Up to 1 million cycles
- Eight cap colours (RAL)
- Customizable symbol programs
Specifications
- Switching technology
- Non-contact hall
- Lifetime
- Up to 1 million cycles
- Sealing
- Sealed front
- Colour options
- Black, blue, gray, green, orange, red, white, yellow
- Mounting
- Sealed panel-mount
Cap colours
Black
Blue
Gray
Green
Orange
Red
White
Yellow
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 392S
- H1X
- PXXX
- XX
X stands for the digits you pick from the table.
MO 392S | H1X Hardware Configurations | PXXX Symbol Options | XX Connection |
|---|---|---|---|
| H10 - 5V | P001 - RAL 9003 | 00 - 250mm loose cable (AWG 24) | |
| H11 - 12V | See symbol table for symbol codes. | 01 - Molex Micro-Fit Connector 250mm cable | |
| H12 - 24V | ** | *** | |
| H1W - 5-24V (no LED) | |||
| * |
*5V supply voltage and blue night / red function light is standard, other configs are available upon request with minimum order quantity.
**For other available symbols please refer “Symbol Options”.
***250mm loose cable is standard, other connections are available upon request with minimum order quantity.
- MO 392S
- H10
- P001
- 00 is Push Button Seal, 5V Supply Voltage and Blue Night / Red Function Light, RAL 9003 Symbol and 250mm Loose Cable.
Tell our engineering team about your function map, legend artwork and bus protocol. We'll match the key matrix, switch technology and CAN configuration to your panel.
