M-01 / Keypads & Buttons
MO 405
CAN Keypad · Sealed CAN keypad with configurable key matrix and backlight

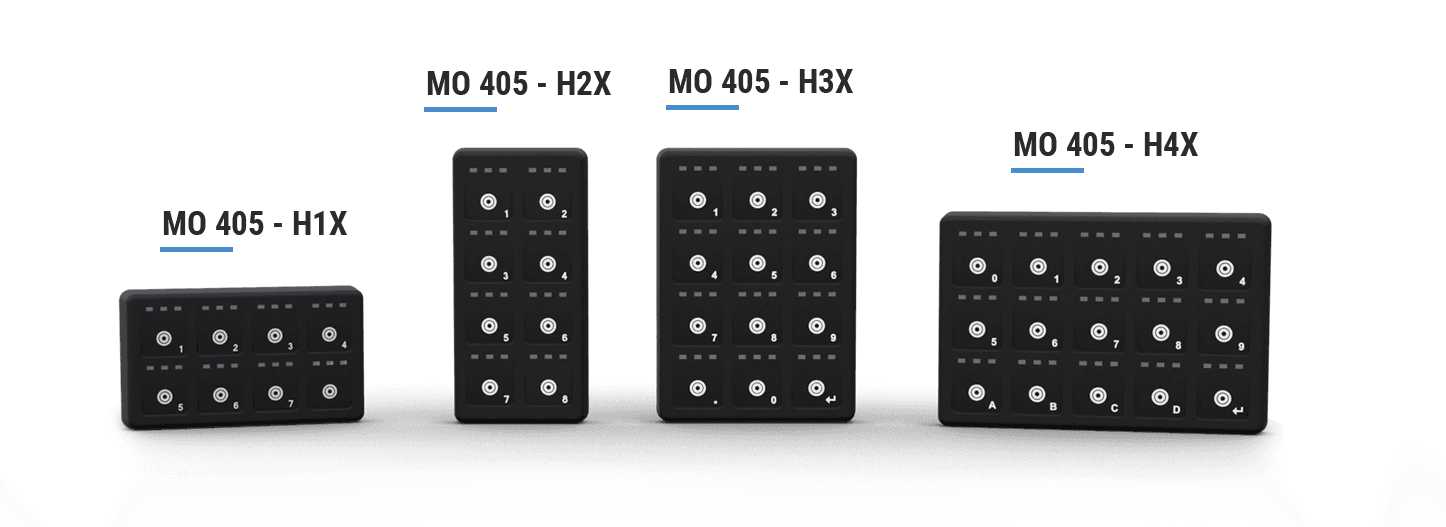

MO 405 is a sealed CAN keypad that collapses cab wiring to a single bus cable. Configurable 2×4, 4×2, 4×3 and 3×5 key matrices, customizable key icons and programmable indication lights make it a flexible in-cab command panel.
- Keys
- 2×4 … 3×5
- Bus
- CANopen / J1939
- Sealing
- IP67
Overview
Built to collapse cab wiring into one CAN cable.
Highlights
- Single-cable CAN connection
- Configurable key-matrix layouts

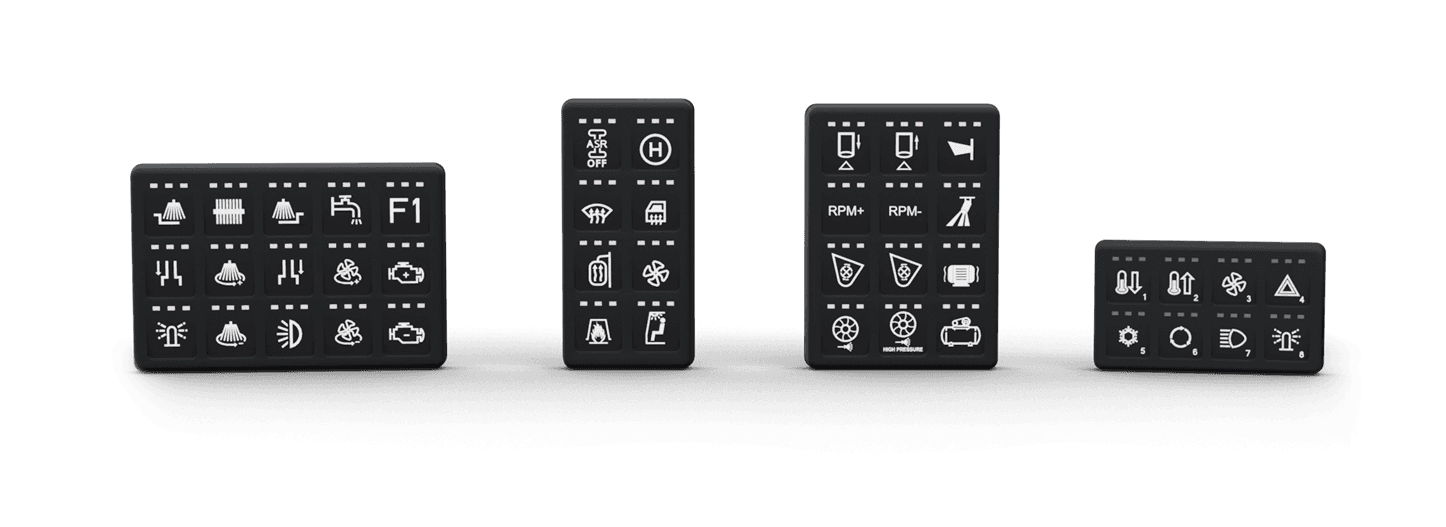

- Per-key customizable legends and backlight
- Up to 1 million cycles per key
- IP67 sealed against weather
- Robust panel-mount housing
Specifications
- Key matrix
- 2×4 / 4×2 / 4×3 / 3×5
- Bus protocol
- CANopen / SAE J1939
- Lifetime
- Up to 1 million cycles per key
- Ingress protection
- IP67

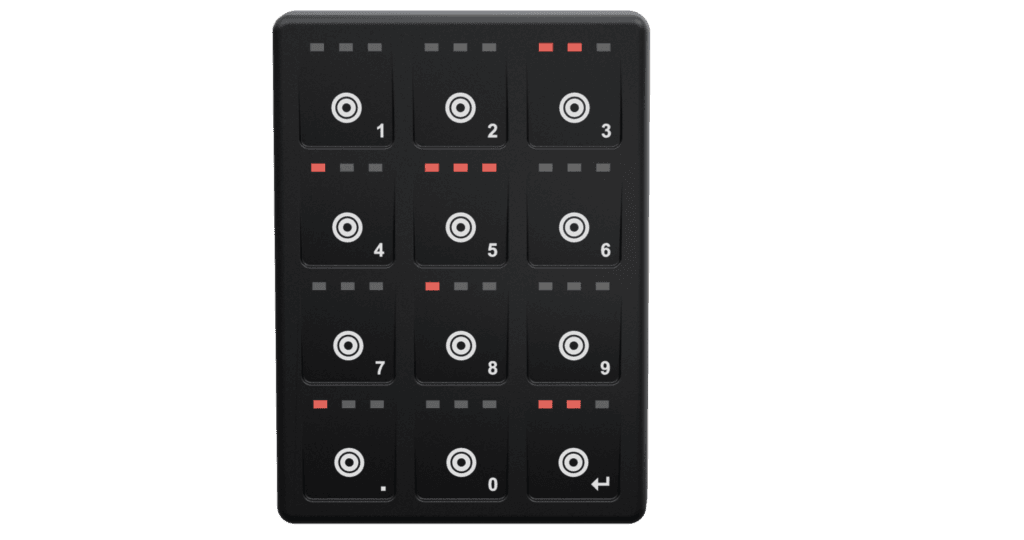

- Backlight
- Customizable icons and indication lights
- Construction
- Sealed, weather-protected

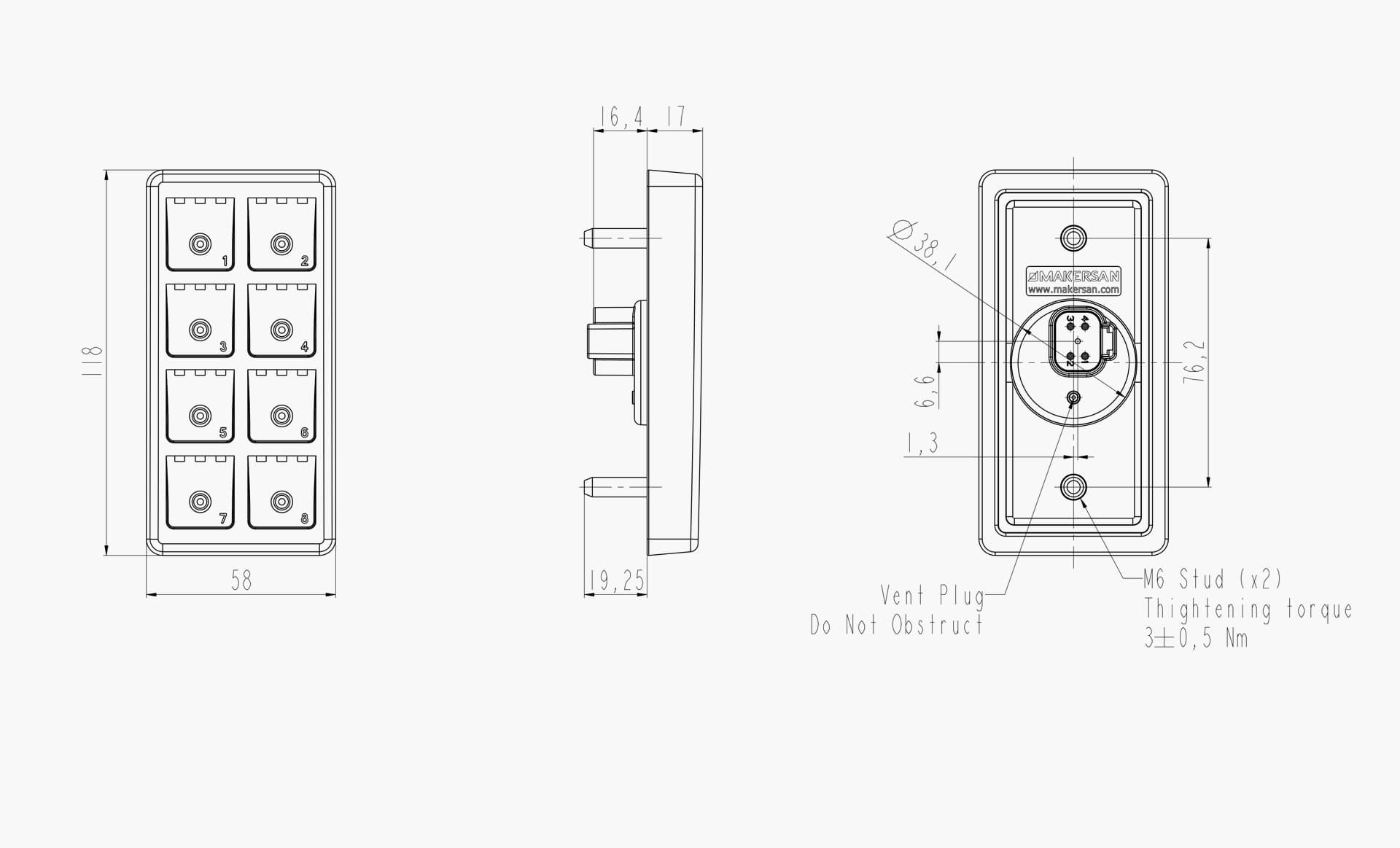

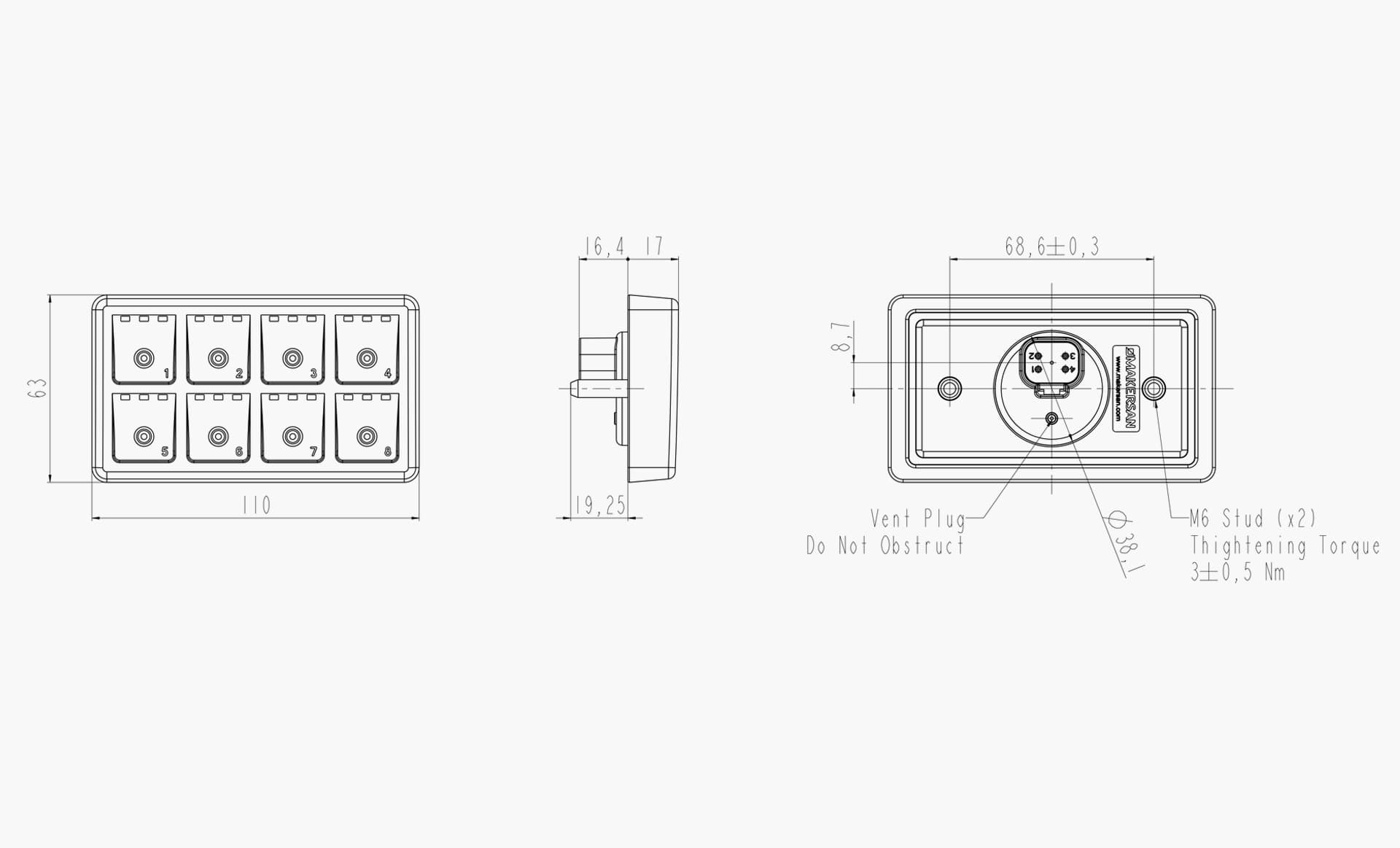

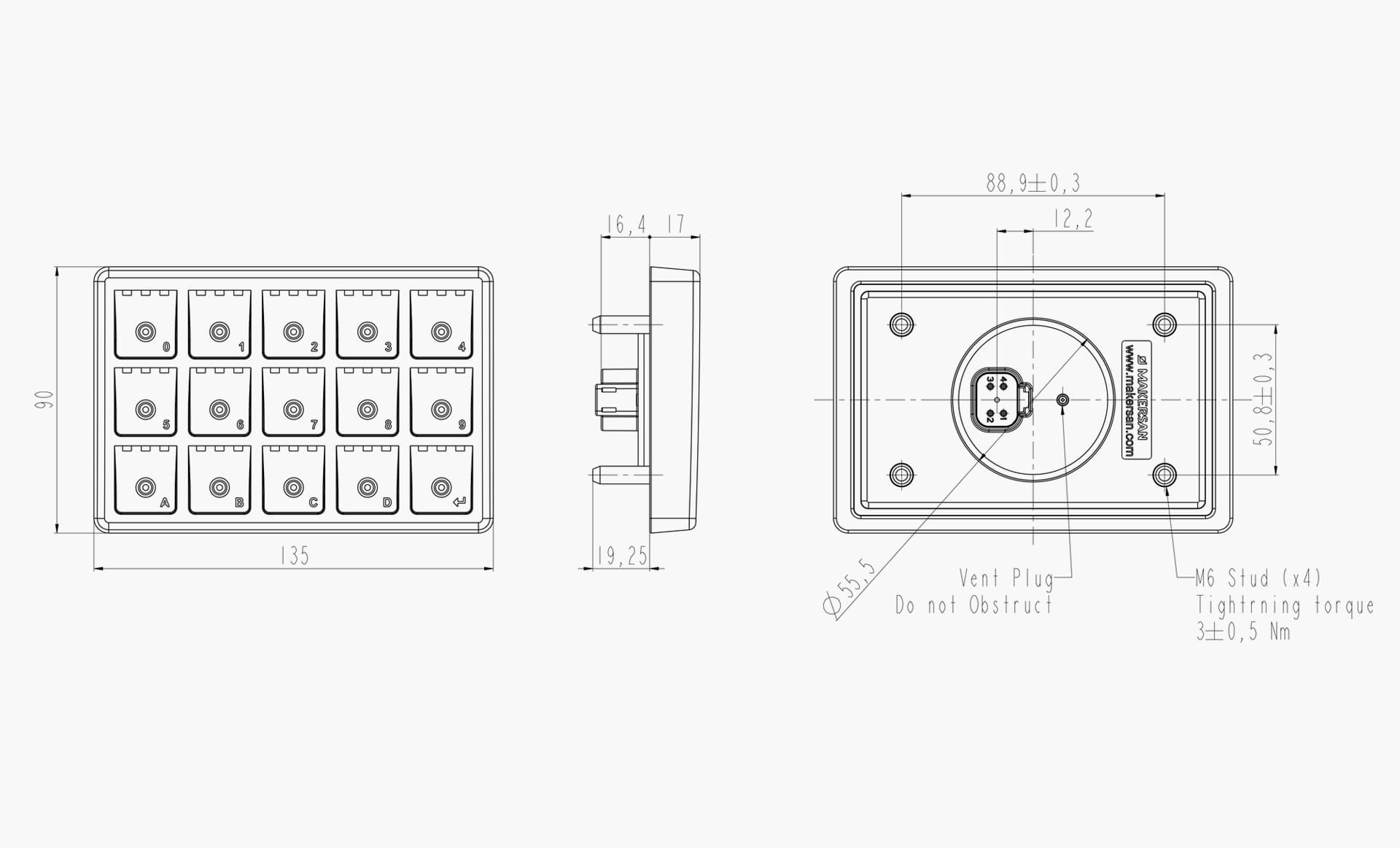

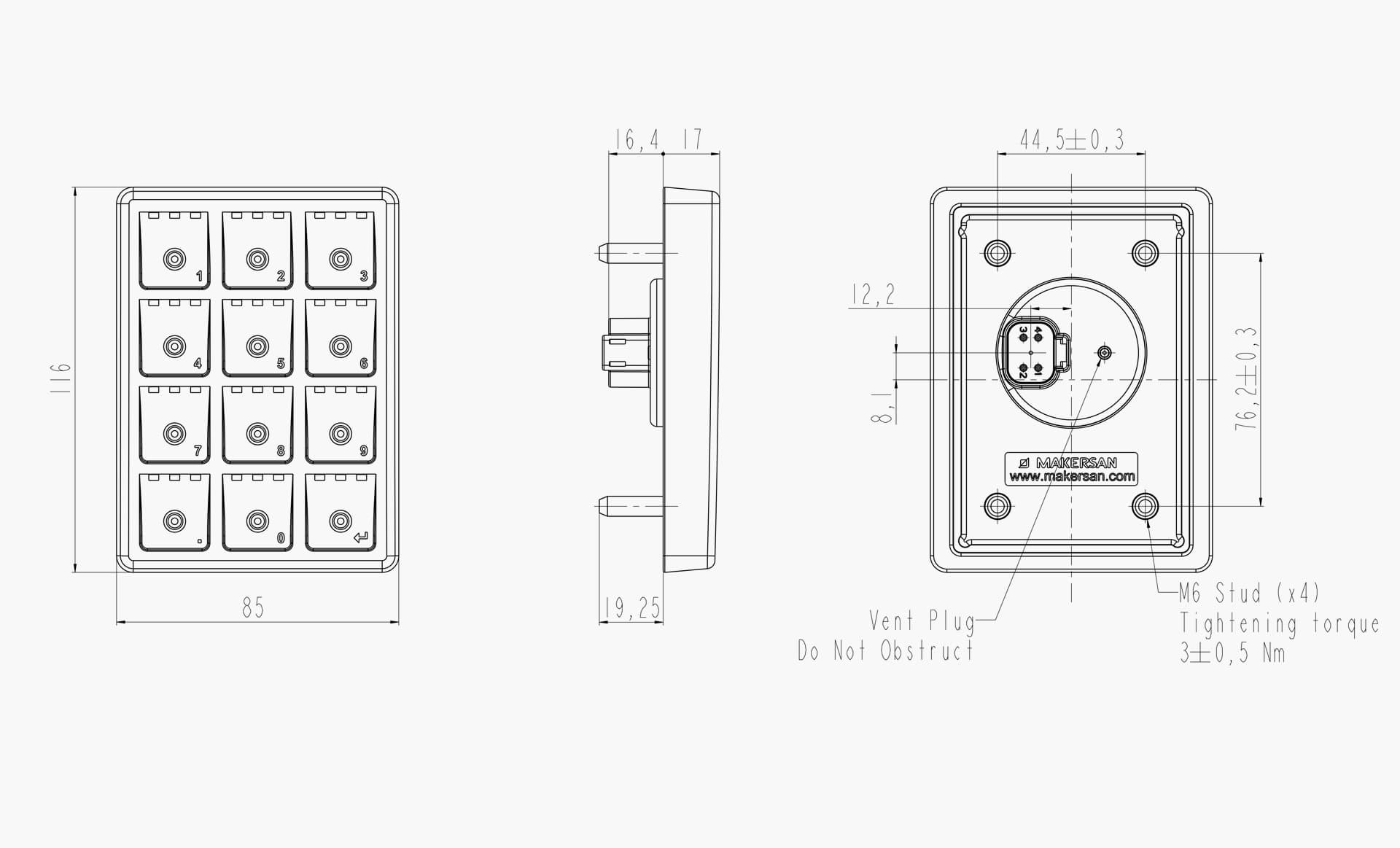

Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 405
- H1XS1X
- LXXX
X stands for the digits you pick from the table.
MO 405 | H1XS1X Electronic Config | LXXX Legend Config |
|---|---|---|
| H10S10 - KP2x4 Supply : 8-32V / Output : SAE J1939 | * See the Legends table | |
| H10S11 - KP2x4 Supply : 8-32V / Output : CANopen | ||
| H11S12 - KP2x4 Supply : 8-32V / Output : Modbus | ||
| H20S10 - KP4x2 Supply : 8-32V / Output : SAE J1939 | ||
| H20S11 - KP4x2 Supply : 8-32V / Output : CANopen | ||
| H21S12 - KP4x2 Supply : 8-32V / Output : Modbus | ||
| H30S10 - KP4x3 Supply : 8-32V / Output : SAE J1939 | ||
| H30S11 - KP4x3 Supply : 8-32V / Output : CANopen | ||
| H31S12 - KP4x3 Supply : 8-32V / Output : Modbus | ||
| H40S10 - KP3x5 Supply : 8-32V / Output : SAE J1939 | ||
| H40S11 - KP3x5 Supply : 8-32V / Output : CANopen | ||
| H41S12 - KP3x5 Supply : 8-32V / Output : Modbus |
Example:
- MO 405
- H10S10
- L001
Need a custom configuration?
Contact EngineeringTell our engineering team about your function map, legend artwork and bus protocol. We'll match the key matrix, switch technology and CAN configuration to your panel.
