M-03 / Keypads & Buttons

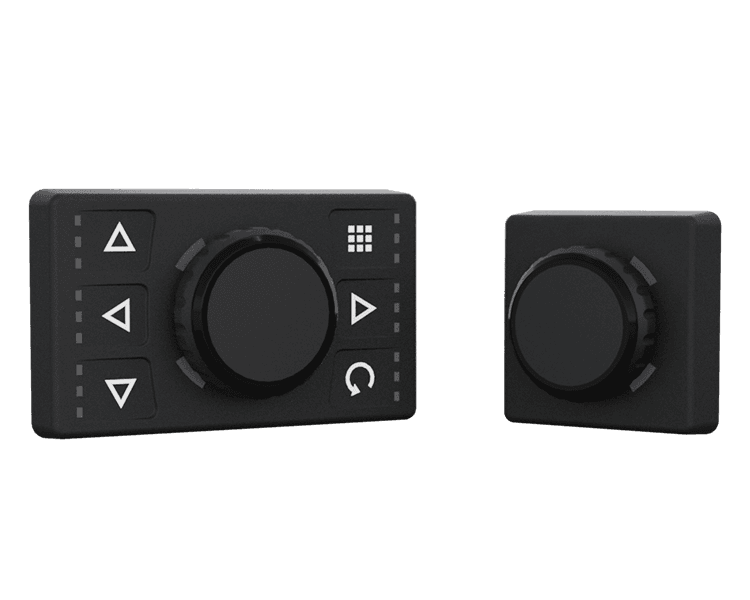

MO 406
CAN Joystick Keypad · Rotary push/pull knob with six quick-pick keys
MO 406 is a CAN joystick keypad combining a rotary push/pull button knob with six quick-pick keys for menu navigation and function selection over a single bus cable.
- Control
- Rotary push/pull
- Keys
- 6 quick-pick
- Bus
- CAN
Overview
Built for rotary menu and function selection.
Highlights
- Rotary push/pull knob for menu navigation
- Six quick-pick function keys
- Single CAN cable connection
- Up to 1 million cycles per key
- Customizable legends
- Sealed panel-mount housing
Specifications
- Control
- Rotary push/pull knob
- Quick-pick keys
- 6
- Bus protocol
- CANopen / SAE J1939
- Lifetime
- Up to 1 million cycles per key
- Legends
- Customizable

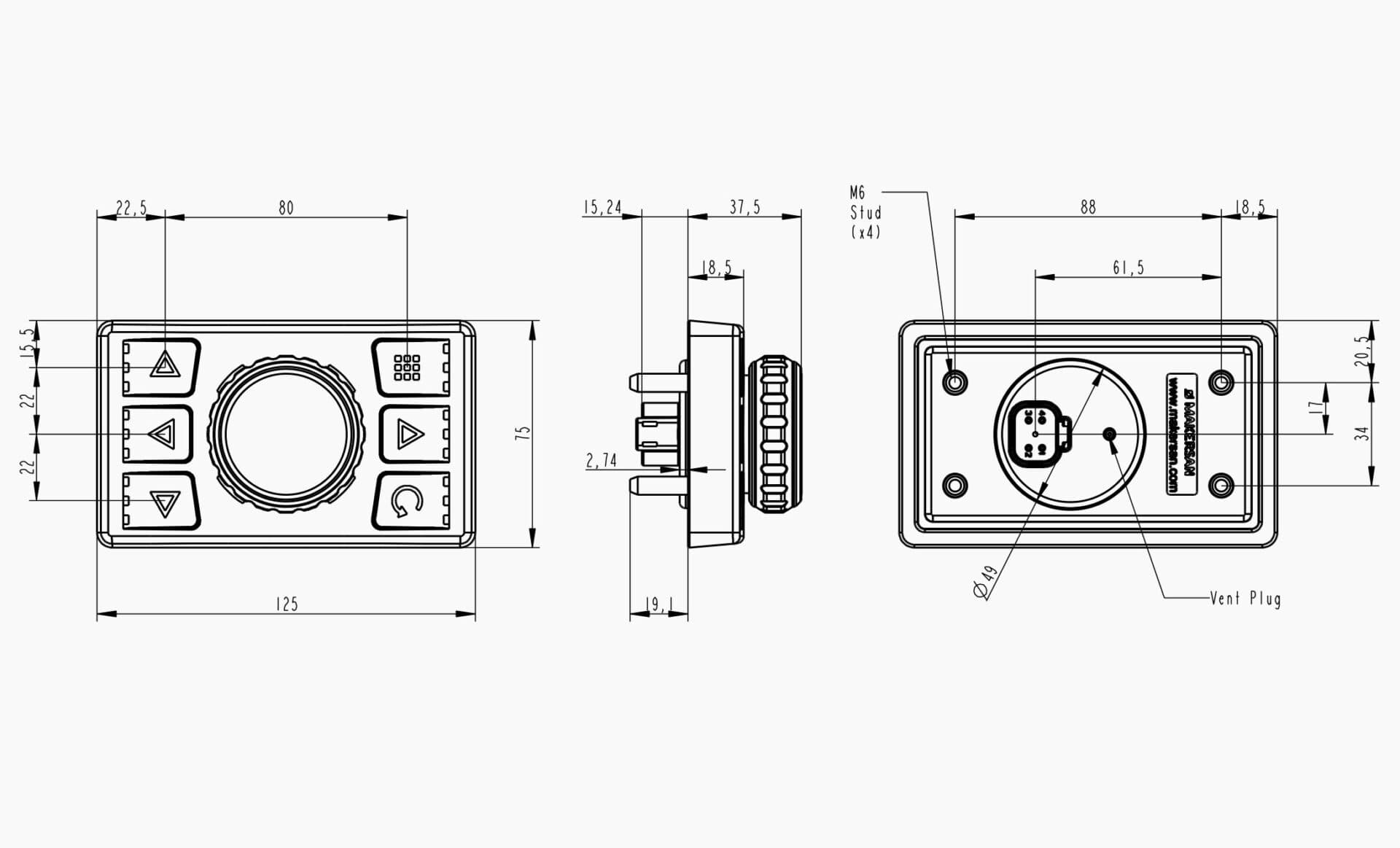

Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 406
- H1XS1X
- LXXX
X stands for the digits you pick from the table.
MO 406 | H1XS1X Electronic Config | LXXX Legend Config |
|---|---|---|
| H10S10 - Supply : 8-32V / Output : SAE J1939 | * See the Legends table | |
| H10S11 - Supply : 8-32V / Output : CANopen | ||
| H11S12 - Supply : 8-32V / Output : Modbus |
Example:
- MO 406
- H10S10
- L001
Need a custom configuration?
Contact EngineeringTell our engineering team about your function map, legend artwork and bus protocol. We'll match the key matrix, switch technology and CAN configuration to your panel.
