MO 126
Suspended Accelerator Pedal · Heavy-duty suspended throttle pedal with contactless hall sensing
MO 126 is a heavy-duty suspended accelerator pedal for commercial and off-road vehicles. A contactless measuring principle and two independent return springs deliver a long, maintenance-free service life, while full redundant programmable outputs adapt the pedal to different engine interfaces.
- Mounting
- Suspended
- Output
- Dual analog / PWM / IVS
- Sealing
- IP6K9K
Built for heavy-duty suspended throttle control.
Highlights
- Contactless measuring principle with no wear surfaces
- Full redundant double programmable outputs
- 19° working angle with two independent return springs
- Virtual kickdown effect option

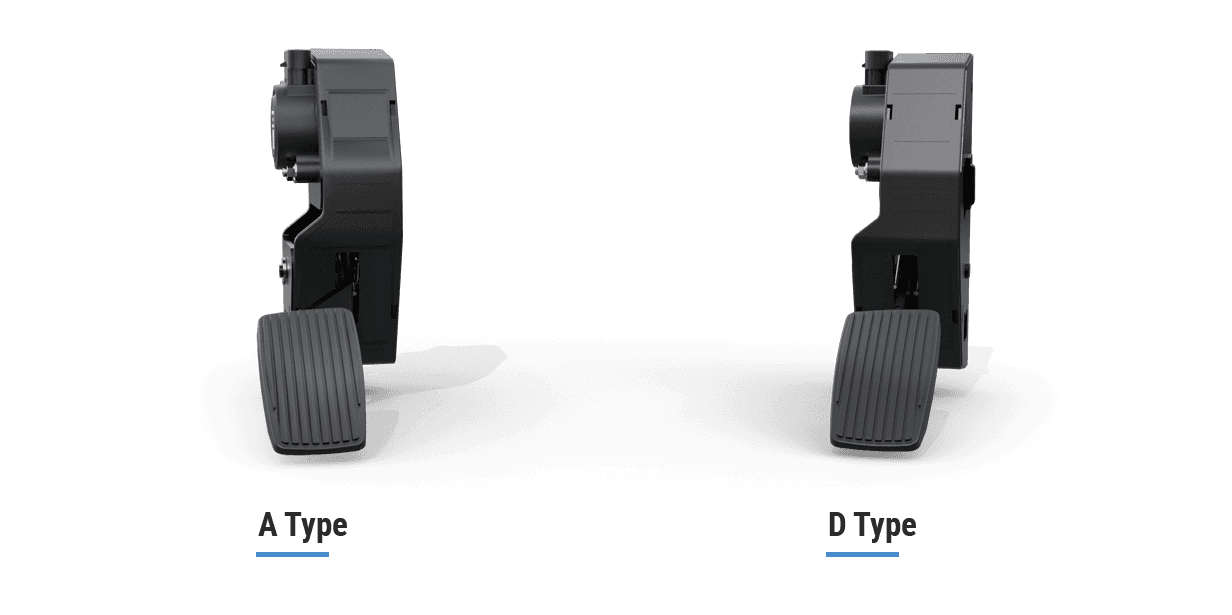

- A and D rod-type options
- More than 2 million actuations
Specifications
- Type
- Suspended
- Measuring principle
- Contactless
- Working angle
- 19°
- Supply voltage
- 5V or 8-32V
- Outputs
- Dual analog (0-5V / PWM); Analog+IVS (high-side / low-side switch)
- Redundancy
- Full redundant double programmable outputs
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 2 million actuations
- Operating temperature
- -40°C … +85°C
- Housing
- Heavy-duty metal case
- Weight
- 1.3 kg
Drag to browse · click to enlarge
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 126
- X
- X
- PXXX
X stands for the digits you pick from the table.
MO 126 | X Pedal Rod Type | X Kickdown | PXXX Sensor Program |
|---|---|---|---|
| A - A Type | 0 - Without Kickdown | P009 - Dual Analog P009 | |
| D - D Type | 1 - With Kickdown | * |
* Different programs can be produced on request.
- MO 126
- A
- 1
- P009
Tell our engineering team about your machine platform, mounting envelope and required output. We'll propose the right hardware variant, rod/lever option and sensor program.
