MO 129
Floor Accelerator Pedal · Floor-mount throttle pedal with selectable treadle angle
MO 129 is a floor-type accelerator pedal for commercial and off-road vehicles, available in long, short and long-wide treadle variants with four initial treadle angles. Contactless sensing and full redundant programmable outputs keep the signal clean across the working range.
- Mounting
- Floor
- Treadle
- L / S / LW
- Sealing
- IP6K9K
Built for floor-mount throttle control with a tunable treadle.
Highlights

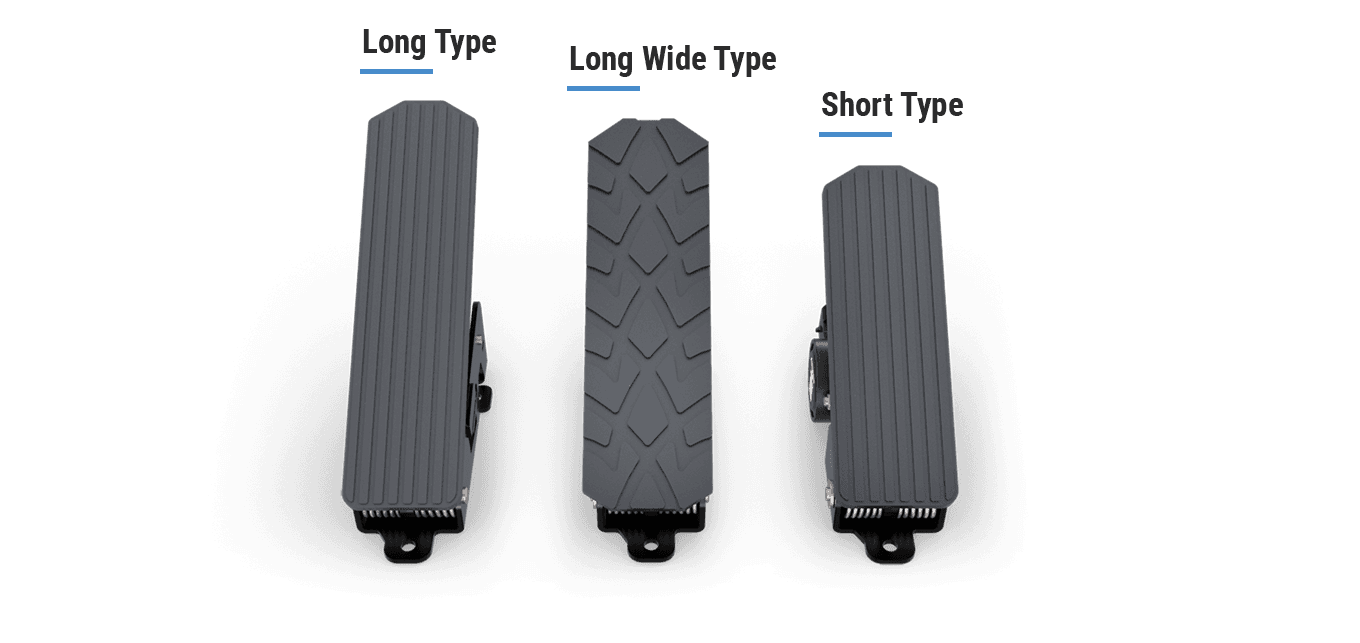

- Long, short and long-wide treadle variants

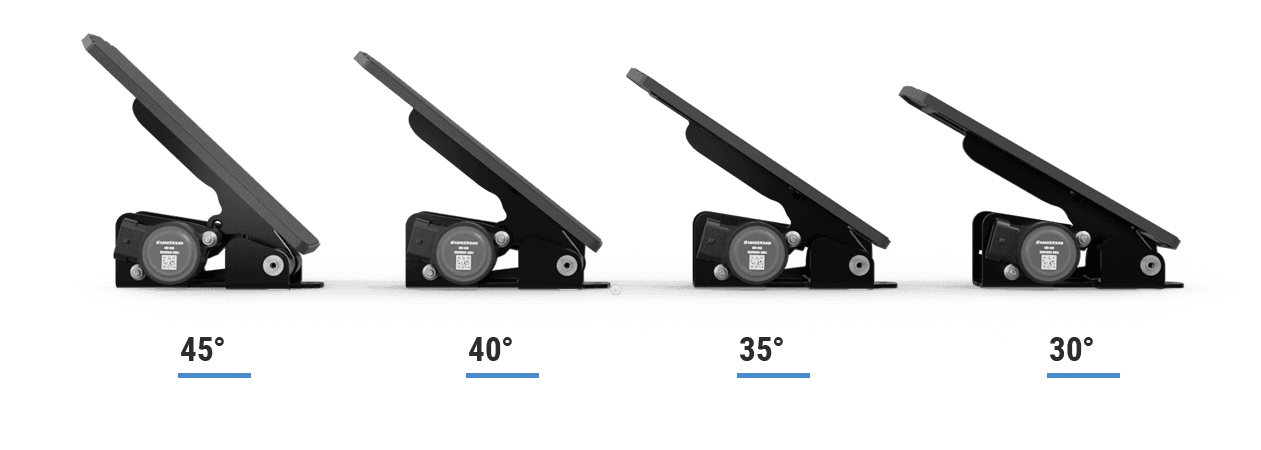

- Selectable initial treadle angle: 30° / 35° / 40° / 45°
- Full redundant double programmable outputs
- Virtual kickdown effect option
- More than 2 million actuations
- IP6K9K sealed sensor
Specifications
- Type
- Floor
- Measuring principle
- Contactless
- Treadle angle
- 30° / 35° / 40° / 45° (selectable)
- Supply voltage
- 5V or 8-32V
- Outputs
- Dual analog (0-5V / PWM); Analog+IVS (high-side / low-side switch)
- Redundancy
- Full redundant double programmable outputs
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 2 million actuations
- Operating temperature
- -40°C … +85°C
- Housing
- Heavy-duty metal case
- Weight
- 1.05 kg
Drag to browse · click to enlarge
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 129
- X
- X
- X
- PXXX
X stands for the digits you pick from the table.
MO 129 | X Treadle Type | X Initial Treadle Angle | X Kickdown | PXXX Sensor Program |
|---|---|---|---|---|

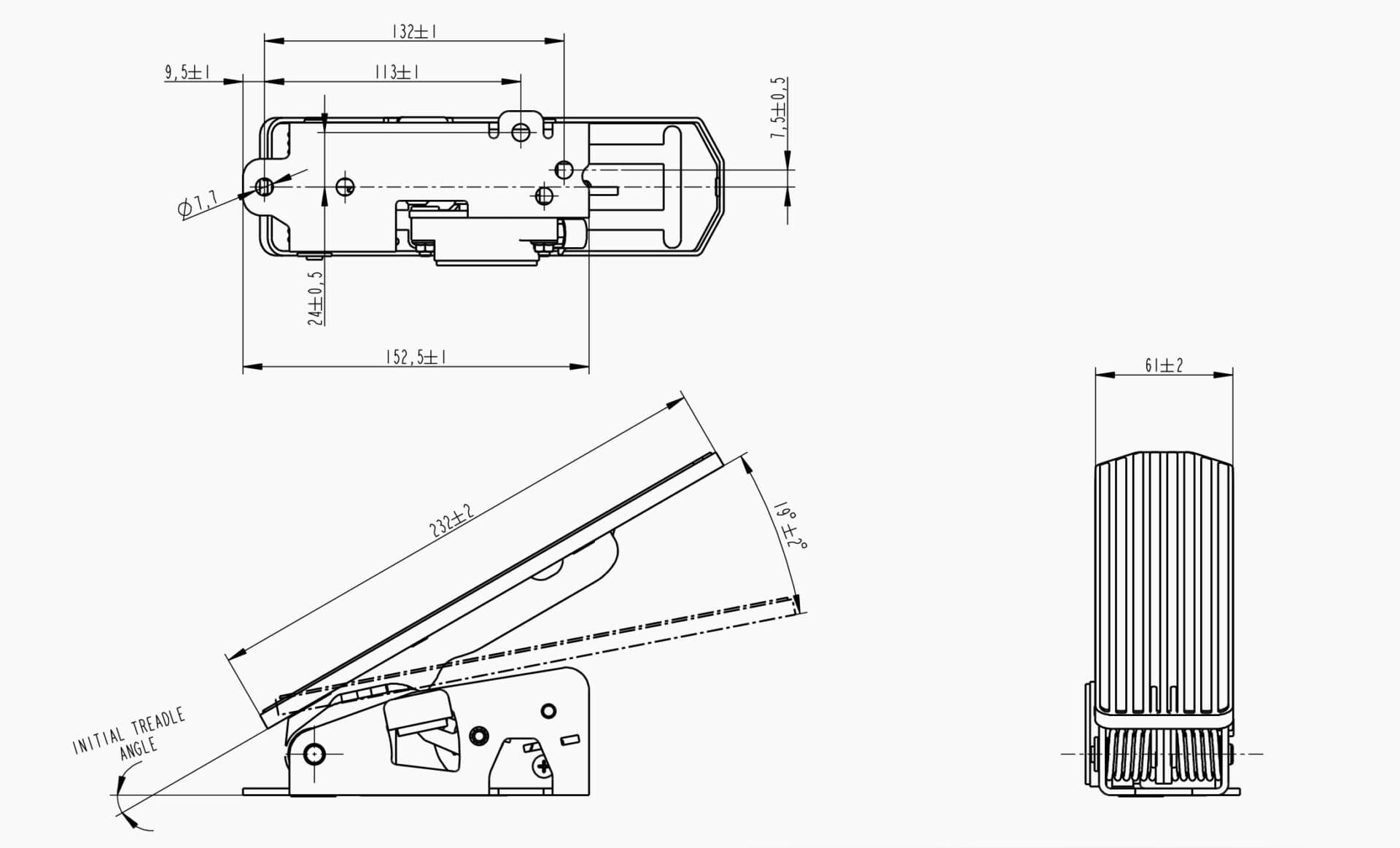

| L - Long Type | 1 - 30° | 0 - Without Kickdown | P009 - Dual Analog P009 | |

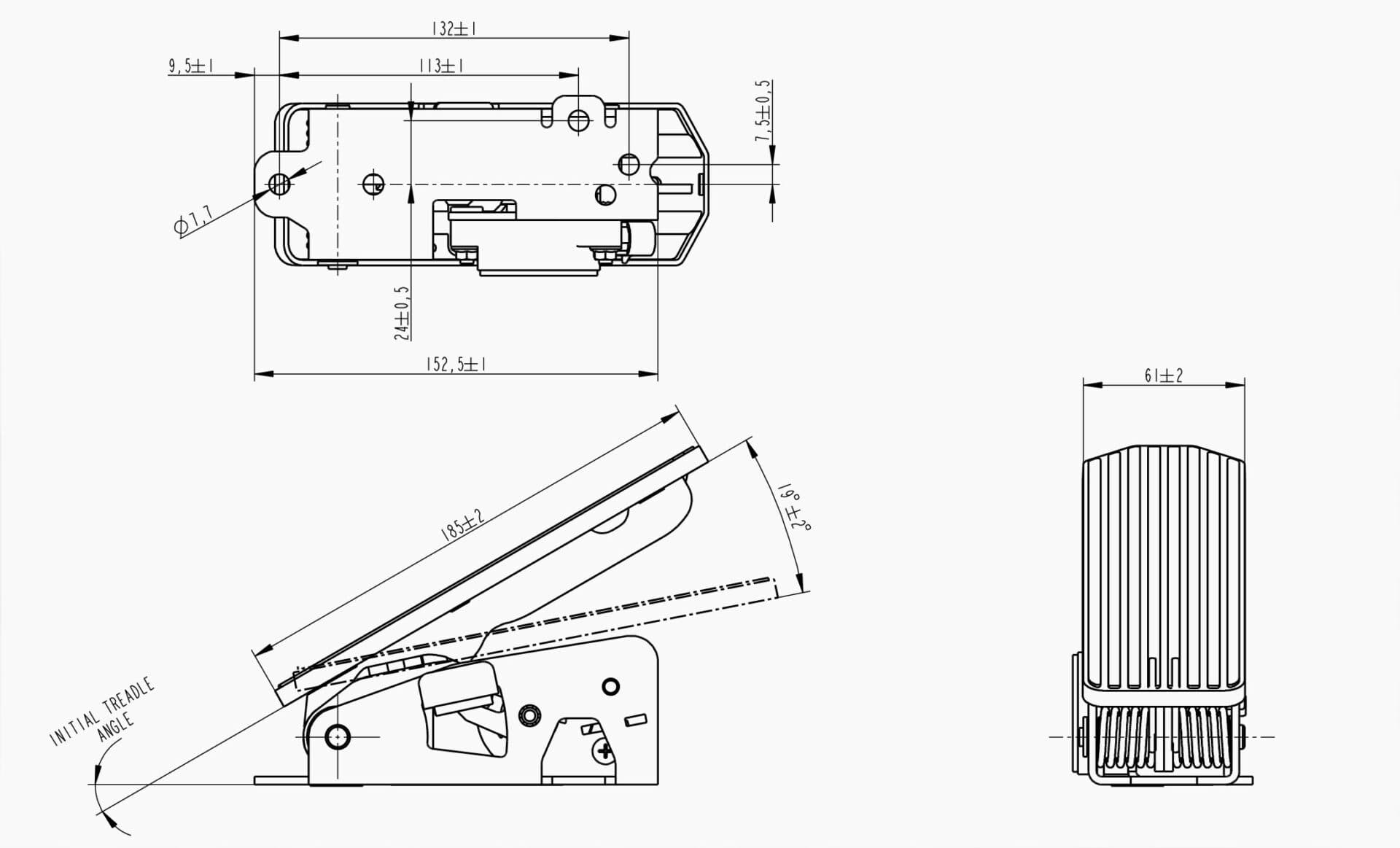

| S - Short Type | 2 - 35° | 1 - With Kickdown | * | |

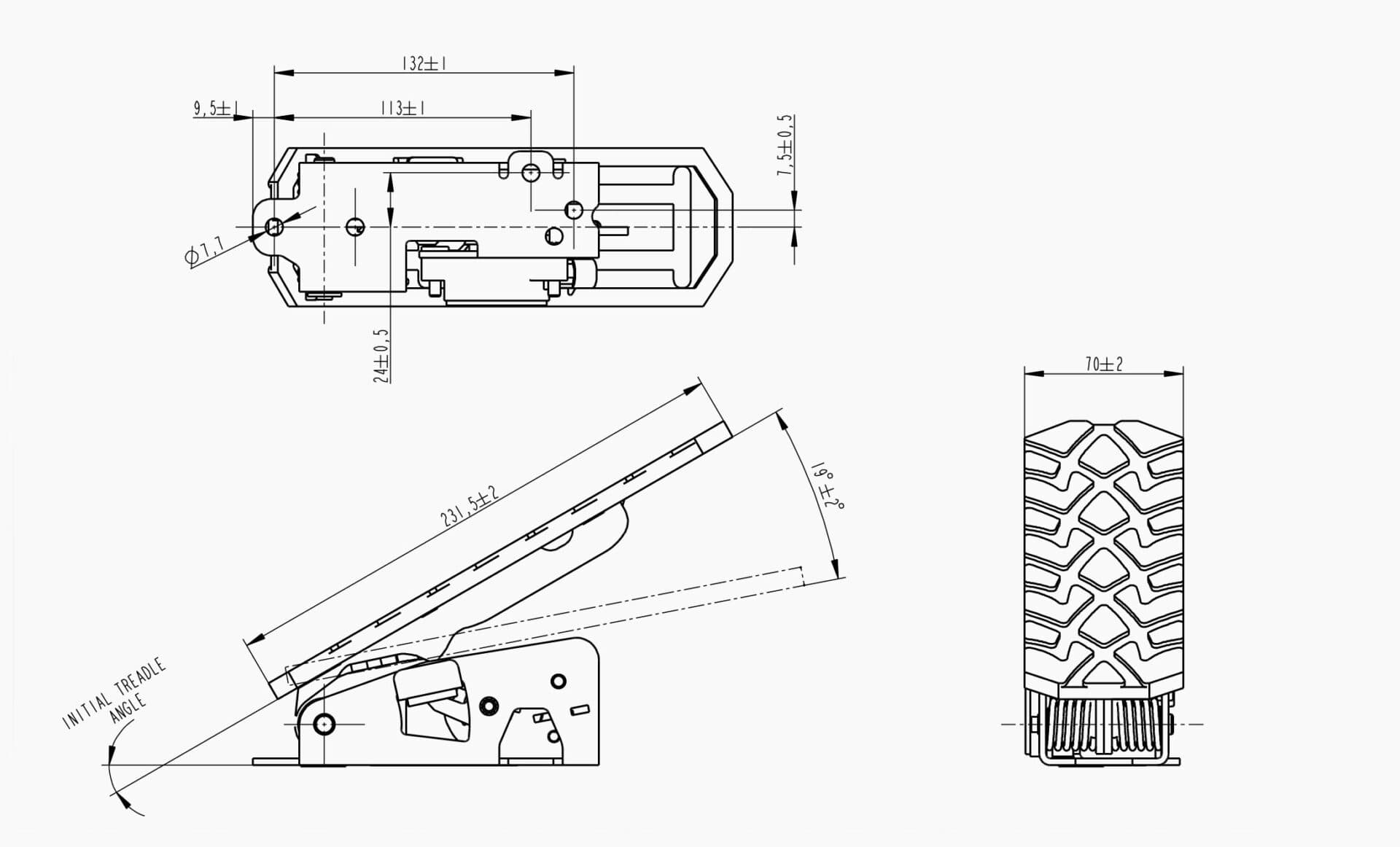

| LW - Long Wide | 3 - 40° | |||
| 4 - 45° |
* Different programs can be produced on request.
- MO 129L
- 1
- 0
- P009
Tell our engineering team about your machine platform, mounting envelope and required output. We'll propose the right hardware variant, rod/lever option and sensor program.
