MO 367
Bidirectional Rocker Pedal · Two-direction rocker pedal with independent springs per direction
MO 367 is a bidirectional rocker pedal for commercial and off-road vehicles, with two independent springs for each direction of travel. The contactless sensor and full redundant programmable outputs support standard, hydraulic and lock connection types.
- Type
- Bidirectional
- Output
- Dual analog / IVS
- Sealing
- IP6K9K
Built for two-direction proportional command.
Highlights
- Bidirectional travel with independent springs per direction
- Full redundant double programmable outputs
- Travel angle options: 10° / 14°
- Standard (S), hydraulic (H) and lock (L) connection types
- Up to 1 million actuations
- IP6K9K sealed sensor
Specifications
- Type
- Bidirectional rocker
- Measuring principle
- Contactless
- Travel angle
- 10° / 14°
- Supply voltage
- 5V or 8-32V
- Outputs
- Dual analog (0-5V / PWM); Analog+IVS
- Redundancy
- Full redundant double programmable outputs
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- Up to 1 million actuations
- Operating temperature
- -40°C … +85°C
- Housing
- Heavy-duty metal case
Drag to browse · click to enlarge
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 367
- X
- X
- X
- PXXX
X stands for the digits you pick from the table.

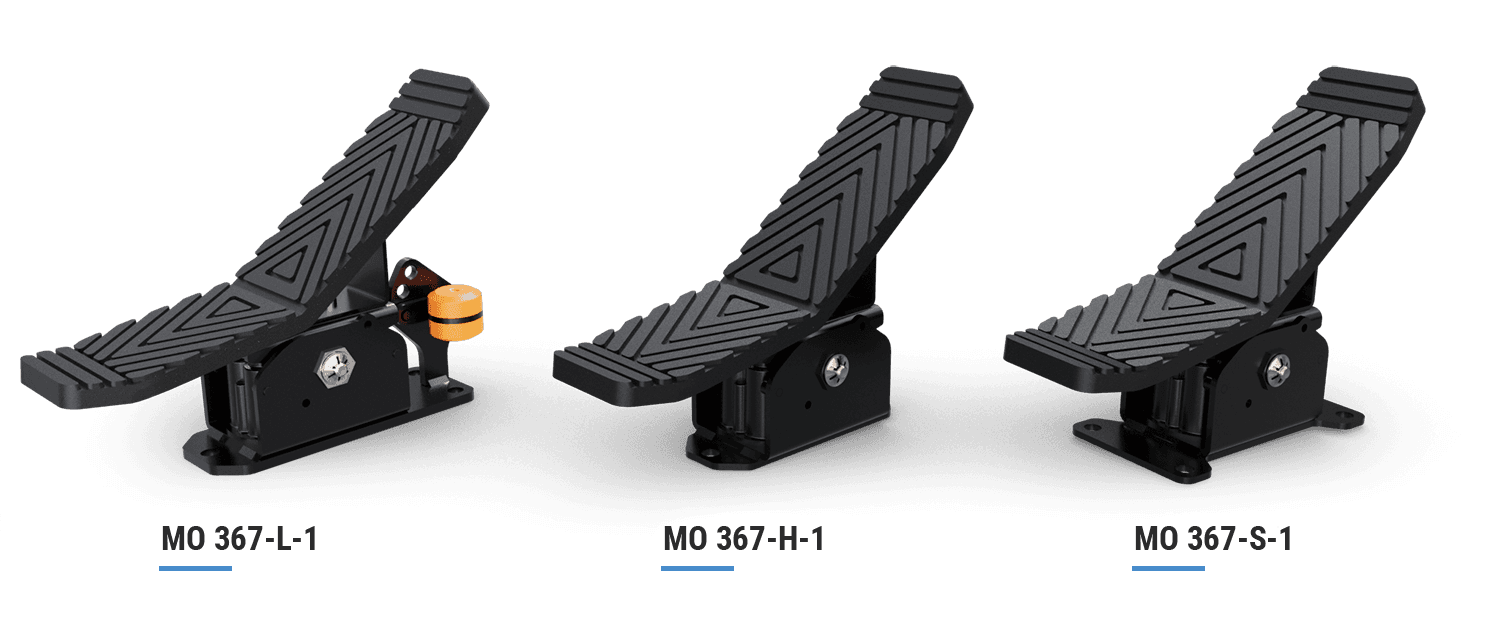

MO 367 | X Connection Type | X Pad Type | X Travel Angle | PXXX Sensor Program |
|---|---|---|---|---|
| S - Standart Type | 0 - Without Pad | 1 - 10° | P009 - Dual Analog P009 | |
| H - Hydraulic Type | 1 - Type 1 | 2 - 14° | ** | |
| L - Lock Type | 2 - Type 2 | |||
| * | 3 - Type 3 |

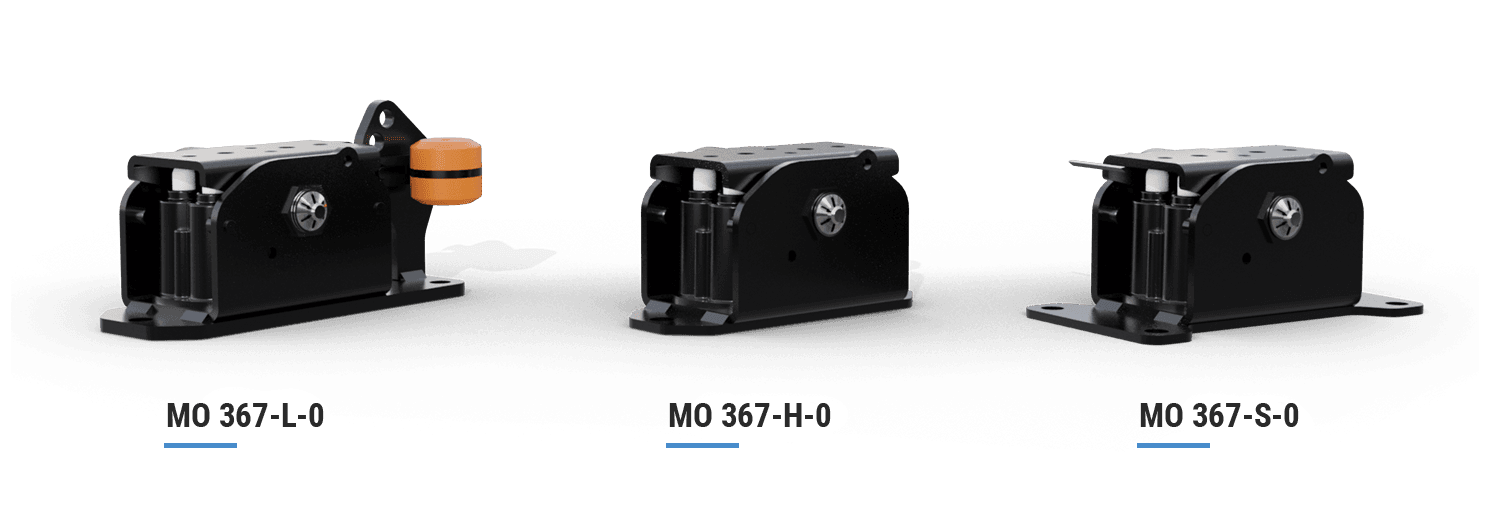

*Each pedal type can be purchasable without pedal pad
** Different programs can be produced on request.
- MO 367
- S
- P009
Tell our engineering team about your machine platform, mounting envelope and required output. We'll propose the right hardware variant, rod/lever option and sensor program.
