MO 370
Suspended Accelerator Pedal (Polymer) · Lightweight suspended pedal in reinforced polyamide
MO 370 is a lightweight suspended accelerator pedal in a 30% glass-fibre reinforced polyamide case, for passenger, commercial and off-road vehicles. It offers single- or double-sensor configurations with full redundant programmable outputs.
- Mounting
- Suspended
- Output
- Dual analog / IVS
- Sealing
- IP6K9K
Built for lightweight suspended throttle control.
Highlights
- Lightweight reinforced polyamide construction (0.4 kg)
- Double sensor (4 outputs) or single-sensor configurations
- Full redundant double programmable outputs
- Virtual kickdown effect option
- More than 2 million actuations
- IP6K9K sealed sensor
Specifications
- Type
- Suspended
- Measuring principle
- Contactless
- Supply voltage
- 5V or 8-32V
- Outputs
- Dual analog (0-5V / PWM); Analog+IVS (high-side / low-side switch)

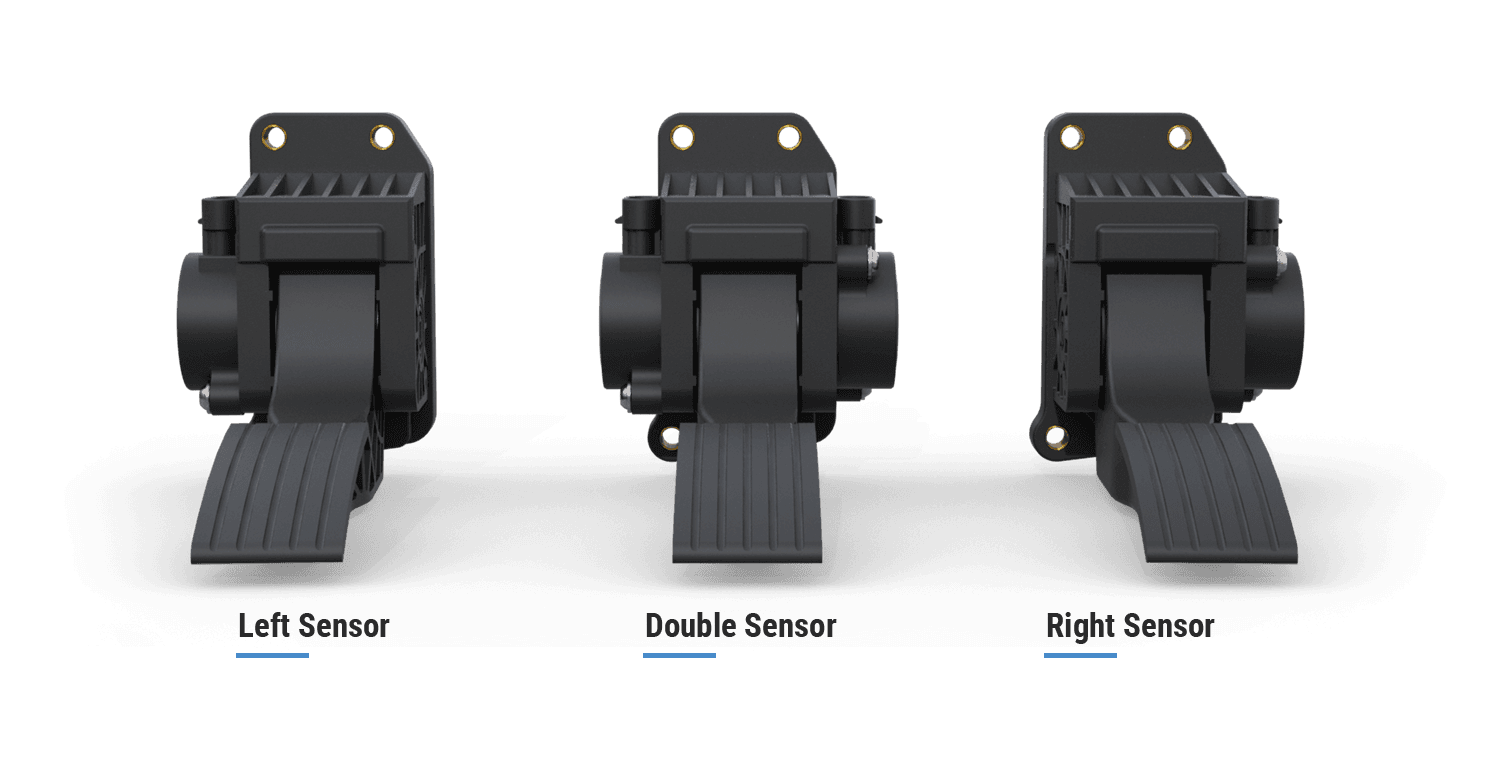

- Sensor configuration
- Double (4 outputs) or single left/right (2 outputs)
- Redundancy
- Full redundant double programmable outputs
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 2 million actuations
- Operating temperature
- -40°C … +85°C
- Housing
- 30% GF reinforced polyamide
- Weight
- 0.4 kg
Drag to browse · click to enlarge
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 370
- X
- X
- X
- PXXX
X stands for the digits you pick from the table.
MO 370 | X Pedal Rod Type | X Kickdown | X Sensor Side | PXXX Sensor Program |
|---|---|---|---|---|
| A - Type A | 0 - Without Kickdown | L - Left | P009 - Dual Analog P009 | |
| 1 - With Kickdown | R- Right | * | ||
| D - Double |
* Different programs can be produced on request.
- MO 370
- A
- 1
- L
- P009
Tell our engineering team about your machine platform, mounting envelope and required output. We'll propose the right hardware variant, rod/lever option and sensor program.
