MO 375A
Rotary Hand Throttle · Rotary valve control with detents and friction hold
MO 375A is an electronic rotary hand throttle / valve control with a 100° working angle, 10-stage detents and 100° friction hold. The contactless sensor offers single or double full-redundant programmable outputs over CAN, analog or PWM.
- Angle
- 100° + detents
- Output
- CAN / analog / PWM
- Sealing
- IP6K9K
Overview
Built for rotary hand-throttle and valve control.
Highlights
- 100° working angle with 10-stage detents
- 100° friction hold option
- Single or double full redundant outputs
- CAN (SAE J1939 / CANopen), analog and PWM outputs
- More than 2 million lifetime cycles
- IP6K9K sealed sensor
Specifications
- Type
- Rotary hand throttle / valve control
- Measuring principle
- Contactless
- Working angle
- 100°
- Detents
- 10-stage detents
- Friction hold
- 100°
- Supply voltage
- 5V or 8-32V
- Outputs
- Analog (0-5V / 4-20mA / PWM); CAN (SAE J1939 / CANopen)
- Redundancy
- Single or double full redundant
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 2 million cycles
- Operating temperature
- -40°C … +85°C

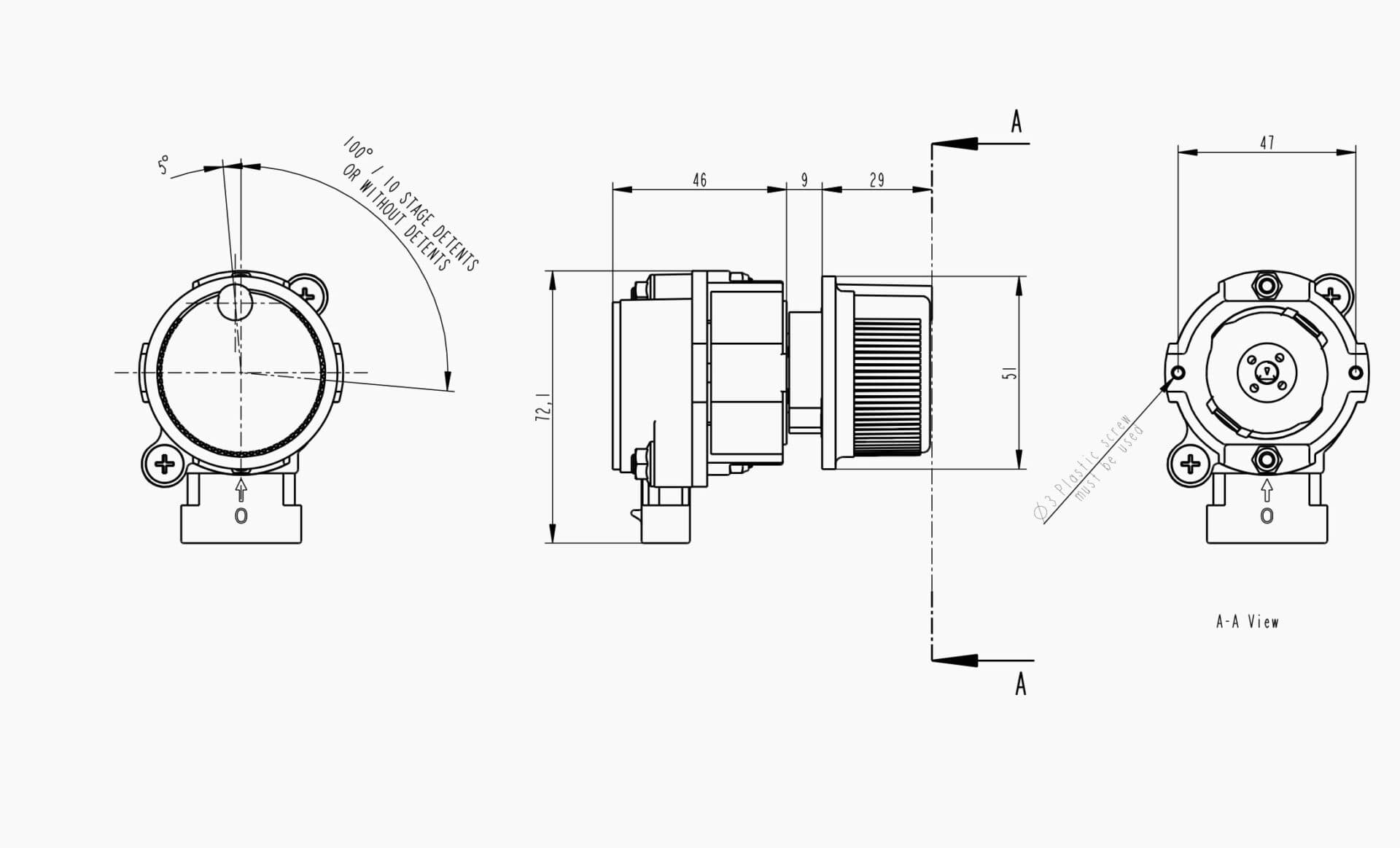

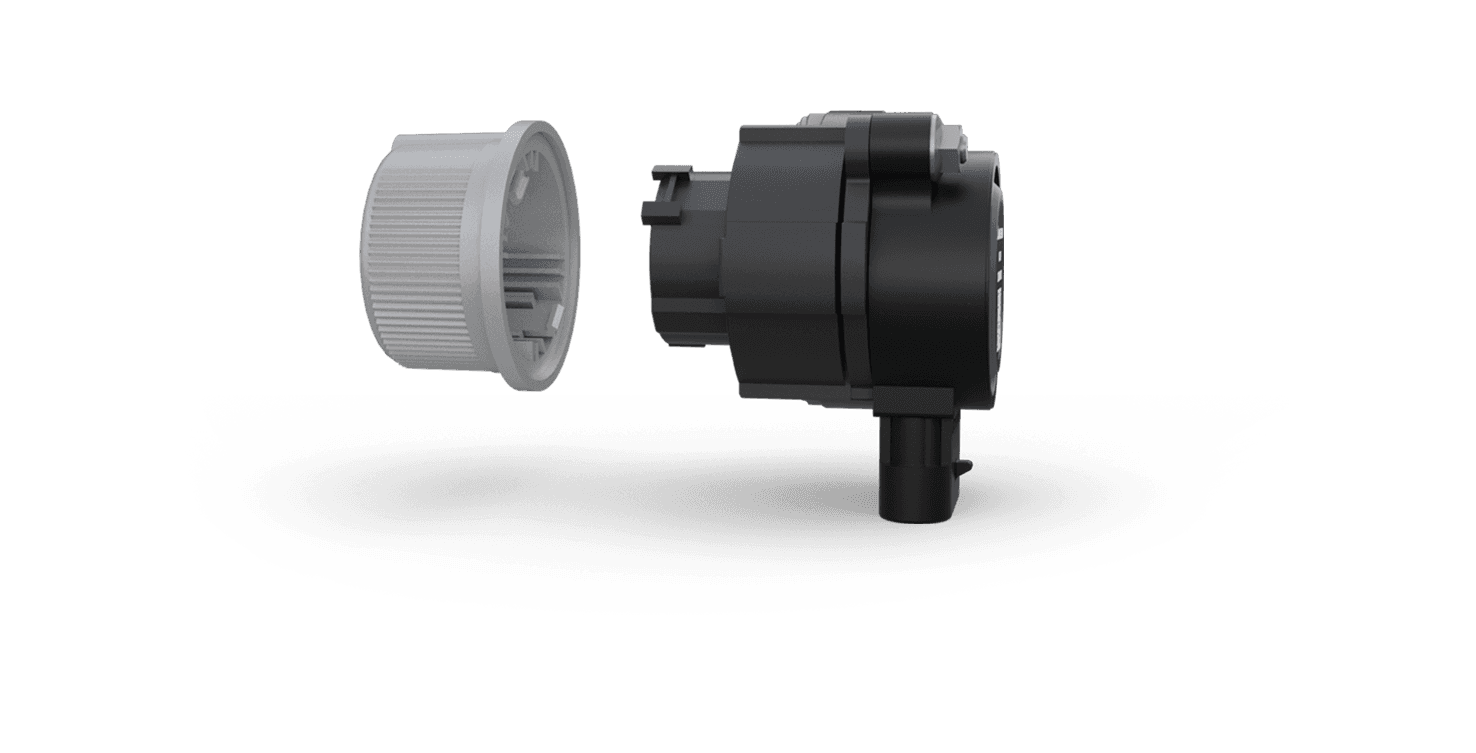

Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 375A
- X
- X
- PXXX
X stands for the digits you pick from the table.
MO 375A | X Detents | X Knob Color | PXXX Sensor Program |
|---|---|---|---|
| Y - With 10 detents | 0 - Without Knob | P009 - Dual Analog P009 | |
| N - Without detent | 1 - Black | * | |
| 2 - Grey |
* Different programs can be produced on request.
Example:
- MO 375A
- X
- X
- P009
