MO 376
Rotary Control Lever · 90°/180° programmable rotary lever with button or handle actuator

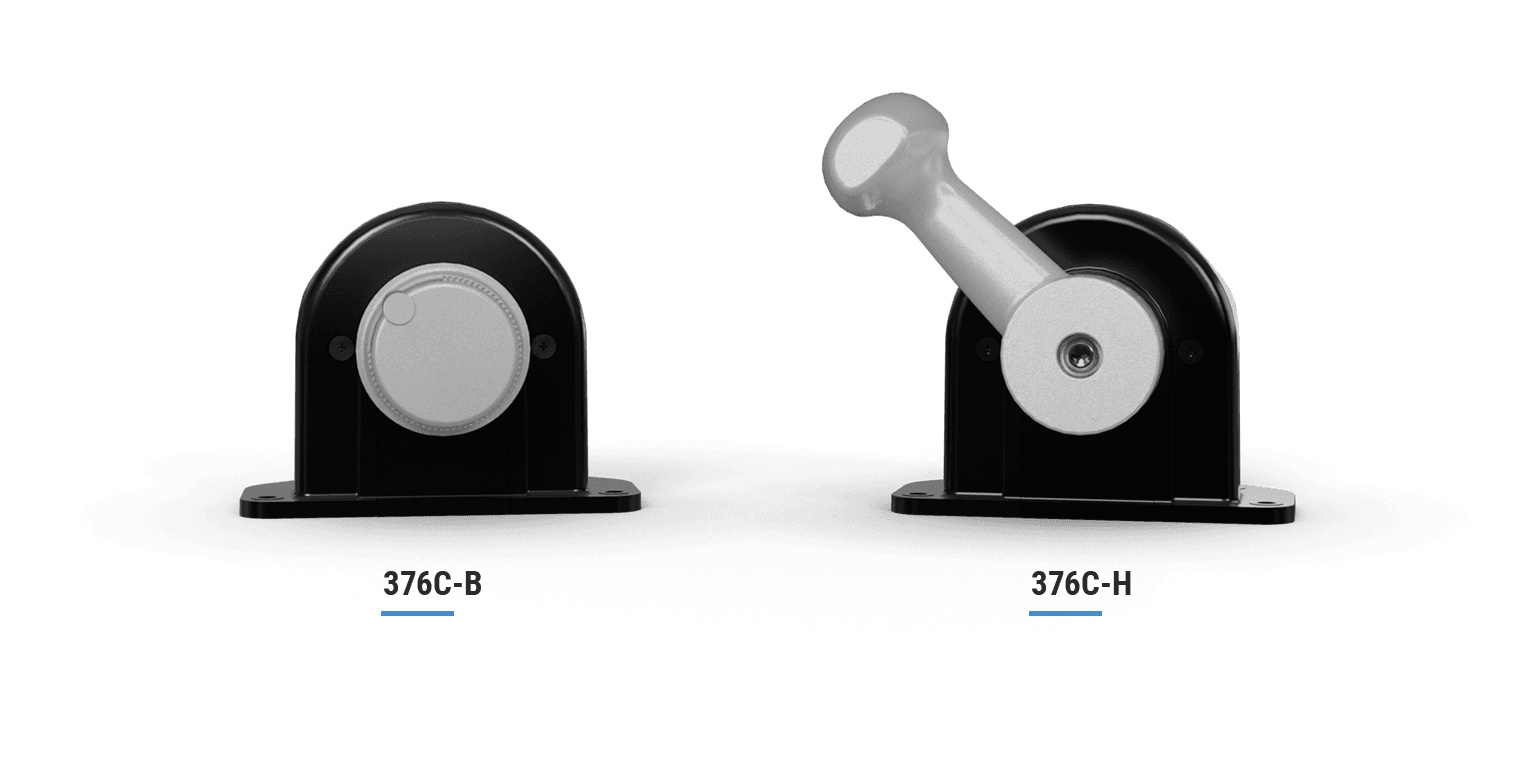

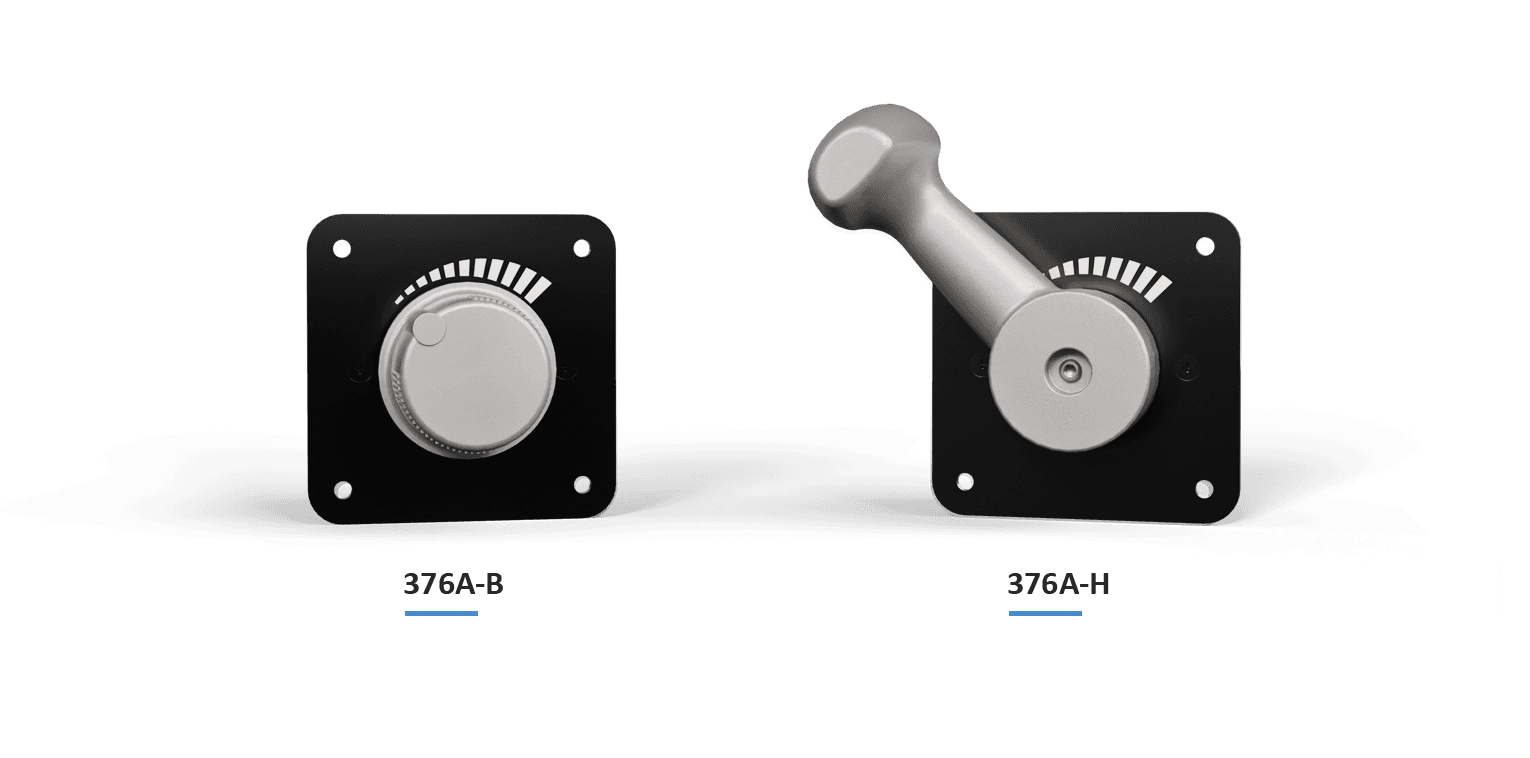

MO 376 is an electronic rotary control lever with a 90° or 180° programmable angle at 0.1° resolution. Available as a button (MO 376A) or handle (MO 376C) actuator, with contactless full-redundant double-die hall sensing.
- Angle
- 90° / 180°
- Output
- CAN / analog / PWM
- Sealing
- IP6K9K
Built for programmable rotary valve and throttle control.
Highlights
- 90° or 180° programmable angle at 0.1° resolution
- Button or handle actuator variants
- Single or double full redundant outputs
- CAN (SAE J1939 / CANopen), analog and PWM outputs
- Detent options: 0, 1 or 3 detents
- More than 2 million lifetime cycles
Specifications
- Type
- Rotary control lever
- Measuring principle
- Contactless full redundant double-die hall
- Programmable angle
- 90° or 180° (0.1° resolution)
- Actuator
- Button (376A) or handle (376C)
- Detents
- 0, 1 or 3 detents
- Supply voltage
- 5V or 8-32V
- Outputs
- Analog (0-5V / 4-20mA / PWM); CAN (SAE J1939 / CANopen)
- Redundancy
- Single or double full redundant
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 2 million cycles
- Operating temperature
- -40°C … +85°C
Drag to browse · click to enlarge
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.

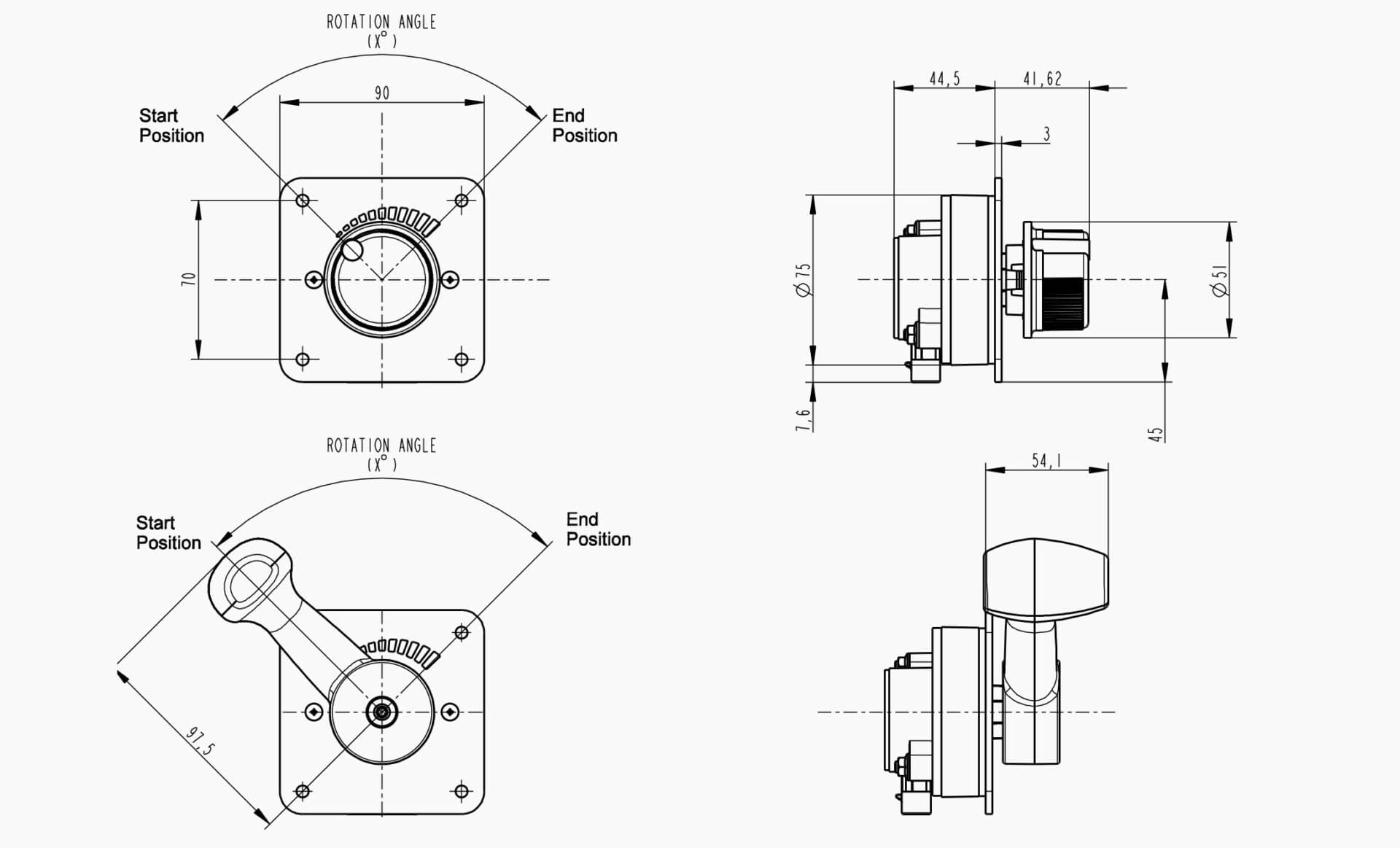

- MO 376A
- X
- X
- X
- PXXX
X stands for the digits you pick from the table.
MO 376A | X Actuator | X Options | X Knob Type | PXXX Sensor Program |
|---|---|---|---|---|
| B - Button | 1 - Rotation Angle 90° | 1 - Black | P009 - Dual Analog P009 | |
| H - Handle | 2 - Rotation Angle 180° | 2 - Grey | * | |
| 3 - Rotation Angle 180° with 3 Detends | 3 - Orange | |||
| 5 - Rotation Angle 180° with 1 Detends | ||||
| 6 - Rotation Angle 90° with 1 Detends | ||||
| * |
* Different types and values can be produced on request.
Example: MO 376A-B-1-1-P009

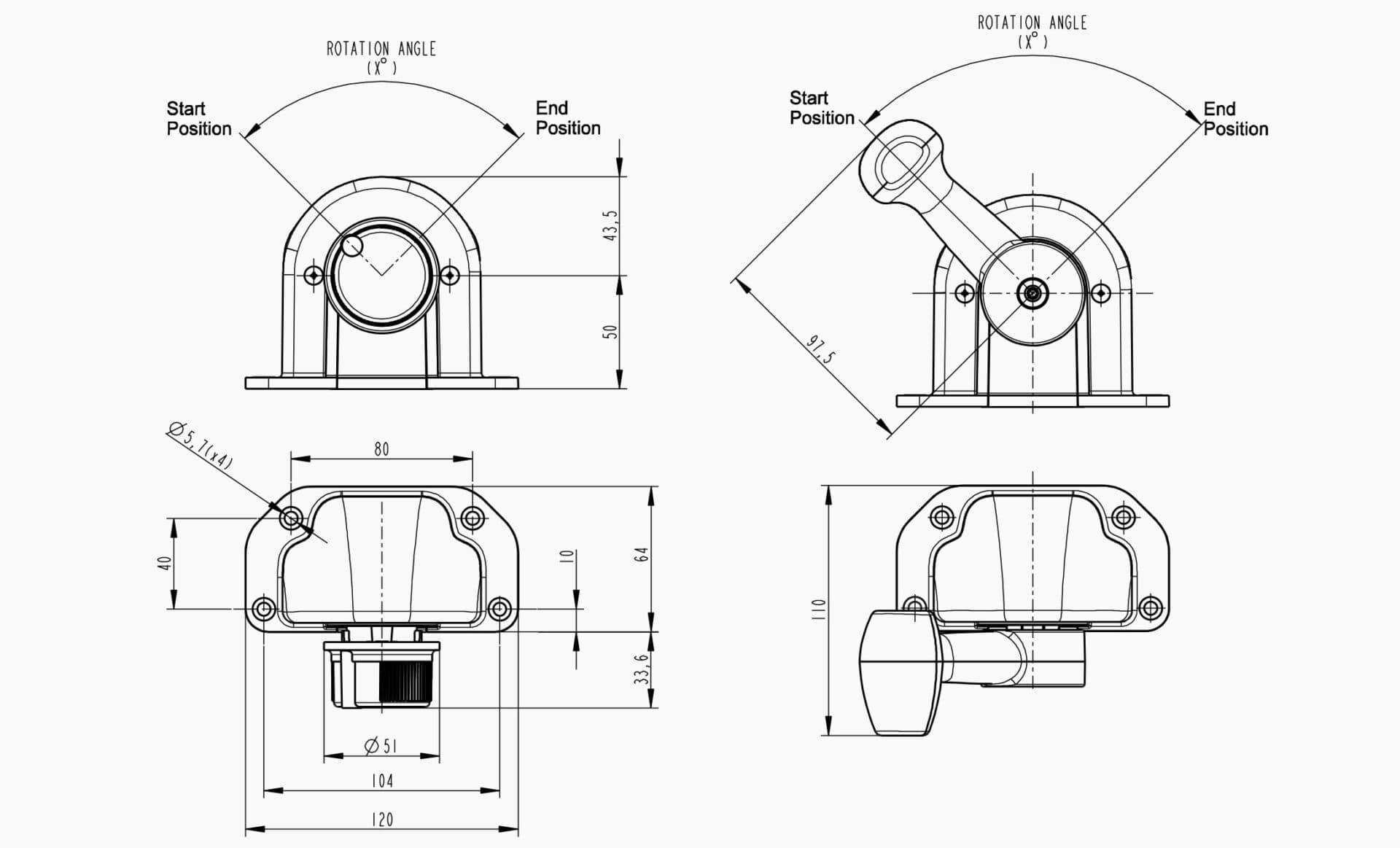

- MO 376C
- X
- X
- X
- PXXX
X stands for the digits you pick from the table.
MO 376C | X Actuator | X Options | X Knob Type | PXXX Sensor Program |
|---|---|---|---|---|
| B - Button | 1 - Rotation Angle 90° | 1 - Black | P009 - Dual Analog P009 | |
| H - Handle | 2 - Rotation Angle 180° | 2 - Grey | * | |
| 3 - Rotation Angle 180° with 3 Detends | 3 - Orange | |||
| 5 - Rotation Angle 180° with 1 Detends | ||||
| 6 - Rotation Angle 90° with 1 Detends | ||||
| * |
* Different types and values can be produced on request.
Example: MO 376C-B-1-1-P009
Tell our engineering team about your machine platform, mounting envelope and required output. We'll propose the right hardware variant, rod/lever option and sensor program.
