MO 378
Rotary Control Lever (60°) · 60° programmable rotary lever with front, sub and opposite mounting
MO 378 is an electronic rotary control lever with a 60° programmable angle at 0.1° resolution. Front, sub and opposite mounting options and contactless full-redundant double-die hall sensing suit it to a wide range of throttle and valve linkages.
- Angle
- 60°
- Output
- CAN / analog / PWM
- Sealing
- IP6K9K
Built for compact 60° rotary control.
Highlights
- 60° programmable angle at 0.1° resolution

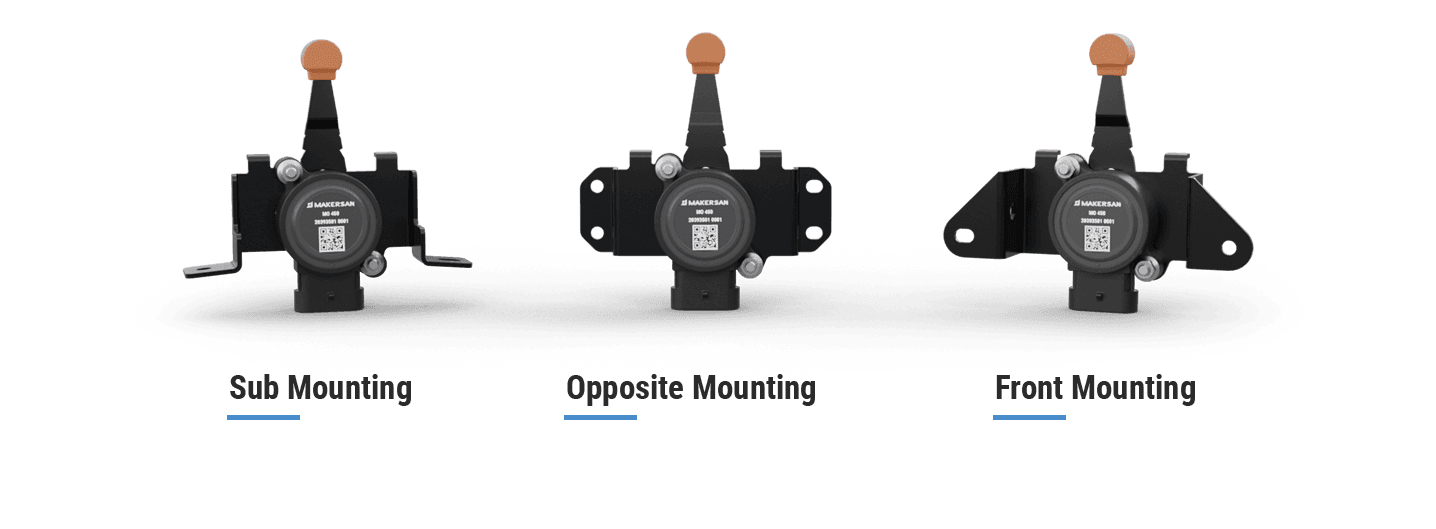

- Front, sub and opposite mounting options
- Single or double full redundant outputs
- CAN (SAE J1939 / CANopen), analog and PWM outputs
- More than 2 million lifetime cycles
- IP6K9K sealed sensor
Specifications
- Type
- Rotary control lever
- Measuring principle
- Contactless full redundant double-die hall
- Programmable angle
- 60° (0.1° resolution)
- Mounting
- Front / sub / opposite
- Supply voltage
- 5V or 8-32V
- Outputs
- Analog (0-5V / 4-20mA / PWM); CAN (SAE J1939 / CANopen)
- Redundancy
- Single or double full redundant
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 2 million cycles
- Operating temperature
- -40°C … +85°C
Drag to browse · click to enlarge
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 378
- X
- X
- PXXX
X stands for the digits you pick from the table.
MO 378 | X Mounting | X Rod Type | PXXX Sensor Program |
|---|---|---|---|

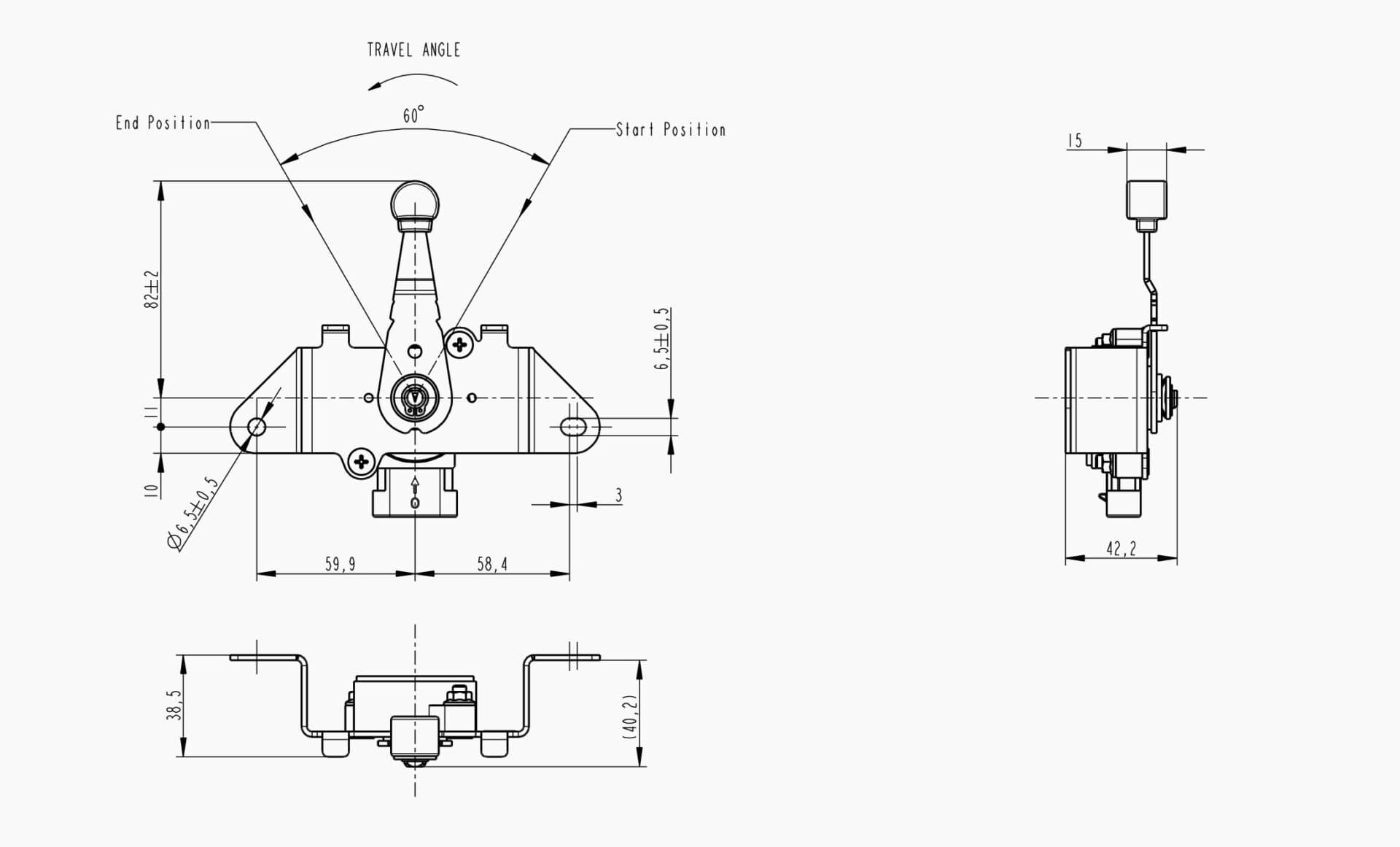

| 1 - Front | 1 - Standart Rod | P009 - Dual Analog P009 | |

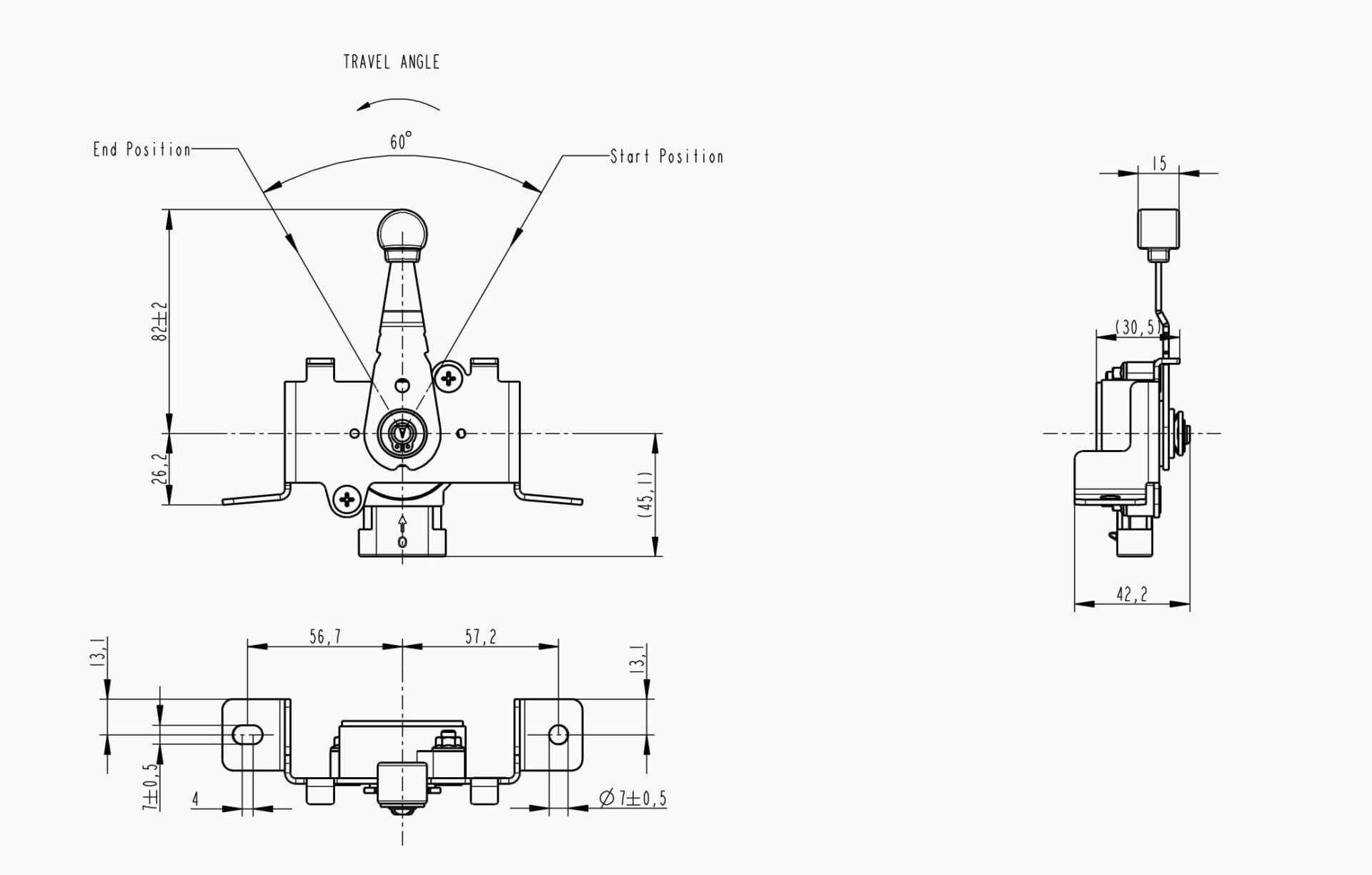

| 2 - Sub | * | ||

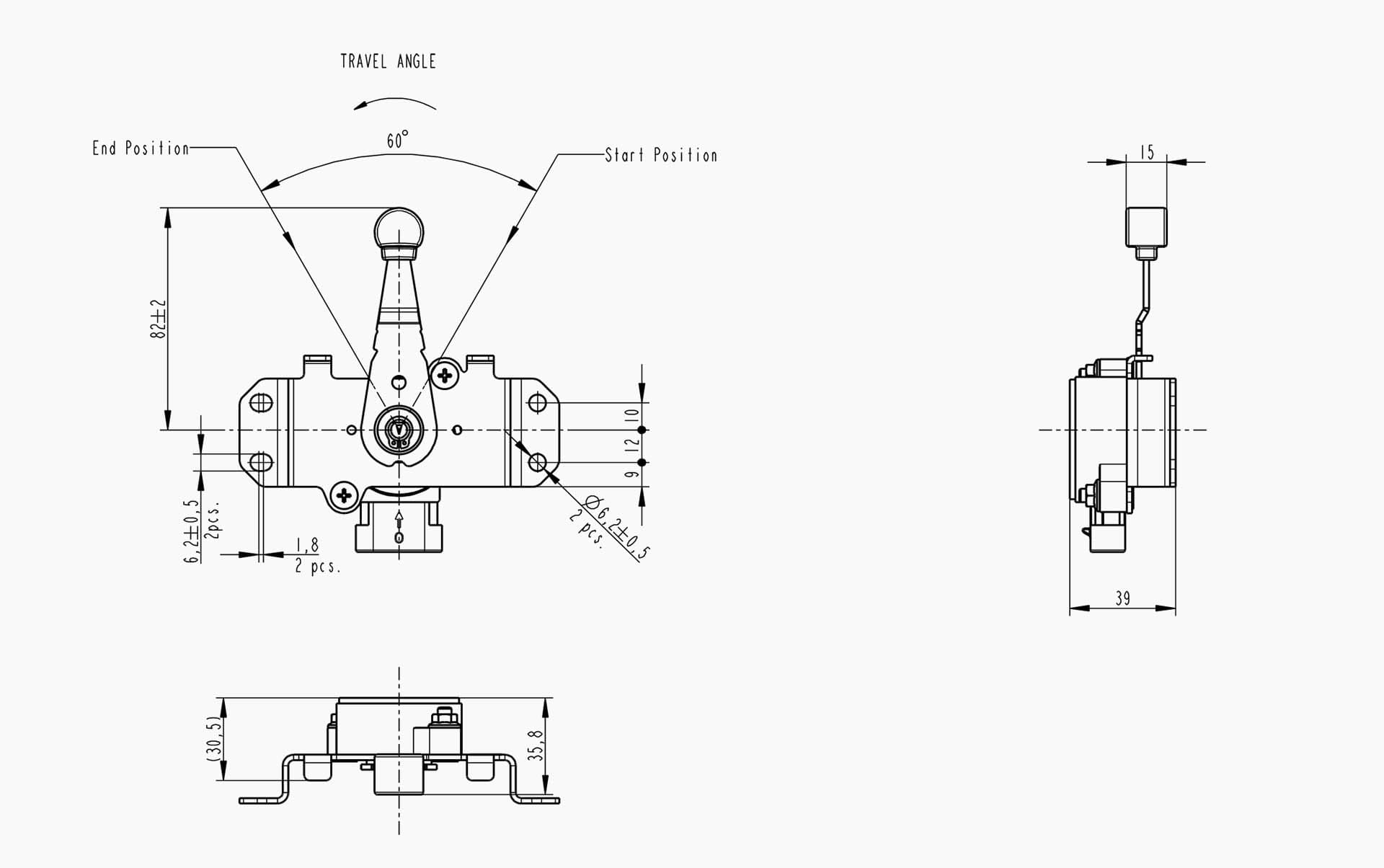

| 3 - Opposite |
* Different programs can be produced on request.
- MO 378
- 1
- 1
- P009
Tell our engineering team about your machine platform, mounting envelope and required output. We'll propose the right hardware variant, rod/lever option and sensor program.
