MO 378M
Rotary Control Lever (45°) · 45° programmable rotary lever with bracket options
MO 378M is an electronic rotary control lever with a 45° programmable angle at 0.1° resolution. Standard or right-angle bracket options and contactless full-redundant double-die hall sensing over CAN, analog or PWM.
- Angle
- 45°
- Output
- CAN / analog / PWM
- Sealing
- IP6K9K
Overview
Built for 45° rotary control with bracket flexibility.
Highlights
- 45° programmable angle at 0.1° resolution
- Standard or right-angle bracket options
- Single or double full redundant outputs
- CAN (SAE J1939 / CANopen), analog and PWM outputs
- More than 2 million lifetime cycles
- IP6K9K sealed sensor
Specifications
- Type
- Rotary control lever
- Measuring principle
- Contactless full redundant double-die hall
- Programmable angle
- 45° (0.1° resolution)

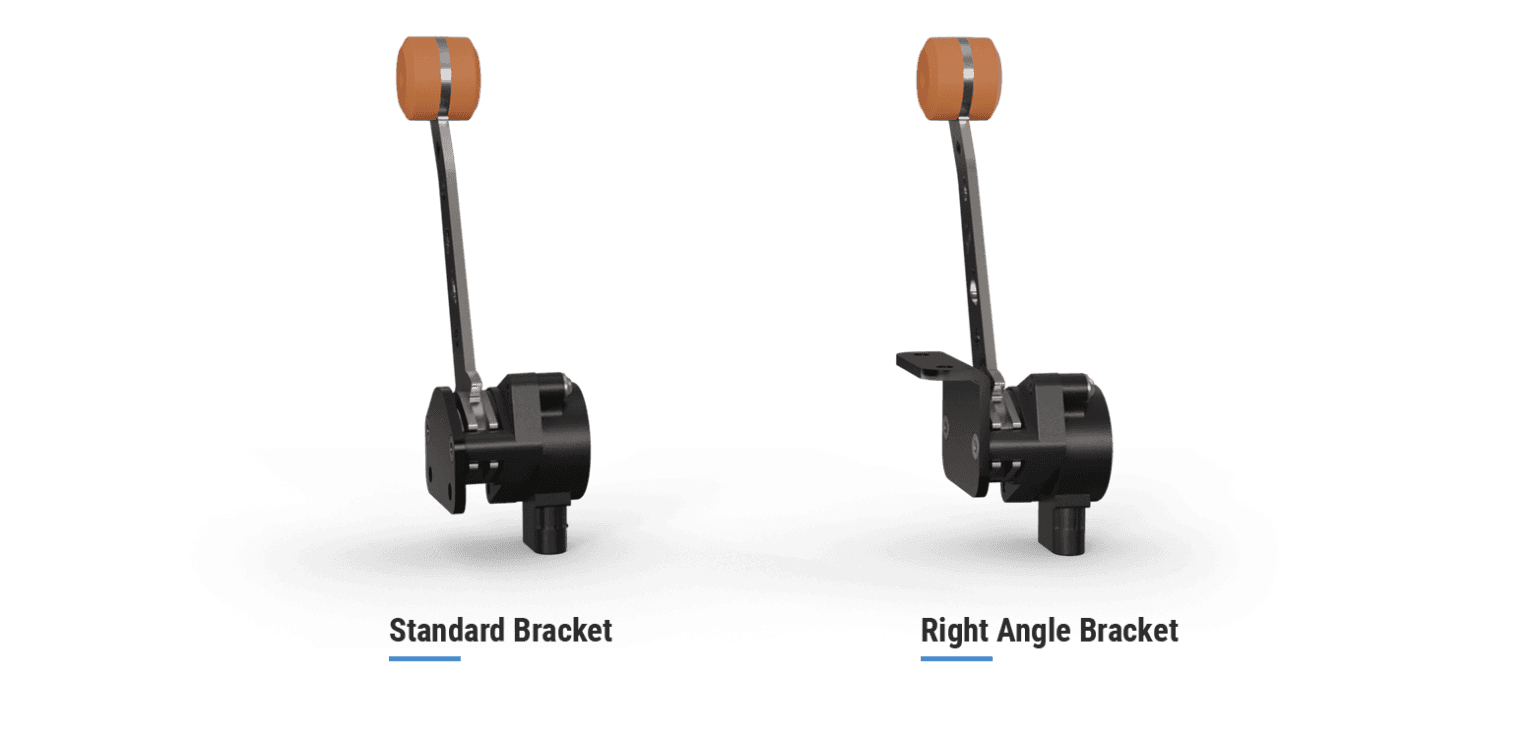

- Bracket
- Standard or right-angle
- Supply voltage
- 5V or 8-32V
- Outputs
- Analog (0-5V / 4-20mA / PWM); Analog+IVS; CAN (SAE J1939 / CANopen)
- Redundancy
- Single or double full redundant
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 2 million cycles
- Operating temperature
- -40°C … +85°C

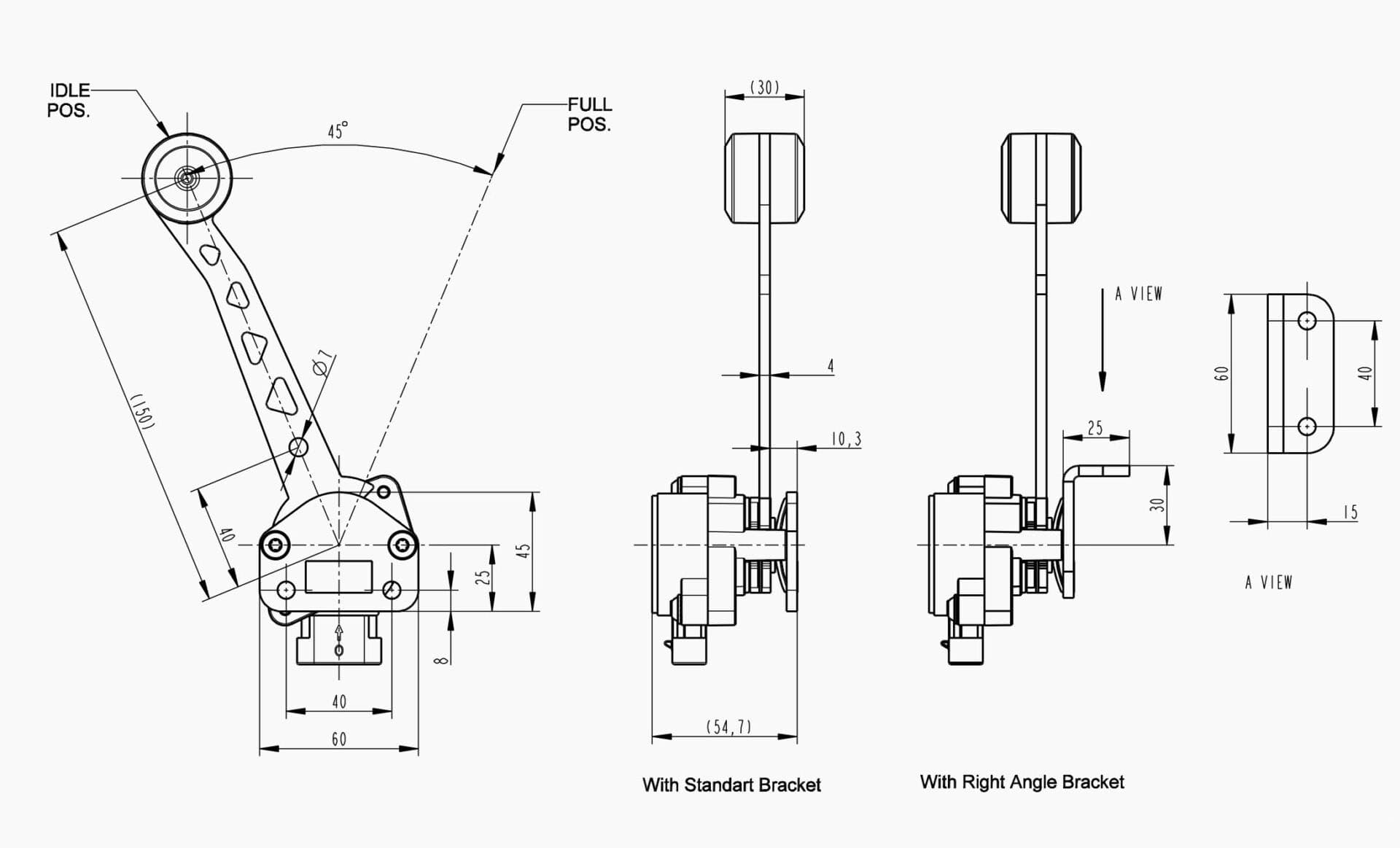

Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 378M
- X
- X
- PXXX
X stands for the digits you pick from the table.
MO 378M | X Bracket | X Lever Type | PXXX Sensor Program |
|---|---|---|---|
| 1 - Standard | 1 - Standard Lever | P009 - Dual Analog P009 | |
| 2 - Right Angle | * |
* Different programs can be produced on request.
Example:
- MO 378M
- 1
- 1
- P009
