M-17 / Pedals & levers
MO 378N
Rotary Control Lever (High-Cycle) · 45° rotary lever rated for over 5 million cycles
MO 378N is an electronic rotary control lever with a 45° programmable angle at 0.1° resolution, rated for more than 5 million lifetime cycles. Contactless full-redundant double-die hall sensing with CAN, analog and IVS outputs.
- Angle
- 45°
- Cycles
- 5M+
- Output
- CAN / analog / PWM
Overview
Built for high-cycle 45° rotary control.
Highlights
- More than 5 million lifetime cycles
- 45° programmable angle at 0.1° resolution
- Single or double full redundant outputs
- CAN (SAE J1939 / CANopen), analog and PWM outputs

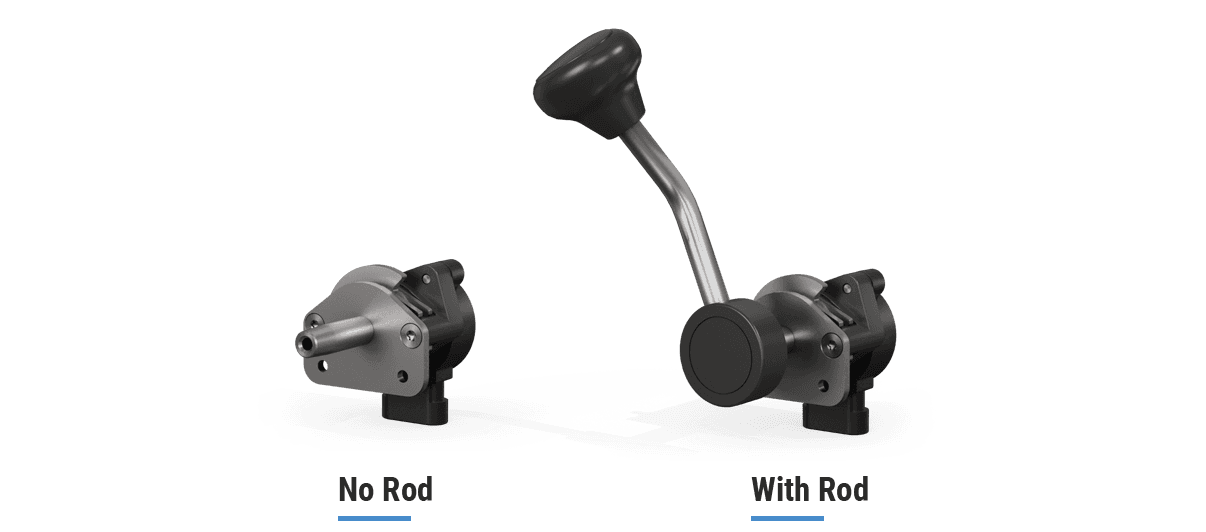

- No-rod or with-rod lever options
- IP6K9K sealed sensor
Specifications
- Type
- Rotary control lever
- Measuring principle
- Contactless full redundant double-die hall
- Programmable angle
- 45° (0.1° resolution)
- Supply voltage
- 5V or 8-32V
- Outputs
- Analog (0-5V / 4-20mA / PWM); Analog+IVS; CAN (SAE J1939 / CANopen)
- Redundancy
- Single or double full redundant
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 5 million cycles
- Operating temperature
- -40°C … +85°C

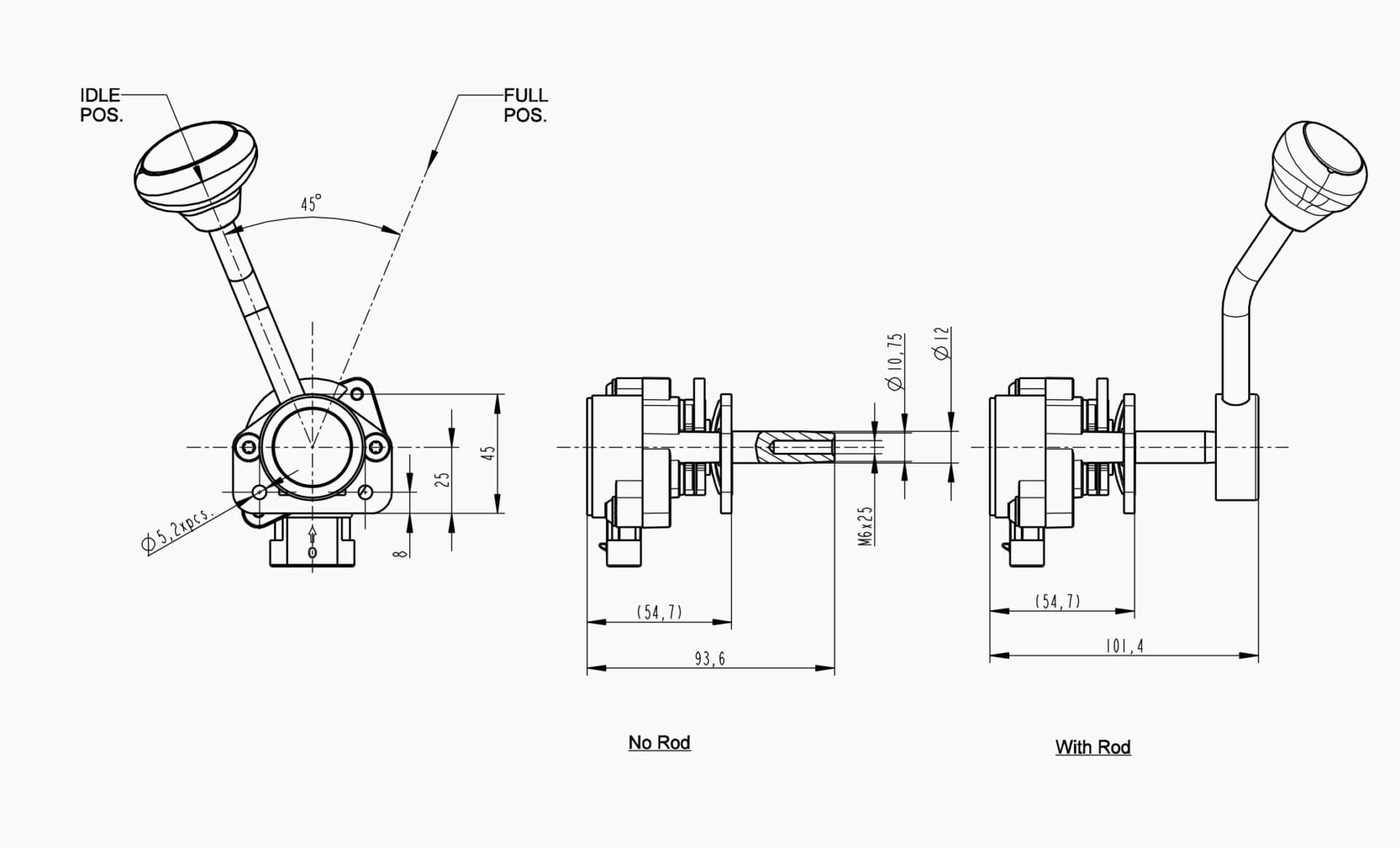

Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 378N
- X
- X
- PXXX
X stands for the digits you pick from the table.
MO 378N | X Bracket | X Lever Type | PXXX Sensor Program |
|---|---|---|---|
| 1 - Standart | 0 - No rod | P009 - Dual Analog P009 | |
| 1 - With Rod | * |
* Different programs can be produced on request.
Example:
- MO 378N
- 1
- 1
- P009
Need a custom configuration?
Contact EngineeringTell our engineering team about your machine platform, mounting envelope and required output. We'll propose the right hardware variant, rod/lever option and sensor program.
