M-19 / Pedals & levers
MO 379
Rotary Control with Detents · 90°/180° rotary control with plate, knob and shaft options
MO 379 is an electronic rotary control with 90°, 180° or detented programmable angles at 0.1° resolution. Plate, knob and shaft options and contactless full-redundant double-die hall sensing make it a flexible cab-mounted control element.
- Angle
- 90° / 180° / detents
- Output
- CAN / analog / PWM
- Sealing
- IP6K9K
Overview
Built for configurable rotary command with detents.
Highlights
- 90°, 180° or detented angle profiles at 0.1° resolution
- Plate, knob and shaft configuration options
- Single or double full redundant outputs
- CAN (SAE J1939 / CANopen), analog and PWM outputs
- 2 million cycles (500,000 with detent)
- IP6K9K sealed sensor
Specifications
- Type
- Rotary control
- Measuring principle
- Contactless full redundant double-die hall
- Programmable angle
- 90° / 180° / with detents (0.1° resolution)
- Supply voltage
- 5V or 8-32V
- Outputs
- Analog (0-5V / 4-20mA); PWM; Analog+IVS; CAN (SAE J1939 / CANopen)
- Redundancy
- Single or double full redundant
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- 2 million cycles (500,000 with detent)
- Operating temperature
- -40°C … +85°C

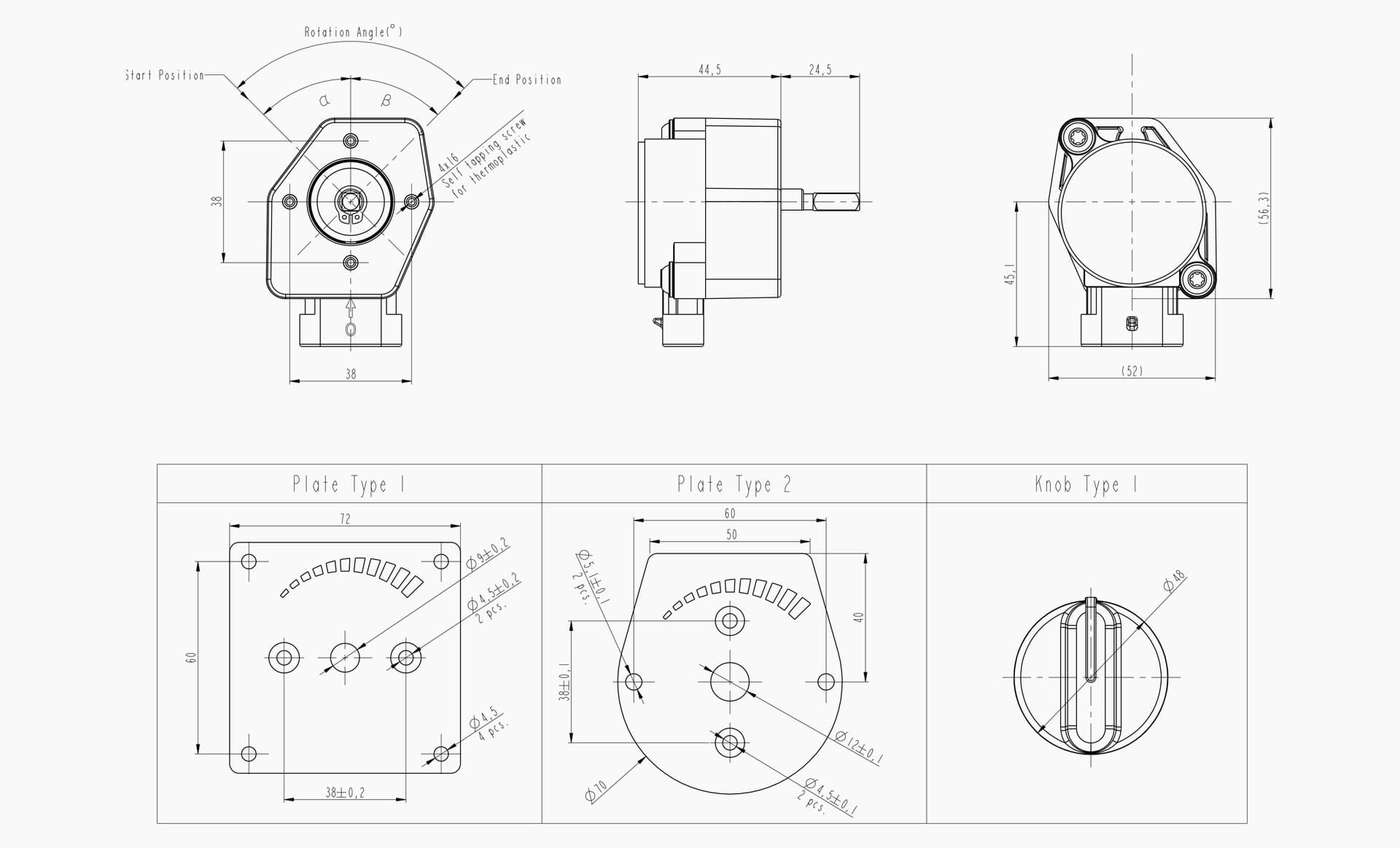

Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 379
- X
- X
- X
- X
- PXXX
X stands for the digits you pick from the table.

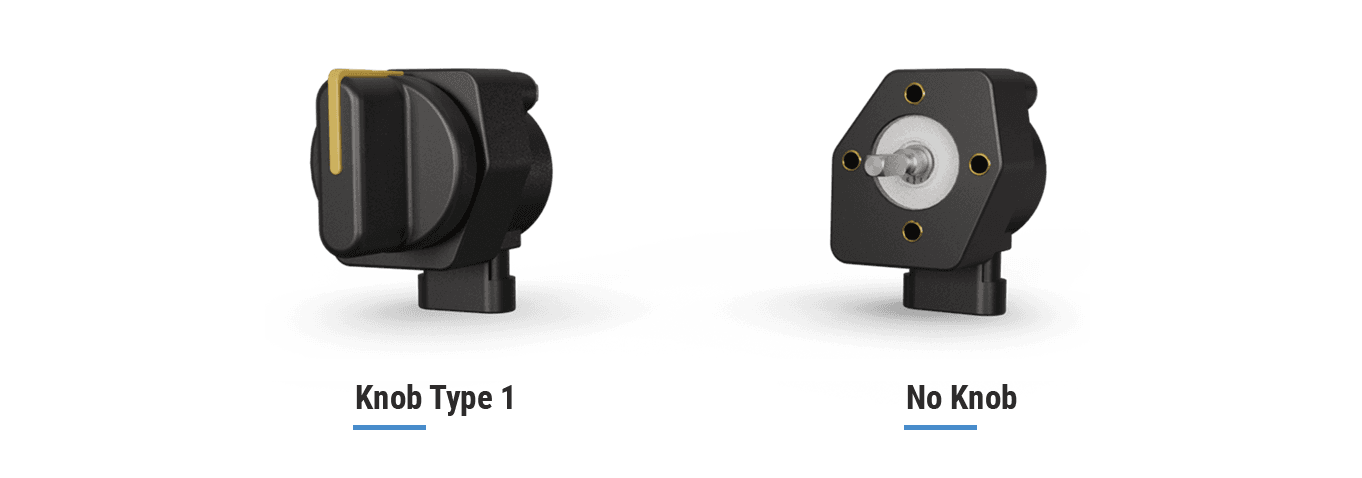

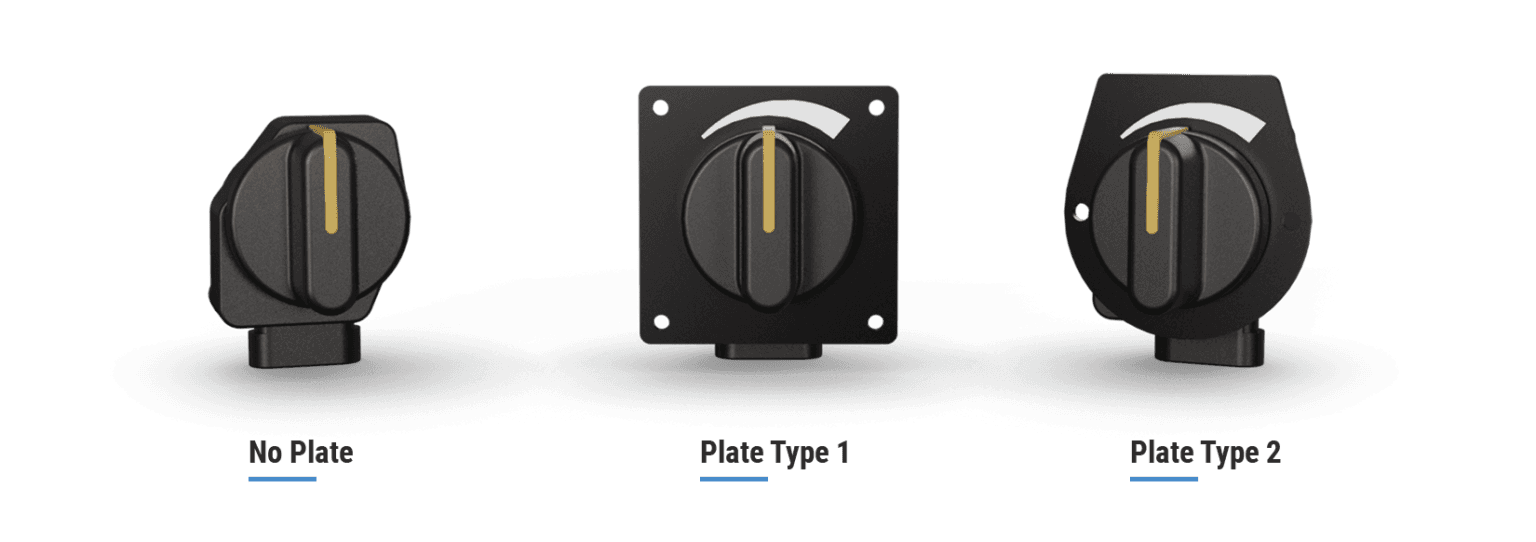

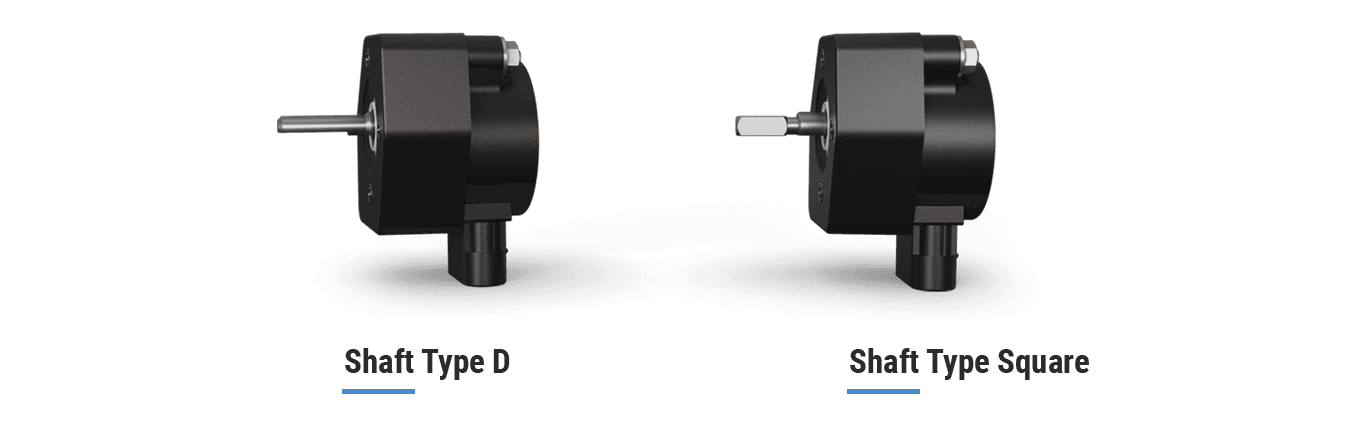

MO 379 | X Plate Type | X Knob Type | X Rotation Angle | X Shaft Type | PXXX Sensor Program |
|---|---|---|---|---|---|
| 0 - No Plate | 0 - No Knob | 0 - 90° (α=45° / ß= 45°) | 1 - Type Square | P009 - Dual Analog P009 | |
| 1 - Plate Type 1 | 1 - Yellow Knob | 1 - 180° (α=90° / ß= 90°) | 2 - Type D | * | |
| 2 - Plate Type 2 | 2 - Orange Knob | 2 - 60° with 3 detents (α=30° / ß= 30°) | |||
| 3 - White Knob | 3 - 120° with 5 detents (α=60° / ß= 60°) | ||||
| 4 - 90° with 4 detents (α=60° / ß= 30°) |
* Different programs can be produced on request.
Example:
- MO 379
- 1
- 1
- 0
- 1
- P009
