M-06 / Pedals & levers
MO 381
Clutch Pedal · Suspended electronic clutch pedal with contactless sensing
MO 381 is a suspended electronic clutch pedal for commercial and off-road vehicles, suitable for different engine interfaces. A contactless measuring principle and full redundant programmable outputs provide reliable clutch-position feedback.
- Function
- Clutch
- Output
- Dual analog / IVS
- Sealing
- IP6K9K
Overview
Built for electronic clutch-position feedback.
Highlights
- Dedicated electronic clutch-position feedback
- Full redundant double programmable outputs
- Two independent return springs
- More than 1 million actuations
- Heavy-duty metal case
- IP6K9K sealed sensor
Specifications
- Function
- Clutch pedal
- Type
- Suspended
- Measuring principle
- Contactless
- Supply voltage
- 5V or 8-32V
- Outputs
- Dual analog (0-5V / PWM); Analog+IVS (high-side / low-side switch)
- Redundancy
- Full redundant double programmable outputs
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 1 million actuations
- Operating temperature
- -40°C … +85°C
- Housing
- Heavy-duty metal case
- Weight
- 3.4 kg
Engineering views
Drag to browse · click to enlarge
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 381
- X
- PXXX
X stands for the digits you pick from the table.

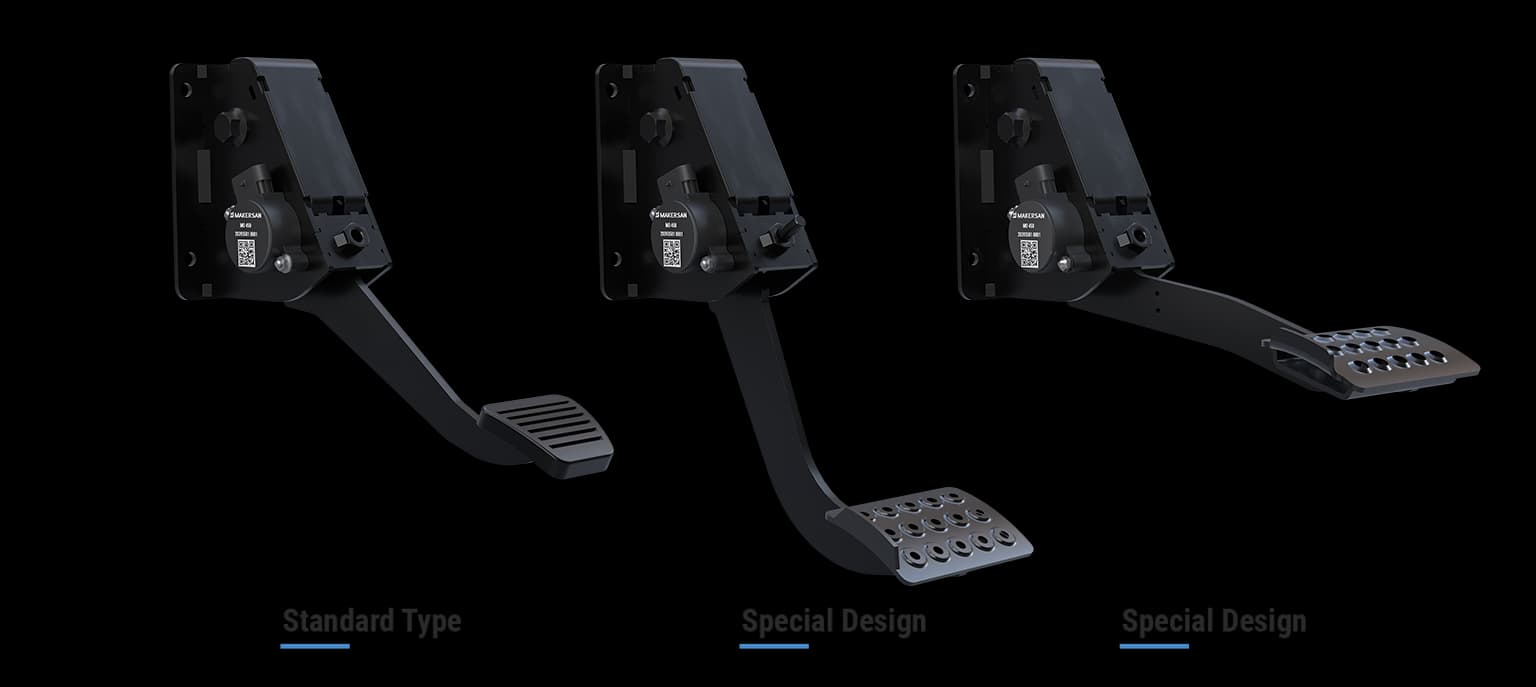

MO 381 | X Pedal Rod Type | PXXX Sensor Program |
|---|---|---|
| 01 - Standard Type | P009 - Dual Analog P009 | |
| * |
* Different programs can be produced on request.
Example:
- MO 381
- 01
- P009
Need a custom configuration?
Contact EngineeringTell our engineering team about your machine platform, mounting envelope and required output. We'll propose the right hardware variant, rod/lever option and sensor program.
