MO 382
Tractor Pedal · Suspended or underfloor tractor throttle pedal, left or right side

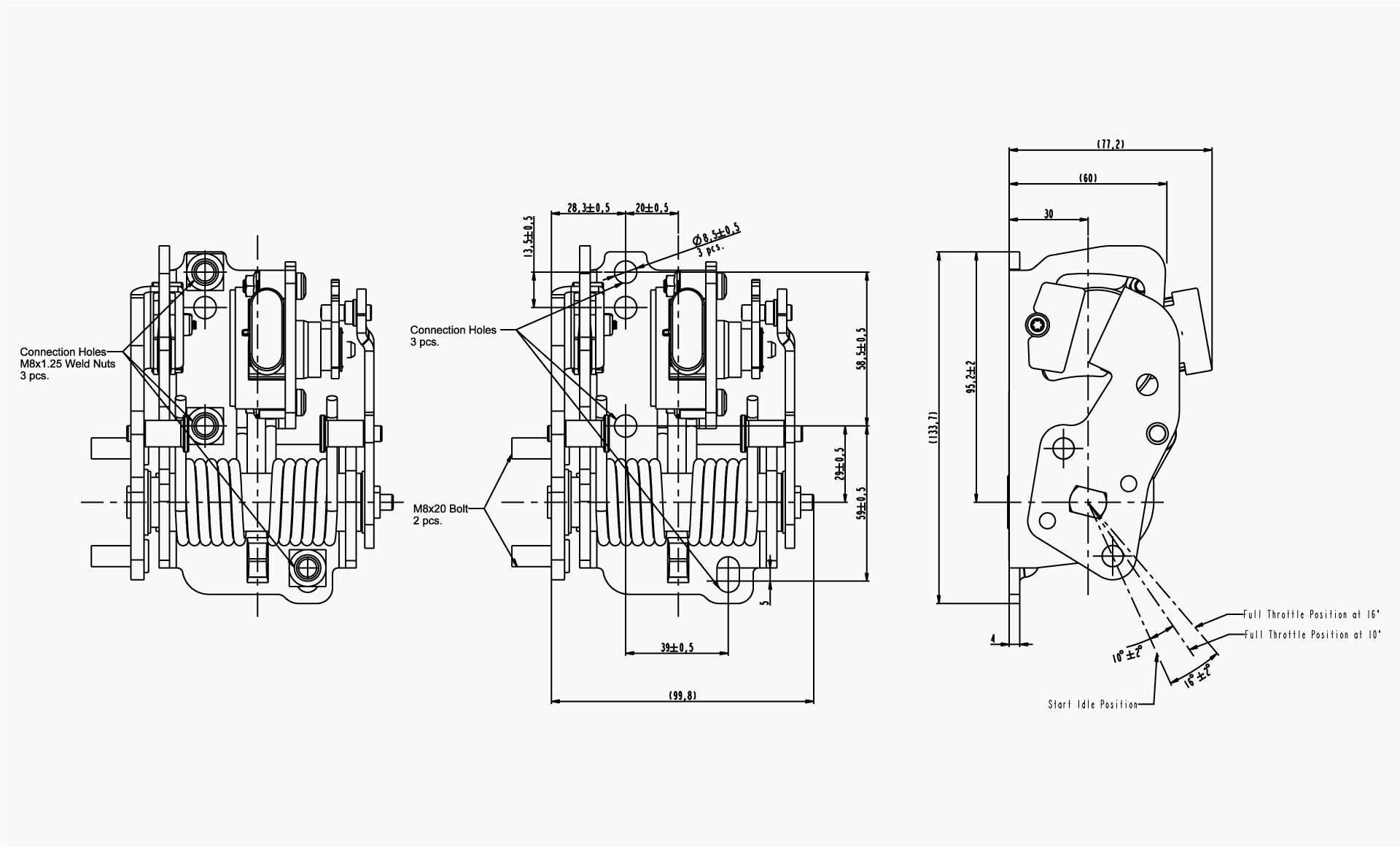

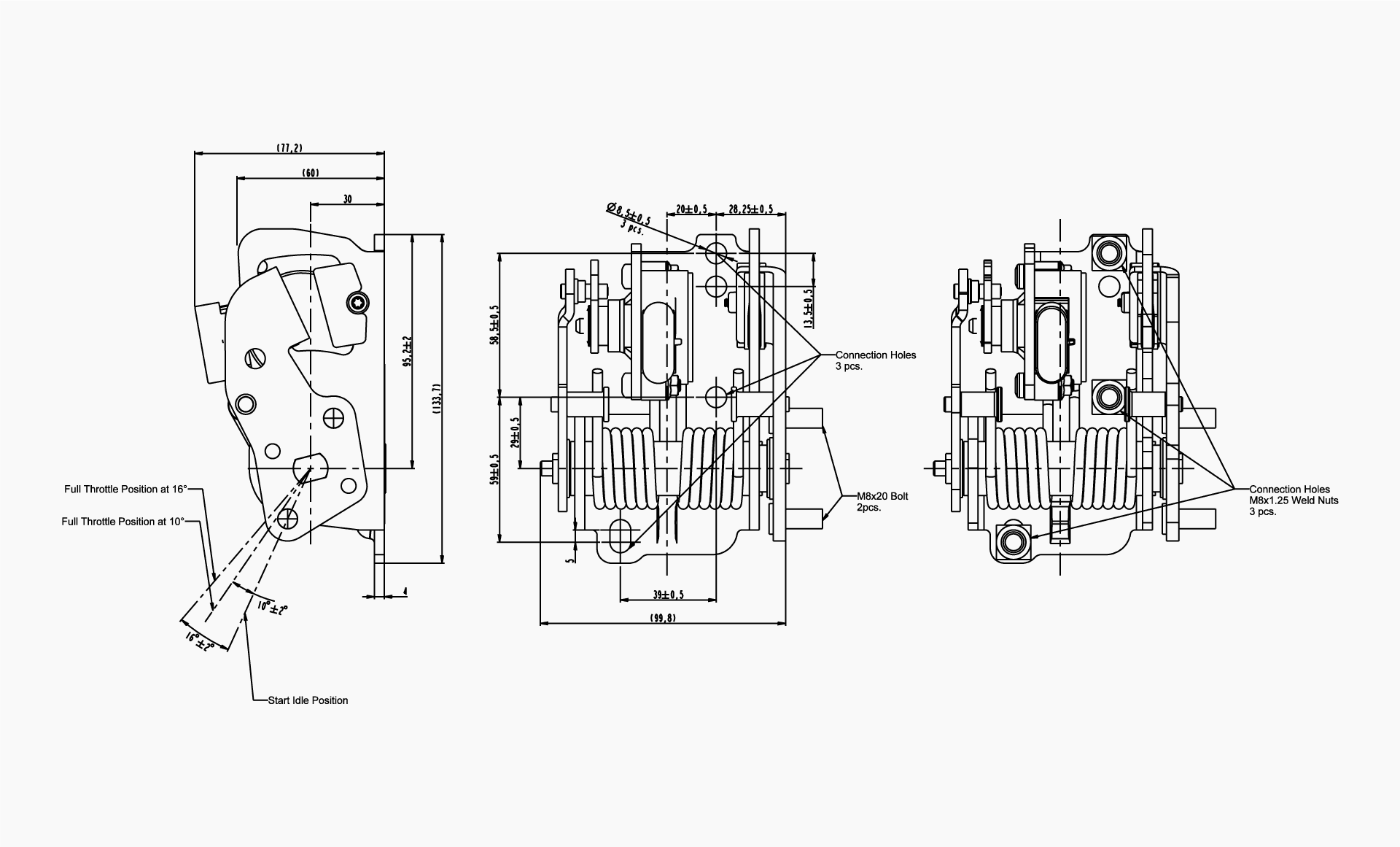

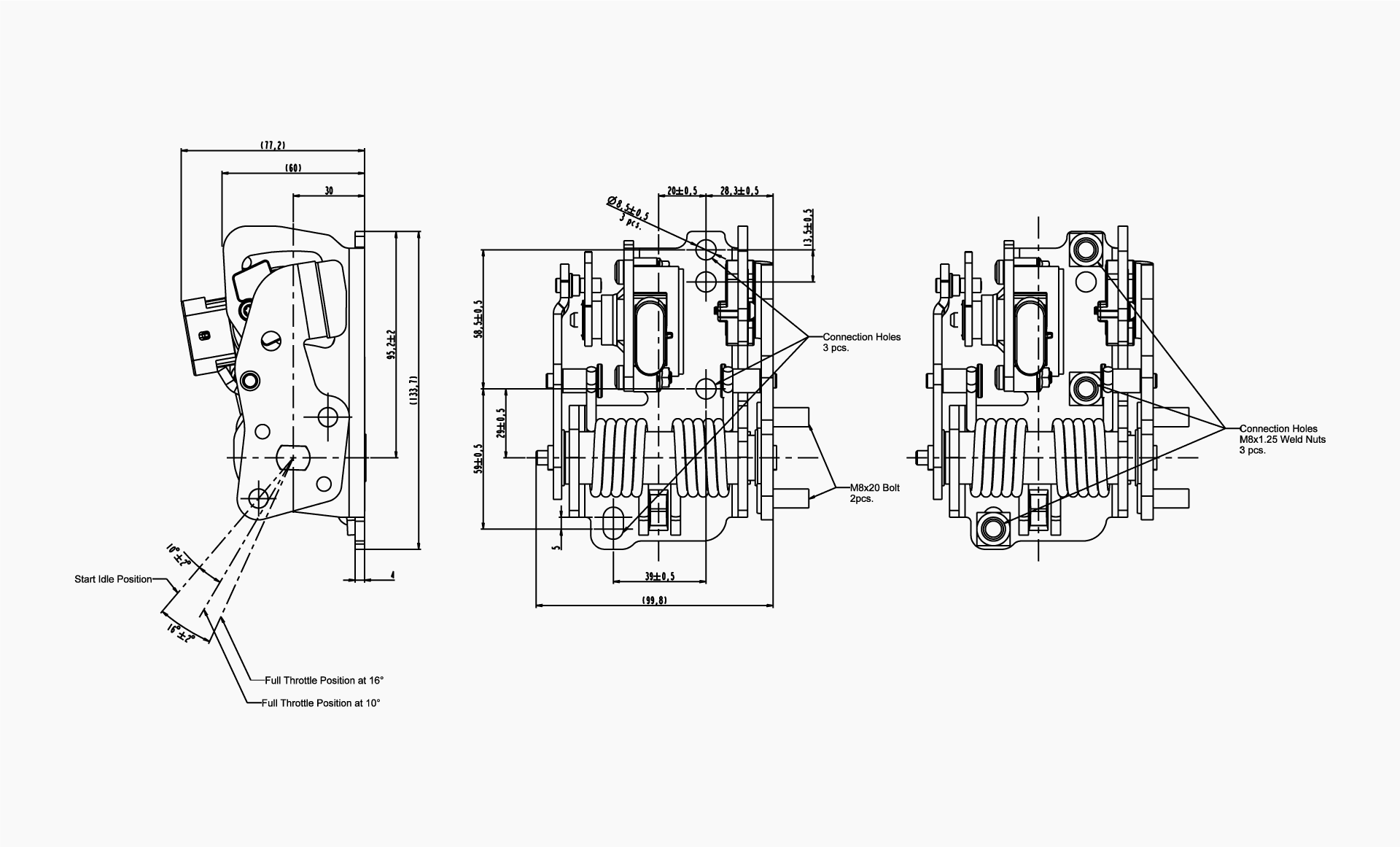

MO 382 is a tractor accelerator pedal for agricultural and off-road vehicles, available in four configurations — right-side suspended (A), right-side underfloor (B), left-side underfloor (C) and left-side suspended (D). Contactless sensing with full redundant programmable outputs and horizontal or vertical sensor positioning.
- Configs
- A / B / C / D
- Output
- Dual analog / IVS
- Sealing
- IP6K9K
Built for tractor throttle control in any cab layout.
Highlights
- Four mounting configurations (MO 382A / B / C / D)
- Suspended or underfloor, left- or right-side
- Travel angle options: 10° or 16°
- Horizontal or vertical sensor positioning
- Full redundant double programmable outputs
- More than 2 million actuations
Specifications
- Type
- Tractor pedal (suspended / underfloor)
- Configurations
- A: right suspended · B: right underfloor · C: left underfloor · D: left suspended
- Measuring principle
- Contactless
- Travel angle
- 10° or 16°
- Supply voltage
- 5V or 8-32V
- Outputs
- Dual analog (0-5V / PWM); Analog+IVS
- Sensor positioning
- Horizontal (H) or vertical (V)
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 2 million actuations
- Operating temperature
- -40°C … +85°C
- Housing
- Heavy-duty metal case
Drag to browse · click to enlarge
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO382X
- X
- X
- X
- X
- X
- PXXX
- XX
X stands for the digits you pick from the table.
MO382X | X Stopper Assembly | X Body | X Angle | X Spring | X Sensor Position | PXXX Sensor Program | XX Rod Type |
|---|---|---|---|---|---|---|---|
| A- Right Side, Suspended | 0 - Standard | 0- Without Weld Nuts | 1- 10° | 1- Thick (for 10° angle) | H- Horizontal | P009 - Dual Analog P009 | ** |
| B- Right Side, Underfloor | 1- With Weld Nuts | 2- 16° | 2- Thin (for 16° angle) | V- Vertical | * | ||
| C- Left Side, Underfloor | |||||||
| D- Left Side, Suspended |
*Different programs can be produced on request.
** Different rod types can be produced on request.
Example: 382A-V006-P009 = standard stopper assembly, with weld nuts, 10°working angle with thick spring, vertical sensor position, P009 program.
