MO 383T
Tractor Accelerator Pedal · Suspended tractor throttle pedal with customisable rod
MO 383T is a suspended accelerator pedal for agricultural tractors and off-road vehicles, suitable for different engine interfaces. Contactless sensing with full redundant programmable outputs and customisable rod types on request.
- Mounting
- Suspended
- Output
- Analog / PWM / IVS
- Sealing
- IP6K9K
Overview
Built for tractor throttle control with custom linkage.
Highlights
- Suspended tractor throttle pedal
- Full redundant double programmable outputs
- Analog, PWM and IVS output options
- Customisable rod types on request
- More than 2 million actuations
- IP6K9K sealed sensor
Specifications
- Type
- Suspended
- Measuring principle
- Contactless
- Supply voltage
- 5V or 8-32V
- Outputs
- Analog, PWM, IVS (high-side / low-side switch)
- Redundancy
- Full redundant double programmable outputs
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 2 million actuations
- Operating temperature
- -40°C … +85°C
- Housing
- Heavy-duty metal case

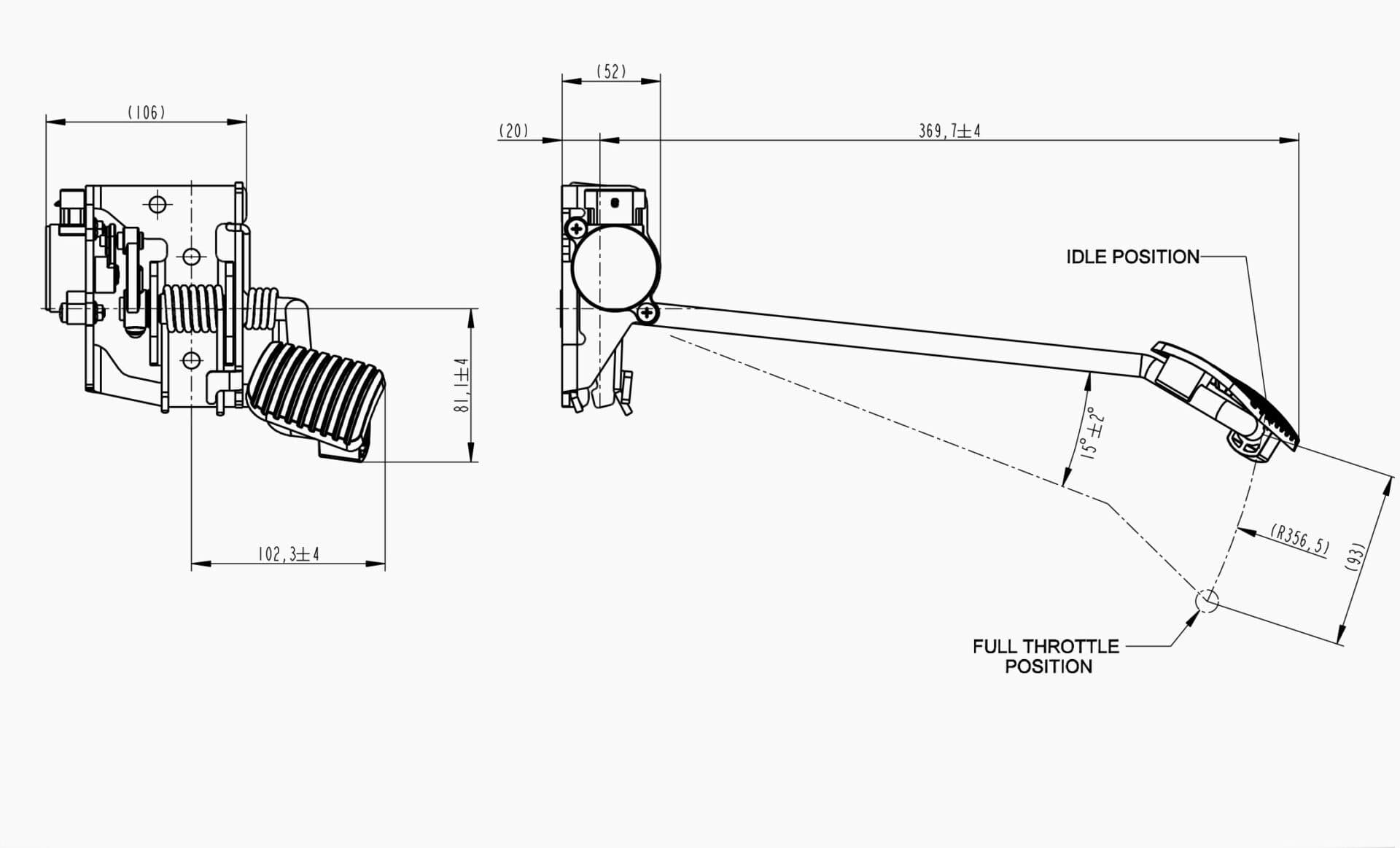

Engineering views
Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 383T
- X
- PXXX
X stands for the digits you pick from the table.
MO 383T | X Pedal Rod Type | PXXX Sensor Program |
|---|---|---|
| C - Standard type | P009 - Dual Analog P009 | |
| * |
* Different programs can be produced on request.
Example:
- MO 383T
- C
- P009
Need a custom configuration?
Contact EngineeringTell our engineering team about your machine platform, mounting envelope and required output. We'll propose the right hardware variant, rod/lever option and sensor program.
