M-08 / Joysticks

MO 387

Joystick Grip · Modular analog grip with interchangeable front panel

The MO 387 is a multifunctional modular joystick grip for the MO 391 base, available in right-hand, left-hand and symmetric forms. The interchangeable front panel takes up to five push buttons, two thumbwheels or a micro joystick, with analog output.

Type: Modular grip
Output: Analog
Sealing: IP67

Overview

Built as the modular command surface for midi joysticks.

Highlights

Interchangeable front-panel control layout
Presence detection button on rear
Up to 2 million cycles (buttons & thumbwheels)
Right, left and symmetric handle forms
IP67 ingress protection
Operating temperature -40°C … +85°C

Specifications

Type: Multifunctional modular grip
Rear controls: 1 push button + 1 presence detection button
Front controls: Up to 5 push buttons / 2 thumbwheels / micro joystick
Thumbwheel feels: Spring-return / rocker / toggle
Output: Analog
Connectors: Molex 10-12 pin / loose cable / Molex Micro-Fit
Ingress protection: IP67
Lifetime: Up to 2 million cycles
Operating temperature: -40°C … +85°C

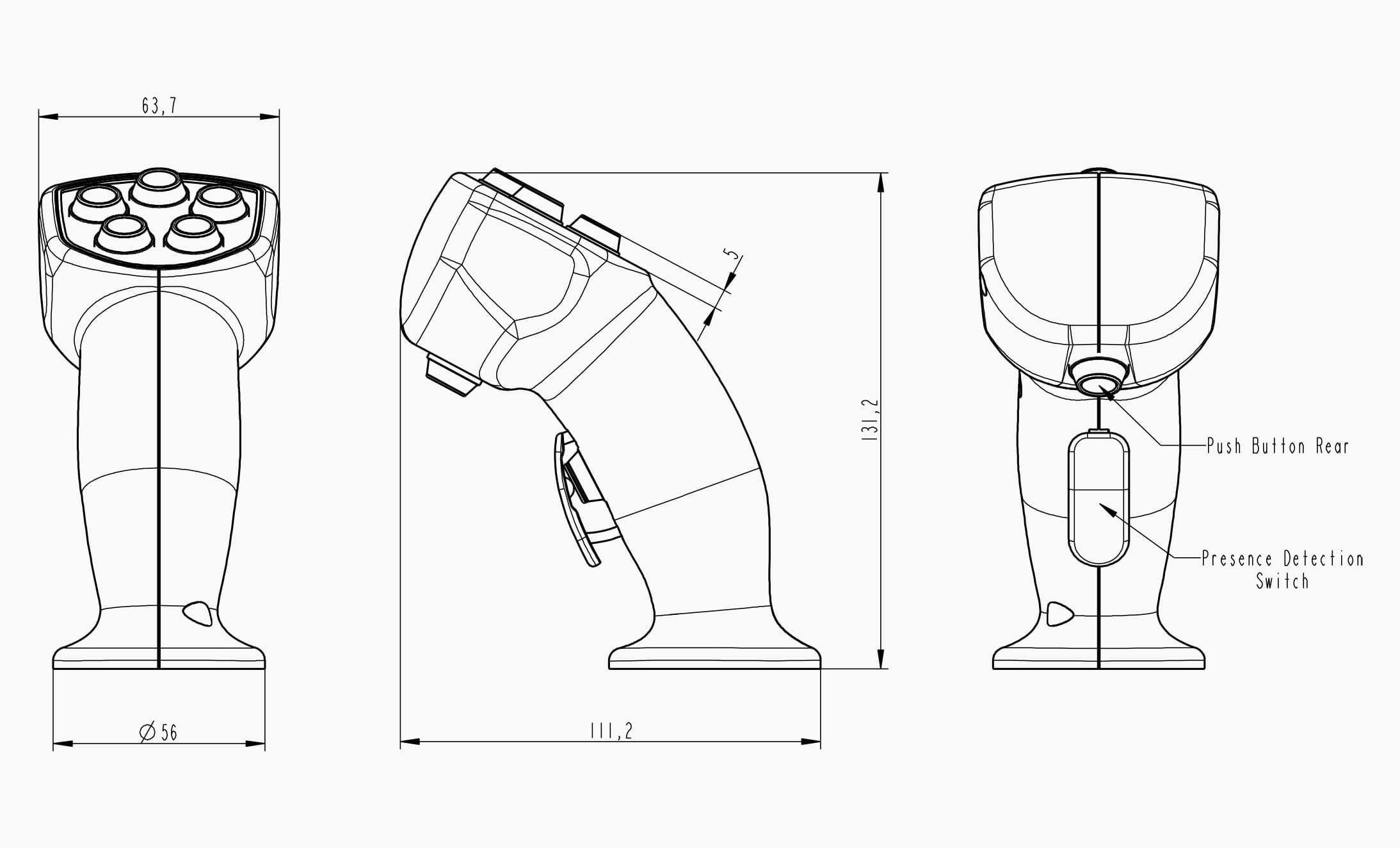

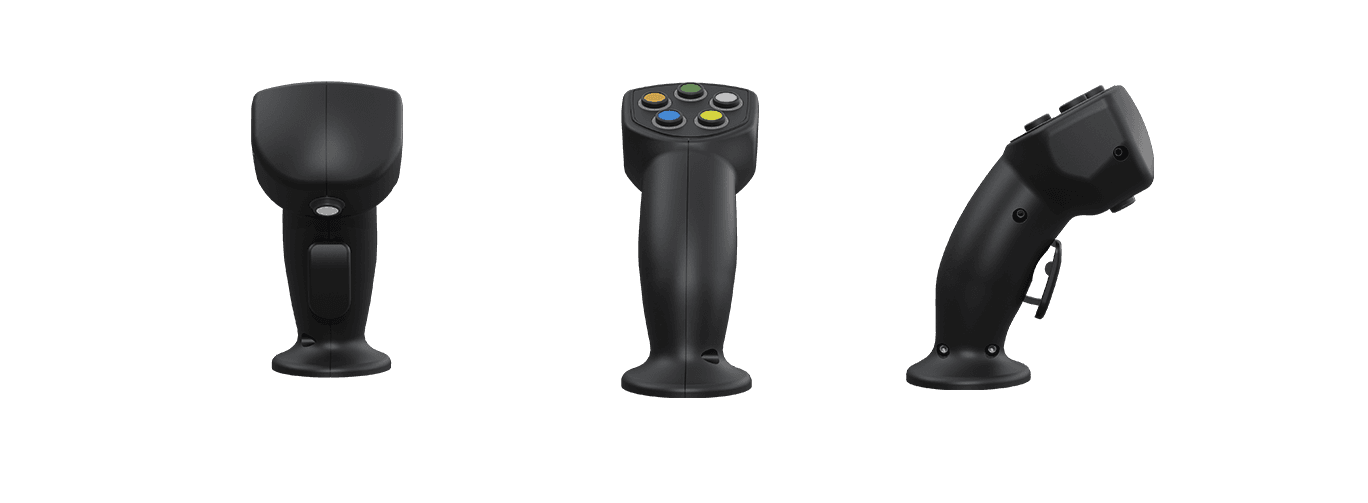

Engineering views

Drag to browse · click to enlarge

Order Code

Build the order code from its segments

Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.

MO 387
HXX
X
X

X stands for the digits you pick from the table.

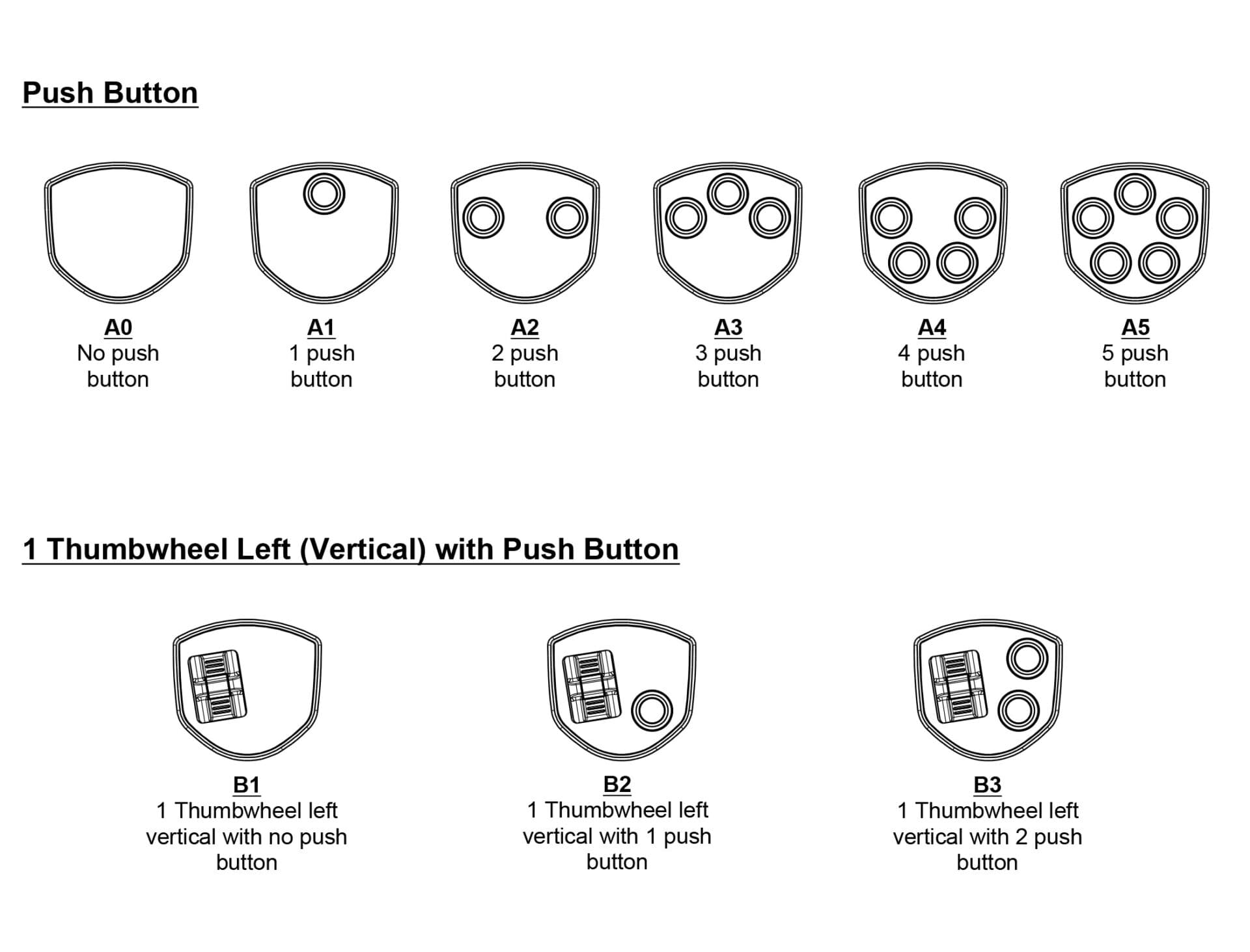

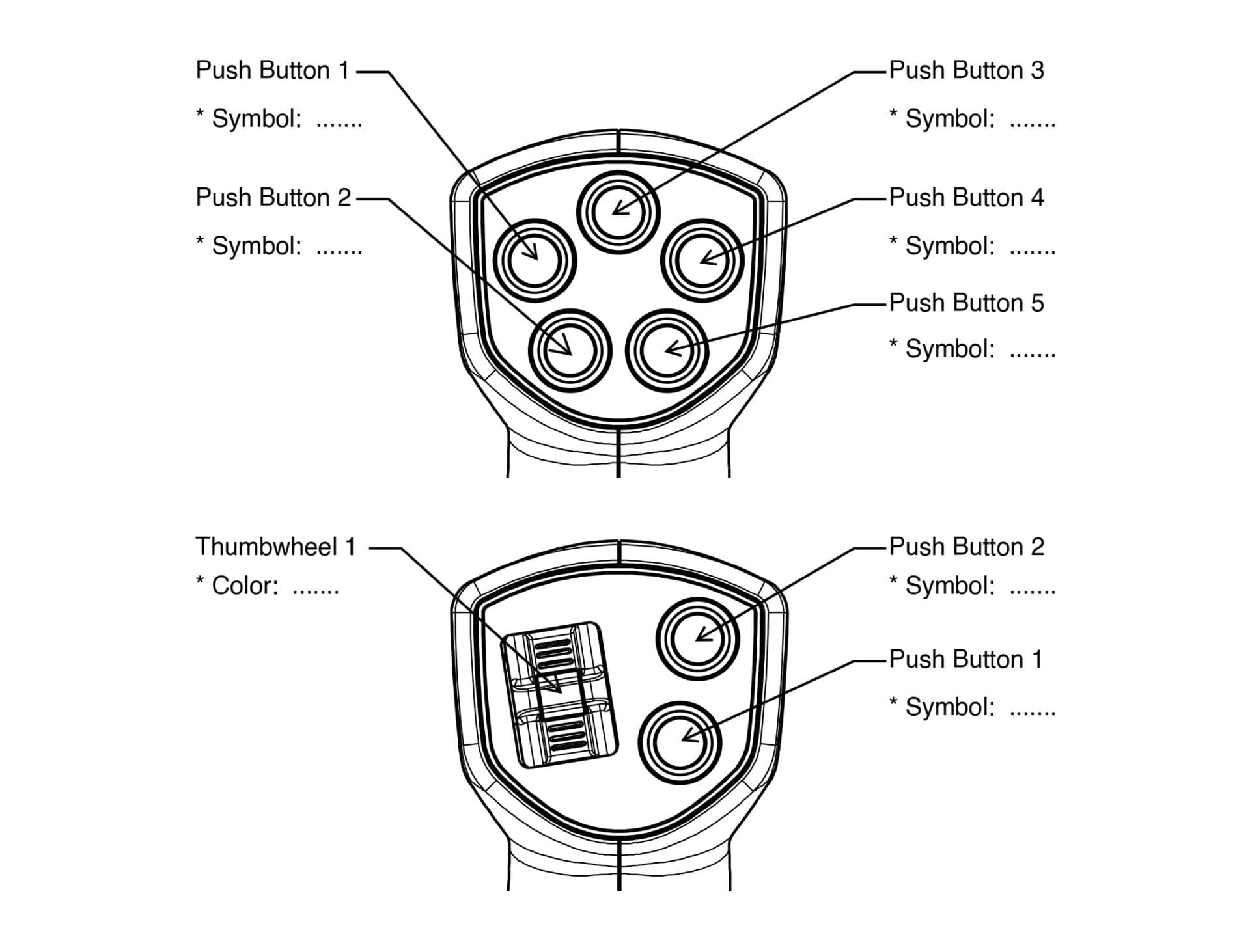

HXX Rear	X Front Panel	X Electrical Connection
0 - Without Button and Present Det. Switch	A0 - No push button	00 - Loose Cable (27 AWG)
1 - With Button - Without Present Det. Switch	A1 - 1 push button	01 - Molex Micro-Fit Connector (27 AWG)
2 - Without Button-With Present Det. Switch	A2 - 2 push button
3 - With Button and Present Det. Switch	A3 - 3 push button
	A4 - 4 push button
	A5 - 5 push button
	B1 - 1 Thumbwheel left vertical with no push button
	B2 - 1 Thumbwheel left vertical with 1 push button
	B3 - 1 Thumbwheel left vertical with 2 push button
	B4 - 1 Rocker left vertical with no push button
	B5 - 1 Rocker left vertical with 1 push button
	B6 - 1 Rocker left vertical with 2 push button
	B7 - 1 Toggle left vertical with no push button
	B8 - 1 Toggle left vertical with 1 push button
	B9 - 1 Toggle left vertical with 2 push button
	C1 - 1 Thumbwheel right vertical with no push button
	C2 - 1 Thumbwheel right vertical with 1 push button
	C3 - 1 Thumbwheel right vertical with 2 push button
	C4 - 1 Rocker right vertical with no push button
	C5 - 1 Rocker right vertical with 1 push button
	C6 - 1 Rocker right vertical with 2 push button
	C7 - 1 Toggle right vertical with no push button
	C8 - 1 Toggle right vertical with 1 push button
	C9 - 1 Toggle right vertical with 2 push button
	D1 - 1 Thumbwheel horizontal with no push button
	D2 - 1 Thumbwheel horizontal with 1 push button
	D3 - 1 Thumbwheel horizontal with 2 push button
	D4 - 1 Rocker horizontal with no push button
	D5 - 1 Rocker horizontal with 1 push button
	D6 - 1 Rocker horizontal with 2 push button
	D7 - 1 Toggle horizontal with no push button
	D8 - 1 Toggle horizontal with 1 push button
	D9 - 1 Toggle horizontal with 2 push button
	E1 - Thumbwheel / Thumbwheel
	E2 - Thumbwheel / Rocker
	E3 - Thumbwheel / Toggle
	E4 - Rocker / Thumbwheel
	E5 - Rocker / Rocker
	E6 - Rocker / Toggle
	E7 - Toggle / Thumbwheel
	E8 - Toggle / Rocker
	E9 - Toggle / Toggle
	F1 - 1 Micro Joystick
	G1 - 1 Micro Joystick left with 1 push button
	G2 - 1 Micro Joystick left with 2 push button
	H1 - 1 Micro Joystick right with 1 push button
	H2 - 1 Micro Joystick right with 2 push button

Example:

MO 387
0
A0
01

Need a custom configuration?

Tell our engineering team about your machine platform, function map and bus protocol. We'll match the grip, switch layout, axis count and output configuration to your operator workflow.

Contact Engineering
