MO 391 & 387
Midi CAN Joystick · Midi grip joystick with interchangeable front panel
The MO 391 & 387 is a midi multi-axis joystick system pairing the MO 391 base with the modular MO 387 grip. An interchangeable front panel accepts push buttons, thumbwheels, rockers, toggles or a micro joystick, all on a full-redundant contactless platform.
- Axes
- 2-axis full
- Output
- Analog / PWM / CAN
- Sealing
- IP67
Overview
Built for compact multi-function command.
Highlights
- Up to 5 million lifetime cycles
- ±20° self-centering operating angle
- Modular front-panel control layout
- Analog, PWM and CAN output options
- IP67 ingress protection
- Supply 5V or 8-32V
Specifications
- Sensing principle
- Contactless hall-effect
- Actuation
- 2-axis full
- Operating angle
- ±20° (self-centering)
- Supply voltage
- 5V or 8-32V
- Supply current
- 30 mA typical (no load)
- Output
- Analog voltage / PWM / CAN (J1939 / CANopen)
- Redundancy
- Full redundant
- Connectors
- Deutsch 8-pin / Tyco 18-pin
- Ingress protection
- IP67
- Lifetime
- Up to 5 million cycles
- Operating temperature
- -40°C … +85°C

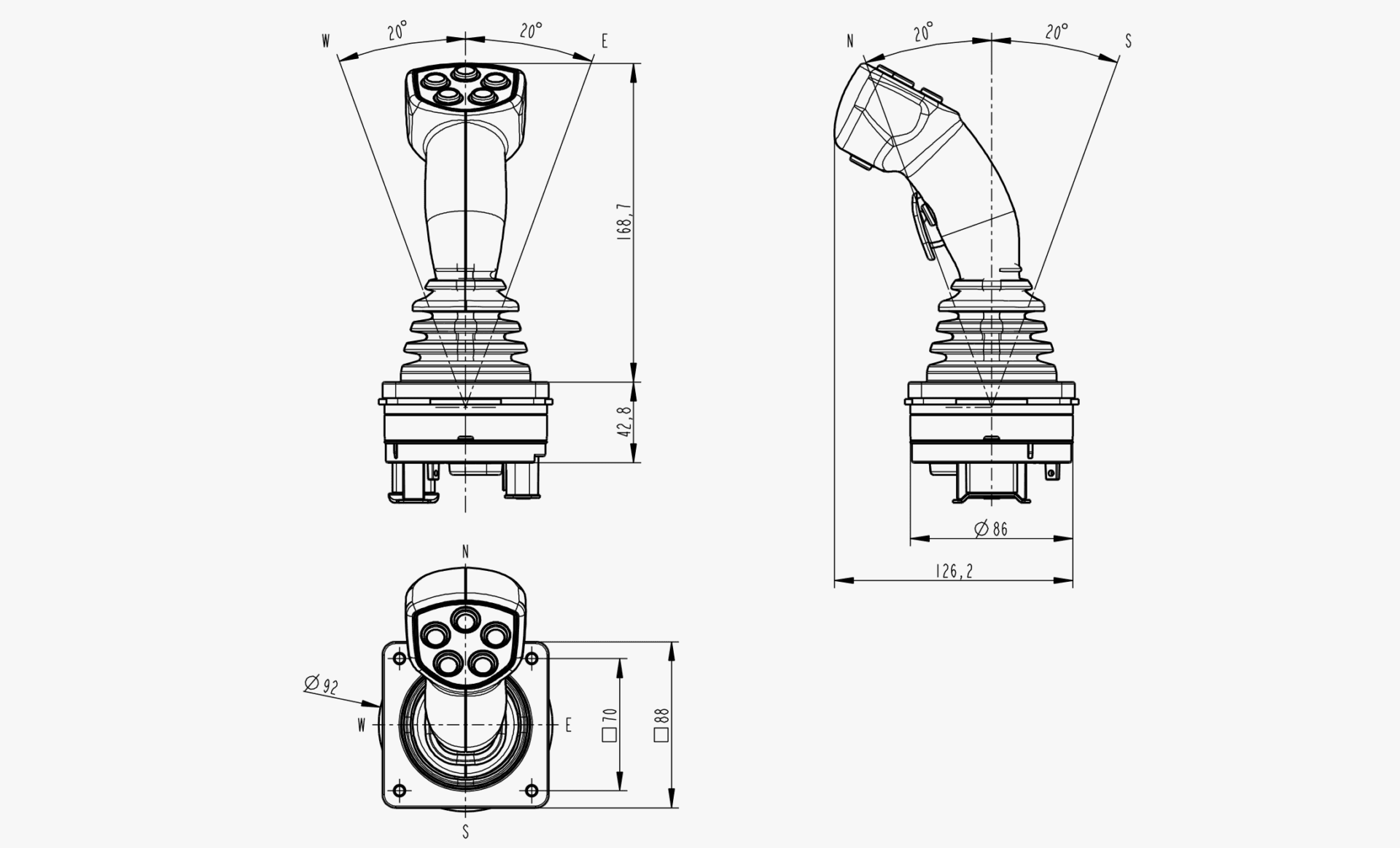

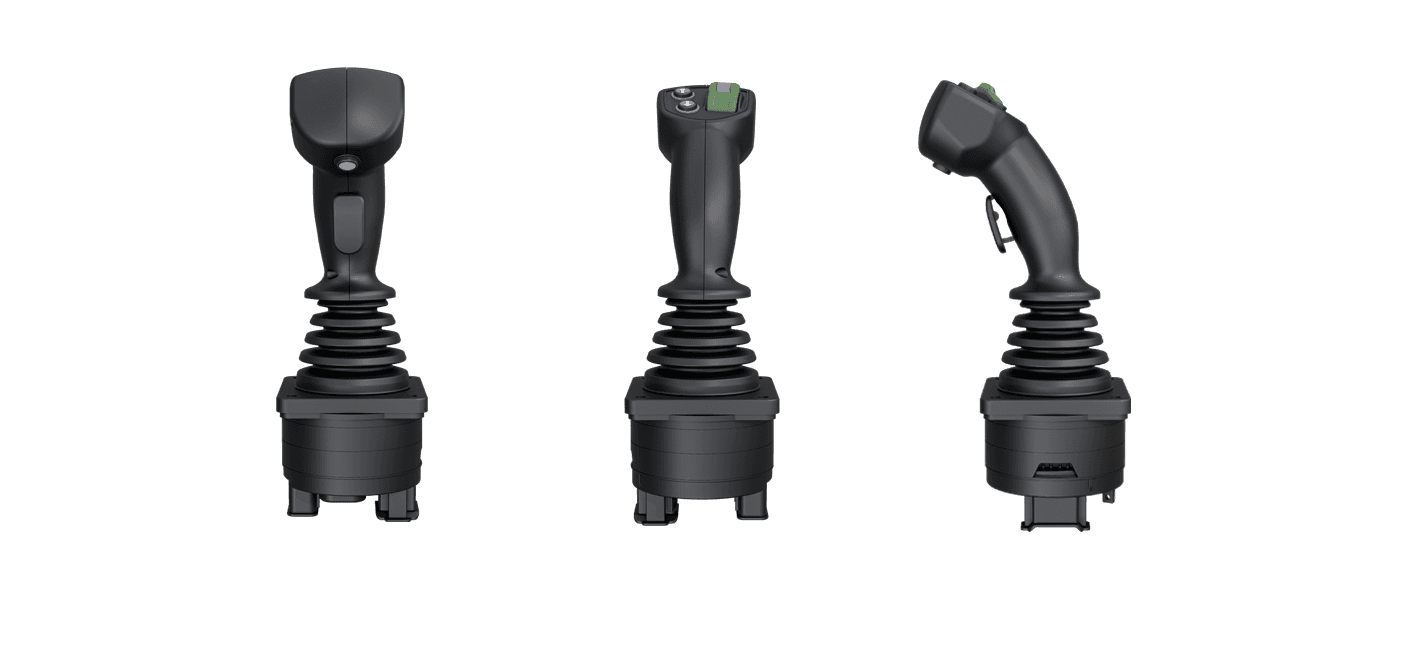

Engineering views
Drag to browse · click to enlarge

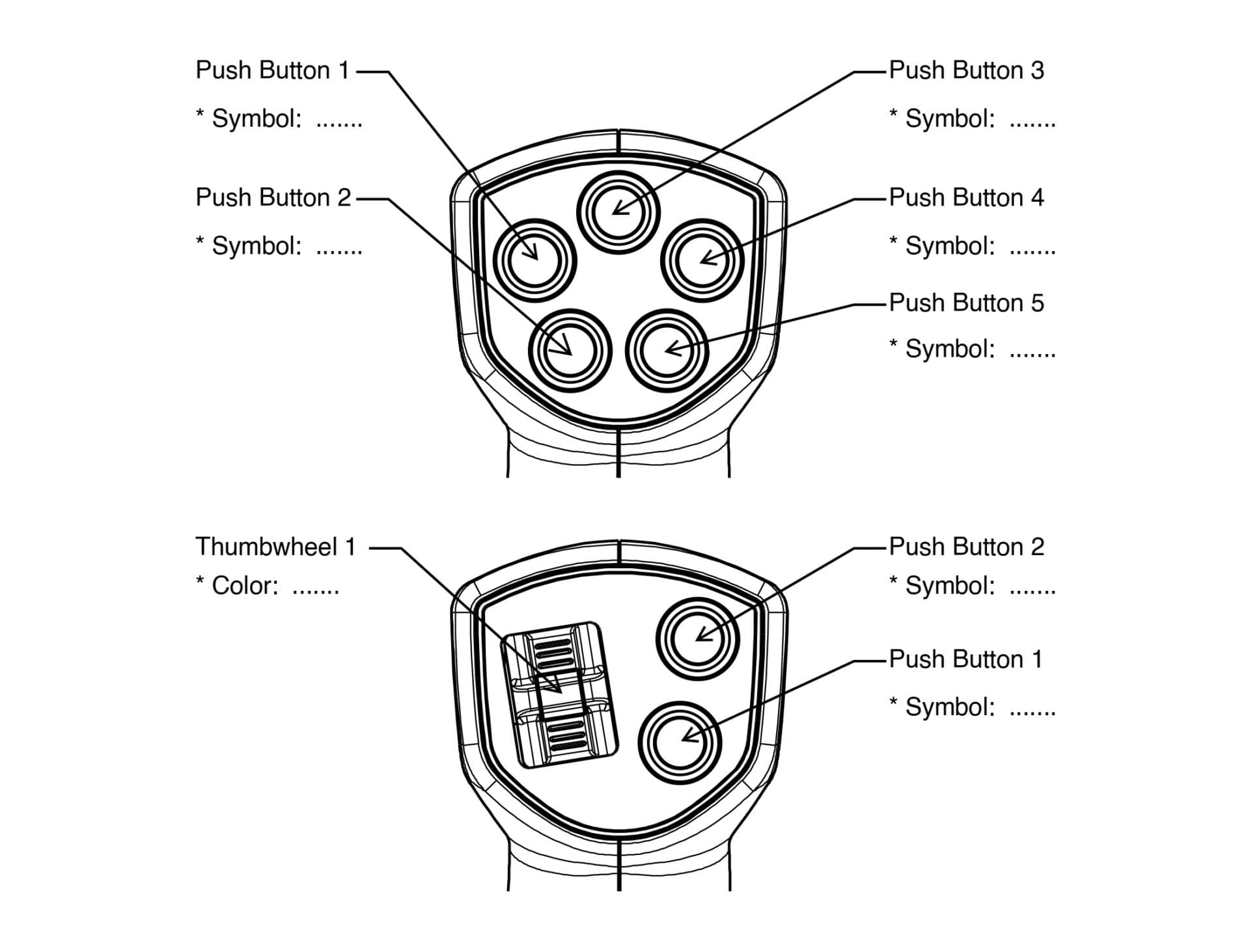

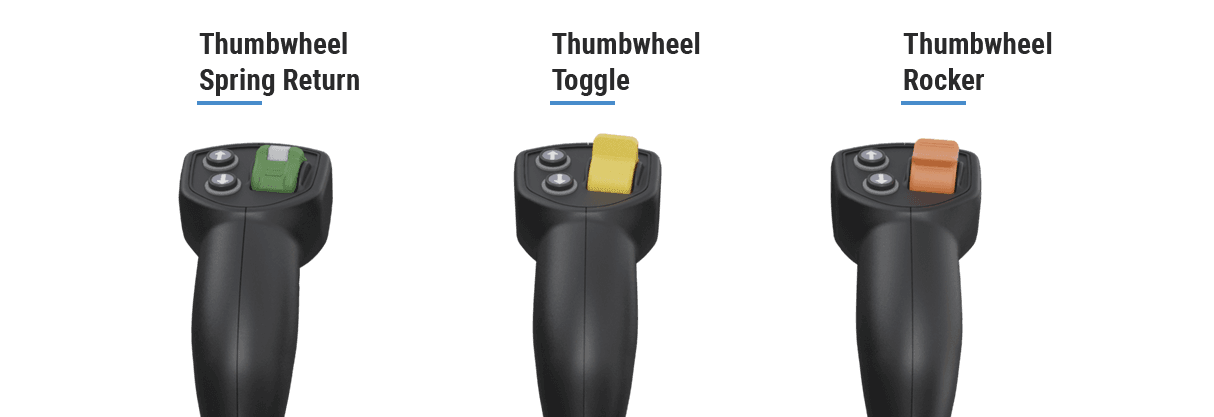

Order Code
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 391&387
- H1X
- X
- PXXX
- X
- XX
X stands for the digits you pick from the table.

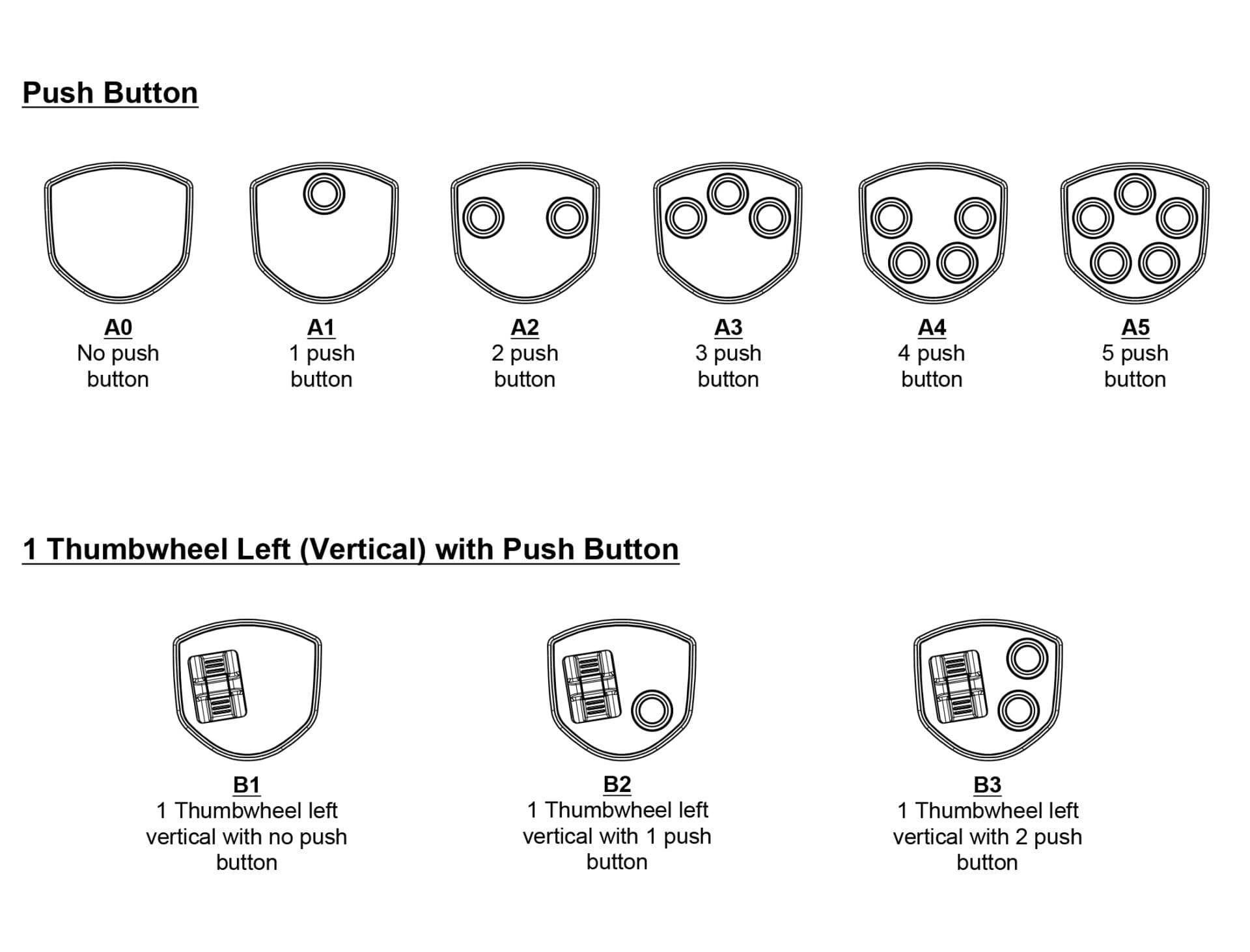

MO 391&387 | H1X Hardware | X Axis of Actuation | PXXX Program | X Rear | XX Front Panel |
|---|---|---|---|---|---|
| H10 - S:5V ; O:0-5V Analog Voltage or PWM Output | 0 - 2 Axis Full | P001 - Dual Cross | 0 - Without Button - Presence Det. Switch | A0 - No push button | |
| H11 - S:5V ; O:0-32V PWM Low Side Output | * | 1 - With Button - Without Presence Det. Switch | A1 - 1 Push Button | ||
| H12 - S:8-32V ; O:0-5V Analog Voltage or PWM Output | 2 - Without Button-With Presence Det. Switch | A2 - 2 Push Buttons | |||
| H13 - S:8-32V ; O:0-32V PWM Low Side Output | 3 - With Button - Presence Det. Switch | A3 - 3 Push Buttons | |||
| H14 - S:12-32V ; O:0-10V Analog Voltage Output | A4 - 4 Push Buttons | ||||
| H15 - S:12-32V ; O:4-20mA Analog Current Output | A5 - 5 Push Buttons | ||||
| H16 - S:8-18V ; O:8-18V PWM or ON/OFF High Side Output (1.5A/Ch) | B1 - 1 Thumbwheel Left Vertical with No Push Button | ||||
| H17 - S:8-32V ; O:8-32V PWM or ON/OFF High Side Output (1.5A/Ch) | B2 - 1 Thumbwheel Left Vertical with 1 Push Button | ||||
| H18 - S:8-18V ; O:0-5V Analog Voltage Output with Neutral Position (1.5A/Ch) and Direction High Side Outputs (1.5A/Ch) | B3 - 1 Thumbwheel Left Vertical with 2 Push Buttons | ||||
| H19 - S:8-32V ; O:0-5V Analog Voltage Output with Neutral Position (1.5A/Ch) and Direction High Side Outputs (1.5A/Ch) | B4 - 1 Rocker Left Vertical with No Push Button | ||||
| * | B5 - 1 Rocker Left Vertical with 1 Push Button | ||||
| B6 - 1 Rocker Left Vertical with 2 Push Buttons | |||||
| B7 - 1 Toggle Left Vertical with No Push Button | |||||
| B8 - 1 Toggle Left Vertical with 1 Push Button | |||||
| B9 - 1 Toggle Left Vertical with 2 Push Buttons | |||||
| C1 - 1 Thumbwheel Right Vertical with No Push Button | |||||
| C2 - 1 Thumbwheel Right Vertical with 1 Push Button | |||||
| C3 - 1 Thumbwheel Right Vertical with 2 Push Buttons | |||||
| C4 - 1 Rocker Right Vertical with No Push Button | |||||
| C5 - 1 Rocker Right Vertical with 1 Push Button | |||||
| C6 - 1 Rocker Right Vertical with 2 Push Buttons | |||||
| C7 - 1 Toggle Right Vertical with No Push Button | |||||
| C8 - 1 Toggle Right Vertical with 1 Push Button | |||||
| C9 - 1 Toggle Right Vertical with 2 Push Buttons | |||||
| D1 - 1 Thumbwheel Horizontal with No Push Button | |||||
| D2 - 1 Thumbwheel Horizontal with 1 Push Button | |||||
| D3 - 1 Thumbwheel Horizontal with 2 Push Buttons | |||||
| D4 - 1 Rocker Horizontal with No Push Button | |||||
| D5 - 1 Rocker Horizontal with 1 Push Button | |||||
| D6 - 1 Rocker Horizontal with 2 Push Buttons | |||||
| D7 - 1 Toggle Horizontal with No Push Button | |||||
| D8 - 1 Toggle Horizontal with 1 Push Button | |||||
| D9 - 1 Toggle Horizontal with 2 Push Buttons | |||||
| E1 - Thumbwheel / Thumbwheel | |||||
| E2 - Thumbwheel / Rocker | |||||
| E3 - Thumbwheel / Toggle | |||||
| E4 - Rocker / Thumbwheel | |||||
| E5 - Rocker / Rocker | |||||
| E6 - Rocker / Toggle | |||||
| E7 - Toggle / Thumbwheel | |||||
| E8 - Toggle / Rocker | |||||
| E9 - Toggle / Toggle | |||||
| F1 - 1 Micro Joystick | |||||
| G1 - 1 Micro Joystick Left with 1 Push Button | |||||
| G2 - 1 Micro Joystick Left with 2 Push Buttons | |||||
| H1 - 1 Micro Joystick Right with 1 Push Button | |||||
| H2 - 1 Micro Joystick Right with 2 Push Buttons |
* Available upon request with minimum order quantity.
Example:
- MO 391&387
- H10
- 0
- P01
- 1
- A0 Joystick Base Analog, Supply 5V, Output 0-5V, 2 Axis Full Actuation, Dual Cross Program, No push button
- MO 391&387
- H20
- SXX
- X
- X
- PXXX
- X
- XX
X stands for the digits you pick from the table.
MO 391&387 - H20 | SXX CAN Protocol | X Node ID (J1939 - CANopen) | X Axis of Actuation | PXXX Program | X Rear | XX Front Panel |
|---|---|---|---|---|---|---|
| S10 - SAE J1939 | A - 128(80h) - 4(04h) | 0 - 2 Axis Full | P001 - Dual Cross | 0 - Without Button and Present Det. Switch | A0 - No push button | |
| S11 - CANopen | B - 129(81h) - 5(05h) | * | 1 - With Button - Without Present Det. Switch | A1 - 1 push button | ||
| * | C - 130(82h) - 6(06h) | 2 - Without Button-With Present Det. Switch | A2 - 2 push button | |||
| 3 - With Button and Present Det. Switch | A3 - 3 push button | |||||
| A4 - 4 push button | ||||||
| A5 - 5 push button | ||||||
| B1 - 1 Thumbwheel left vertical with no push button | ||||||
| B2 - 1 Thumbwheel left vertical with 1 push button | ||||||
| B3 - 1 Thumbwheel left vertical with 2 push button | ||||||
| B4 - 1 Rocker left vertical with no push button | ||||||
| B5 - 1 Rocker left vertical with 1 push button | ||||||
| B6 - 1 Rocker left vertical with 2 push button | ||||||
| B7 - 1 Toggle left vertical with no push button | ||||||
| B8 - 1 Toggle left vertical with 1 push button | ||||||
| B9 - 1 Toggle left vertical with 2 push button | ||||||
| C1 - 1 Thumbwheel right vertical with no push button | ||||||
| C2 - 1 Thumbwheel right vertical with 1 push button | ||||||
| C3 - 1 Thumbwheel right vertical with 2 push button | ||||||
| C4 - 1 Rocker right vertical with no push button | ||||||
| C5 - 1 Rocker right vertical with 1 push button | ||||||
| C6 - 1 Rocker right vertical with 2 push button | ||||||
| C7 - 1 Toggle right vertical with no push button | ||||||
| C8 - 1 Toggle right vertical with 1 push button | ||||||
| C9 - 1 Toggle right vertical with 2 push button | ||||||
| D1 - 1 Thumbwheel horizontal with no push button | ||||||
| D2 - 1 Thumbwheel horizontal with 1 push button | ||||||
| D3 - 1 Thumbwheel horizontal with 2 push button | ||||||
| D4 - 1 Rocker horizontal with no push button | ||||||
| D5 - 1 Rocker horizontal with 1 push button | ||||||
| D6 - 1 Rocker horizontal with 2 push button | ||||||
| D7 - 1 Toggle horizontal with no push button | ||||||
| D8 - 1 Toggle horizontal with 1 push button | ||||||
| D9 - 1 Toggle horizontal with 2 push button | ||||||
| E1 - Thumbwheel / Thumbwheel | ||||||
| E2 - Thumbwheel / Rocker | ||||||
| E3 - Thumbwheel / Toggle | ||||||
| E4 - Rocker / Thumbwheel | ||||||
| E5 - Rocker / Rocker | ||||||
| E6 - Rocker / Toggle | ||||||
| E7 - Toggle / Thumbwheel | ||||||
| E8 - Toggle / Rocker | ||||||
| E9 - Toggle / Toggle | ||||||
| F1 - 1 Micro Joystick | ||||||
| G1 - 1 Micro Joystick left with 1 push button | ||||||
| G2 - 1 Micro Joystick left with 2 push button | ||||||
| H1 - 1 Micro Joystick right with 1 push button | ||||||
| H2 - 1 Micro Joystick right with 2 push button |
* Available upon request with minimum order quantity.
Example:
- MO 391&387
- H20
- S10
- A
- 0
- P01
- 1
- A0 Joystick Base CAN, SAE J1939, Node ID of 128(80h), 2 Axis Full Actuation, Dual Cross Program, No push button
