MO 395
Mini Joystick · Panel-mount mini joystick with safety double sensor per axis
The MO 395 is a compact mini joystick for armrests and control panels, with contactless hall-effect sensing and a safety double sensor output per axis. Single-axis, 2-axis and Z-axis options ship with analog, PWM, CAN or USB outputs.
- Axes
- 1 / 2 / Z-axis
- Output
- Analog / PWM / CAN / USB
- Sealing
- IP65
Built for fingertip multi-axis control on armrests.
Highlights
- Safety double sensor output per axis
- Up to 5 million cycles (no detent)
- Z-axis and 3-position detent grip options
- Analog / PWM / CAN / USB output range
- IP65 from top to mounting plate
- Supply 5V or 8-32V (by variant)
Specifications
- Sensing principle
- Contactless hall-effect (double sensor per axis)
- Axes
- 1 / 2 (plus, square) / Z-axis
- Operating angle
- ±20° main · ±45° Z-axis · ±20° detent
- Supply voltage
- 5V or 8-32V (by hardware variant)
- Output
- Analog / PWM / CAN J1939 / CANopen / USB
- Redundancy
- Full redundant; Z-axis / detent options
- Connectors
- Hirose 12-pin (Deutsch DTM04-4P optional)
- Ingress protection
- IP65 (top to mounting plate)
- Lifetime
- 5M (no detent) · 2M (Z-axis) · 500k (Z detent)
- Operating temperature
- -40°C … +85°C

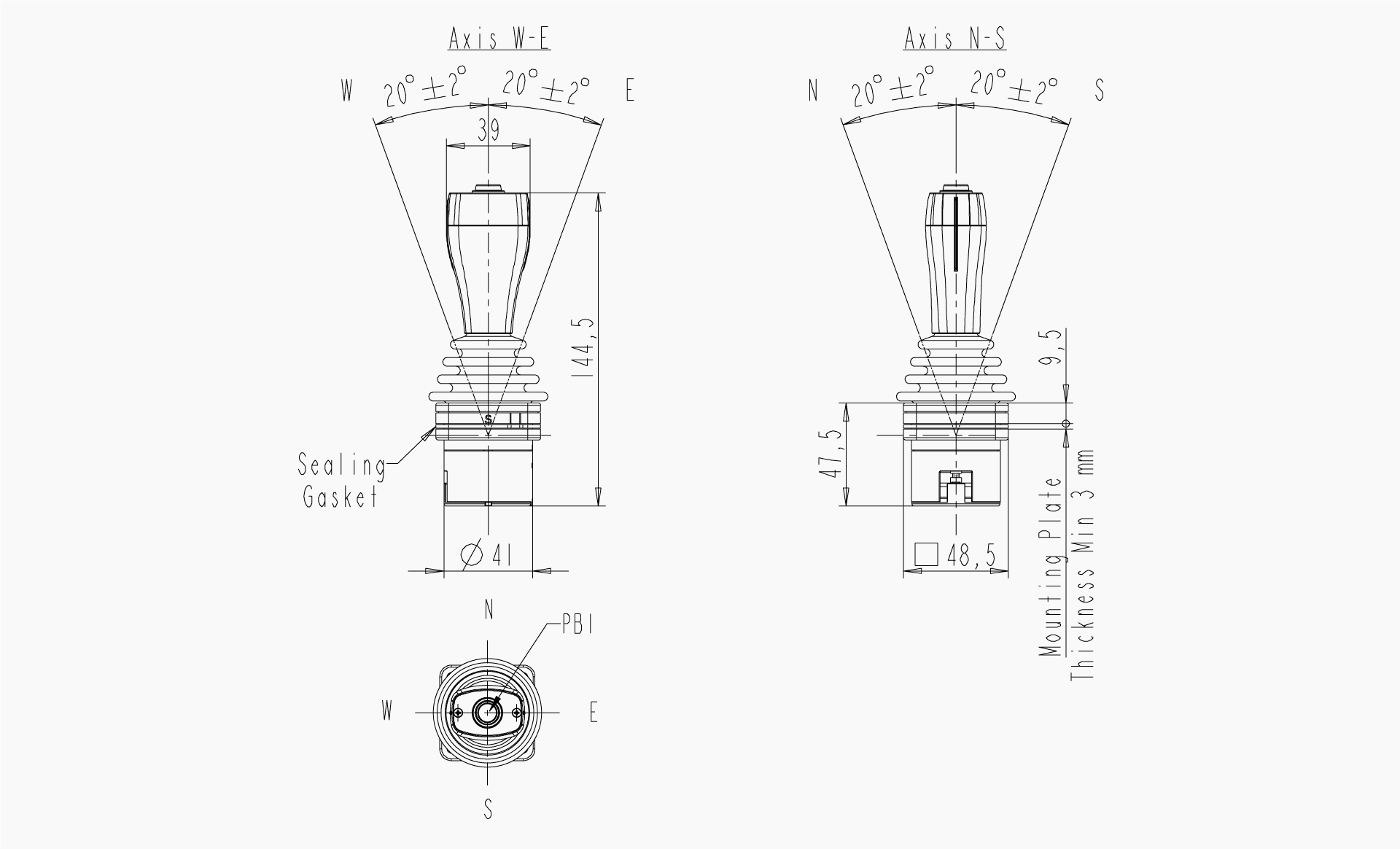

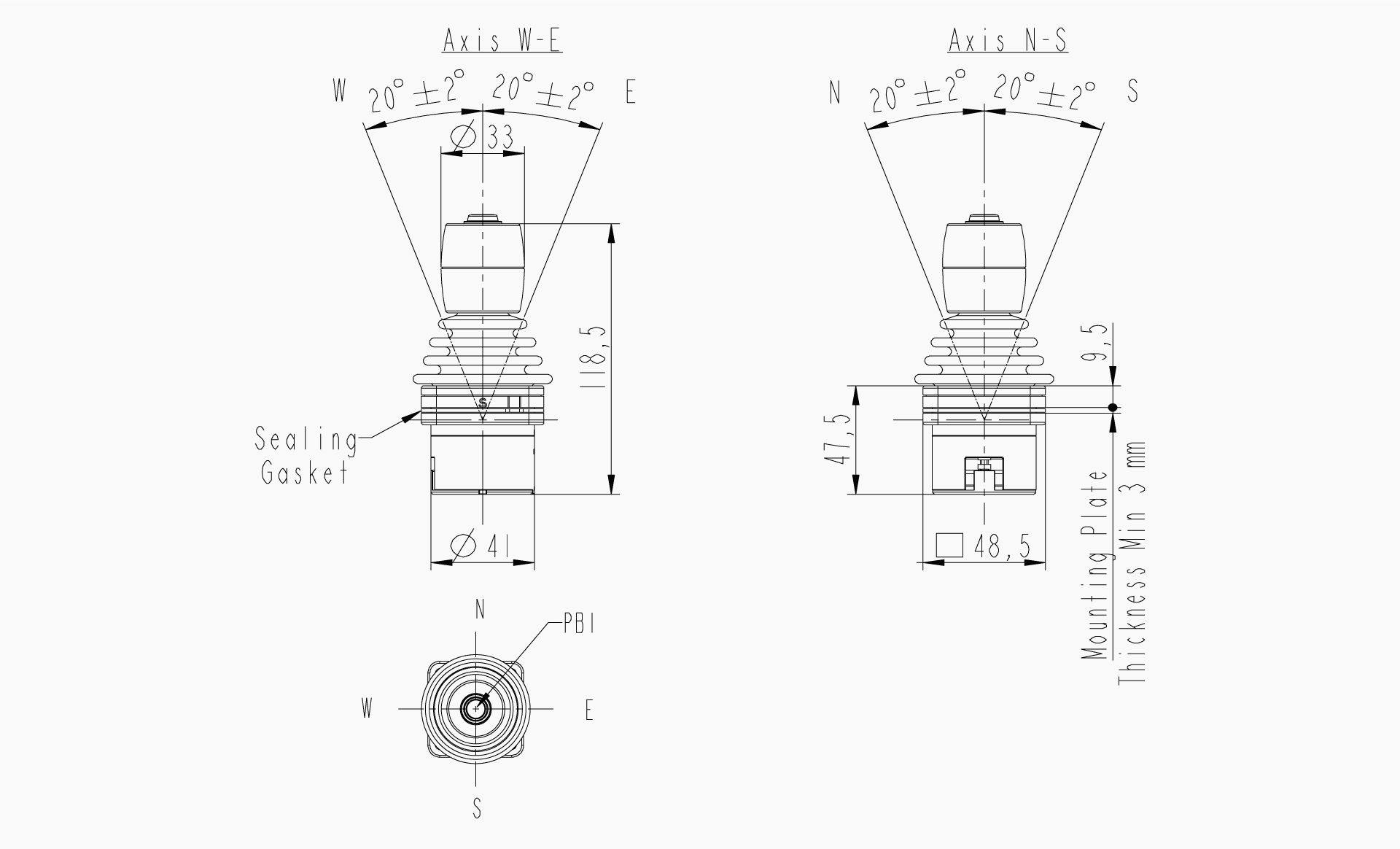

Drag to browse · click to enlarge
Build the order code from its segments
Pick one option from each column of the table and join them with dashes — the result is the code to quote when you order.
- MO 395
- H1X
- X
- X
- XX
- PXXX
- XX
X stands for the digits you pick from the table.
MO 395 | H1X Hardware | X Axis of Actuation | X Elec. Connection | XX Grip | PXXX Program | XX Button Voltage |
|---|---|---|---|---|---|---|

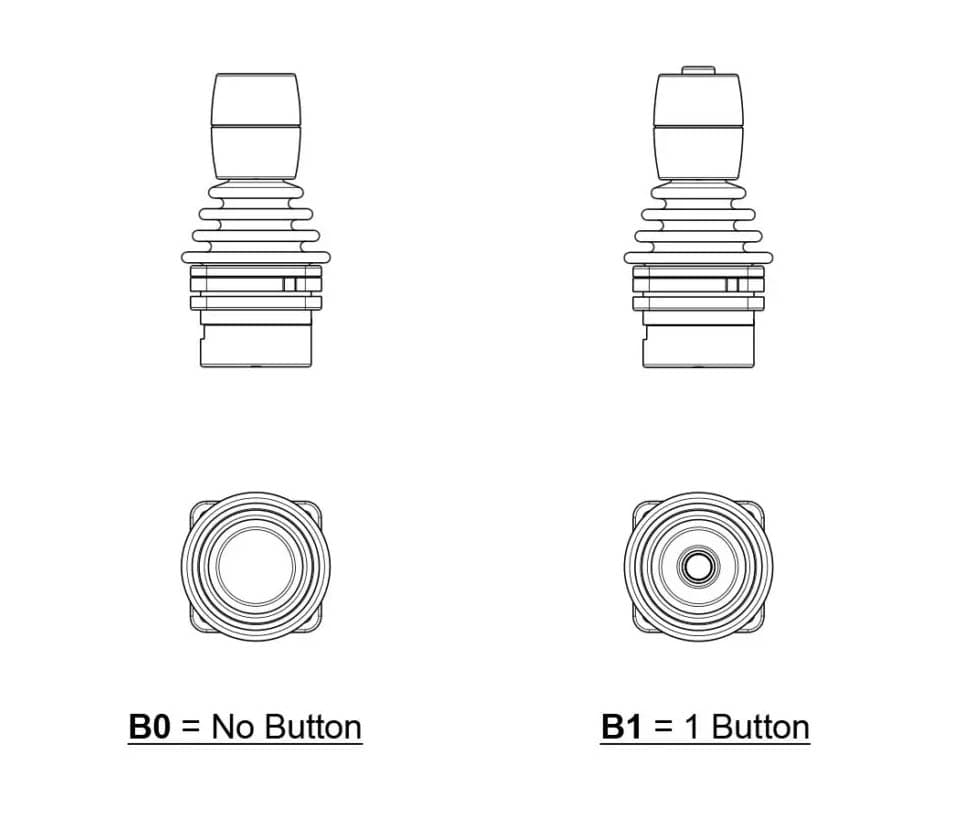

| H10 - S:5V ; O:0-5V Full Redundant | 0 - 2 Axis Full | 0 - Hirose Conn 12 Pos | B0 - 388B No Button | *See the output signal diagrams | 00 - Mechanic Switch | |
| H11 - S:8-32V ; O:0-5V Full Redundant | 1 - 2 Axis Plus | B1 - 388B 1 Button | 05 - 5V Push Button | |||

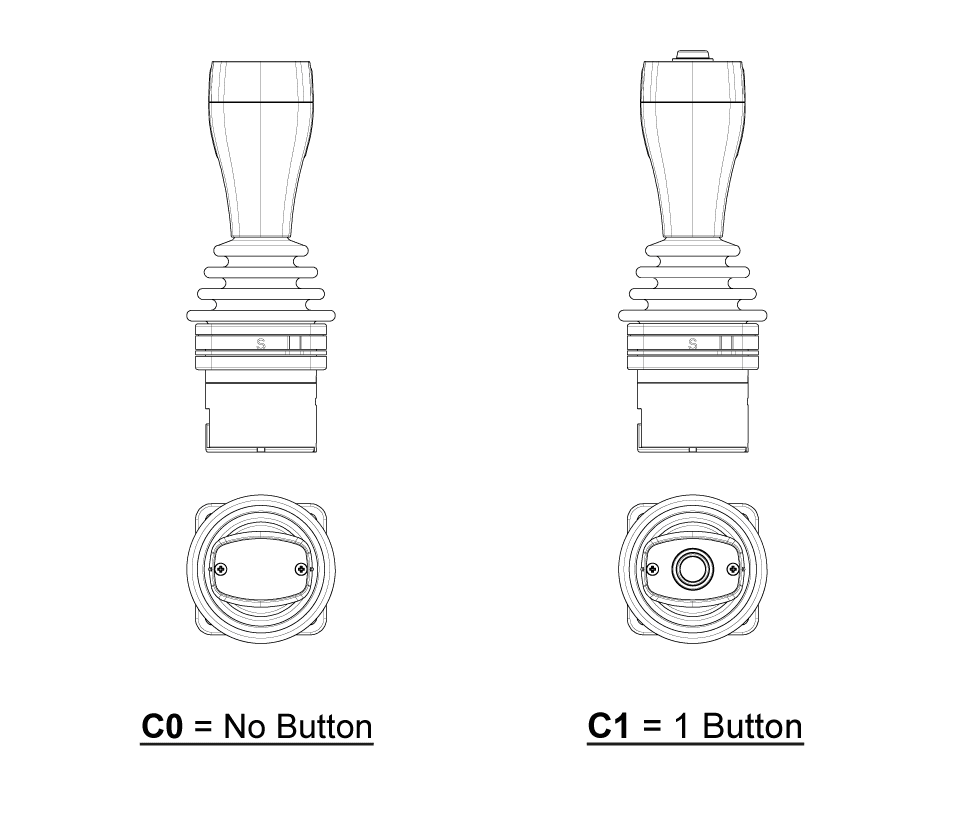

| H12 - S:5V ; O:0-32V PWM Low Side Full Redundant | 2 - Single Axis WE | C0 - 388C No Button | 12 - 12V Push Button | |||
| H13 - S:8-32V ; O:0-32V PWM Low Side Full Redundant | 3 - Single Axis SN | C1 - 388C 1 Button | 24 - 24V Push Button | |||

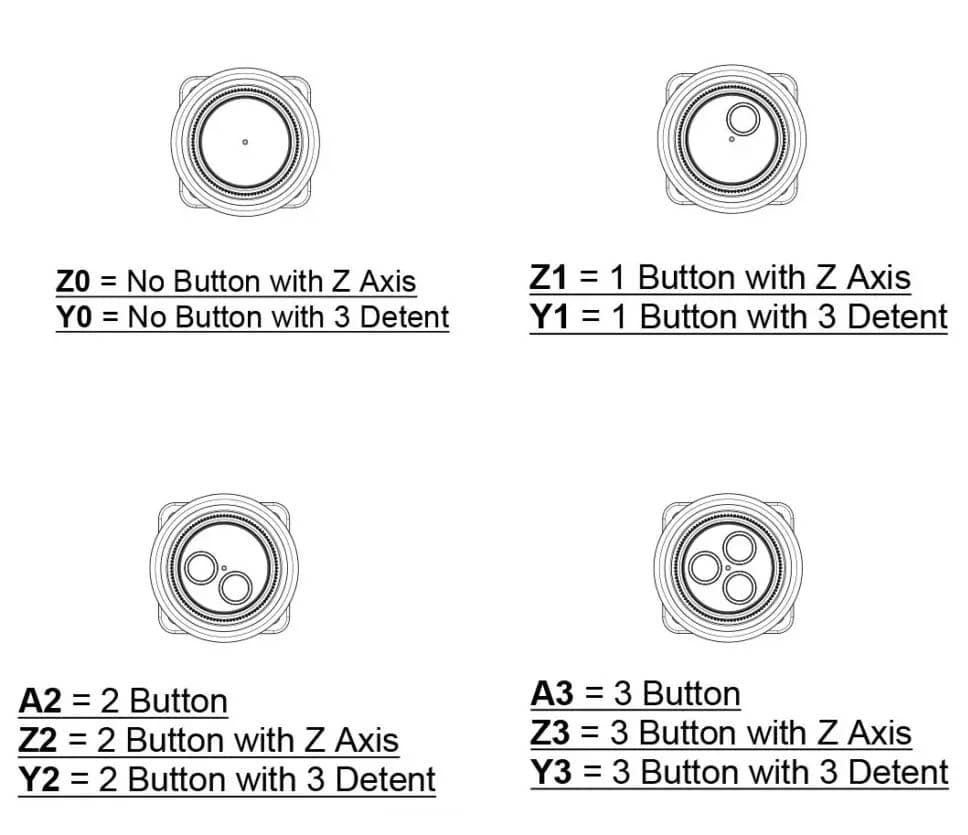

| H14 - S:8-32V ; O:8-32V PWM High Side Full Redundant | A2 - 388 Grip with 2 Button | 1W - 5-24V Push Button without LED | ||||
| H15 - S:5V ; O:0-5V with Z Axis Redundant | A3 - 388 Grip with 3 button | *00 is not available for B1 or C1 Grip option. | ||||
| H16 - S:8-32V ; O: 0-5V with Z Axis Redundant | Z0 - 388 Grip No Button with Z Axis | |||||
| H17 - S:5V ; O:0-32V PWM Low Side with Z Axis Redundant | Z1 - 388 Grip 1 Button with Z Axis | |||||
| H18 - S:8-32V ; O:0-32V PWM Low Side with Z Axis Redundant | Z2 - 388 Grip 2 Button with Z Axis | |||||
| H19 - S:8-32V; O:8-32V PWM High Side with Z Axis Redundant | Z3 - 388 Grip 3 Button with Z Axis | |||||
| * | Y0 - 388 Grip No Button with 3 Detent | |||||
| Y1 - 388 Grip 1 Button with 3 Detent | ||||||
| Y2 - 388 Grip 2 Button with 3 Detent | ||||||
| Y3 - 388 Grip 3 Button with 3 Detent | ||||||
| ** |
* For H10 to H14, Z axis and Detent not available.
** For B1 and C1 Grip options, Switch Common (SWC) should be connected to Supply Voltage and Switch1 (SW1) will be output of switch.
- MO 395
- H10
- 0
- 0
- B0
- P001
- 05 Mini Joystick Analog, S:5V ; O:0-5V, 2 Axis Full, with Hirose Connector 12 position, 388B Grip with No Button, P001, 5V Push Button Voltage
- MO 395
- H2X
- S1X
- X
- X
- X
- XX
X stands for the digits you pick from the table.
MO 395 | H2X - S1X Hardware | X Node ID (J1939 - CANopen) | X Axis of Actuation | X Elec. Connection | XX Grip |
|---|---|---|---|---|---|
| 395.H20.S10 - S:8-32V ; O: CAN J1939 | A - 134(86h) - 10(0Ah) | 0 - 2 Axis Full | 0 - Hirose Conn 12 Pos | B0 - 388B No Button | |
| 395.H20.S11 - S:8-32V ; O: CANopen | B - 135(87h) - 11(0Bh) | 1 - 2 Axis Plus | 3 - Deutsch DTM04-4P | B1 - 388B 1 Button | |
| C - 136(88h) - 12(0Ch) | 2 - Single Axis WE | * | C0 - 388C No Button | ||
| 3 - Single Axis SN | C1 - 388C 1 Button | ||||
| A2 - 388 Grip with 2 Button | |||||
| A3 - 388 Grip with 3 button | |||||
| Z0 - 388 Grip No Button with Z Axis | |||||
| Z1 - 388 Grip 1 Button with Z Axis | |||||
| Z2 - 388 Grip 2 Button with Z Axis | |||||
| Z3 - 388 Grip 3 Button with Z Axis | |||||
| Y0 - 388 Grip No Button with 3 Detent | |||||
| Y1 - 388 Grip 1 Button with 3 Detent | |||||
| Y2 - 388 Grip 2 Button with 3 Detent | |||||
| Y3 - 388 Grip 3 Button with 3 Detent |
* Hirose connector is standard, other cable connections are available upon request with minimum order quantity.
- MO 395
- H20
- S10
- A
- 0
- 0
- B0 Mini Joystick CAN, CAN J1939, Node ID 134(86h), 2 Axis Full, with Hirose Connector, 388B Grip with No Button
- MO 395
- H3X
- S1X
- X
- X
- XX
X stands for the digits you pick from the table.
MO 395 | H3X - S1X Hardware | X Axis of Actuation | X Elec. Connection | XX Grip |
|---|---|---|---|---|
| 395.H30.S10 - S:5V ; O: USB Joystick | 0 - 2 Axis Full | 0 - Hirose USB Mini B | B0 - 388B No Button | |
| 395.H30.S11 - S:5V ; O: USB Mouse | 1 - 2 Axis Plus | B1 - 388B 1 Button | ||
| * | 2 - Single Axis WE | C0 - 388C No Button | ||
| 3 - Single Axis SN | C1 - 388C 1 Button | |||
| A2 - 388 Grip with 2 Button | ||||
| A3 - 388 Grip with 3 button | ||||
| Z0 - 388 Grip No Button with Z Axis | ||||
| Z1 - 388 Grip 1 Button with Z Axis | ||||
| Z2 - 388 Grip 2 Button with Z Axis | ||||
| Z3 - 388 Grip 3 Button with Z Axis | ||||
| Y0 - 388 Grip No Button with 3 Detent | ||||
| Y1 - 388 Grip 1 Button with 3 Detent | ||||
| Y2 - 388 Grip 2 Button with 3 Detent | ||||
| Y3 - 388 Grip 3 Button with 3 Detent |
* Available upon request with minimum order quantity.
- MO 395
- H30
- S10
- 0
- 0
- B0 Mini Joystick with USB Joystick (Game Controller) Protocol, 2 Axis Full, USB Mini B connector, 388B Grip with No Button
- MO 395
- H4X
- X
- X
- XX
- XX
X stands for the digits you pick from the table.
MO 395 | H4X Hardware | X Axis of Actuation | X Elec. Connection | XX Grip | XX Button Voltage |
|---|---|---|---|---|---|
| 395.H40 - S:8-32V ; O: 8-32V PWM High Side 2A/ch | 0 - 2 Axis Full | 0 - Hirose Conn 12 Pos | B0 - 388B No Button | 12 - 12V Push Button | |
| * | 1 - 2 Axis Plus | B1 - 388B 1 Button | 24 - 24V Push Button | ||
| 2 - Single Axis WE | C0 - 388C No Button | 1W - 5-24V Push Button without LED | |||
| 3 - Single Axis SN | C1 - 388C 1 Button | ||||
| ** |
* Available upon request with minimum order quantity.
** For B1 and C1 Grip options, Switch Common (SWC) should be connected to Supply Voltage and Switch1 (SW1) will be output of switch.
- MO 395
- H40
- 0
- 0
- B0
- 12 Mini Joystick Power, 2 Axis Full, with Hirose Connector 12 position, 388B Grip with No Button, 12V Push Button Voltage
Tell our engineering team about your machine platform, function map and bus protocol. We'll match the grip, switch layout, axis count and output configuration to your operator workflow.
